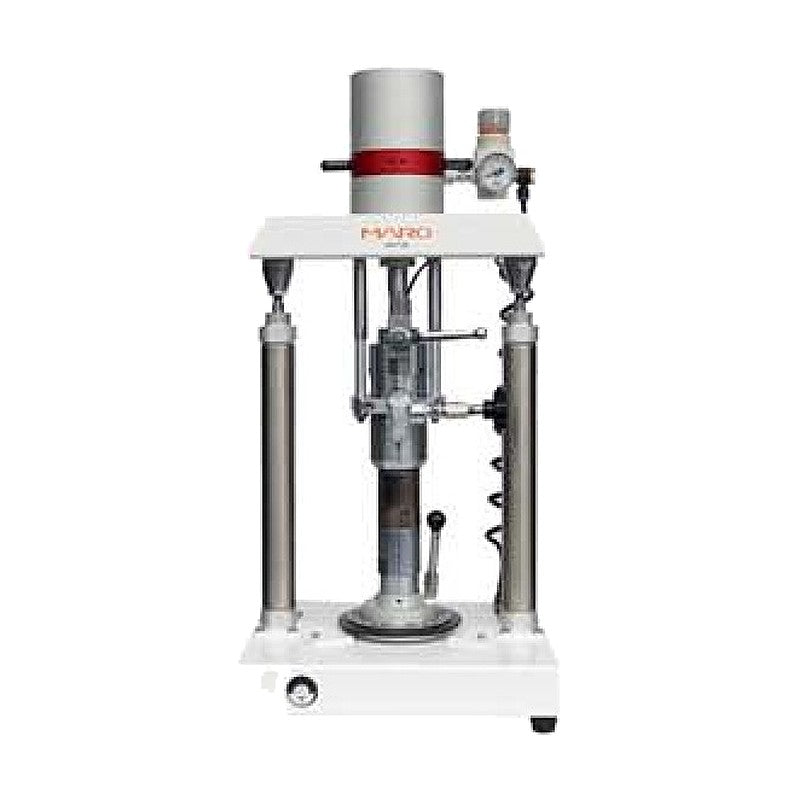

Maro Engineering MFP63 Fluid Transfer Pump

Maro Engineering MFP63 Fluid Transfer Pump

Double-acting air-driven high-pressure fluid pumps for 1-20 L containers, on single-cylinder (SDR, GDR) or dual-rod (CDRL) elevators.

Key features

  • Double-acting pump with best-in-class pressure ratio and output for its size
  • Pressure plunger detaches from the front without disassembling the pump
  • Front dial rotary valve (patented) controls up, down, neutral and can separation (GDR, CDRL)
  • Optional single-acting external control for pulsation-free bead and rotary coating
  • CDRL dual-rod elevator suits high-viscosity sealants

Specifications

Operating air pressure 0.1-0.6 MPa
Packing V-packing or quad-ring
Wetted parts (grease) Steel, Teflon, PEEK, NBR
Wetted parts (sealant) Steel, PTFE, UHMWPE, silicone
Noise 60 dB (1 m)
Weight 12 kg
Containers SDR 1-5 L; GDR/CDRL 5-20 L
MFP63-10-SDR Elevator: Small single air cylinder | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Flow at 60 cycles/min: 1.32 L/min | Output per stroke: 0.011 L
MFP63-20-SDR Elevator: Small single air cylinder | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Flow at 60 cycles/min: 0.96 L/min | Output per stroke: 0.008 L
MFP63-40-SDR Elevator: Small single air cylinder | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Flow at 60 cycles/min: 0.45 L/min | Output per stroke: 0.004 L
MFP63-10-GDR Elevator: Single air cylinder | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Flow at 60 cycles/min: 1.32 L/min | Output per stroke: 0.011 L
MFP63-20-GDR Elevator: Single air cylinder | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Flow at 60 cycles/min: 0.96 L/min | Output per stroke: 0.008 L
MFP63-40-GDR Elevator: Single air cylinder | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Flow at 60 cycles/min: 0.45 L/min | Output per stroke: 0.004 L
MFP63-10-CDRL Elevator: Dual rod | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Flow at 60 cycles/min: 1.32 L/min | Output per stroke: 0.011 L
MFP63-20-CDRL Elevator: Dual rod | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Flow at 60 cycles/min: 0.96 L/min | Output per stroke: 0.008 L
MFP63-40-CDRL Elevator: Dual rod | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Flow at 60 cycles/min: 0.45 L/min | Output per stroke: 0.004 L
Dispensing PumpsMaro Engineering
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Maro Engineering MFP63 Fluid Transfer Pump

Brand Maro Engineering·Dispensing Pumps

Available part numbers (9)

MFP63-10-SDR, MFP63-20-SDR, MFP63-40-SDR, MFP63-10-GDR, MFP63-20-GDR, MFP63-40-GDR, MFP63-10-CDRL, MFP63-20-CDRL, MFP63-40-CDRL

How to order

Send the Maro Engineering part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MFP63-10-SDRElevator: Small single air cylinder | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Flow at 60 cycles/min: 1.32 L/min | Output per stroke: 0.011 L
MFP63-20-SDRElevator: Small single air cylinder | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Flow at 60 cycles/min: 0.96 L/min | Output per stroke: 0.008 L
MFP63-40-SDRElevator: Small single air cylinder | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Flow at 60 cycles/min: 0.45 L/min | Output per stroke: 0.004 L
MFP63-10-GDRElevator: Single air cylinder | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Flow at 60 cycles/min: 1.32 L/min | Output per stroke: 0.011 L
MFP63-20-GDRElevator: Single air cylinder | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Flow at 60 cycles/min: 0.96 L/min | Output per stroke: 0.008 L
MFP63-40-GDRElevator: Single air cylinder | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Flow at 60 cycles/min: 0.45 L/min | Output per stroke: 0.004 L
MFP63-10-CDRLElevator: Dual rod | Pressure ratio: 10:1 | Max. pressure: 6.0 MPa | Output per cycle: 0.022 L | Flow at 60 cycles/min: 1.32 L/min | Output per stroke: 0.011 L
MFP63-20-CDRLElevator: Dual rod | Pressure ratio: 20:1 | Max. pressure: 12.0 MPa | Output per cycle: 0.016 L | Flow at 60 cycles/min: 0.96 L/min | Output per stroke: 0.008 L
MFP63-40-CDRLElevator: Dual rod | Pressure ratio: 40:1 | Max. pressure: 24.0 MPa | Output per cycle: 0.008 L | Flow at 60 cycles/min: 0.45 L/min | Output per stroke: 0.004 L
