• Maro Engineering MMV032 Metering Valve, 2-5 cc
1 1

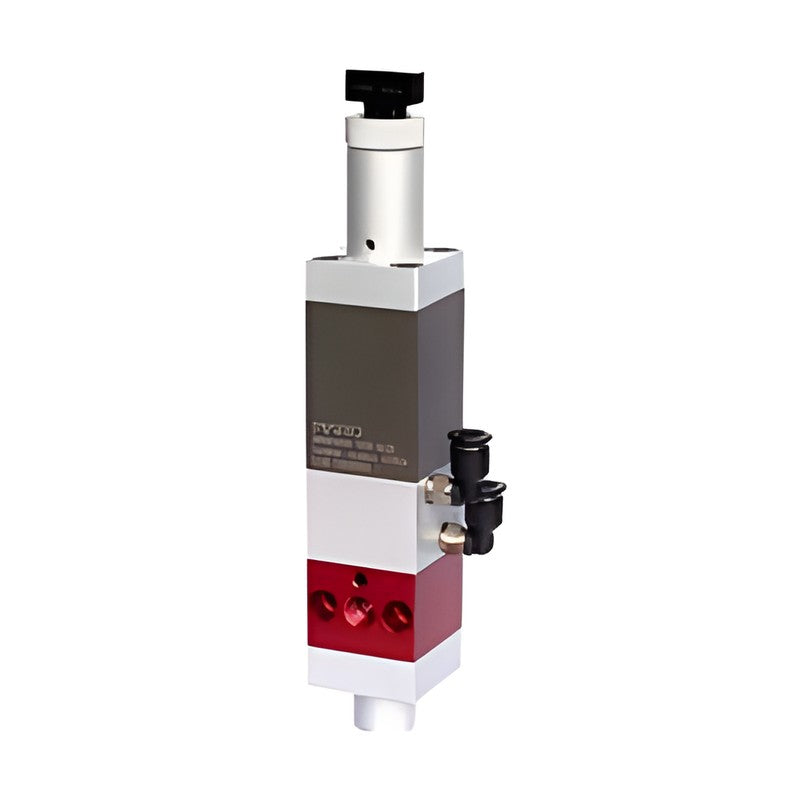

Maro Engineering MMV032 Metering Valve, 2-5 cc

Maro Engineering MMV032 Metering Valve, 2-5 cc

Compact volumetric spool metering valves discharging a precisely set volume of grease or oil per shot, in basic, sensor and digital-indicator versions.

Key features

  • Volumetric metering discharges the set volume precisely
  • Spool-type suck-back draws material back at the nozzle tip to prevent residual pressure and stringing after closing
  • Mounts directly without a bracket
  • LSI versions show valve operation in real time, with upper/lower tolerance setting, NG output and RS232C data logging

Specifications

Valve structure Spool
Applicable viscosity 1-500,000 cP / grease
Applicable fluids Grease, oil and other lubricating fluids
Operating air pressure 0.35-0.7 MPa
Port IN / OUT PT 1/8
MMV032-150-2CD Version: Basic | Discharge range: 0.05-2.0 cc | Material pressure: 5.0-15.0 MPa | Wetted parts: AL6061, PEEK, acetal, NBR | Weight: 450 g
MMV032-150-2CD-S Version: With auto switch | Discharge range: 0.05-2.0 cc | Material pressure: 5.0-15.0 MPa | Wetted parts: AL6061, PEEK, acetal, NBR | Auto switch: SMC D-F8N, 3-wire NPN, DC 4.5-24 V 10 mA | Weight: 460 g
MMV032-150-2CD-LSI Version: With LSI digital indicator | Discharge range: 0.05-2.0 cc | Discharge accuracy: ±0.025% | Material pressure: 5.0-15.0 MPa | Wetted parts: AL6061, PEEK, acetal, NBR | Display unit: 0.001 cc | Weight: 670 g
MMV032-250-5CD-LSI Version: With LSI digital indicator | Discharge range: 0.05-5.0 cc | Discharge accuracy: ±0.25% FS | Material pressure: 5.0-25.0 MPa | Viscosity: 1-1,000,000 cP | Wetted parts: SUS303, AL6061, PEEK, acetal, Teflon, NBR | Weight: 1,040 g
MMV032-250-5C-S Version: With auto switch | Discharge range: 0.05-5.0 cc | Discharge accuracy: ±0.25% FS | Material pressure: 5.0-25.0 MPa | Viscosity: 1-1,000,000 cP | Auto switch: SMC D-F8N, 3-wire NPN, DC 4.5-24 V 10 mA | Weight: 610 g
Dispensing ValvesMaro Engineering
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Maro Engineering MMV032 Metering Valve, 2-5 cc

Brand Maro Engineering·Dispensing Valves

Available part numbers (5)

MMV032-150-2CD, MMV032-150-2CD-S, MMV032-150-2CD-LSI, MMV032-250-5CD-LSI, MMV032-250-5C-S

How to order

Send the Maro Engineering part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMV032-150-2CDVersion: Basic | Discharge range: 0.05-2.0 cc | Material pressure: 5.0-15.0 MPa | Wetted parts: AL6061, PEEK, acetal, NBR | Weight: 450 g
MMV032-150-2CD-SVersion: With auto switch | Discharge range: 0.05-2.0 cc | Material pressure: 5.0-15.0 MPa | Wetted parts: AL6061, PEEK, acetal, NBR | Auto switch: SMC D-F8N, 3-wire NPN, DC 4.5-24 V 10 mA | Weight: 460 g
MMV032-150-2CD-LSIVersion: With LSI digital indicator | Discharge range: 0.05-2.0 cc | Discharge accuracy: ±0.025% | Material pressure: 5.0-15.0 MPa | Wetted parts: AL6061, PEEK, acetal, NBR | Display unit: 0.001 cc | Weight: 670 g
MMV032-250-5CD-LSIVersion: With LSI digital indicator | Discharge range: 0.05-5.0 cc | Discharge accuracy: ±0.25% FS | Material pressure: 5.0-25.0 MPa | Viscosity: 1-1,000,000 cP | Wetted parts: SUS303, AL6061, PEEK, acetal, Teflon, NBR | Weight: 1,040 g
MMV032-250-5C-SVersion: With auto switch | Discharge range: 0.05-5.0 cc | Discharge accuracy: ±0.25% FS | Material pressure: 5.0-25.0 MPa | Viscosity: 1-1,000,000 cP | Auto switch: SMC D-F8N, 3-wire NPN, DC 4.5-24 V 10 mA | Weight: 610 g
