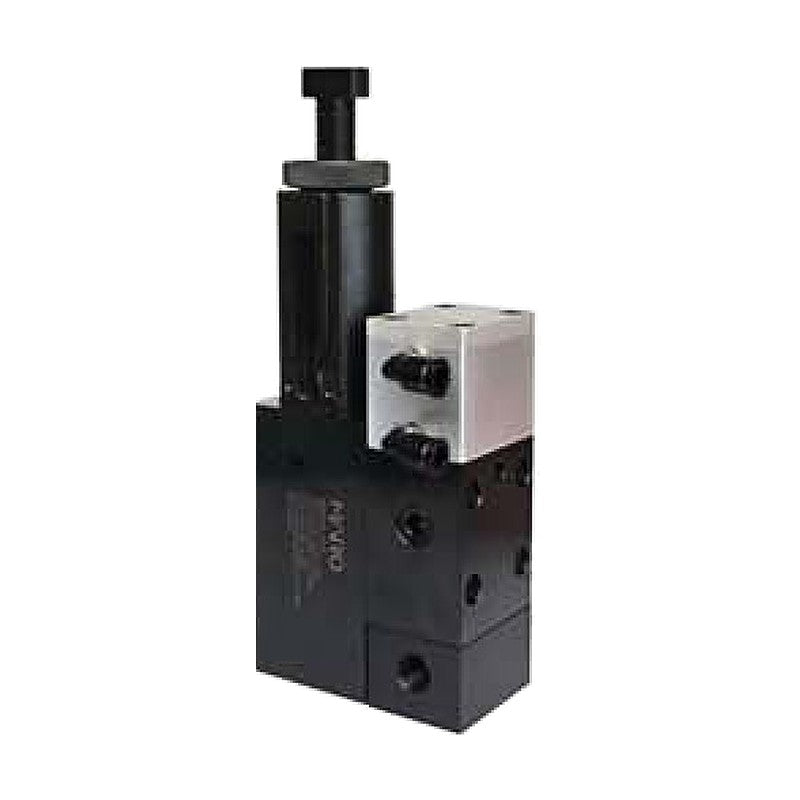

Maro Engineering MMV080 Metering Valve, 25-50 cc

Maro Engineering MMV080 Metering Valve, 25-50 cc

Mid-size volumetric spool metering valves for 25 or 50 cc shots of grease or oil, with digital indicator or proximity-sensor option.

Key features

  • Volumetric metering with excellent spool suck-back
  • Discharge volume set by hand with a stopper adjustment knob, no tools needed
  • Stacked rod-seal structure for easy seal replacement and repair
  • Optional proximity sensor signals filling and discharge completion

Specifications

Valve structure Spool
Discharge accuracy ±0.25% FS
Operating speed 50 cycles/min (grease NLGI 2, 15 MPa, 25 cc)
Max. material pressure 25.0 MPa
Operating air pressure 0.4-0.7 MPa
Wetted parts Steel, AL6061, PEEK, acetal, NBR
Port IN / OUT PT 1/4
Applicable viscosity 1-1,000,000 cP / grease
MMV080-250-25C Discharge range: 0.3-25 cc | Version: Basic / proximity sensor (S) | Proximity sensor: Autonics PR08-1.5DN, 3-wire NPN, DC 12-24 V 10 mA | Weight: 2,880 g
MMV080-250-50C Discharge range: 0.3-50 cc | Version: Basic / proximity sensor (S) | Proximity sensor: Autonics PR08-1.5DN, 3-wire NPN, DC 12-24 V 10 mA | Weight: 3,320 g
MMV080-250-25C-LSI Discharge range: 0.3-25 cc | Version: With LSI digital indicator | Display unit: 0.01 cc | Weight: 2,950 g
MMV080-250-50C-LSI Discharge range: 0.3-50 cc | Version: With LSI digital indicator | Display unit: 0.01 cc | Weight: 3,350 g
Dispensing ValvesMaro Engineering
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Maro Engineering MMV080 Metering Valve, 25-50 cc

Brand Maro Engineering·Dispensing Valves

Available part numbers (4)

MMV080-250-25C, MMV080-250-50C, MMV080-250-25C-LSI, MMV080-250-50C-LSI

How to order

Send the Maro Engineering part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMV080-250-25CDischarge range: 0.3-25 cc | Version: Basic / proximity sensor (S) | Proximity sensor: Autonics PR08-1.5DN, 3-wire NPN, DC 12-24 V 10 mA | Weight: 2,880 g
MMV080-250-50CDischarge range: 0.3-50 cc | Version: Basic / proximity sensor (S) | Proximity sensor: Autonics PR08-1.5DN, 3-wire NPN, DC 12-24 V 10 mA | Weight: 3,320 g
MMV080-250-25C-LSIDischarge range: 0.3-25 cc | Version: With LSI digital indicator | Display unit: 0.01 cc | Weight: 2,950 g
MMV080-250-50C-LSIDischarge range: 0.3-50 cc | Version: With LSI digital indicator | Display unit: 0.01 cc | Weight: 3,350 g
