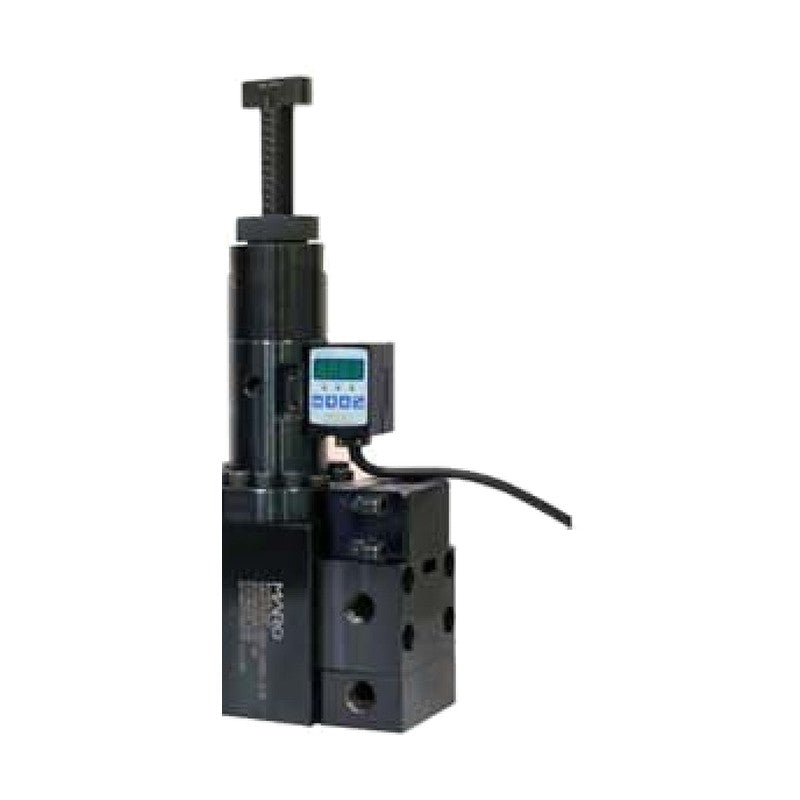

Maro Engineering MMV085 Metering Valve, 100-200 cc

Maro Engineering MMV085 Metering Valve, 100-200 cc

Large-capacity volumetric spool metering valves for 100 or 200 cc shots of grease or oil.

Key features

  • Large-capacity volumetric metering of the set volume
  • Excellent spool suck-back at the nozzle tip
  • Hand-adjustable stopper; stacked rod-seal structure for easy maintenance
  • Optional proximity sensor or LSI digital indicator

Specifications

Valve structure Spool
Discharge accuracy ±0.2% FS
Max. material pressure 25.0 MPa
Operating air pressure 0.4-0.7 MPa
Wetted parts Steel, AL6061, PEEK, acetal, NBR
Port IN / OUT PT 3/8
Applicable viscosity 1-1,000,000 cP / grease
MMV085-250-100C Discharge range: 0.4-100 cc | Operating speed: 10 cycles/min (NLGI 2, 15 MPa, 100 cc) | Version: Basic / proximity sensor (S) | Proximity sensor: Autonics PR08-1.5DN, 3-wire NPN, DC 12-24 V 10 mA | Weight: 10.5 kg
MMV085-250-100C-LSI Discharge range: 0.4-100 cc | Operating speed: 10 cycles/min | Version: With LSI digital indicator | Display unit: 0.01 cc | Weight: 10.5 kg
MMV085-250-200C Discharge range: 0.4-200 cc | Operating speed: 4 cycles/min (NLGI 2, 15 MPa, 200 cc) | Version: Basic / proximity sensor (S) | Proximity sensor: Autonics PR08-1.5DN, 3-wire NPN, DC 12-24 V 10 mA | Weight: 13 kg
MMV085-250-200C-LSI Discharge range: 0.4-200 cc | Operating speed: 4 cycles/min | Version: With LSI digital indicator | Weight: 13.7 kg
Dispensing ValvesMaro Engineering
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Maro Engineering MMV085 Metering Valve, 100-200 cc

Brand Maro Engineering·Dispensing Valves

Available part numbers (4)

MMV085-250-100C, MMV085-250-100C-LSI, MMV085-250-200C, MMV085-250-200C-LSI

How to order

Send the Maro Engineering part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MMV085-250-100CDischarge range: 0.4-100 cc | Operating speed: 10 cycles/min (NLGI 2, 15 MPa, 100 cc) | Version: Basic / proximity sensor (S) | Proximity sensor: Autonics PR08-1.5DN, 3-wire NPN, DC 12-24 V 10 mA | Weight: 10.5 kg
MMV085-250-100C-LSIDischarge range: 0.4-100 cc | Operating speed: 10 cycles/min | Version: With LSI digital indicator | Display unit: 0.01 cc | Weight: 10.5 kg
MMV085-250-200CDischarge range: 0.4-200 cc | Operating speed: 4 cycles/min (NLGI 2, 15 MPa, 200 cc) | Version: Basic / proximity sensor (S) | Proximity sensor: Autonics PR08-1.5DN, 3-wire NPN, DC 12-24 V 10 mA | Weight: 13 kg
MMV085-250-200C-LSIDischarge range: 0.4-200 cc | Operating speed: 4 cycles/min | Version: With LSI digital indicator | Weight: 13.7 kg
