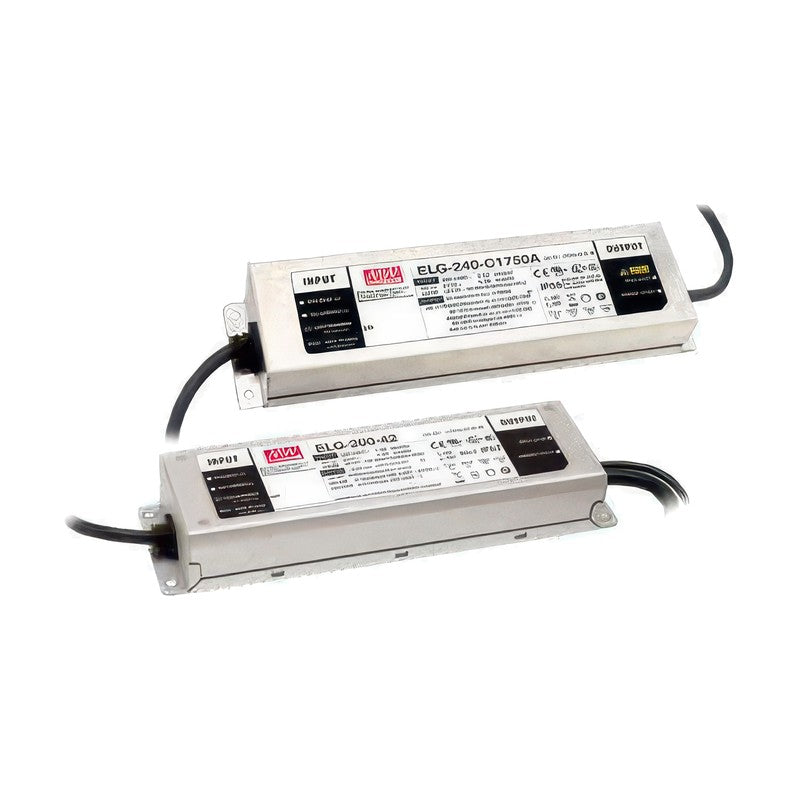

MEAN WELL ELG Series Constant Voltage + Constant Current LED Driver (75-300 W, IP67)

MEAN WELL ELG Series Constant Voltage + Constant Current LED Driver (75-300 W, IP67)

The ELG series is a constant voltage + constant current LED driver in an IP67 metal case, covering 75 to 300 W.

Key features

  • Universal 100~305 VAC input, 6 kV surge immunity (IEC61000-4-5) and Type HL rating for use in Class I, Division 2 hazardous location luminaires
  • No-load / standby power consumption below 0.5 W, with dimming variants including 3 in 1, DALI and smart timer dimming
  • Protections: short circuit, over current, over voltage and over temperature. 5-year warranty

Specifications

Input voltage 100~305 VAC
IP rating IP67
ELG-75 Output voltage: 12, 24, 36, 42, 48 V | Dimensions: 180x63x35.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-100 Output voltage: 24, 36, 42, 48, 54 V | Dimensions: 199x63x35.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-150 Output voltage: 12, 24, 36, 42, 48, 54 V | Dimensions: 219x63x35.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-200 Output voltage: 12, 24, 36, 42, 48, 54 V | Dimensions: 244x71x37.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-240 Output voltage: 24, 36, 42, 48, 54 V | Dimensions: 244x71x37.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-300 Output voltage: 12A, 24A V | Dimensions: 246x77x39.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
LED DriversMEAN WELL
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL ELG Series Constant Voltage + Constant Current LED Driver (75-300 W, IP67)

Brand MEAN WELL·LED Drivers

Available part numbers (6)

ELG-75, ELG-100, ELG-150, ELG-200, ELG-240, ELG-300

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ELG-75Output voltage: 12, 24, 36, 42, 48 V | Dimensions: 180x63x35.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-100Output voltage: 24, 36, 42, 48, 54 V | Dimensions: 199x63x35.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-150Output voltage: 12, 24, 36, 42, 48, 54 V | Dimensions: 219x63x35.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-200Output voltage: 12, 24, 36, 42, 48, 54 V | Dimensions: 244x71x37.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-240Output voltage: 24, 36, 42, 48, 54 V | Dimensions: 244x71x37.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
ELG-300Output voltage: 12A, 24A V | Dimensions: 246x77x39.5 mm | Input voltage: 100~305 VAC | IP rating: IP67
