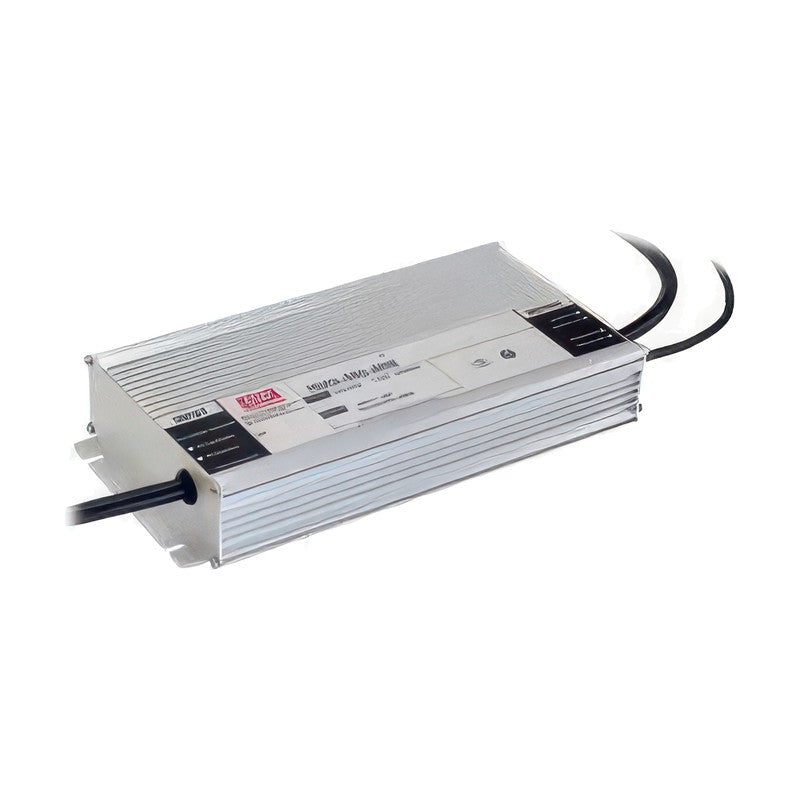

MEAN WELL HVG Series High Input Voltage LED Driver (65-480 W, 180-528 VAC)

MEAN WELL HVG Series High Input Voltage LED Driver (65-480 W, 180-528 VAC)

The HVG series is a constant voltage + constant current LED driver with wide 180~528 VAC input, covering 65 to 480 W.

Key features

  • Metal housing with Class I design; Type HL rated for Class I, Division 2 hazardous location luminaires (except HVG-65)
  • Available in A, B, AB, D and D2/Dx variants
  • Protections: short circuit, over current, over voltage and over temperature. 5-year warranty

Specifications

Input voltage 180~528 VAC
Model suffix options A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-65 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 189x61.5x36.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-100 Output voltage: 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 236x68x38.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-150 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 245x68x38.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-240 Output voltage: 24, 30, 36, 42, 48, 54 V | Dimensions: 254.2x68x38.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-320 Output voltage: 24, 30, 36, 42, 48, 54 V | Dimensions: 262x90x43.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-480 Output voltage: 24, 30, 36, 42, 48, 54 V | Dimensions: 262x125x43.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
LED DriversMEAN WELL
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL HVG Series High Input Voltage LED Driver (65-480 W, 180-528 VAC)

Brand MEAN WELL·LED Drivers

Available part numbers (6)

HVG-65, HVG-100, HVG-150, HVG-240, HVG-320, HVG-480

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HVG-65Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 189x61.5x36.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-100Output voltage: 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 236x68x38.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-150Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 245x68x38.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-240Output voltage: 24, 30, 36, 42, 48, 54 V | Dimensions: 254.2x68x38.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-320Output voltage: 24, 30, 36, 42, 48, 54 V | Dimensions: 262x90x43.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
HVG-480Output voltage: 24, 30, 36, 42, 48, 54 V | Dimensions: 262x125x43.8 mm | Input voltage: 180~528 VAC | Model suffix options: A, B, AB, D (65~150 W), D2/Dx (240~480 W)
