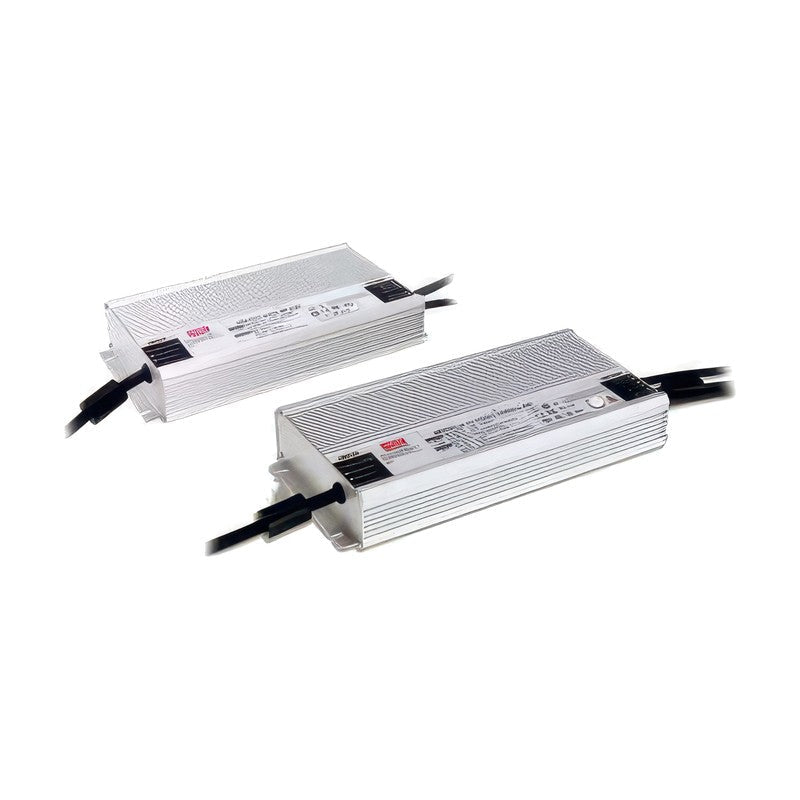

MEAN WELL HVGC Series High Input Voltage Constant Current / Constant Power LED Driver (65-1000 W)

MEAN WELL HVGC Series High Input Voltage Constant Current / Constant Power LED Driver (65-1000 W)

The HVGC series is a high input voltage LED driver with 180~528 VAC input, covering 65 to 1000 W.

Key features

  • Constant current mode for HVGC-65~320 and constant power mode for HVGC-480~1000, with efficiency up to 95.5%
  • Metal housing with Class I design; Type HL rated for Class I, Division 2 hazardous location luminaires (except HVGC-65/100/1000)
  • Auxiliary DC output available; multiple dimming variants including 3 in 1, timer, smart timer, DALI and DALI-2
  • Protections: short circuit, over voltage and over temperature. 5-year warranty

Specifications

Input voltage 180~528 VAC
HVGC-65 Output current: 350, 500, 700, 1050 mA | Dimensions: 189x61.5x36.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-100 Output current: 350, 700 mA | Dimensions: 236x68x38.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-150 Output current: 350, 500, 700, 1050, 1400 mA | Dimensions: 245x68x38.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-240 Output current: 700, 1050, 1400, 1750, 2100, 2800, 3500 mA | Dimensions: 254.2x68x38.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-320 Output current: 700, 1050, 1400, 1750, 2100, 2800, 3500 mA | Dimensions: 262x90x43.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-480 Output ranges: L-type 137~343 V / 1400~1750 mA; M-type 92~228.5 V / 2100~2625 mA; H-type 68~171.5 V / 2800~3500 mA | Dimensions: 262x125x43.8 mm | Input voltage: 180~528 VAC | Mode: Constant power
HVGC-650 Output ranges: L-type 93~232 V / 2800~3500 mA; M-type 62~155 V / 4200~5250 mA; H-type 47~116 V / 5600~7000 mA; U-type 24~58 V / 11200~14000 mA | Dimensions: 280x144x48.5 mm | Input voltage: 180~528 VAC | Mode: Constant power
HVGC-1000 Output ranges: L-type 150~380 V / 1320~3280 mA; M-type 95~240 V / 2100~5250 mA; H-type 70~180 V / 2800~7000 mA | Dimensions: 310x144x48.5 mm | Input voltage: 180~528 VAC | Mode: Constant power
LED DriversMEAN WELL
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL HVGC Series High Input Voltage Constant Current / Constant Power LED Driver (65-1000 W)

Brand MEAN WELL·LED Drivers

Available part numbers (8)

HVGC-65, HVGC-100, HVGC-150, HVGC-240, HVGC-320, HVGC-480, HVGC-650, HVGC-1000

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HVGC-65Output current: 350, 500, 700, 1050 mA | Dimensions: 189x61.5x36.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-100Output current: 350, 700 mA | Dimensions: 236x68x38.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-150Output current: 350, 500, 700, 1050, 1400 mA | Dimensions: 245x68x38.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-240Output current: 700, 1050, 1400, 1750, 2100, 2800, 3500 mA | Dimensions: 254.2x68x38.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-320Output current: 700, 1050, 1400, 1750, 2100, 2800, 3500 mA | Dimensions: 262x90x43.8 mm | Input voltage: 180~528 VAC | Mode: Constant current
HVGC-480Output ranges: L-type 137~343 V / 1400~1750 mA; M-type 92~228.5 V / 2100~2625 mA; H-type 68~171.5 V / 2800~3500 mA | Dimensions: 262x125x43.8 mm | Input voltage: 180~528 VAC | Mode: Constant power
HVGC-650Output ranges: L-type 93~232 V / 2800~3500 mA; M-type 62~155 V / 4200~5250 mA; H-type 47~116 V / 5600~7000 mA; U-type 24~58 V / 11200~14000 mA | Dimensions: 280x144x48.5 mm | Input voltage: 180~528 VAC | Mode: Constant power
HVGC-1000Output ranges: L-type 150~380 V / 1320~3280 mA; M-type 95~240 V / 2100~5250 mA; H-type 70~180 V / 2800~7000 mA | Dimensions: 310x144x48.5 mm | Input voltage: 180~528 VAC | Mode: Constant power
