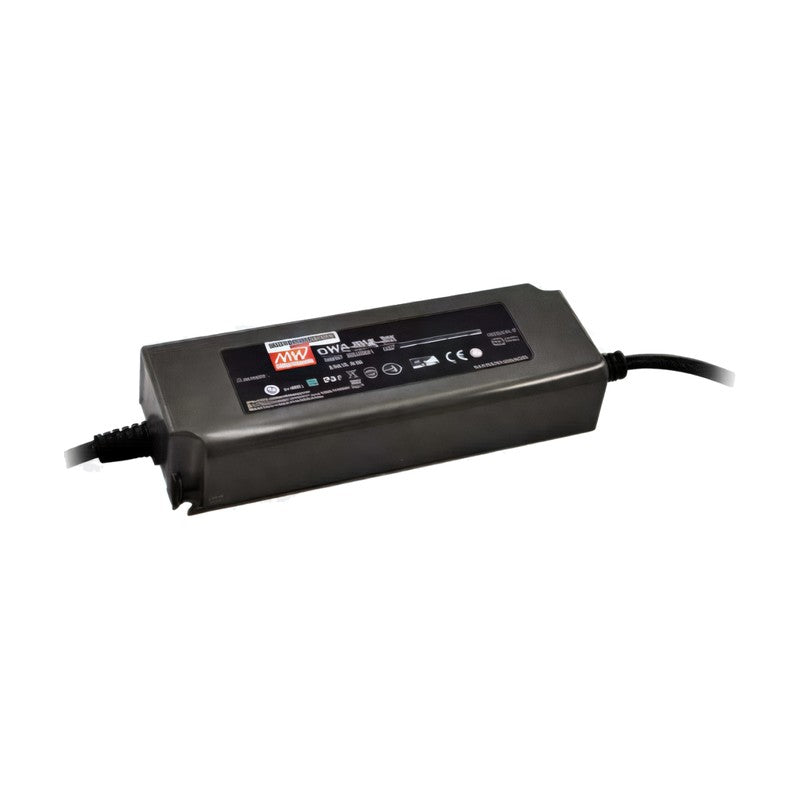

MEAN WELL OWA Series Constant Voltage + Constant Current LED Power Supply (60-200 W, IP67)

MEAN WELL OWA Series Constant Voltage + Constant Current LED Power Supply (60-200 W, IP67)

The OWA series is a constant voltage + constant current LED power supply with AC plug input (E: European 2-pin, U: American 2-pin), covering 60 to 200 W.

Key features

  • Universal 90~264 VAC input, built-in active PFC (except OWA-60) and full encapsulation to IP67
  • Complies with EU ErP and CoC Version 5, energy efficiency Level VI, no-load power consumption below 0.15 W
  • Protections: short circuit, overload, over voltage and over temperature. 5-year warranty

Specifications

AC plug options E (European 2-pin), U (American 2-pin)
Input voltage 90~264 VAC
IP rating IP67
OWA-60 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 130x53x35 mm | Printed as: OWA-60(E/U) | AC plug options: E (European 2-pin), U (American 2-pin) | Input voltage: 90~264 VAC | IP rating: IP67
OWA-90 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 171x63x37.5 mm | Printed as: OWA-90(E/U) | AC plug options: E (European 2-pin), U (American 2-pin) | Input voltage: 90~264 VAC | IP rating: IP67 | DC plug options: Blank, P1M (DIN 4P with lock type for 12~54 V; P1M 2.5ø5.5øx11 mm C+ tuning fork type for 20~54 V)
OWA-120 Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 191x63x37.5 mm | Printed as: OWA-120(E/U) | AC plug options: E (European 2-pin), U (American 2-pin) | Input voltage: 90~264 VAC | IP rating: IP67
OWA-200 Output voltage: 12, 20, 24, 36, 42, 48, 54 V | Dimensions: 195x68x39.5 mm | Printed as: OWA-200(E/U) | AC plug options: E (European 2-pin), U (American 2-pin) | Input voltage: 90~264 VAC | IP rating: IP67
LED Power SuppliesMEAN WELL
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MEAN WELL OWA Series Constant Voltage + Constant Current LED Power Supply (60-200 W, IP67)

Brand MEAN WELL·LED Power Supplies

Available part numbers (4)

OWA-60, OWA-90, OWA-120, OWA-200

How to order

Send the MEAN WELL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
OWA-60Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 130x53x35 mm | Printed as: OWA-60(E/U) | AC plug options: E (European 2-pin), U (American 2-pin) | Input voltage: 90~264 VAC | IP rating: IP67
OWA-90Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 171x63x37.5 mm | Printed as: OWA-90(E/U) | AC plug options: E (European 2-pin), U (American 2-pin) | Input voltage: 90~264 VAC | IP rating: IP67 | DC plug options: Blank, P1M (DIN 4P with lock type for 12~54 V; P1M 2.5ø5.5øx11 mm C+ tuning fork type for 20~54 V)
OWA-120Output voltage: 12, 15, 20, 24, 30, 36, 42, 48, 54 V | Dimensions: 191x63x37.5 mm | Printed as: OWA-120(E/U) | AC plug options: E (European 2-pin), U (American 2-pin) | Input voltage: 90~264 VAC | IP rating: IP67
OWA-200Output voltage: 12, 20, 24, 36, 42, 48, 54 V | Dimensions: 195x68x39.5 mm | Printed as: OWA-200(E/U) | AC plug options: E (European 2-pin), U (American 2-pin) | Input voltage: 90~264 VAC | IP rating: IP67
