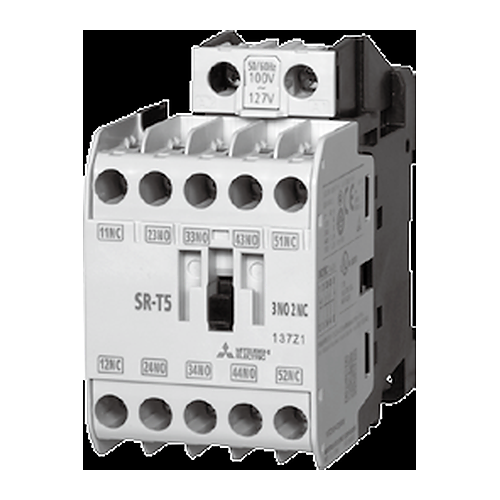

Mitsubishi Electric SR-T SA / SRD-T SA Relay, Built-in Surge Absorber

Mitsubishi Electric SR-T SA / SRD-T SA Relay, Built-in Surge Absorber

Mitsubishi Electric SR-T5SA/T9SA (AC) and SRD-T5SA/T9SA (DC) contactor relays with a varistor coil surge absorber built in.

Key features

  • Varistor surge absorber built into the operating coil circuit suppresses coil switching surges
  • Order by adding "SA" to the standard model name, e.g. SR-T5SA AC100V
  • AC coils AC24V-AC400V and DC coils DC12V-DC220V only; other coils not available
  • Contact ratings, arrangements and dimensions as for the standard SR-T5/T9 and SRD-T5/T9
  • Release time may become slightly longer due to the surge absorber

Specifications

Frame T5 / T9
Surge absorber Varistor (built in)
Rated insulation voltage 690V
Thermal current Ith 10A
AC-15 rating 3A at AC240V, 1.2A at AC550V
DC-13 rating 1.5A at DC48V, 0.3A at DC220V
Mounting Screw or IEC 35mm rail
Source Mitsubishi Electric MS-T/N Series catalogue (KR ed.), p. 156-159
SR-T5SA AC24V 5A Model: SR-T5SA | Operation: AC operated | Coil: AC24V | Coil rating: 24V 50/60Hz | Varistor voltage: 120V | Contacts: 5a
SR-T5SA AC24V 4A1B Model: SR-T5SA | Operation: AC operated | Coil: AC24V | Coil rating: 24V 50/60Hz | Varistor voltage: 120V | Contacts: 4a1b
SR-T5SA AC24V 3A2B Model: SR-T5SA | Operation: AC operated | Coil: AC24V | Coil rating: 24V 50/60Hz | Varistor voltage: 120V | Contacts: 3a2b
SR-T5SA AC48V 5A Model: SR-T5SA | Operation: AC operated | Coil: AC48V | Coil rating: 48-50V 50/60Hz | Varistor voltage: 120V | Contacts: 5a
SR-T5SA AC48V 4A1B Model: SR-T5SA | Operation: AC operated | Coil: AC48V | Coil rating: 48-50V 50/60Hz | Varistor voltage: 120V | Contacts: 4a1b
SR-T5SA AC48V 3A2B Model: SR-T5SA | Operation: AC operated | Coil: AC48V | Coil rating: 48-50V 50/60Hz | Varistor voltage: 120V | Contacts: 3a2b
SR-T5SA AC100V 5A Model: SR-T5SA | Operation: AC operated | Coil: AC100V | Coil rating: 100-127V 50/60Hz | Varistor voltage: 470V | Contacts: 5a
SR-T5SA AC100V 4A1B Model: SR-T5SA | Operation: AC operated | Coil: AC100V | Coil rating: 100-127V 50/60Hz | Varistor voltage: 470V | Contacts: 4a1b
SR-T5SA AC100V 3A2B Model: SR-T5SA | Operation: AC operated | Coil: AC100V | Coil rating: 100-127V 50/60Hz | Varistor voltage: 470V | Contacts: 3a2b
SR-T5SA AC200V 5A Model: SR-T5SA | Operation: AC operated | Coil: AC200V | Coil rating: 200-240V 50/60Hz | Varistor voltage: 470V | Contacts: 5a
SR-T5SA AC200V 4A1B Model: SR-T5SA | Operation: AC operated | Coil: AC200V | Coil rating: 200-240V 50/60Hz | Varistor voltage: 470V | Contacts: 4a1b
SR-T5SA AC200V 3A2B Model: SR-T5SA | Operation: AC operated | Coil: AC200V | Coil rating: 200-240V 50/60Hz | Varistor voltage: 470V | Contacts: 3a2b
SR-T5SA AC300V 5A Model: SR-T5SA | Operation: AC operated | Coil: AC300V | Coil rating: 260-300V 50/60Hz | Varistor voltage: 910V | Contacts: 5a
SR-T5SA AC300V 4A1B Model: SR-T5SA | Operation: AC operated | Coil: AC300V | Coil rating: 260-300V 50/60Hz | Varistor voltage: 910V | Contacts: 4a1b
SR-T5SA AC300V 3A2B Model: SR-T5SA | Operation: AC operated | Coil: AC300V | Coil rating: 260-300V 50/60Hz | Varistor voltage: 910V | Contacts: 3a2b
SR-T5SA AC400V 5A Model: SR-T5SA | Operation: AC operated | Coil: AC400V | Coil rating: 380-440V 50/60Hz | Varistor voltage: 910V | Contacts: 5a
SR-T5SA AC400V 4A1B Model: SR-T5SA | Operation: AC operated | Coil: AC400V | Coil rating: 380-440V 50/60Hz | Varistor voltage: 910V | Contacts: 4a1b
SR-T5SA AC400V 3A2B Model: SR-T5SA | Operation: AC operated | Coil: AC400V | Coil rating: 380-440V 50/60Hz | Varistor voltage: 910V | Contacts: 3a2b
SRD-T5SA DC12V 5A Model: SRD-T5SA | Operation: DC operated | Coil: DC12V | Coil rating: DC12V | Varistor voltage: 47V | Contacts: 5a
SRD-T5SA DC12V 4A1B Model: SRD-T5SA | Operation: DC operated | Coil: DC12V | Coil rating: DC12V | Varistor voltage: 47V | Contacts: 4a1b
SRD-T5SA DC12V 3A2B Model: SRD-T5SA | Operation: DC operated | Coil: DC12V | Coil rating: DC12V | Varistor voltage: 47V | Contacts: 3a2b
SRD-T5SA DC24V 5A Model: SRD-T5SA | Operation: DC operated | Coil: DC24V | Coil rating: DC24V | Varistor voltage: 47V | Contacts: 5a
SRD-T5SA DC24V 4A1B Model: SRD-T5SA | Operation: DC operated | Coil: DC24V | Coil rating: DC24V | Varistor voltage: 47V | Contacts: 4a1b
SRD-T5SA DC24V 3A2B Model: SRD-T5SA | Operation: DC operated | Coil: DC24V | Coil rating: DC24V | Varistor voltage: 47V | Contacts: 3a2b
SRD-T5SA DC48V 5A Model: SRD-T5SA | Operation: DC operated | Coil: DC48V | Coil rating: DC48V | Varistor voltage: 120V | Contacts: 5a
SRD-T5SA DC48V 4A1B Model: SRD-T5SA | Operation: DC operated | Coil: DC48V | Coil rating: DC48V | Varistor voltage: 120V | Contacts: 4a1b
SRD-T5SA DC48V 3A2B Model: SRD-T5SA | Operation: DC operated | Coil: DC48V | Coil rating: DC48V | Varistor voltage: 120V | Contacts: 3a2b
SRD-T5SA DC100V 5A Model: SRD-T5SA | Operation: DC operated | Coil: DC100V | Coil rating: DC100V | Varistor voltage: 470V | Contacts: 5a
SRD-T5SA DC100V 4A1B Model: SRD-T5SA | Operation: DC operated | Coil: DC100V | Coil rating: DC100V | Varistor voltage: 470V | Contacts: 4a1b
SRD-T5SA DC100V 3A2B Model: SRD-T5SA | Operation: DC operated | Coil: DC100V | Coil rating: DC100V | Varistor voltage: 470V | Contacts: 3a2b
SRD-T5SA DC110V 5A Model: SRD-T5SA | Operation: DC operated | Coil: DC110V | Coil rating: DC110V | Varistor voltage: 470V | Contacts: 5a
SRD-T5SA DC110V 4A1B Model: SRD-T5SA | Operation: DC operated | Coil: DC110V | Coil rating: DC110V | Varistor voltage: 470V | Contacts: 4a1b
SRD-T5SA DC110V 3A2B Model: SRD-T5SA | Operation: DC operated | Coil: DC110V | Coil rating: DC110V | Varistor voltage: 470V | Contacts: 3a2b
SRD-T5SA DC125V 5A Model: SRD-T5SA | Operation: DC operated | Coil: DC125V | Coil rating: DC120-125V | Varistor voltage: 470V | Contacts: 5a
SRD-T5SA DC125V 4A1B Model: SRD-T5SA | Operation: DC operated | Coil: DC125V | Coil rating: DC120-125V | Varistor voltage: 470V | Contacts: 4a1b
SRD-T5SA DC125V 3A2B Model: SRD-T5SA | Operation: DC operated | Coil: DC125V | Coil rating: DC120-125V | Varistor voltage: 470V | Contacts: 3a2b
SRD-T5SA DC200V 5A Model: SRD-T5SA | Operation: DC operated | Coil: DC200V | Coil rating: DC200V | Varistor voltage: 470V | Contacts: 5a
SRD-T5SA DC200V 4A1B Model: SRD-T5SA | Operation: DC operated | Coil: DC200V | Coil rating: DC200V | Varistor voltage: 470V | Contacts: 4a1b
SRD-T5SA DC200V 3A2B Model: SRD-T5SA | Operation: DC operated | Coil: DC200V | Coil rating: DC200V | Varistor voltage: 470V | Contacts: 3a2b
SRD-T5SA DC220V 5A Model: SRD-T5SA | Operation: DC operated | Coil: DC220V | Coil rating: DC220V | Varistor voltage: 470V | Contacts: 5a
SRD-T5SA DC220V 4A1B Model: SRD-T5SA | Operation: DC operated | Coil: DC220V | Coil rating: DC220V | Varistor voltage: 470V | Contacts: 4a1b
SRD-T5SA DC220V 3A2B Model: SRD-T5SA | Operation: DC operated | Coil: DC220V | Coil rating: DC220V | Varistor voltage: 470V | Contacts: 3a2b
SR-T9SA AC24V 9A Model: SR-T9SA | Operation: AC operated | Coil: AC24V | Coil rating: 24V 50/60Hz | Varistor voltage: 120V | Contacts: 9a
SR-T9SA AC24V 7A2B Model: SR-T9SA | Operation: AC operated | Coil: AC24V | Coil rating: 24V 50/60Hz | Varistor voltage: 120V | Contacts: 7a2b
SR-T9SA AC24V 5A4B Model: SR-T9SA | Operation: AC operated | Coil: AC24V | Coil rating: 24V 50/60Hz | Varistor voltage: 120V | Contacts: 5a4b
SR-T9SA AC48V 9A Model: SR-T9SA | Operation: AC operated | Coil: AC48V | Coil rating: 48-50V 50/60Hz | Varistor voltage: 120V | Contacts: 9a
SR-T9SA AC48V 7A2B Model: SR-T9SA | Operation: AC operated | Coil: AC48V | Coil rating: 48-50V 50/60Hz | Varistor voltage: 120V | Contacts: 7a2b
SR-T9SA AC48V 5A4B Model: SR-T9SA | Operation: AC operated | Coil: AC48V | Coil rating: 48-50V 50/60Hz | Varistor voltage: 120V | Contacts: 5a4b
SR-T9SA AC100V 9A Model: SR-T9SA | Operation: AC operated | Coil: AC100V | Coil rating: 100-127V 50/60Hz | Varistor voltage: 470V | Contacts: 9a
SR-T9SA AC100V 7A2B Model: SR-T9SA | Operation: AC operated | Coil: AC100V | Coil rating: 100-127V 50/60Hz | Varistor voltage: 470V | Contacts: 7a2b
SR-T9SA AC100V 5A4B Model: SR-T9SA | Operation: AC operated | Coil: AC100V | Coil rating: 100-127V 50/60Hz | Varistor voltage: 470V | Contacts: 5a4b
SR-T9SA AC200V 9A Model: SR-T9SA | Operation: AC operated | Coil: AC200V | Coil rating: 200-240V 50/60Hz | Varistor voltage: 470V | Contacts: 9a
SR-T9SA AC200V 7A2B Model: SR-T9SA | Operation: AC operated | Coil: AC200V | Coil rating: 200-240V 50/60Hz | Varistor voltage: 470V | Contacts: 7a2b
SR-T9SA AC200V 5A4B Model: SR-T9SA | Operation: AC operated | Coil: AC200V | Coil rating: 200-240V 50/60Hz | Varistor voltage: 470V | Contacts: 5a4b
SR-T9SA AC300V 9A Model: SR-T9SA | Operation: AC operated | Coil: AC300V | Coil rating: 260-300V 50/60Hz | Varistor voltage: 910V | Contacts: 9a
SR-T9SA AC300V 7A2B Model: SR-T9SA | Operation: AC operated | Coil: AC300V | Coil rating: 260-300V 50/60Hz | Varistor voltage: 910V | Contacts: 7a2b
SR-T9SA AC300V 5A4B Model: SR-T9SA | Operation: AC operated | Coil: AC300V | Coil rating: 260-300V 50/60Hz | Varistor voltage: 910V | Contacts: 5a4b
SR-T9SA AC400V 9A Model: SR-T9SA | Operation: AC operated | Coil: AC400V | Coil rating: 380-440V 50/60Hz | Varistor voltage: 910V | Contacts: 9a
SR-T9SA AC400V 7A2B Model: SR-T9SA | Operation: AC operated | Coil: AC400V | Coil rating: 380-440V 50/60Hz | Varistor voltage: 910V | Contacts: 7a2b
SR-T9SA AC400V 5A4B Model: SR-T9SA | Operation: AC operated | Coil: AC400V | Coil rating: 380-440V 50/60Hz | Varistor voltage: 910V | Contacts: 5a4b
SRD-T9SA DC12V 9A Model: SRD-T9SA | Operation: DC operated | Coil: DC12V | Coil rating: DC12V | Varistor voltage: 47V | Contacts: 9a
SRD-T9SA DC12V 7A2B Model: SRD-T9SA | Operation: DC operated | Coil: DC12V | Coil rating: DC12V | Varistor voltage: 47V | Contacts: 7a2b
SRD-T9SA DC12V 5A4B Model: SRD-T9SA | Operation: DC operated | Coil: DC12V | Coil rating: DC12V | Varistor voltage: 47V | Contacts: 5a4b
SRD-T9SA DC24V 9A Model: SRD-T9SA | Operation: DC operated | Coil: DC24V | Coil rating: DC24V | Varistor voltage: 47V | Contacts: 9a
SRD-T9SA DC24V 7A2B Model: SRD-T9SA | Operation: DC operated | Coil: DC24V | Coil rating: DC24V | Varistor voltage: 47V | Contacts: 7a2b
SRD-T9SA DC24V 5A4B Model: SRD-T9SA | Operation: DC operated | Coil: DC24V | Coil rating: DC24V | Varistor voltage: 47V | Contacts: 5a4b
SRD-T9SA DC48V 9A Model: SRD-T9SA | Operation: DC operated | Coil: DC48V | Coil rating: DC48V | Varistor voltage: 120V | Contacts: 9a
SRD-T9SA DC48V 7A2B Model: SRD-T9SA | Operation: DC operated | Coil: DC48V | Coil rating: DC48V | Varistor voltage: 120V | Contacts: 7a2b
SRD-T9SA DC48V 5A4B Model: SRD-T9SA | Operation: DC operated | Coil: DC48V | Coil rating: DC48V | Varistor voltage: 120V | Contacts: 5a4b
SRD-T9SA DC100V 9A Model: SRD-T9SA | Operation: DC operated | Coil: DC100V | Coil rating: DC100V | Varistor voltage: 470V | Contacts: 9a
SRD-T9SA DC100V 7A2B Model: SRD-T9SA | Operation: DC operated | Coil: DC100V | Coil rating: DC100V | Varistor voltage: 470V | Contacts: 7a2b
SRD-T9SA DC100V 5A4B Model: SRD-T9SA | Operation: DC operated | Coil: DC100V | Coil rating: DC100V | Varistor voltage: 470V | Contacts: 5a4b
SRD-T9SA DC110V 9A Model: SRD-T9SA | Operation: DC operated | Coil: DC110V | Coil rating: DC110V | Varistor voltage: 470V | Contacts: 9a
SRD-T9SA DC110V 7A2B Model: SRD-T9SA | Operation: DC operated | Coil: DC110V | Coil rating: DC110V | Varistor voltage: 470V | Contacts: 7a2b
SRD-T9SA DC110V 5A4B Model: SRD-T9SA | Operation: DC operated | Coil: DC110V | Coil rating: DC110V | Varistor voltage: 470V | Contacts: 5a4b
SRD-T9SA DC125V 9A Model: SRD-T9SA | Operation: DC operated | Coil: DC125V | Coil rating: DC120-125V | Varistor voltage: 470V | Contacts: 9a
SRD-T9SA DC125V 7A2B Model: SRD-T9SA | Operation: DC operated | Coil: DC125V | Coil rating: DC120-125V | Varistor voltage: 470V | Contacts: 7a2b
SRD-T9SA DC125V 5A4B Model: SRD-T9SA | Operation: DC operated | Coil: DC125V | Coil rating: DC120-125V | Varistor voltage: 470V | Contacts: 5a4b
SRD-T9SA DC200V 9A Model: SRD-T9SA | Operation: DC operated | Coil: DC200V | Coil rating: DC200V | Varistor voltage: 470V | Contacts: 9a
SRD-T9SA DC200V 7A2B Model: SRD-T9SA | Operation: DC operated | Coil: DC200V | Coil rating: DC200V | Varistor voltage: 470V | Contacts: 7a2b
SRD-T9SA DC200V 5A4B Model: SRD-T9SA | Operation: DC operated | Coil: DC200V | Coil rating: DC200V | Varistor voltage: 470V | Contacts: 5a4b
SRD-T9SA DC220V 9A Model: SRD-T9SA | Operation: DC operated | Coil: DC220V | Coil rating: DC220V | Varistor voltage: 470V | Contacts: 9a
SRD-T9SA DC220V 7A2B Model: SRD-T9SA | Operation: DC operated | Coil: DC220V | Coil rating: DC220V | Varistor voltage: 470V | Contacts: 7a2b
SRD-T9SA DC220V 5A4B Model: SRD-T9SA | Operation: DC operated | Coil: DC220V | Coil rating: DC220V | Varistor voltage: 470V | Contacts: 5a4b
