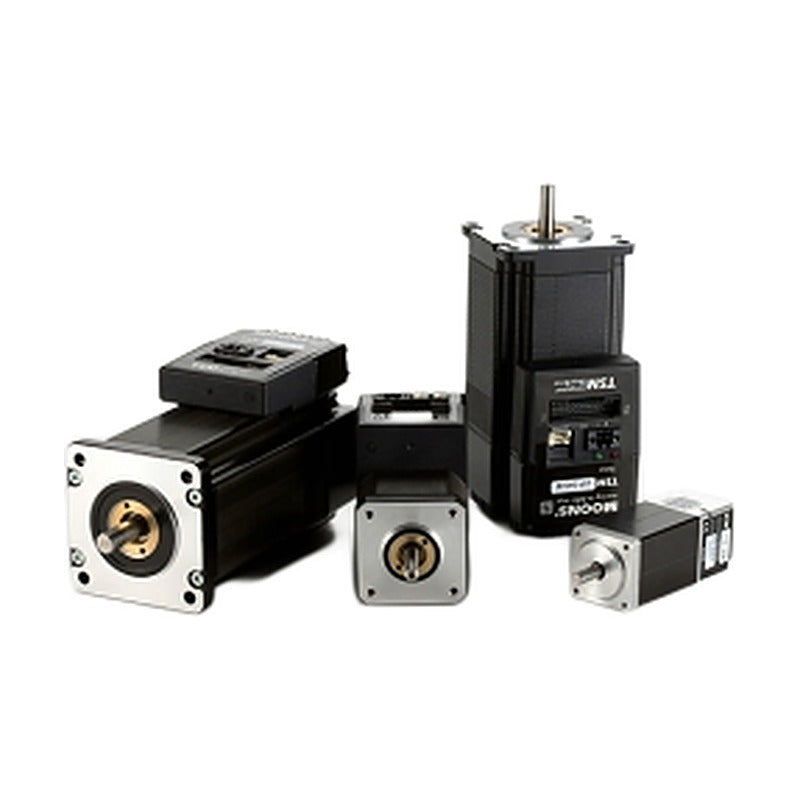

MOONS' TSM Series Integrated Step-Servo Motors (NEMA 11-24)

MOONS' TSM Series Integrated Step-Servo Motors (NEMA 11-24)

MOONS' third-generation integrated Step-Servo motors: motor, drive, encoder and controller in one unit. Servo technology applied to stepper motors for efficient, quiet closed-loop motion.

Key features

  • Motor + drive + encoder + controller all-in-one
  • Position, velocity and torque modes
  • Step & direction, CW/CCW and A/B quadrature input
  • RS-422/485 with Modbus/RTU
  • Q programming on Q models
  • 4 digital inputs, 2 digital outputs

Specifications

Supply (TSM11) 15-30 VDC (24 VDC nominal)
Feedback Built-in encoder
Control modes Profile position / velocity / torque
Communication RS-422/485, Modbus/RTU
Inputs 4 digital, 5-24 VDC, up to 1 MHz
Outputs 2 digital, 30 VDC 100 mA
Source MOONS' TSM11 hardware manual
TSM11S-1RM Type: S basic | Stack: 1 | Torque: up to 65 mN·m | RS-485 Modbus
TSM11S-2RM Type: S basic | Stack: 2 | Torque: up to 80 mN·m | RS-485 Modbus
TSM11S-3RM Type: S basic | Stack: 3 | Torque: up to 125 mN·m | RS-485 Modbus
TSM11Q-1RM Type: Q programmable | Stack: 1 | Torque: up to 65 mN·m | RS-485 Modbus
TSM11Q-2RM Type: Q programmable | Stack: 2 | Torque: up to 80 mN·m | RS-485 Modbus
TSM11Q-3RM Type: Q programmable | Stack: 3 | Torque: up to 125 mN·m | RS-485 Modbus
TSM17 MADE-TO-ORDER Frame: NEMA 17 | Integrated step-servo | Model on request
TSM23 MADE-TO-ORDER Frame: NEMA 23 | Integrated step-servo | Model on request
TSM24 MADE-TO-ORDER Frame: NEMA 24 | Integrated step-servo | Model on request
Closed-Loop Stepper SystemsMOONS'
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

MOONS' TSM Series Integrated Step-Servo Motors (NEMA 11-24)

Brand MOONS'·Closed-Loop Stepper Systems

Available part numbers (9)

TSM11S-1RM, TSM11S-2RM, TSM11S-3RM, TSM11Q-1RM, TSM11Q-2RM, TSM11Q-3RM, TSM17 MADE-TO-ORDER, TSM23 MADE-TO-ORDER, TSM24 MADE-TO-ORDER

How to order

Send the MOONS' part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TSM11S-1RMType: S basic | Stack: 1 | Torque: up to 65 mN·m | RS-485 Modbus
TSM11S-2RMType: S basic | Stack: 2 | Torque: up to 80 mN·m | RS-485 Modbus
TSM11S-3RMType: S basic | Stack: 3 | Torque: up to 125 mN·m | RS-485 Modbus
TSM11Q-1RMType: Q programmable | Stack: 1 | Torque: up to 65 mN·m | RS-485 Modbus
TSM11Q-2RMType: Q programmable | Stack: 2 | Torque: up to 80 mN·m | RS-485 Modbus
TSM11Q-3RMType: Q programmable | Stack: 3 | Torque: up to 125 mN·m | RS-485 Modbus
TSM17 MADE-TO-ORDERFrame: NEMA 17 | Integrated step-servo | Model on request
TSM23 MADE-TO-ORDERFrame: NEMA 23 | Integrated step-servo | Model on request
TSM24 MADE-TO-ORDERFrame: NEMA 24 | Integrated step-servo | Model on request
