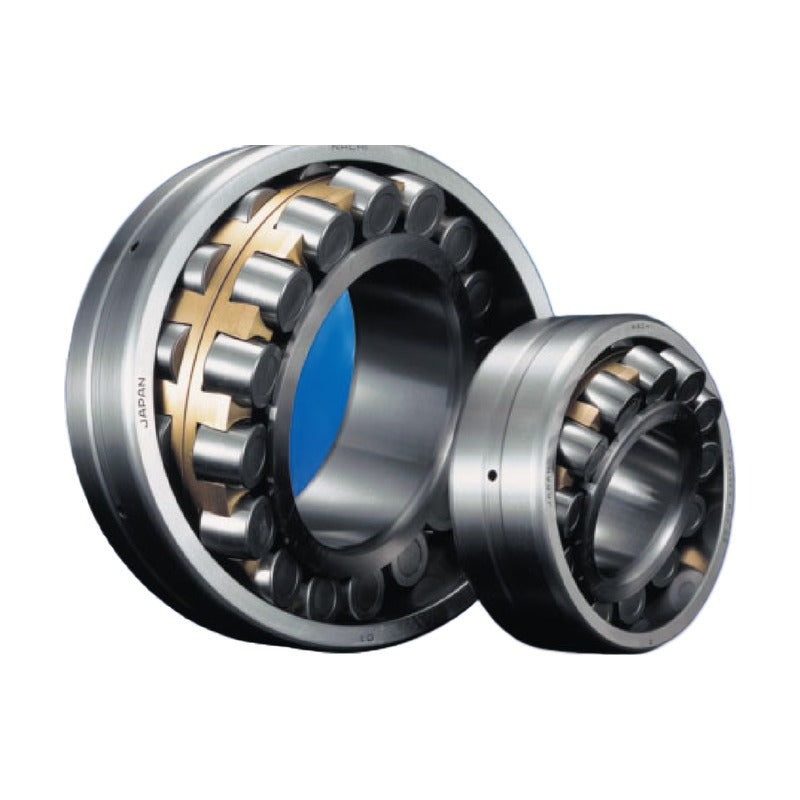

NACHI 223 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 223 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 223 series double-row spherical roller bearings, bore 35 to 300 mm, with cylindrical bore or tapered bore (suffix K = 1:12 taper, K30 = 1:30 taper).

Key features

  • Self-aligning design for applications where misalignment can arise from mounting errors or shaft deflection
  • Maximum permissible misalignment of about 2 degrees under general service conditions
  • High radial load capacity with axial load capacity in both directions
  • Outer rings are often made with lubrication holes and groove (W33) for feeding lubricant
  • Each size listed with cylindrical bore and tapered bore designation (K or K30)

Specifications

Brand NACHI
Series 223
Bearing type Double-row spherical roller bearing
Bore range 35 - 300 mm
Bore Cylindrical or tapered (K 1:12, K30 1:30)
Mass Reference mass of cylindrical-bore bearing
Load ratings Basic dynamic Cr / static C0r
Source NACHI Spherical Roller Bearings and Spherical Roller Thrust Bearings (B1032E-5), p. 10-23
22307AEX d: 35 mm | D: 80 mm | B: 31 mm | Cr: 145 kN | C0r: 107 kN | Mass: 0.78 kg
22307AEXK d: 35 mm | D: 80 mm | B: 31 mm | Cr: 145 kN | C0r: 107 kN | Mass: 0.78 kg
22308EX d: 40 mm | D: 90 mm | B: 33 mm | Cr: 185 kN | C0r: 151 kN | Mass: 1.07 kg
22308EXK d: 40 mm | D: 90 mm | B: 33 mm | Cr: 185 kN | C0r: 151 kN | Mass: 1.07 kg
22308AEX d: 40 mm | D: 90 mm | B: 33 mm | Cr: 172 kN | C0r: 134 kN | Mass: 1.05 kg
22308AEXK d: 40 mm | D: 90 mm | B: 33 mm | Cr: 172 kN | C0r: 134 kN | Mass: 1.05 kg
22309EX d: 45 mm | D: 100 mm | B: 36 mm | Cr: 230 kN | C0r: 182 kN | Mass: 1.41 kg
22309EXK d: 45 mm | D: 100 mm | B: 36 mm | Cr: 230 kN | C0r: 182 kN | Mass: 1.41 kg
22309AEX d: 45 mm | D: 100 mm | B: 36 mm | Cr: 208 kN | C0r: 157 kN | Mass: 1.41 kg
22309AEXK d: 45 mm | D: 100 mm | B: 36 mm | Cr: 208 kN | C0r: 157 kN | Mass: 1.41 kg
22310EX d: 50 mm | D: 110 mm | B: 40 mm | Cr: 280 kN | C0r: 235 kN | Mass: 1.92 kg
22310EXK d: 50 mm | D: 110 mm | B: 40 mm | Cr: 280 kN | C0r: 235 kN | Mass: 1.92 kg
22310AEX d: 50 mm | D: 110 mm | B: 40 mm | Cr: 254 kN | C0r: 205 kN | Mass: 1.88 kg
22310AEXK d: 50 mm | D: 110 mm | B: 40 mm | Cr: 254 kN | C0r: 205 kN | Mass: 1.88 kg
22311EX d: 55 mm | D: 120 mm | B: 43 mm | Cr: 325 kN | C0r: 263 kN | Mass: 2.40 kg
22311EXK d: 55 mm | D: 120 mm | B: 43 mm | Cr: 325 kN | C0r: 263 kN | Mass: 2.40 kg
22311AEX d: 55 mm | D: 120 mm | B: 43 mm | Cr: 294 kN | C0r: 227 kN | Mass: 2.39 kg
22311AEXK d: 55 mm | D: 120 mm | B: 43 mm | Cr: 294 kN | C0r: 227 kN | Mass: 2.39 kg
22312EX d: 60 mm | D: 130 mm | B: 46 mm | Cr: 390 kN | C0r: 330 kN | Mass: 3.05 kg
22312EXK d: 60 mm | D: 130 mm | B: 46 mm | Cr: 390 kN | C0r: 330 kN | Mass: 3.05 kg
22312AEX d: 60 mm | D: 130 mm | B: 46 mm | Cr: 340 kN | C0r: 275 kN | Mass: 3.01 kg
22312AEXK d: 60 mm | D: 130 mm | B: 46 mm | Cr: 340 kN | C0r: 275 kN | Mass: 3.01 kg
22313EX d: 65 mm | D: 140 mm | B: 48 mm | Cr: 415 kN | C0r: 355 kN | Mass: 3.67 kg
22313EXK d: 65 mm | D: 140 mm | B: 48 mm | Cr: 415 kN | C0r: 355 kN | Mass: 3.67 kg
22313AEX d: 65 mm | D: 140 mm | B: 48 mm | Cr: 380 kN | C0r: 310 kN | Mass: 3.64 kg
22313AEXK d: 65 mm | D: 140 mm | B: 48 mm | Cr: 380 kN | C0r: 310 kN | Mass: 3.64 kg
22314EX d: 70 mm | D: 150 mm | B: 51 mm | Cr: 480 kN | C0r: 415 kN | Mass: 4.45 kg
22314EXK d: 70 mm | D: 150 mm | B: 51 mm | Cr: 480 kN | C0r: 415 kN | Mass: 4.45 kg
22314AEX d: 70 mm | D: 150 mm | B: 51 mm | Cr: 445 kN | C0r: 365 kN | Mass: 4.46 kg
22314AEXK d: 70 mm | D: 150 mm | B: 51 mm | Cr: 445 kN | C0r: 365 kN | Mass: 4.46 kg
22315EX d: 75 mm | D: 160 mm | B: 55 mm | Cr: 550 kN | C0r: 475 kN | Mass: 5.44 kg
22315EXK d: 75 mm | D: 160 mm | B: 55 mm | Cr: 550 kN | C0r: 475 kN | Mass: 5.44 kg
22315AEX d: 75 mm | D: 160 mm | B: 55 mm | Cr: 495 kN | C0r: 415 kN | Mass: 5.44 kg
22315AEXK d: 75 mm | D: 160 mm | B: 55 mm | Cr: 495 kN | C0r: 415 kN | Mass: 5.44 kg
22316EX d: 80 mm | D: 170 mm | B: 58 mm | Cr: 595 kN | C0r: 520 kN | Mass: 6.42 kg
22316EXK d: 80 mm | D: 170 mm | B: 58 mm | Cr: 595 kN | C0r: 520 kN | Mass: 6.42 kg
22316AEX d: 80 mm | D: 170 mm | B: 58 mm | Cr: 550 kN | C0r: 465 kN | Mass: 6.43 kg
22316AEXK d: 80 mm | D: 170 mm | B: 58 mm | Cr: 550 kN | C0r: 465 kN | Mass: 6.43 kg
22317EX d: 85 mm | D: 180 mm | B: 60 mm | Cr: 665 kN | C0r: 585 kN | Mass: 7.46 kg
22317EXK d: 85 mm | D: 180 mm | B: 60 mm | Cr: 665 kN | C0r: 585 kN | Mass: 7.46 kg
22317AEX d: 85 mm | D: 180 mm | B: 60 mm | Cr: 590 kN | C0r: 500 kN | Mass: 7.47 kg
22317AEXK d: 85 mm | D: 180 mm | B: 60 mm | Cr: 590 kN | C0r: 500 kN | Mass: 7.47 kg
22318EX d: 90 mm | D: 190 mm | B: 64 mm | Cr: 745 kN | C0r: 660 kN | Mass: 8.82 kg
22318EXK d: 90 mm | D: 190 mm | B: 64 mm | Cr: 745 kN | C0r: 660 kN | Mass: 8.82 kg
22318AEX d: 90 mm | D: 190 mm | B: 64 mm | Cr: 690 kN | C0r: 585 kN | Mass: 8.91 kg
22318AEXK d: 90 mm | D: 190 mm | B: 64 mm | Cr: 690 kN | C0r: 585 kN | Mass: 8.91 kg
22319EX d: 95 mm | D: 200 mm | B: 67 mm | Cr: 815 kN | C0r: 725 kN | Mass: 10.2 kg
22319EXK d: 95 mm | D: 200 mm | B: 67 mm | Cr: 815 kN | C0r: 725 kN | Mass: 10.2 kg
22319AEX d: 95 mm | D: 200 mm | B: 67 mm | Cr: 755 kN | C0r: 645 kN | Mass: 10.3 kg
22319AEXK d: 95 mm | D: 200 mm | B: 67 mm | Cr: 755 kN | C0r: 645 kN | Mass: 10.3 kg
22320EX d: 100 mm | D: 215 mm | B: 73 mm | Cr: 975 kN | C0r: 875 kN | Mass: 13.1 kg
22320EXK d: 100 mm | D: 215 mm | B: 73 mm | Cr: 975 kN | C0r: 875 kN | Mass: 13.1 kg
22320AEX d: 100 mm | D: 215 mm | B: 73 mm | Cr: 890 kN | C0r: 775 kN | Mass: 13.2 kg
22320AEXK d: 100 mm | D: 215 mm | B: 73 mm | Cr: 890 kN | C0r: 775 kN | Mass: 13.2 kg
22322EX d: 110 mm | D: 240 mm | B: 80 mm | Cr: 1150 kN | C0r: 1040 kN | Mass: 18.1 kg
22322EXK d: 110 mm | D: 240 mm | B: 80 mm | Cr: 1150 kN | C0r: 1040 kN | Mass: 18.1 kg
22322AEX d: 110 mm | D: 240 mm | B: 80 mm | Cr: 1030 kN | C0r: 940 kN | Mass: 18.2 kg
22322AEXK d: 110 mm | D: 240 mm | B: 80 mm | Cr: 1030 kN | C0r: 940 kN | Mass: 18.2 kg
22324EX d: 120 mm | D: 260 mm | B: 86 mm | Cr: 1250 kN | C0r: 1130 kN | Mass: 22.6 kg
22324EXK d: 120 mm | D: 260 mm | B: 86 mm | Cr: 1250 kN | C0r: 1130 kN | Mass: 22.6 kg
22324AEX d: 120 mm | D: 260 mm | B: 86 mm | Cr: 1180 kN | C0r: 1040 kN | Mass: 22.2 kg
22324AEXK d: 120 mm | D: 260 mm | B: 86 mm | Cr: 1180 kN | C0r: 1040 kN | Mass: 22.2 kg
22326EX d: 130 mm | D: 280 mm | B: 93 mm | Cr: 1450 kN | C0r: 1340 kN | Mass: 28.4 kg
22326EXK d: 130 mm | D: 280 mm | B: 93 mm | Cr: 1450 kN | C0r: 1340 kN | Mass: 28.4 kg
22326AEX d: 130 mm | D: 280 mm | B: 93 mm | Cr: 1370 kN | C0r: 1220 kN | Mass: 27.3 kg
22326AEXK d: 130 mm | D: 280 mm | B: 93 mm | Cr: 1370 kN | C0r: 1220 kN | Mass: 27.3 kg
22328E d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1540 kN | C0r: 1520 kN | Mass: 35.9 kg
22328EK d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1540 kN | C0r: 1520 kN | Mass: 35.9 kg
22328A2X d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1560 kN | C0r: 1540 kN | Mass: 34.5 kg
22328A2XK d: 140 mm | D: 300 mm | B: 102 mm | Cr: 1560 kN | C0r: 1540 kN | Mass: 34.5 kg
22330E d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1770 kN | C0r: 1740 kN | Mass: 43.3 kg
22330EK d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1770 kN | C0r: 1740 kN | Mass: 43.3 kg
22330A2X d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1720 kN | C0r: 1710 kN | Mass: 41.5 kg
22330A2XK d: 150 mm | D: 320 mm | B: 108 mm | Cr: 1720 kN | C0r: 1710 kN | Mass: 41.5 kg
22332E d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1950 kN | C0r: 1950 kN | Mass: 51.4 kg
22332EK d: 160 mm | D: 340 mm | B: 114 mm | Cr: 1950 kN | C0r: 1950 kN | Mass: 51.4 kg
22334E d: 170 mm | D: 360 mm | B: 120 mm | Cr: 2150 kN | C0r: 2200 kN | Mass: 60.6 kg
22334EK d: 170 mm | D: 360 mm | B: 120 mm | Cr: 2150 kN | C0r: 2200 kN | Mass: 60.6 kg
22336E d: 180 mm | D: 380 mm | B: 126 mm | Cr: 2380 kN | C0r: 2400 kN | Mass: 70.5 kg
22336EK d: 180 mm | D: 380 mm | B: 126 mm | Cr: 2380 kN | C0r: 2400 kN | Mass: 70.5 kg
22338E d: 190 mm | D: 400 mm | B: 132 mm | Cr: 2600 kN | C0r: 2670 kN | Mass: 81.8 kg
22338EK d: 190 mm | D: 400 mm | B: 132 mm | Cr: 2600 kN | C0r: 2670 kN | Mass: 81.8 kg
22340E d: 200 mm | D: 420 mm | B: 138 mm | Cr: 2890 kN | C0r: 3000 kN | Mass: 93.7 kg
22340EK d: 200 mm | D: 420 mm | B: 138 mm | Cr: 2890 kN | C0r: 3000 kN | Mass: 93.7 kg
22344E d: 220 mm | D: 460 mm | B: 145 mm | Cr: 3350 kN | C0r: 3600 kN | Mass: 119 kg
22344EK d: 220 mm | D: 460 mm | B: 145 mm | Cr: 3350 kN | C0r: 3600 kN | Mass: 119 kg
22348E d: 240 mm | D: 500 mm | B: 155 mm | Cr: 3850 kN | C0r: 4100 kN | Mass: 151 kg
22348EK d: 240 mm | D: 500 mm | B: 155 mm | Cr: 3850 kN | C0r: 4100 kN | Mass: 151 kg
22352E d: 260 mm | D: 540 mm | B: 165 mm | Cr: 4350 kN | C0r: 4750 kN | Mass: 187 kg
22352EK d: 260 mm | D: 540 mm | B: 165 mm | Cr: 4350 kN | C0r: 4750 kN | Mass: 187 kg
22356E d: 280 mm | D: 580 mm | B: 175 mm | Cr: 4950 kN | C0r: 5450 kN | Mass: 228 kg
22356EK d: 280 mm | D: 580 mm | B: 175 mm | Cr: 4950 kN | C0r: 5450 kN | Mass: 228 kg
22360E d: 300 mm | D: 620 mm | B: 185 mm | Cr: 5500 kN | C0r: 6050 kN | Mass: 279 kg
22360EK d: 300 mm | D: 620 mm | B: 185 mm | Cr: 5500 kN | C0r: 6050 kN | Mass: 279 kg
Spherical Roller BearingsNACHI
94 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI 223 Series Spherical Roller Bearings (Cylindrical, K Bore)

Brand NACHI·Spherical Roller Bearings

Available part numbers (94)

22307AEX, 22307AEXK, 22308EX, 22308EXK, 22308AEX, 22308AEXK, 22309EX, 22309EXK, 22309AEX, 22309AEXK + 84 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
