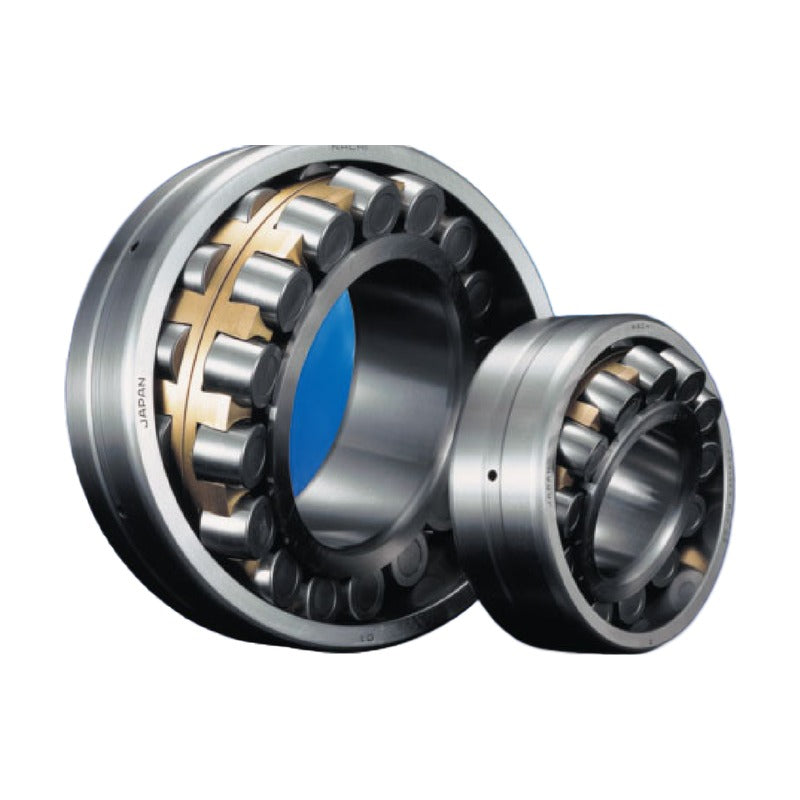

NACHI 231 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 231 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 231 series double-row spherical roller bearings, bore 100 to 800 mm, with cylindrical bore or tapered bore (suffix K = 1:12 taper, K30 = 1:30 taper).

Key features

  • Self-aligning design for applications where misalignment can arise from mounting errors or shaft deflection
  • Maximum permissible misalignment of about 2 degrees under general service conditions
  • High radial load capacity with axial load capacity in both directions
  • Outer rings are often made with lubrication holes and groove (W33) for feeding lubricant
  • Each size listed with cylindrical bore and tapered bore designation (K or K30)

Specifications

Brand NACHI
Series 231
Bearing type Double-row spherical roller bearing
Bore range 100 - 800 mm
Bore Cylindrical or tapered (K 1:12, K30 1:30)
Mass Reference mass of cylindrical-bore bearing
Load ratings Basic dynamic Cr / static C0r
Source NACHI Spherical Roller Bearings and Spherical Roller Thrust Bearings (B1032E-5), p. 14-27
23120EX1 d: 100 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 500 kN | Mass: 4.49 kg
23120EX1K d: 100 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 500 kN | Mass: 4.49 kg
23120AX d: 100 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 538 kN | Mass: 4.70 kg
23120AXK d: 100 mm | D: 165 mm | B: 52 mm | Cr: 450 kN | C0r: 538 kN | Mass: 4.70 kg
23122EX1 d: 110 mm | D: 180 mm | B: 56 mm | Cr: 540 kN | C0r: 610 kN | Mass: 5.70 kg
23122EX1K d: 110 mm | D: 180 mm | B: 56 mm | Cr: 540 kN | C0r: 610 kN | Mass: 5.70 kg
23122AX d: 110 mm | D: 180 mm | B: 56 mm | Cr: 535 kN | C0r: 605 kN | Mass: 5.80 kg
23122AXK d: 110 mm | D: 180 mm | B: 56 mm | Cr: 535 kN | C0r: 605 kN | Mass: 5.80 kg
23124EX1 d: 120 mm | D: 200 mm | B: 62 mm | Cr: 675 kN | C0r: 720 kN | Mass: 7.90 kg
23124EX1K d: 120 mm | D: 200 mm | B: 62 mm | Cr: 675 kN | C0r: 720 kN | Mass: 7.90 kg
23124AX d: 120 mm | D: 200 mm | B: 62 mm | Cr: 645 kN | C0r: 734 kN | Mass: 8.10 kg
23124AXK d: 120 mm | D: 200 mm | B: 62 mm | Cr: 645 kN | C0r: 734 kN | Mass: 8.10 kg
23126EX1 d: 130 mm | D: 210 mm | B: 64 mm | Cr: 690 kN | C0r: 799 kN | Mass: 8.60 kg
23126EX1K d: 130 mm | D: 210 mm | B: 64 mm | Cr: 690 kN | C0r: 799 kN | Mass: 8.60 kg
23126AX d: 130 mm | D: 210 mm | B: 64 mm | Cr: 705 kN | C0r: 827 kN | Mass: 8.90 kg
23126AXK d: 130 mm | D: 210 mm | B: 64 mm | Cr: 705 kN | C0r: 827 kN | Mass: 8.90 kg
23128EX1 d: 140 mm | D: 225 mm | B: 68 mm | Cr: 790 kN | C0r: 940 kN | Mass: 10.5 kg
23128EX1K d: 140 mm | D: 225 mm | B: 68 mm | Cr: 790 kN | C0r: 940 kN | Mass: 10.5 kg
23128AX d: 140 mm | D: 225 mm | B: 68 mm | Cr: 790 kN | C0r: 934 kN | Mass: 10.8 kg
23128AXK d: 140 mm | D: 225 mm | B: 68 mm | Cr: 790 kN | C0r: 934 kN | Mass: 10.8 kg
23130EX1 d: 150 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1230 kN | Mass: 16.2 kg
23130EX1K d: 150 mm | D: 250 mm | B: 80 mm | Cr: 1000 kN | C0r: 1230 kN | Mass: 16.2 kg
23130AX d: 150 mm | D: 250 mm | B: 80 mm | Cr: 1030 kN | C0r: 1310 kN | Mass: 16.7 kg
23130AXK d: 150 mm | D: 250 mm | B: 80 mm | Cr: 1030 kN | C0r: 1310 kN | Mass: 16.7 kg
23132EX1 d: 160 mm | D: 270 mm | B: 86 mm | Cr: 1180 kN | C0r: 1430 kN | Mass: 20.5 kg
23132EX1K d: 160 mm | D: 270 mm | B: 86 mm | Cr: 1180 kN | C0r: 1430 kN | Mass: 20.5 kg
23132AX d: 160 mm | D: 270 mm | B: 86 mm | Cr: 1200 kN | C0r: 1460 kN | Mass: 21.2 kg
23132AXK d: 160 mm | D: 270 mm | B: 86 mm | Cr: 1200 kN | C0r: 1460 kN | Mass: 21.2 kg
23134EX1 d: 170 mm | D: 280 mm | B: 88 mm | Cr: 1260 kN | C0r: 1530 kN | Mass: 21.6 kg
23134EX1K d: 170 mm | D: 280 mm | B: 88 mm | Cr: 1260 kN | C0r: 1530 kN | Mass: 21.6 kg
23134AX d: 170 mm | D: 280 mm | B: 88 mm | Cr: 1260 kN | C0r: 1500 kN | Mass: 22.2 kg
23134AXK d: 170 mm | D: 280 mm | B: 88 mm | Cr: 1260 kN | C0r: 1500 kN | Mass: 22.2 kg
23136E d: 180 mm | D: 300 mm | B: 96 mm | Cr: 1490 kN | C0r: 1810 kN | Mass: 27.9 kg
23136EK d: 180 mm | D: 300 mm | B: 96 mm | Cr: 1490 kN | C0r: 1810 kN | Mass: 27.9 kg
23136A2X d: 180 mm | D: 300 mm | B: 96 mm | Cr: 1450 kN | C0r: 1740 kN | Mass: 28.2 kg
23136A2XK d: 180 mm | D: 300 mm | B: 96 mm | Cr: 1450 kN | C0r: 1740 kN | Mass: 28.2 kg
23138E d: 190 mm | D: 320 mm | B: 104 mm | Cr: 1720 kN | C0r: 2120 kN | Mass: 35.0 kg
23138EK d: 190 mm | D: 320 mm | B: 104 mm | Cr: 1720 kN | C0r: 2120 kN | Mass: 35.0 kg
23138A2X d: 190 mm | D: 320 mm | B: 104 mm | Cr: 1710 kN | C0r: 2090 kN | Mass: 33.5 kg
23138A2XK d: 190 mm | D: 320 mm | B: 104 mm | Cr: 1710 kN | C0r: 2090 kN | Mass: 33.5 kg
23140E d: 200 mm | D: 340 mm | B: 112 mm | Cr: 1950 kN | C0r: 2390 kN | Mass: 42.7 kg
23140EK d: 200 mm | D: 340 mm | B: 112 mm | Cr: 1950 kN | C0r: 2390 kN | Mass: 42.7 kg
23140A2X d: 200 mm | D: 340 mm | B: 112 mm | Cr: 1900 kN | C0r: 2330 kN | Mass: 42.5 kg
23140A2XK d: 200 mm | D: 340 mm | B: 112 mm | Cr: 1900 kN | C0r: 2330 kN | Mass: 42.5 kg
23144E d: 220 mm | D: 370 mm | B: 120 mm | Cr: 2250 kN | C0r: 2870 kN | Mass: 54.3 kg
23144EK d: 220 mm | D: 370 mm | B: 120 mm | Cr: 2250 kN | C0r: 2870 kN | Mass: 54.3 kg
23144A2X d: 220 mm | D: 370 mm | B: 120 mm | Cr: 2210 kN | C0r: 2780 kN | Mass: 54.6 kg
23144A2XK d: 220 mm | D: 370 mm | B: 120 mm | Cr: 2210 kN | C0r: 2780 kN | Mass: 54.6 kg
23148E d: 240 mm | D: 400 mm | B: 128 mm | Cr: 2610 kN | C0r: 3350 kN | Mass: 66.6 kg
23148EK d: 240 mm | D: 400 mm | B: 128 mm | Cr: 2610 kN | C0r: 3350 kN | Mass: 66.6 kg
23148A2X d: 240 mm | D: 400 mm | B: 128 mm | Cr: 2540 kN | C0r: 3250 kN | Mass: 68.5 kg
23148A2XK d: 240 mm | D: 400 mm | B: 128 mm | Cr: 2540 kN | C0r: 3250 kN | Mass: 68.5 kg
23152E d: 260 mm | D: 440 mm | B: 144 mm | Cr: 3100 kN | C0r: 4000 kN | Mass: 92.0 kg
23152EK d: 260 mm | D: 440 mm | B: 144 mm | Cr: 3100 kN | C0r: 4000 kN | Mass: 92.0 kg
23156E d: 280 mm | D: 460 mm | B: 146 mm | Cr: 3200 kN | C0r: 4200 kN | Mass: 98.4 kg
23156EK d: 280 mm | D: 460 mm | B: 146 mm | Cr: 3200 kN | C0r: 4200 kN | Mass: 98.4 kg
23160E d: 300 mm | D: 500 mm | B: 160 mm | Cr: 3650 kN | C0r: 4750 kN | Mass: 129 kg
23160EK d: 300 mm | D: 500 mm | B: 160 mm | Cr: 3650 kN | C0r: 4750 kN | Mass: 129 kg
23164E d: 320 mm | D: 540 mm | B: 176 mm | Cr: 4350 kN | C0r: 5700 kN | Mass: 168 kg
23164EK d: 320 mm | D: 540 mm | B: 176 mm | Cr: 4350 kN | C0r: 5700 kN | Mass: 168 kg
23168E d: 340 mm | D: 580 mm | B: 190 mm | Cr: 5150 kN | C0r: 6750 kN | Mass: 212 kg
23168EK d: 340 mm | D: 580 mm | B: 190 mm | Cr: 5150 kN | C0r: 6750 kN | Mass: 212 kg
23172E d: 360 mm | D: 600 mm | B: 192 mm | Cr: 5350 kN | C0r: 7250 kN | Mass: 225 kg
23172EK d: 360 mm | D: 600 mm | B: 192 mm | Cr: 5350 kN | C0r: 7250 kN | Mass: 225 kg
23176E d: 380 mm | D: 620 mm | B: 194 mm | Cr: 5400 kN | C0r: 7400 kN | Mass: 236 kg
23176EK d: 380 mm | D: 620 mm | B: 194 mm | Cr: 5400 kN | C0r: 7400 kN | Mass: 236 kg
23180E d: 400 mm | D: 650 mm | B: 200 mm | Cr: 5750 kN | C0r: 7900 kN | Mass: 266 kg
23180EK d: 400 mm | D: 650 mm | B: 200 mm | Cr: 5750 kN | C0r: 7900 kN | Mass: 266 kg
23184E d: 420 mm | D: 700 mm | B: 224 mm | Cr: 6800 kN | C0r: 9250 kN | Mass: 354 kg
23184EK d: 420 mm | D: 700 mm | B: 224 mm | Cr: 6800 kN | C0r: 9250 kN | Mass: 354 kg
23188E d: 440 mm | D: 720 mm | B: 226 mm | Cr: 7150 kN | C0r: 10000 kN | Mass: 371 kg
23188EK d: 440 mm | D: 720 mm | B: 226 mm | Cr: 7150 kN | C0r: 10000 kN | Mass: 371 kg
23192E d: 460 mm | D: 760 mm | B: 240 mm | Cr: 8000 kN | C0r: 11200 kN | Mass: 446 kg
23192EK d: 460 mm | D: 760 mm | B: 240 mm | Cr: 8000 kN | C0r: 11200 kN | Mass: 446 kg
23196E d: 480 mm | D: 790 mm | B: 248 mm | Cr: 8500 kN | C0r: 12000 kN | Mass: 495 kg
23196EK d: 480 mm | D: 790 mm | B: 248 mm | Cr: 8500 kN | C0r: 12000 kN | Mass: 495 kg
231/500E d: 500 mm | D: 830 mm | B: 264 mm | Cr: 9300 kN | C0r: 13000 kN | Mass: 584 kg
231/500EK d: 500 mm | D: 830 mm | B: 264 mm | Cr: 9300 kN | C0r: 13000 kN | Mass: 584 kg
231/530E d: 530 mm | D: 870 mm | B: 272 mm | Cr: 10200 kN | C0r: 14600 kN | Mass: 640 kg
231/530EK d: 530 mm | D: 870 mm | B: 272 mm | Cr: 10200 kN | C0r: 14600 kN | Mass: 640 kg
231/560E d: 560 mm | D: 920 mm | B: 280 mm | Cr: 11000 kN | C0r: 15800 kN | Mass: 732 kg
231/560EK d: 560 mm | D: 920 mm | B: 280 mm | Cr: 11000 kN | C0r: 15800 kN | Mass: 732 kg
231/600E d: 600 mm | D: 980 mm | B: 300 mm | Cr: 12100 kN | C0r: 17500 kN | Mass: 887 kg
231/600EK d: 600 mm | D: 980 mm | B: 300 mm | Cr: 12100 kN | C0r: 17500 kN | Mass: 887 kg
231/630E d: 630 mm | D: 1030 mm | B: 315 mm | Cr: 13500 kN | C0r: 19800 kN | Mass: 1070 kg
231/630EK d: 630 mm | D: 1030 mm | B: 315 mm | Cr: 13500 kN | C0r: 19800 kN | Mass: 1070 kg
231/670E d: 670 mm | D: 1090 mm | B: 336 mm | Cr: 15300 kN | C0r: 23000 kN | Mass: 1260 kg
231/670EK d: 670 mm | D: 1090 mm | B: 336 mm | Cr: 15300 kN | C0r: 23000 kN | Mass: 1260 kg
231/710E d: 710 mm | D: 1150 mm | B: 345 mm | Cr: 16800 kN | C0r: 25300 kN | Mass: 1432 kg
231/710EK d: 710 mm | D: 1150 mm | B: 345 mm | Cr: 16800 kN | C0r: 25300 kN | Mass: 1432 kg
231/750E d: 750 mm | D: 1220 mm | B: 365 mm | Cr: 18100 kN | C0r: 27700 kN | Mass: 1710 kg
231/750EK d: 750 mm | D: 1220 mm | B: 365 mm | Cr: 18100 kN | C0r: 27700 kN | Mass: 1710 kg
231/800E d: 800 mm | D: 1280 mm | B: 375 mm | Cr: 20000 kN | C0r: 31000 kN | Mass: 1910 kg
231/800EK d: 800 mm | D: 1280 mm | B: 375 mm | Cr: 20000 kN | C0r: 31000 kN | Mass: 1910 kg
Spherical Roller BearingsNACHI
94 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI 231 Series Spherical Roller Bearings (Cylindrical, K Bore)

Brand NACHI·Spherical Roller Bearings

Available part numbers (94)

23120EX1, 23120EX1K, 23120AX, 23120AXK, 23122EX1, 23122EX1K, 23122AX, 23122AXK, 23124EX1, 23124EX1K + 84 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
