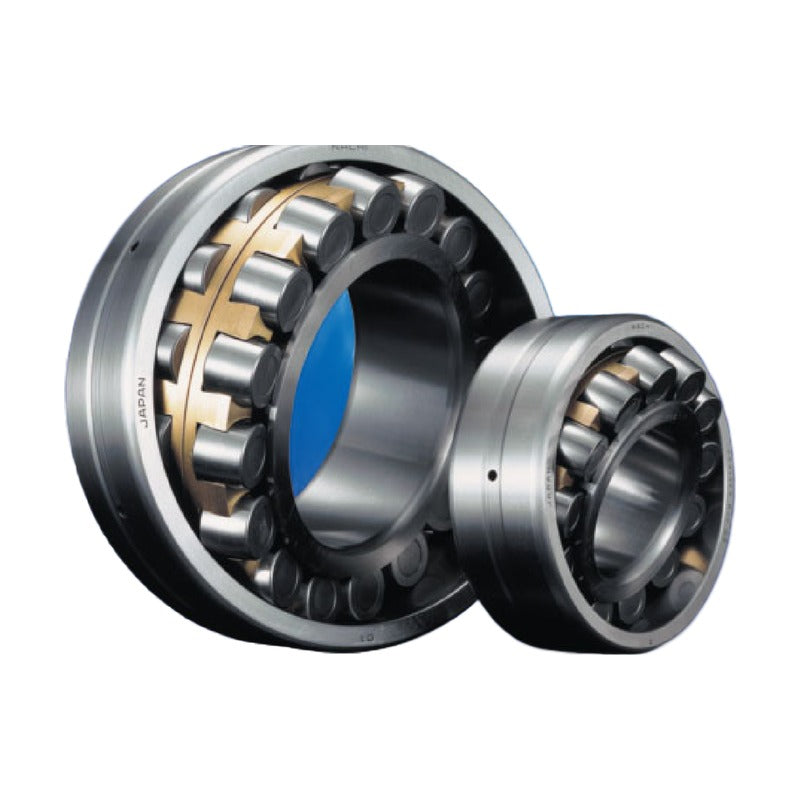

NACHI 232 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 232 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 232 series double-row spherical roller bearings, bore 80 to 600 mm, with cylindrical bore or tapered bore (suffix K = 1:12 taper, K30 = 1:30 taper).

Key features

  • Self-aligning design for applications where misalignment can arise from mounting errors or shaft deflection
  • Maximum permissible misalignment of about 2 degrees under general service conditions
  • High radial load capacity with axial load capacity in both directions
  • Outer rings are often made with lubrication holes and groove (W33) for feeding lubricant
  • Each size listed with cylindrical bore and tapered bore designation (K or K30)

Specifications

Brand NACHI
Series 232
Bearing type Double-row spherical roller bearing
Bore range 80 - 600 mm
Bore Cylindrical or tapered (K 1:12, K30 1:30)
Mass Reference mass of cylindrical-bore bearing
Load ratings Basic dynamic Cr / static C0r
Source NACHI Spherical Roller Bearings and Spherical Roller Thrust Bearings (B1032E-5), p. 12-27
23216E d: 80 mm | D: 140 mm | B: 44.4 mm | Cr: 335 kN | C0r: 335 kN | Mass: 2.95 kg
23216EK d: 80 mm | D: 140 mm | B: 44.4 mm | Cr: 335 kN | C0r: 335 kN | Mass: 2.95 kg
23217E d: 85 mm | D: 150 mm | B: 49.2 mm | Cr: 395 kN | C0r: 405 kN | Mass: 3.78 kg
23217EK d: 85 mm | D: 150 mm | B: 49.2 mm | Cr: 395 kN | C0r: 405 kN | Mass: 3.78 kg
23218EX1 d: 90 mm | D: 160 mm | B: 52.4 mm | Cr: 470 kN | C0r: 482 kN | Mass: 4.57 kg
23218EX1K d: 90 mm | D: 160 mm | B: 52.4 mm | Cr: 470 kN | C0r: 482 kN | Mass: 4.57 kg
23219E d: 95 mm | D: 170 mm | B: 55.6 mm | Cr: 500 kN | C0r: 510 kN | Mass: 5.46 kg
23219EK d: 95 mm | D: 170 mm | B: 55.6 mm | Cr: 500 kN | C0r: 510 kN | Mass: 5.46 kg
23220EX1 d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 595 kN | C0r: 629 kN | Mass: 6.76 kg
23220EX1K d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 595 kN | C0r: 629 kN | Mass: 6.76 kg
23220AX d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 575 kN | C0r: 599 kN | Mass: 6.88 kg
23220AXK d: 100 mm | D: 180 mm | B: 60.3 mm | Cr: 575 kN | C0r: 599 kN | Mass: 6.88 kg
23222EX1 d: 110 mm | D: 200 mm | B: 69.8 mm | Cr: 750 kN | C0r: 793 kN | Mass: 9.60 kg
23222EX1K d: 110 mm | D: 200 mm | B: 69.8 mm | Cr: 750 kN | C0r: 793 kN | Mass: 9.60 kg
23222AX d: 110 mm | D: 200 mm | B: 69.8 mm | Cr: 740 kN | C0r: 801 kN | Mass: 10.0 kg
23222AXK d: 110 mm | D: 200 mm | B: 69.8 mm | Cr: 740 kN | C0r: 801 kN | Mass: 10.0 kg
23224EX1 d: 120 mm | D: 215 mm | B: 76 mm | Cr: 860 kN | C0r: 956 kN | Mass: 12.0 kg
23224EX1K d: 120 mm | D: 215 mm | B: 76 mm | Cr: 860 kN | C0r: 956 kN | Mass: 12.0 kg
23224AX d: 120 mm | D: 215 mm | B: 76 mm | Cr: 860 kN | C0r: 962 kN | Mass: 12.3 kg
23224AXK d: 120 mm | D: 215 mm | B: 76 mm | Cr: 860 kN | C0r: 962 kN | Mass: 12.3 kg
23226EX1 d: 130 mm | D: 230 mm | B: 80 mm | Cr: 980 kN | C0r: 1090 kN | Mass: 14.2 kg
23226EX1K d: 130 mm | D: 230 mm | B: 80 mm | Cr: 980 kN | C0r: 1090 kN | Mass: 14.2 kg
23226AX d: 130 mm | D: 230 mm | B: 80 mm | Cr: 965 kN | C0r: 1070 kN | Mass: 14.5 kg
23226AXK d: 130 mm | D: 230 mm | B: 80 mm | Cr: 965 kN | C0r: 1070 kN | Mass: 14.5 kg
23228EX1 d: 140 mm | D: 250 mm | B: 88 mm | Cr: 1130 kN | C0r: 1290 kN | Mass: 18.8 kg
23228EX1K d: 140 mm | D: 250 mm | B: 88 mm | Cr: 1130 kN | C0r: 1290 kN | Mass: 18.8 kg
23228AX d: 140 mm | D: 250 mm | B: 88 mm | Cr: 1120 kN | C0r: 1270 kN | Mass: 19.3 kg
23228AXK d: 140 mm | D: 250 mm | B: 88 mm | Cr: 1120 kN | C0r: 1270 kN | Mass: 19.3 kg
23230EX1 d: 150 mm | D: 270 mm | B: 96 mm | Cr: 1340 kN | C0r: 1540 kN | Mass: 24.2 kg
23230EX1K d: 150 mm | D: 270 mm | B: 96 mm | Cr: 1340 kN | C0r: 1540 kN | Mass: 24.2 kg
23230AX d: 150 mm | D: 270 mm | B: 96 mm | Cr: 1320 kN | C0r: 1530 kN | Mass: 24.8 kg
23230AXK d: 150 mm | D: 270 mm | B: 96 mm | Cr: 1320 kN | C0r: 1530 kN | Mass: 24.8 kg
23232E d: 160 mm | D: 290 mm | B: 104 mm | Cr: 1500 kN | C0r: 1710 kN | Mass: 30.4 kg
23232EK d: 160 mm | D: 290 mm | B: 104 mm | Cr: 1500 kN | C0r: 1710 kN | Mass: 30.4 kg
23232A2X d: 160 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1650 kN | Mass: 30.7 kg
23232A2XK d: 160 mm | D: 290 mm | B: 104 mm | Cr: 1460 kN | C0r: 1650 kN | Mass: 30.7 kg
23234E d: 170 mm | D: 310 mm | B: 110 mm | Cr: 1720 kN | C0r: 1970 kN | Mass: 37.0 kg
23234EK d: 170 mm | D: 310 mm | B: 110 mm | Cr: 1720 kN | C0r: 1970 kN | Mass: 37.0 kg
23234A2X d: 170 mm | D: 310 mm | B: 110 mm | Cr: 1680 kN | C0r: 1910 kN | Mass: 37.6 kg
23234A2XK d: 170 mm | D: 310 mm | B: 110 mm | Cr: 1680 kN | C0r: 1910 kN | Mass: 37.6 kg
23236E d: 180 mm | D: 320 mm | B: 112 mm | Cr: 1790 kN | C0r: 2100 kN | Mass: 39.4 kg
23236EK d: 180 mm | D: 320 mm | B: 112 mm | Cr: 1790 kN | C0r: 2100 kN | Mass: 39.4 kg
23236A2X d: 180 mm | D: 320 mm | B: 112 mm | Cr: 1750 kN | C0r: 2070 kN | Mass: 39.0 kg
23236A2XK d: 180 mm | D: 320 mm | B: 112 mm | Cr: 1750 kN | C0r: 2070 kN | Mass: 39.0 kg
23238E d: 190 mm | D: 340 mm | B: 120 mm | Cr: 2070 kN | C0r: 2450 kN | Mass: 48.0 kg
23238EK d: 190 mm | D: 340 mm | B: 120 mm | Cr: 2070 kN | C0r: 2450 kN | Mass: 48.0 kg
23238A2X d: 190 mm | D: 340 mm | B: 120 mm | Cr: 2000 kN | C0r: 2370 kN | Mass: 47.5 kg
23238A2XK d: 190 mm | D: 340 mm | B: 120 mm | Cr: 2000 kN | C0r: 2370 kN | Mass: 47.5 kg
23240E d: 200 mm | D: 360 mm | B: 128 mm | Cr: 2290 kN | C0r: 2750 kN | Mass: 57.7 kg
23240EK d: 200 mm | D: 360 mm | B: 128 mm | Cr: 2290 kN | C0r: 2750 kN | Mass: 57.7 kg
23240A2X d: 200 mm | D: 360 mm | B: 128 mm | Cr: 2240 kN | C0r: 2680 kN | Mass: 57.0 kg
23240A2XK d: 200 mm | D: 360 mm | B: 128 mm | Cr: 2240 kN | C0r: 2680 kN | Mass: 57.0 kg
23244E d: 220 mm | D: 400 mm | B: 144 mm | Cr: 2920 kN | C0r: 3500 kN | Mass: 81.4 kg
23244EK d: 220 mm | D: 400 mm | B: 144 mm | Cr: 2920 kN | C0r: 3500 kN | Mass: 81.4 kg
23248E d: 240 mm | D: 440 mm | B: 160 mm | Cr: 3400 kN | C0r: 4100 kN | Mass: 109 kg
23248EK d: 240 mm | D: 440 mm | B: 160 mm | Cr: 3400 kN | C0r: 4100 kN | Mass: 109 kg
23252E d: 260 mm | D: 480 mm | B: 174 mm | Cr: 3950 kN | C0r: 4800 kN | Mass: 142 kg
23252EK d: 260 mm | D: 480 mm | B: 174 mm | Cr: 3950 kN | C0r: 4800 kN | Mass: 142 kg
23256E d: 280 mm | D: 500 mm | B: 176 mm | Cr: 4150 kN | C0r: 5200 kN | Mass: 152 kg
23256EK d: 280 mm | D: 500 mm | B: 176 mm | Cr: 4150 kN | C0r: 5200 kN | Mass: 152 kg
23260E d: 300 mm | D: 540 mm | B: 192 mm | Cr: 4950 kN | C0r: 6250 kN | Mass: 196 kg
23260EK d: 300 mm | D: 540 mm | B: 192 mm | Cr: 4950 kN | C0r: 6250 kN | Mass: 196 kg
23264E d: 320 mm | D: 580 mm | B: 208 mm | Cr: 5600 kN | C0r: 7200 kN | Mass: 244 kg
23264EK d: 320 mm | D: 580 mm | B: 208 mm | Cr: 5600 kN | C0r: 7200 kN | Mass: 244 kg
23268E d: 340 mm | D: 620 mm | B: 224 mm | Cr: 6300 kN | C0r: 8000 kN | Mass: 299 kg
23268EK d: 340 mm | D: 620 mm | B: 224 mm | Cr: 6300 kN | C0r: 8000 kN | Mass: 299 kg
23272E d: 360 mm | D: 650 mm | B: 232 mm | Cr: 6950 kN | C0r: 9000 kN | Mass: 342 kg
23272EK d: 360 mm | D: 650 mm | B: 232 mm | Cr: 6950 kN | C0r: 9000 kN | Mass: 342 kg
23276E d: 380 mm | D: 680 mm | B: 240 mm | Cr: 7500 kN | C0r: 9800 kN | Mass: 383 kg
23276EK d: 380 mm | D: 680 mm | B: 240 mm | Cr: 7500 kN | C0r: 9800 kN | Mass: 383 kg
23280E d: 400 mm | D: 720 mm | B: 256 mm | Cr: 8500 kN | C0r: 11100 kN | Mass: 461 kg
23280EK d: 400 mm | D: 720 mm | B: 256 mm | Cr: 8500 kN | C0r: 11100 kN | Mass: 461 kg
23284E d: 420 mm | D: 760 mm | B: 272 mm | Cr: 9400 kN | C0r: 12500 kN | Mass: 548 kg
23284EK d: 420 mm | D: 760 mm | B: 272 mm | Cr: 9400 kN | C0r: 12500 kN | Mass: 548 kg
23288E d: 440 mm | D: 790 mm | B: 280 mm | Cr: 10000 kN | C0r: 13300 kN | Mass: 605 kg
23288EK d: 440 mm | D: 790 mm | B: 280 mm | Cr: 10000 kN | C0r: 13300 kN | Mass: 605 kg
23292E d: 460 mm | D: 830 mm | B: 296 mm | Cr: 10600 kN | C0r: 14500 kN | Mass: 709 kg
23292EK d: 460 mm | D: 830 mm | B: 296 mm | Cr: 10600 kN | C0r: 14500 kN | Mass: 709 kg
23296E d: 480 mm | D: 870 mm | B: 310 mm | Cr: 11300 kN | C0r: 15400 kN | Mass: 820 kg
23296EK d: 480 mm | D: 870 mm | B: 310 mm | Cr: 11300 kN | C0r: 15400 kN | Mass: 820 kg
232/500E d: 500 mm | D: 920 mm | B: 336 mm | Cr: 13200 kN | C0r: 17800 kN | Mass: 1000 kg
232/500EK d: 500 mm | D: 920 mm | B: 336 mm | Cr: 13200 kN | C0r: 17800 kN | Mass: 1000 kg
232/530E d: 530 mm | D: 980 mm | B: 355 mm | Cr: 15300 kN | C0r: 21000 kN | Mass: 1215 kg
232/530EK d: 530 mm | D: 980 mm | B: 355 mm | Cr: 15300 kN | C0r: 21000 kN | Mass: 1215 kg
232/560E d: 560 mm | D: 1030 mm | B: 365 mm | Cr: 16000 kN | C0r: 22000 kN | Mass: 1390 kg
232/560EK d: 560 mm | D: 1030 mm | B: 365 mm | Cr: 16000 kN | C0r: 22000 kN | Mass: 1390 kg
232/600E d: 600 mm | D: 1090 mm | B: 388 mm | Cr: 17900 kN | C0r: 25100 kN | Mass: 1640 kg
232/600EK d: 600 mm | D: 1090 mm | B: 388 mm | Cr: 17900 kN | C0r: 25100 kN | Mass: 1640 kg
