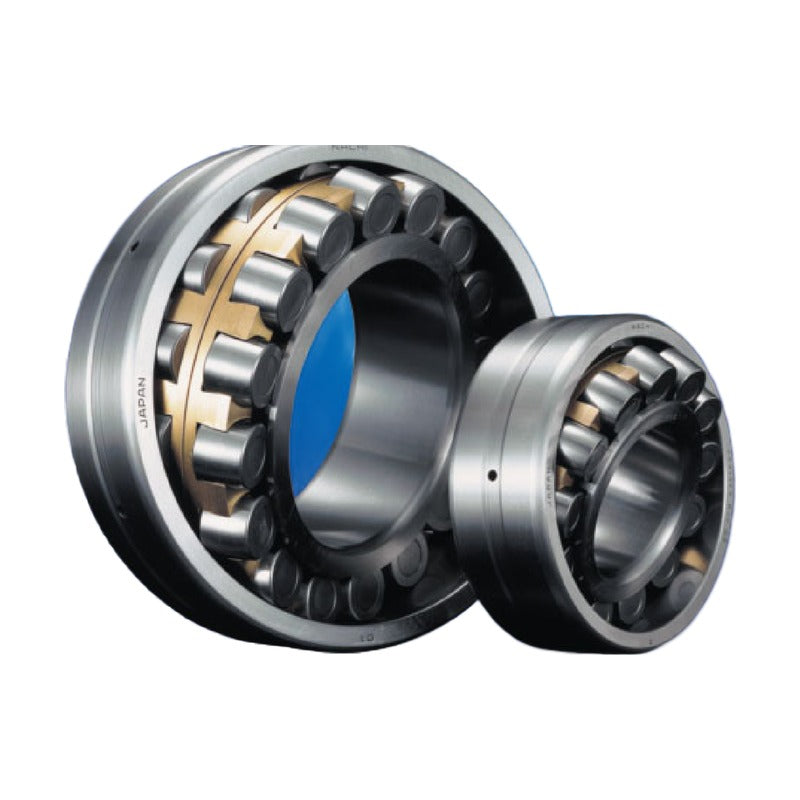

NACHI 239 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 239 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 239 series double-row spherical roller bearings, bore 100 to 1060 mm, with cylindrical bore or tapered bore (suffix K = 1:12 taper, K30 = 1:30 taper).

Key features

  • Self-aligning design for applications where misalignment can arise from mounting errors or shaft deflection
  • Maximum permissible misalignment of about 2 degrees under general service conditions
  • High radial load capacity with axial load capacity in both directions
  • Outer rings are often made with lubrication holes and groove (W33) for feeding lubricant
  • Each size listed with cylindrical bore and tapered bore designation (K or K30)

Specifications

Brand NACHI
Series 239
Bearing type Double-row spherical roller bearing
Bore range 100 - 1060 mm
Bore Cylindrical or tapered (K 1:12, K30 1:30)
Mass Reference mass of cylindrical-bore bearing
Load ratings Basic dynamic Cr / static C0r
Source NACHI Spherical Roller Bearings and Spherical Roller Thrust Bearings (B1032E-5), p. 14-27
23920E d: 100 mm | D: 140 mm | B: 30 mm | Cr: 197 kN | C0r: 233 kN | Mass: 1.46 kg
23920EK d: 100 mm | D: 140 mm | B: 30 mm | Cr: 197 kN | C0r: 233 kN | Mass: 1.46 kg
23926E d: 130 mm | D: 180 mm | B: 37 mm | Cr: 284 kN | C0r: 355 kN | Mass: 2.87 kg
23926EK d: 130 mm | D: 180 mm | B: 37 mm | Cr: 284 kN | C0r: 355 kN | Mass: 2.87 kg
23928AX d: 140 mm | D: 190 mm | B: 37 mm | Cr: 345 kN | C0r: 466 kN | Mass: 3.13 kg
23928AXK d: 140 mm | D: 190 mm | B: 37 mm | Cr: 345 kN | C0r: 466 kN | Mass: 3.13 kg
23930AX d: 150 mm | D: 210 mm | B: 45 mm | Cr: 465 kN | C0r: 622 kN | Mass: 5.01 kg
23930AXK d: 150 mm | D: 210 mm | B: 45 mm | Cr: 465 kN | C0r: 622 kN | Mass: 5.01 kg
23932AX d: 160 mm | D: 220 mm | B: 45 mm | Cr: 475 kN | C0r: 649 kN | Mass: 5.29 kg
23932AXK d: 160 mm | D: 220 mm | B: 45 mm | Cr: 475 kN | C0r: 649 kN | Mass: 5.29 kg
23934AX d: 170 mm | D: 230 mm | B: 45 mm | Cr: 490 kN | C0r: 691 kN | Mass: 5.58 kg
23934AXK d: 170 mm | D: 230 mm | B: 45 mm | Cr: 490 kN | C0r: 691 kN | Mass: 5.58 kg
23936AX d: 180 mm | D: 250 mm | B: 52 mm | Cr: 665 kN | C0r: 939 kN | Mass: 8.10 kg
23936AXK d: 180 mm | D: 250 mm | B: 52 mm | Cr: 665 kN | C0r: 939 kN | Mass: 8.10 kg
23938AX d: 190 mm | D: 260 mm | B: 52 mm | Cr: 675 kN | C0r: 969 kN | Mass: 8.46 kg
23938AXK d: 190 mm | D: 260 mm | B: 52 mm | Cr: 675 kN | C0r: 969 kN | Mass: 8.46 kg
23940AX d: 200 mm | D: 280 mm | B: 60 mm | Cr: 840 kN | C0r: 1190 kN | Mass: 11.9 kg
23940AXK d: 200 mm | D: 280 mm | B: 60 mm | Cr: 840 kN | C0r: 1190 kN | Mass: 11.9 kg
23944E d: 220 mm | D: 300 mm | B: 60 mm | Cr: 840 kN | C0r: 1190 kN | Mass: 12.6 kg
23944EK d: 220 mm | D: 300 mm | B: 60 mm | Cr: 840 kN | C0r: 1190 kN | Mass: 12.6 kg
23948E d: 240 mm | D: 320 mm | B: 60 mm | Cr: 870 kN | C0r: 1260 kN | Mass: 13.7 kg
23948EK d: 240 mm | D: 320 mm | B: 60 mm | Cr: 870 kN | C0r: 1260 kN | Mass: 13.7 kg
23952E d: 260 mm | D: 360 mm | B: 75 mm | Cr: 1240 kN | C0r: 1780 kN | Mass: 23.7 kg
23952EK d: 260 mm | D: 360 mm | B: 75 mm | Cr: 1240 kN | C0r: 1780 kN | Mass: 23.7 kg
23956E d: 280 mm | D: 380 mm | B: 75 mm | Cr: 1260 kN | C0r: 1840 kN | Mass: 24.9 kg
23956EK d: 280 mm | D: 380 mm | B: 75 mm | Cr: 1260 kN | C0r: 1840 kN | Mass: 24.9 kg
23960E d: 300 mm | D: 420 mm | B: 90 mm | Cr: 1740 kN | C0r: 2520 kN | Mass: 39.7 kg
23960EK d: 300 mm | D: 420 mm | B: 90 mm | Cr: 1740 kN | C0r: 2520 kN | Mass: 39.7 kg
23964E d: 320 mm | D: 440 mm | B: 90 mm | Cr: 1770 kN | C0r: 2610 kN | Mass: 41.8 kg
23964EK d: 320 mm | D: 440 mm | B: 90 mm | Cr: 1770 kN | C0r: 2610 kN | Mass: 41.8 kg
23968E d: 340 mm | D: 460 mm | B: 90 mm | Cr: 1830 kN | C0r: 2790 kN | Mass: 44.1 kg
23968EK d: 340 mm | D: 460 mm | B: 90 mm | Cr: 1830 kN | C0r: 2790 kN | Mass: 44.1 kg
23972E d: 360 mm | D: 480 mm | B: 90 mm | Cr: 1890 kN | C0r: 2960 kN | Mass: 46.2 kg
23972EK d: 360 mm | D: 480 mm | B: 90 mm | Cr: 1890 kN | C0r: 2960 kN | Mass: 46.2 kg
23976E d: 380 mm | D: 520 mm | B: 106 mm | Cr: 2390 kN | C0r: 3650 kN | Mass: 68.2 kg
23976EK d: 380 mm | D: 520 mm | B: 106 mm | Cr: 2390 kN | C0r: 3650 kN | Mass: 68.2 kg
23980E d: 400 mm | D: 540 mm | B: 106 mm | Cr: 2470 kN | C0r: 3900 kN | Mass: 71.4 kg
23980EK d: 400 mm | D: 540 mm | B: 106 mm | Cr: 2470 kN | C0r: 3900 kN | Mass: 71.4 kg
23984E d: 420 mm | D: 560 mm | B: 106 mm | Cr: 2520 kN | C0r: 4000 kN | Mass: 74.4 kg
23984EK d: 420 mm | D: 560 mm | B: 106 mm | Cr: 2520 kN | C0r: 4000 kN | Mass: 74.4 kg
23988E d: 440 mm | D: 600 mm | B: 118 mm | Cr: 3100 kN | C0r: 4900 kN | Mass: 101 kg
23988EK d: 440 mm | D: 600 mm | B: 118 mm | Cr: 3100 kN | C0r: 4900 kN | Mass: 101 kg
23992E d: 460 mm | D: 620 mm | B: 118 mm | Cr: 3050 kN | C0r: 4900 kN | Mass: 105 kg
23992EK d: 460 mm | D: 620 mm | B: 118 mm | Cr: 3050 kN | C0r: 4900 kN | Mass: 105 kg
23996E d: 480 mm | D: 650 mm | B: 128 mm | Cr: 3300 kN | C0r: 5450 kN | Mass: 126 kg
23996EK d: 480 mm | D: 650 mm | B: 128 mm | Cr: 3300 kN | C0r: 5450 kN | Mass: 126 kg
239/500E d: 500 mm | D: 670 mm | B: 128 mm | Cr: 3400 kN | C0r: 5700 kN | Mass: 130 kg
239/500EK d: 500 mm | D: 670 mm | B: 128 mm | Cr: 3400 kN | C0r: 5700 kN | Mass: 130 kg
239/530E d: 530 mm | D: 710 mm | B: 136 mm | Cr: 4100 kN | C0r: 6800 kN | Mass: 156 kg
239/530EK d: 530 mm | D: 710 mm | B: 136 mm | Cr: 4100 kN | C0r: 6800 kN | Mass: 156 kg
239/560E d: 560 mm | D: 750 mm | B: 140 mm | Cr: 4250 kN | C0r: 6950 kN | Mass: 177 kg
239/560EK d: 560 mm | D: 750 mm | B: 140 mm | Cr: 4250 kN | C0r: 6950 kN | Mass: 177 kg
239/600E d: 600 mm | D: 800 mm | B: 150 mm | Cr: 4800 kN | C0r: 8050 kN | Mass: 214 kg
239/600EK d: 600 mm | D: 800 mm | B: 150 mm | Cr: 4800 kN | C0r: 8050 kN | Mass: 214 kg
239/630E d: 630 mm | D: 850 mm | B: 165 mm | Cr: 5750 kN | C0r: 9700 kN | Mass: 273 kg
239/630EK d: 630 mm | D: 850 mm | B: 165 mm | Cr: 5750 kN | C0r: 9700 kN | Mass: 273 kg
239/670E d: 670 mm | D: 900 mm | B: 170 mm | Cr: 6200 kN | C0r: 10500 kN | Mass: 316 kg
239/670EK d: 670 mm | D: 900 mm | B: 170 mm | Cr: 6200 kN | C0r: 10500 kN | Mass: 316 kg
239/710E d: 710 mm | D: 950 mm | B: 180 mm | Cr: 6950 kN | C0r: 12100 kN | Mass: 369 kg
239/710EK d: 710 mm | D: 950 mm | B: 180 mm | Cr: 6950 kN | C0r: 12100 kN | Mass: 369 kg
239/750E d: 750 mm | D: 1000 mm | B: 185 mm | Cr: 7500 kN | C0r: 13200 kN | Mass: 417 kg
239/750EK d: 750 mm | D: 1000 mm | B: 185 mm | Cr: 7500 kN | C0r: 13200 kN | Mass: 417 kg
239/800E d: 800 mm | D: 1060 mm | B: 195 mm | Cr: 8150 kN | C0r: 14500 kN | Mass: 470 kg
239/800EK d: 800 mm | D: 1060 mm | B: 195 mm | Cr: 8150 kN | C0r: 14500 kN | Mass: 470 kg
239/850E d: 850 mm | D: 1120 mm | B: 200 mm | Cr: 8600 kN | C0r: 15600 kN | Mass: 546 kg
239/850EK d: 850 mm | D: 1120 mm | B: 200 mm | Cr: 8600 kN | C0r: 15600 kN | Mass: 546 kg
239/900E d: 900 mm | D: 1180 mm | B: 206 mm | Cr: 9300 kN | C0r: 17000 kN | Mass: 618 kg
239/900EK d: 900 mm | D: 1180 mm | B: 206 mm | Cr: 9300 kN | C0r: 17000 kN | Mass: 618 kg
239/950E d: 950 mm | D: 1250 mm | B: 224 mm | Cr: 10800 kN | C0r: 19900 kN | Mass: 763 kg
239/950EK d: 950 mm | D: 1250 mm | B: 224 mm | Cr: 10800 kN | C0r: 19900 kN | Mass: 763 kg
239/1000E d: 1000 mm | D: 1320 mm | B: 236 mm | Cr: 11600 kN | C0r: 21300 kN | Mass: 895 kg
239/1000EK d: 1000 mm | D: 1320 mm | B: 236 mm | Cr: 11600 kN | C0r: 21300 kN | Mass: 895 kg
239/1060E d: 1060 mm | D: 1400 mm | B: 250 mm | Cr: 13200 kN | C0r: 24500 kN | Mass: 1077 kg
239/1060EK d: 1060 mm | D: 1400 mm | B: 250 mm | Cr: 13200 kN | C0r: 24500 kN | Mass: 1077 kg
Spherical Roller BearingsNACHI
74 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI 239 Series Spherical Roller Bearings (Cylindrical, K Bore)

Brand NACHI·Spherical Roller Bearings

Available part numbers (74)

23920E, 23920EK, 23926E, 23926EK, 23928AX, 23928AXK, 23930AX, 23930AXK, 23932AX, 23932AXK + 64 more — see full table ↓
