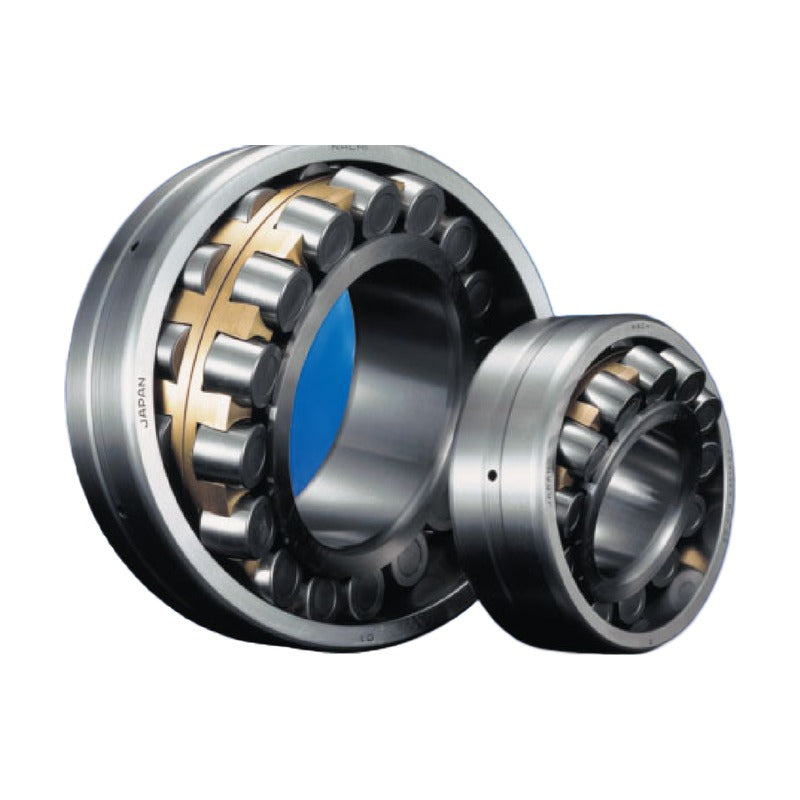

NACHI 241 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 241 Series Spherical Roller Bearings (Cylindrical, K Bore)

NACHI 241 series double-row spherical roller bearings, bore 110 to 500 mm, with cylindrical bore or tapered bore (suffix K = 1:12 taper, K30 = 1:30 taper).

Key features

  • Self-aligning design for applications where misalignment can arise from mounting errors or shaft deflection
  • Maximum permissible misalignment of about 2 degrees under general service conditions
  • High radial load capacity with axial load capacity in both directions
  • Outer rings are often made with lubrication holes and groove (W33) for feeding lubricant
  • Each size listed with cylindrical bore and tapered bore designation (K or K30)

Specifications

Brand NACHI
Series 241
Bearing type Double-row spherical roller bearing
Bore range 110 - 500 mm
Bore Cylindrical or tapered (K 1:12, K30 1:30)
Mass Reference mass of cylindrical-bore bearing
Load ratings Basic dynamic Cr / static C0r
Source NACHI Spherical Roller Bearings and Spherical Roller Thrust Bearings (B1032E-5), p. 14-25
24122EX1 d: 110 mm | D: 180 mm | B: 69 mm | Cr: 633 kN | C0r: 743 kN | Mass: 6.89 kg
24122EX1K30 d: 110 mm | D: 180 mm | B: 69 mm | Cr: 633 kN | C0r: 743 kN | Mass: 6.89 kg
24122AX d: 110 mm | D: 180 mm | B: 69 mm | Cr: 620 kN | C0r: 654 kN | Mass: 6.85 kg
24122AXK30 d: 110 mm | D: 180 mm | B: 69 mm | Cr: 620 kN | C0r: 654 kN | Mass: 6.85 kg
24124EX1 d: 120 mm | D: 200 mm | B: 80 mm | Cr: 815 kN | C0r: 970 kN | Mass: 10.1 kg
24124EX1K30 d: 120 mm | D: 200 mm | B: 80 mm | Cr: 815 kN | C0r: 970 kN | Mass: 10.1 kg
24124AX d: 120 mm | D: 200 mm | B: 80 mm | Cr: 780 kN | C0r: 850 kN | Mass: 9.90 kg
24124AXK30 d: 120 mm | D: 200 mm | B: 80 mm | Cr: 780 kN | C0r: 850 kN | Mass: 9.90 kg
24126EX1 d: 130 mm | D: 210 mm | B: 80 mm | Cr: 840 kN | C0r: 1030 kN | Mass: 10.7 kg
24126EX1K30 d: 130 mm | D: 210 mm | B: 80 mm | Cr: 840 kN | C0r: 1030 kN | Mass: 10.7 kg
24126AX d: 130 mm | D: 210 mm | B: 80 mm | Cr: 815 kN | C0r: 918 kN | Mass: 10.5 kg
24126AXK30 d: 130 mm | D: 210 mm | B: 80 mm | Cr: 815 kN | C0r: 918 kN | Mass: 10.5 kg
24128EX1 d: 140 mm | D: 225 mm | B: 85 mm | Cr: 950 kN | C0r: 1180 kN | Mass: 13.0 kg
24128EX1K30 d: 140 mm | D: 225 mm | B: 85 mm | Cr: 950 kN | C0r: 1180 kN | Mass: 13.0 kg
24128AX d: 140 mm | D: 225 mm | B: 85 mm | Cr: 930 kN | C0r: 1030 kN | Mass: 12.7 kg
24128AXK30 d: 140 mm | D: 225 mm | B: 85 mm | Cr: 930 kN | C0r: 1030 kN | Mass: 12.7 kg
24130EX1 d: 150 mm | D: 250 mm | B: 100 mm | Cr: 1230 kN | C0r: 1520 kN | Mass: 19.6 kg
24130EX1K d: 150 mm | D: 250 mm | B: 100 mm | Cr: 1230 kN | C0r: 1520 kN | Mass: 19.6 kg
24130AX d: 150 mm | D: 250 mm | B: 100 mm | Cr: 1120 kN | C0r: 1340 kN | Mass: 19.5 kg
24130AXK30 d: 150 mm | D: 250 mm | B: 100 mm | Cr: 1120 kN | C0r: 1340 kN | Mass: 19.5 kg
24132EX1 d: 160 mm | D: 270 mm | B: 109 mm | Cr: 1450 kN | C0r: 1810 kN | Mass: 25.5 kg
24132EX1K30 d: 160 mm | D: 270 mm | B: 109 mm | Cr: 1450 kN | C0r: 1810 kN | Mass: 25.5 kg
24132AX d: 160 mm | D: 270 mm | B: 109 mm | Cr: 1340 kN | C0r: 1610 kN | Mass: 25.5 kg
24132AXK30 d: 160 mm | D: 270 mm | B: 109 mm | Cr: 1340 kN | C0r: 1610 kN | Mass: 25.5 kg
24134AX d: 170 mm | D: 280 mm | B: 109 mm | Cr: 1360 kN | C0r: 1650 kN | Mass: 26.4 kg
24134AXK30 d: 170 mm | D: 280 mm | B: 109 mm | Cr: 1360 kN | C0r: 1650 kN | Mass: 26.4 kg
24136E d: 180 mm | D: 300 mm | B: 118 mm | Cr: 1640 kN | C0r: 2040 kN | Mass: 33.7 kg
24136EK30 d: 180 mm | D: 300 mm | B: 118 mm | Cr: 1640 kN | C0r: 2040 kN | Mass: 33.7 kg
24138E d: 190 mm | D: 320 mm | B: 128 mm | Cr: 1900 kN | C0r: 2380 kN | Mass: 42.0 kg
24138EK30 d: 190 mm | D: 320 mm | B: 128 mm | Cr: 1900 kN | C0r: 2380 kN | Mass: 42.0 kg
24140E d: 200 mm | D: 340 mm | B: 140 mm | Cr: 2220 kN | C0r: 2820 kN | Mass: 52.9 kg
24140EK30 d: 200 mm | D: 340 mm | B: 140 mm | Cr: 2220 kN | C0r: 2820 kN | Mass: 52.9 kg
24144E d: 220 mm | D: 370 mm | B: 150 mm | Cr: 2530 kN | C0r: 3250 kN | Mass: 66.3 kg
24144EK30 d: 220 mm | D: 370 mm | B: 150 mm | Cr: 2530 kN | C0r: 3250 kN | Mass: 66.3 kg
24148E d: 240 mm | D: 400 mm | B: 160 mm | Cr: 2850 kN | C0r: 3700 kN | Mass: 81.6 kg
24148EK30 d: 240 mm | D: 400 mm | B: 160 mm | Cr: 2850 kN | C0r: 3700 kN | Mass: 81.6 kg
24152E d: 260 mm | D: 440 mm | B: 180 mm | Cr: 3550 kN | C0r: 4650 kN | Mass: 113 kg
24152EK30 d: 260 mm | D: 440 mm | B: 180 mm | Cr: 3550 kN | C0r: 4650 kN | Mass: 113 kg
24156E d: 280 mm | D: 460 mm | B: 180 mm | Cr: 3550 kN | C0r: 4800 kN | Mass: 120 kg
24156EK30 d: 280 mm | D: 460 mm | B: 180 mm | Cr: 3550 kN | C0r: 4800 kN | Mass: 120 kg
24160E d: 300 mm | D: 500 mm | B: 200 mm | Cr: 4450 kN | C0r: 6100 kN | Mass: 160 kg
24160EK30 d: 300 mm | D: 500 mm | B: 200 mm | Cr: 4450 kN | C0r: 6100 kN | Mass: 160 kg
24164E d: 320 mm | D: 540 mm | B: 218 mm | Cr: 5050 kN | C0r: 6900 kN | Mass: 206 kg
24164EK30 d: 320 mm | D: 540 mm | B: 218 mm | Cr: 5050 kN | C0r: 6900 kN | Mass: 206 kg
24168E d: 340 mm | D: 580 mm | B: 243 mm | Cr: 6050 kN | C0r: 8300 kN | Mass: 267 kg
24168EK30 d: 340 mm | D: 580 mm | B: 243 mm | Cr: 6050 kN | C0r: 8300 kN | Mass: 267 kg
24172E d: 360 mm | D: 600 mm | B: 243 mm | Cr: 6250 kN | C0r: 8750 kN | Mass: 279 kg
24172EK30 d: 360 mm | D: 600 mm | B: 243 mm | Cr: 6250 kN | C0r: 8750 kN | Mass: 279 kg
24176E d: 380 mm | D: 620 mm | B: 243 mm | Cr: 6450 kN | C0r: 9300 kN | Mass: 290 kg
24176EK30 d: 380 mm | D: 620 mm | B: 243 mm | Cr: 6450 kN | C0r: 9300 kN | Mass: 290 kg
24180E d: 400 mm | D: 650 mm | B: 250 mm | Cr: 6900 kN | C0r: 9850 kN | Mass: 330 kg
24180EK30 d: 400 mm | D: 650 mm | B: 250 mm | Cr: 6900 kN | C0r: 9850 kN | Mass: 330 kg
24184E d: 420 mm | D: 700 mm | B: 280 mm | Cr: 8350 kN | C0r: 12000 kN | Mass: 437 kg
24184EK30 d: 420 mm | D: 700 mm | B: 280 mm | Cr: 8350 kN | C0r: 12000 kN | Mass: 437 kg
24188E d: 440 mm | D: 720 mm | B: 280 mm | Cr: 8550 kN | C0r: 12700 kN | Mass: 460 kg
24188EK30 d: 440 mm | D: 720 mm | B: 280 mm | Cr: 8550 kN | C0r: 12700 kN | Mass: 460 kg
24192E d: 460 mm | D: 760 mm | B: 300 mm | Cr: 9450 kN | C0r: 13900 kN | Mass: 550 kg
24192EK30 d: 460 mm | D: 760 mm | B: 300 mm | Cr: 9450 kN | C0r: 13900 kN | Mass: 550 kg
24196E d: 480 mm | D: 790 mm | B: 308 mm | Cr: 9950 kN | C0r: 14800 kN | Mass: 625 kg
24196EK30 d: 480 mm | D: 790 mm | B: 308 mm | Cr: 9950 kN | C0r: 14800 kN | Mass: 625 kg
241/500E d: 500 mm | D: 830 mm | B: 325 mm | Cr: 11000 kN | C0r: 16200 kN | Mass: 718 kg
241/500EK30 d: 500 mm | D: 830 mm | B: 325 mm | Cr: 11000 kN | C0r: 16200 kN | Mass: 718 kg
Spherical Roller BearingsNACHI
62 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI 241 Series Spherical Roller Bearings (Cylindrical, K Bore)

Brand NACHI·Spherical Roller Bearings

Available part numbers (62)

24122EX1, 24122EX1K30, 24122AX, 24122AXK30, 24124EX1, 24124EX1K30, 24124AX, 24124AXK30, 24126EX1, 24126EX1K30 + 52 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
24122EX1d: 110 mm | D: 180 mm | B: 69 mm | Cr: 633 kN | C0r: 743 kN | Mass: 6.89 kg
24122EX1K30d: 110 mm | D: 180 mm | B: 69 mm | Cr: 633 kN | C0r: 743 kN | Mass: 6.89 kg
24122AXd: 110 mm | D: 180 mm | B: 69 mm | Cr: 620 kN | C0r: 654 kN | Mass: 6.85 kg
24122AXK30d: 110 mm | D: 180 mm | B: 69 mm | Cr: 620 kN | C0r: 654 kN | Mass: 6.85 kg
24124EX1d: 120 mm | D: 200 mm | B: 80 mm | Cr: 815 kN | C0r: 970 kN | Mass: 10.1 kg
24124EX1K30d: 120 mm | D: 200 mm | B: 80 mm | Cr: 815 kN | C0r: 970 kN | Mass: 10.1 kg
24124AXd: 120 mm | D: 200 mm | B: 80 mm | Cr: 780 kN | C0r: 850 kN | Mass: 9.90 kg
24124AXK30d: 120 mm | D: 200 mm | B: 80 mm | Cr: 780 kN | C0r: 850 kN | Mass: 9.90 kg
24126EX1d: 130 mm | D: 210 mm | B: 80 mm | Cr: 840 kN | C0r: 1030 kN | Mass: 10.7 kg
24126EX1K30d: 130 mm | D: 210 mm | B: 80 mm | Cr: 840 kN | C0r: 1030 kN | Mass: 10.7 kg
24126AXd: 130 mm | D: 210 mm | B: 80 mm | Cr: 815 kN | C0r: 918 kN | Mass: 10.5 kg
24126AXK30d: 130 mm | D: 210 mm | B: 80 mm | Cr: 815 kN | C0r: 918 kN | Mass: 10.5 kg
24128EX1d: 140 mm | D: 225 mm | B: 85 mm | Cr: 950 kN | C0r: 1180 kN | Mass: 13.0 kg
24128EX1K30d: 140 mm | D: 225 mm | B: 85 mm | Cr: 950 kN | C0r: 1180 kN | Mass: 13.0 kg
24128AXd: 140 mm | D: 225 mm | B: 85 mm | Cr: 930 kN | C0r: 1030 kN | Mass: 12.7 kg
24128AXK30d: 140 mm | D: 225 mm | B: 85 mm | Cr: 930 kN | C0r: 1030 kN | Mass: 12.7 kg
24130EX1d: 150 mm | D: 250 mm | B: 100 mm | Cr: 1230 kN | C0r: 1520 kN | Mass: 19.6 kg
24130EX1Kd: 150 mm | D: 250 mm | B: 100 mm | Cr: 1230 kN | C0r: 1520 kN | Mass: 19.6 kg
24130AXd: 150 mm | D: 250 mm | B: 100 mm | Cr: 1120 kN | C0r: 1340 kN | Mass: 19.5 kg
24130AXK30d: 150 mm | D: 250 mm | B: 100 mm | Cr: 1120 kN | C0r: 1340 kN | Mass: 19.5 kg
24132EX1d: 160 mm | D: 270 mm | B: 109 mm | Cr: 1450 kN | C0r: 1810 kN | Mass: 25.5 kg
24132EX1K30d: 160 mm | D: 270 mm | B: 109 mm | Cr: 1450 kN | C0r: 1810 kN | Mass: 25.5 kg
24132AXd: 160 mm | D: 270 mm | B: 109 mm | Cr: 1340 kN | C0r: 1610 kN | Mass: 25.5 kg
24132AXK30d: 160 mm | D: 270 mm | B: 109 mm | Cr: 1340 kN | C0r: 1610 kN | Mass: 25.5 kg
24134AXd: 170 mm | D: 280 mm | B: 109 mm | Cr: 1360 kN | C0r: 1650 kN | Mass: 26.4 kg
24134AXK30d: 170 mm | D: 280 mm | B: 109 mm | Cr: 1360 kN | C0r: 1650 kN | Mass: 26.4 kg
24136Ed: 180 mm | D: 300 mm | B: 118 mm | Cr: 1640 kN | C0r: 2040 kN | Mass: 33.7 kg
24136EK30d: 180 mm | D: 300 mm | B: 118 mm | Cr: 1640 kN | C0r: 2040 kN | Mass: 33.7 kg
24138Ed: 190 mm | D: 320 mm | B: 128 mm | Cr: 1900 kN | C0r: 2380 kN | Mass: 42.0 kg
24138EK30d: 190 mm | D: 320 mm | B: 128 mm | Cr: 1900 kN | C0r: 2380 kN | Mass: 42.0 kg
24140Ed: 200 mm | D: 340 mm | B: 140 mm | Cr: 2220 kN | C0r: 2820 kN | Mass: 52.9 kg
24140EK30d: 200 mm | D: 340 mm | B: 140 mm | Cr: 2220 kN | C0r: 2820 kN | Mass: 52.9 kg
24144Ed: 220 mm | D: 370 mm | B: 150 mm | Cr: 2530 kN | C0r: 3250 kN | Mass: 66.3 kg
24144EK30d: 220 mm | D: 370 mm | B: 150 mm | Cr: 2530 kN | C0r: 3250 kN | Mass: 66.3 kg
24148Ed: 240 mm | D: 400 mm | B: 160 mm | Cr: 2850 kN | C0r: 3700 kN | Mass: 81.6 kg
24148EK30d: 240 mm | D: 400 mm | B: 160 mm | Cr: 2850 kN | C0r: 3700 kN | Mass: 81.6 kg
24152Ed: 260 mm | D: 440 mm | B: 180 mm | Cr: 3550 kN | C0r: 4650 kN | Mass: 113 kg
24152EK30d: 260 mm | D: 440 mm | B: 180 mm | Cr: 3550 kN | C0r: 4650 kN | Mass: 113 kg
24156Ed: 280 mm | D: 460 mm | B: 180 mm | Cr: 3550 kN | C0r: 4800 kN | Mass: 120 kg
24156EK30d: 280 mm | D: 460 mm | B: 180 mm | Cr: 3550 kN | C0r: 4800 kN | Mass: 120 kg
24160Ed: 300 mm | D: 500 mm | B: 200 mm | Cr: 4450 kN | C0r: 6100 kN | Mass: 160 kg
24160EK30d: 300 mm | D: 500 mm | B: 200 mm | Cr: 4450 kN | C0r: 6100 kN | Mass: 160 kg
24164Ed: 320 mm | D: 540 mm | B: 218 mm | Cr: 5050 kN | C0r: 6900 kN | Mass: 206 kg
24164EK30d: 320 mm | D: 540 mm | B: 218 mm | Cr: 5050 kN | C0r: 6900 kN | Mass: 206 kg
24168Ed: 340 mm | D: 580 mm | B: 243 mm | Cr: 6050 kN | C0r: 8300 kN | Mass: 267 kg
24168EK30d: 340 mm | D: 580 mm | B: 243 mm | Cr: 6050 kN | C0r: 8300 kN | Mass: 267 kg
24172Ed: 360 mm | D: 600 mm | B: 243 mm | Cr: 6250 kN | C0r: 8750 kN | Mass: 279 kg
24172EK30d: 360 mm | D: 600 mm | B: 243 mm | Cr: 6250 kN | C0r: 8750 kN | Mass: 279 kg
24176Ed: 380 mm | D: 620 mm | B: 243 mm | Cr: 6450 kN | C0r: 9300 kN | Mass: 290 kg
24176EK30d: 380 mm | D: 620 mm | B: 243 mm | Cr: 6450 kN | C0r: 9300 kN | Mass: 290 kg
24180Ed: 400 mm | D: 650 mm | B: 250 mm | Cr: 6900 kN | C0r: 9850 kN | Mass: 330 kg
24180EK30d: 400 mm | D: 650 mm | B: 250 mm | Cr: 6900 kN | C0r: 9850 kN | Mass: 330 kg
24184Ed: 420 mm | D: 700 mm | B: 280 mm | Cr: 8350 kN | C0r: 12000 kN | Mass: 437 kg
24184EK30d: 420 mm | D: 700 mm | B: 280 mm | Cr: 8350 kN | C0r: 12000 kN | Mass: 437 kg
24188Ed: 440 mm | D: 720 mm | B: 280 mm | Cr: 8550 kN | C0r: 12700 kN | Mass: 460 kg
24188EK30d: 440 mm | D: 720 mm | B: 280 mm | Cr: 8550 kN | C0r: 12700 kN | Mass: 460 kg
24192Ed: 460 mm | D: 760 mm | B: 300 mm | Cr: 9450 kN | C0r: 13900 kN | Mass: 550 kg
24192EK30d: 460 mm | D: 760 mm | B: 300 mm | Cr: 9450 kN | C0r: 13900 kN | Mass: 550 kg
24196Ed: 480 mm | D: 790 mm | B: 308 mm | Cr: 9950 kN | C0r: 14800 kN | Mass: 625 kg
24196EK30d: 480 mm | D: 790 mm | B: 308 mm | Cr: 9950 kN | C0r: 14800 kN | Mass: 625 kg
241/500Ed: 500 mm | D: 830 mm | B: 325 mm | Cr: 11000 kN | C0r: 16200 kN | Mass: 718 kg
241/500EK30d: 500 mm | D: 830 mm | B: 325 mm | Cr: 11000 kN | C0r: 16200 kN | Mass: 718 kg
