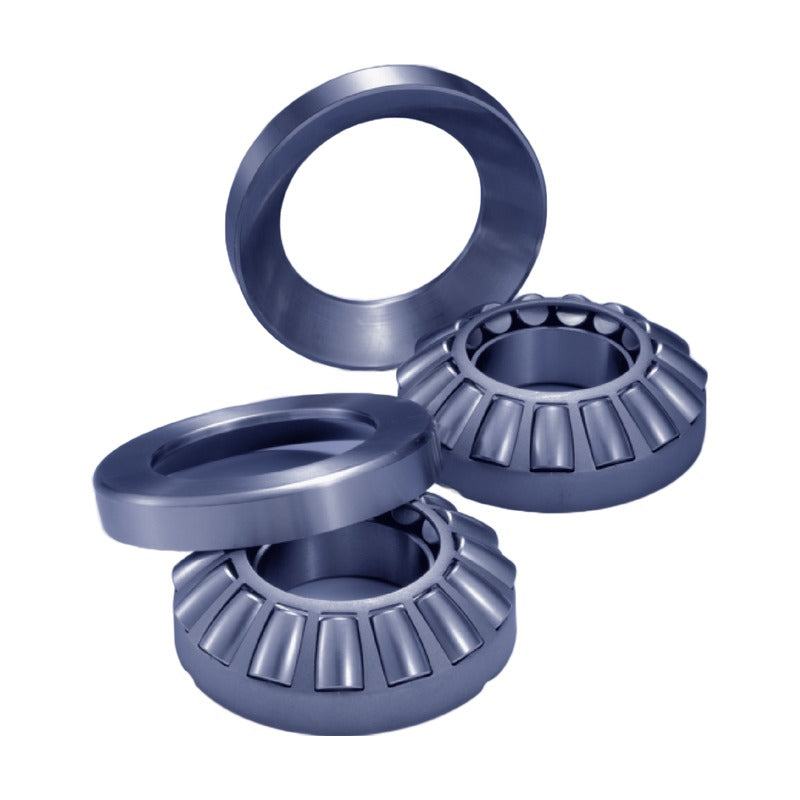

• NACHI 292/293/294 Spherical Roller Thrust Bearings (Type E, EX)
1 1

NACHI 292/293/294 Spherical Roller Thrust Bearings (Type E, EX)

NACHI 292/293/294 Spherical Roller Thrust Bearings (Type E, EX)

NACHI spherical roller thrust bearings of the 292, 293 and 294 series, bore 60 to 530 mm, in Type E and Type EX designs.

Key features

  • Carries heavy axial loads together with a limited radial load (Fr/Fa not over 0.55)
  • Self-aligning: maximum permissible misalignment of about 2 degrees under general service conditions
  • Type E and Type EX cage designs listed with limiting speeds for grease and oil lubrication
  • Shaft washer, housing washer and roller-cage assembly design for high load capacity

Specifications

Brand NACHI
Series 292, 293, 294
Bearing type Spherical roller thrust bearing
Bore range 60 - 530 mm
Designs Type E, Type EX
Load ratings Basic dynamic Ca / static C0a
Source NACHI Spherical Roller Bearings and Spherical Roller Thrust Bearings (B1032E-5), p. 30-33
29412E d: 60 mm | D: 130 mm | T: 42 mm | Ca: 299 kN | C0a: 890 kN | Mass: 2.75 kg
29412EX d: 60 mm | D: 130 mm | T: 42 mm | Ca: 350 kN | C0a: 915 kN | Mass: 2.50 kg
29413E d: 65 mm | D: 140 mm | T: 45 mm | Ca: 345 kN | C0a: 1040 kN | Mass: 3.41 kg
29413EX d: 65 mm | D: 140 mm | T: 45 mm | Ca: 410 kN | C0a: 1110 kN | Mass: 3.20 kg
29414E d: 70 mm | D: 150 mm | T: 48 mm | Ca: 375 kN | C0a: 1110 kN | Mass: 4.16 kg
29414EX d: 70 mm | D: 150 mm | T: 48 mm | Ca: 490 kN | C0a: 1350 kN | Mass: 3.82 kg
29415E d: 75 mm | D: 160 mm | T: 51 mm | Ca: 445 kN | C0a: 1380 kN | Mass: 4.98 kg
29415EX d: 75 mm | D: 160 mm | T: 51 mm | Ca: 525 kN | C0a: 1470 kN | Mass: 4.70 kg
29416E d: 80 mm | D: 170 mm | T: 54 mm | Ca: 480 kN | C0a: 1490 kN | Mass: 5.95 kg
29416EX d: 80 mm | D: 170 mm | T: 54 mm | Ca: 580 kN | C0a: 1630 kN | Mass: 5.60 kg
29317E d: 85 mm | D: 150 mm | T: 39 mm | Ca: 293 kN | C0a: 990 kN | Mass: 2.87 kg
29317EX d: 85 mm | D: 150 mm | T: 39 mm | Ca: 365 kN | C0a: 1060 kN | Mass: 2.67 kg
29417E d: 85 mm | D: 180 mm | T: 58 mm | Ca: 540 kN | C0a: 1720 kN | Mass: 7.19 kg
29417EX d: 85 mm | D: 180 mm | T: 58 mm | Ca: 640 kN | C0a: 1810 kN | Mass: 6.69 kg
29318E d: 90 mm | D: 155 mm | T: 39 mm | Ca: 300 kN | C0a: 1040 kN | Mass: 3.06 kg
29318EX d: 90 mm | D: 155 mm | T: 39 mm | Ca: 355 kN | C0a: 1070 kN | Mass: 2.75 kg
29418E d: 90 mm | D: 190 mm | T: 60 mm | Ca: 620 kN | C0a: 2020 kN | Mass: 8.28 kg
29418EX d: 90 mm | D: 190 mm | T: 60 mm | Ca: 710 kN | C0a: 2080 kN | Mass: 7.83 kg
29320E d: 100 mm | D: 170 mm | T: 42 mm | Ca: 355 kN | C0a: 1260 kN | Mass: 3.91 kg
29320EX d: 100 mm | D: 170 mm | T: 42 mm | Ca: 435 kN | C0a: 1400 kN | Mass: 3.61 kg
29420E d: 100 mm | D: 210 mm | T: 67 mm | Ca: 690 kN | C0a: 2230 kN | Mass: 11.2 kg
29420EX d: 100 mm | D: 210 mm | T: 67 mm | Ca: 870 kN | C0a: 2530 kN | Mass: 10.6 kg
29322E d: 110 mm | D: 190 mm | T: 48 mm | Ca: 470 kN | C0a: 1680 kN | Mass: 5.67 kg
29322EX d: 110 mm | D: 190 mm | T: 48 mm | Ca: 550 kN | C0a: 1730 kN | Mass: 5.22 kg
29422E d: 110 mm | D: 230 mm | T: 73 mm | Ca: 845 kN | C0a: 2820 kN | Mass: 14.7 kg
29422EX d: 110 mm | D: 230 mm | T: 73 mm | Ca: 1060 kN | C0a: 3150 kN | Mass: 14.0 kg
29324E d: 120 mm | D: 210 mm | T: 54 mm | Ca: 565 kN | C0a: 2030 kN | Mass: 7.90 kg
29324EX d: 120 mm | D: 210 mm | T: 54 mm | Ca: 670 kN | C0a: 2160 kN | Mass: 7.30 kg
29424E d: 120 mm | D: 250 mm | T: 78 mm | Ca: 1030 kN | C0a: 3450 kN | Mass: 18.5 kg
29424EX d: 120 mm | D: 250 mm | T: 78 mm | Ca: 1210 kN | C0a: 3750 kN | Mass: 17.6 kg
29326E d: 130 mm | D: 225 mm | T: 58 mm | Ca: 665 kN | C0a: 2420 kN | Mass: 9.45 kg
29326EX d: 130 mm | D: 225 mm | T: 58 mm | Ca: 770 kN | C0a: 2440 kN | Mass: 8.82 kg
29426E d: 130 mm | D: 270 mm | T: 85 mm | Ca: 1140 kN | C0a: 3850 kN | Mass: 23.5 kg
29426EX d: 130 mm | D: 270 mm | T: 85 mm | Ca: 1400 kN | C0a: 4300 kN | Mass: 22.3 kg
29328E d: 140 mm | D: 240 mm | T: 60 mm | Ca: 700 kN | C0a: 2560 kN | Mass: 11.2 kg
29328EX d: 140 mm | D: 240 mm | T: 60 mm | Ca: 860 kN | C0a: 2840 kN | Mass: 10.5 kg
29428E d: 140 mm | D: 280 mm | T: 85 mm | Ca: 1200 kN | C0a: 4050 kN | Mass: 24.6 kg
29428EX d: 140 mm | D: 280 mm | T: 85 mm | Ca: 1410 kN | C0a: 4350 kN | Mass: 22.8 kg
29230E d: 150 mm | D: 215 mm | T: 39 mm | Ca: 335 kN | C0a: 1390 kN | Mass: 4.60 kg
29330E d: 150 mm | D: 250 mm | T: 60 mm | Ca: 735 kN | C0a: 2840 kN | Mass: 11.7 kg
29430E d: 150 mm | D: 300 mm | T: 90 mm | Ca: 1330 kN | C0a: 4600 kN | Mass: 29.6 kg
29430EX d: 150 mm | D: 300 mm | T: 90 mm | Ca: 1630 kN | C0a: 5150 kN | Mass: 27.8 kg
29232E d: 160 mm | D: 225 mm | T: 39 mm | Ca: 345 kN | C0a: 1470 kN | Mass: 4.70 kg
29332E d: 160 mm | D: 270 mm | T: 67 mm | Ca: 880 kN | C0a: 3400 kN | Mass: 15.5 kg
29332EX d: 160 mm | D: 270 mm | T: 67 mm | Ca: 1040 kN | C0a: 3500 kN | Mass: 14.5 kg
29432E d: 160 mm | D: 320 mm | T: 95 mm | Ca: 1510 kN | C0a: 5350 kN | Mass: 35.9 kg
29432EX d: 160 mm | D: 320 mm | T: 95 mm | Ca: 1820 kN | C0a: 5750 kN | Mass: 33.4 kg
29234E d: 170 mm | D: 240 mm | T: 42 mm | Ca: 390 kN | C0a: 1700 kN | Mass: 6.00 kg
29334E d: 170 mm | D: 280 mm | T: 67 mm | Ca: 900 kN | C0a: 3550 kN | Mass: 16.3 kg
29434E d: 170 mm | D: 340 mm | T: 103 mm | Ca: 1670 kN | C0a: 5900 kN | Mass: 44.0 kg
29236E d: 180 mm | D: 250 mm | T: 42 mm | Ca: 420 kN | C0a: 1900 kN | Mass: 6.30 kg
29336E d: 180 mm | D: 300 mm | T: 73 mm | Ca: 1020 kN | C0a: 3950 kN | Mass: 20.7 kg
29436E d: 180 mm | D: 360 mm | T: 109 mm | Ca: 1950 kN | C0a: 7000 kN | Mass: 52.2 kg
29238E d: 190 mm | D: 270 mm | T: 48 mm | Ca: 540 kN | C0a: 2300 kN | Mass: 8.50 kg
29338E d: 190 mm | D: 320 mm | T: 78 mm | Ca: 1170 kN | C0a: 4550 kN | Mass: 25.5 kg
29438E d: 190 mm | D: 380 mm | T: 115 mm | Ca: 2120 kN | C0a: 7750 kN | Mass: 61.4 kg
29240E d: 200 mm | D: 280 mm | T: 48 mm | Ca: 550 kN | C0a: 2410 kN | Mass: 9.08 kg
29340E d: 200 mm | D: 340 mm | T: 85 mm | Ca: 1350 kN | C0a: 5250 kN | Mass: 32.0 kg
29440E d: 200 mm | D: 400 mm | T: 122 mm | Ca: 2350 kN | C0a: 8450 kN | Mass: 73.0 kg
29244E d: 220 mm | D: 300 mm | T: 48 mm | Ca: 595 kN | C0a: 2750 kN | Mass: 9.84 kg
29344E d: 220 mm | D: 360 mm | T: 85 mm | Ca: 1410 kN | C0a: 5750 kN | Mass: 34.5 kg
29444E d: 220 mm | D: 420 mm | T: 122 mm | Ca: 2410 kN | C0a: 8950 kN | Mass: 74.2 kg
29248E d: 240 mm | D: 340 mm | T: 60 mm | Ca: 890 kN | C0a: 4000 kN | Mass: 17.1 kg
29348E d: 240 mm | D: 380 mm | T: 85 mm | Ca: 1410 kN | C0a: 5850 kN | Mass: 36.3 kg
29448E d: 240 mm | D: 440 mm | T: 122 mm | Ca: 2480 kN | C0a: 9450 kN | Mass: 83.0 kg
29252E d: 260 mm | D: 360 mm | T: 60 mm | Ca: 915 kN | C0a: 4250 kN | Mass: 18.5 kg
29352E d: 260 mm | D: 420 mm | T: 95 mm | Ca: 1810 kN | C0a: 7500 kN | Mass: 51.5 kg
29452E d: 260 mm | D: 480 mm | T: 132 mm | Ca: 2940 kN | C0a: 11600 kN | Mass: 106 kg
29256E d: 280 mm | D: 380 mm | T: 60 mm | Ca: 935 kN | C0a: 4500 kN | Mass: 19.5 kg
29356E d: 280 mm | D: 440 mm | T: 95 mm | Ca: 1850 kN | C0a: 7950 kN | Mass: 54.0 kg
29456E d: 280 mm | D: 520 mm | T: 145 mm | Ca: 3450 kN | C0a: 13500 kN | Mass: 137 kg
29260E d: 300 mm | D: 420 mm | T: 73 mm | Ca: 1220 kN | C0a: 5850 kN | Mass: 31.0 kg
29360E d: 300 mm | D: 480 mm | T: 109 mm | Ca: 2310 kN | C0a: 10000 kN | Mass: 75.4 kg
29460E d: 300 mm | D: 540 mm | T: 145 mm | Ca: 3650 kN | C0a: 14800 kN | Mass: 146 kg
29264E d: 320 mm | D: 440 mm | T: 73 mm | Ca: 1270 kN | C0a: 6150 kN | Mass: 32.8 kg
29364E d: 320 mm | D: 500 mm | T: 109 mm | Ca: 2370 kN | C0a: 10600 kN | Mass: 80.0 kg
29464E d: 320 mm | D: 580 mm | T: 155 mm | Ca: 4050 kN | C0a: 16800 kN | Mass: 179 kg
29268E d: 340 mm | D: 460 mm | T: 73 mm | Ca: 1290 kN | C0a: 6350 kN | Mass: 34.5 kg
29368E d: 340 mm | D: 540 mm | T: 122 mm | Ca: 2850 kN | C0a: 12400 kN | Mass: 106 kg
29468E d: 340 mm | D: 620 mm | T: 170 mm | Ca: 4750 kN | C0a: 19300 kN | Mass: 228 kg
29272E d: 360 mm | D: 500 mm | T: 85 mm | Ca: 1650 kN | C0a: 8050 kN | Mass: 50.4 kg
29372E d: 360 mm | D: 560 mm | T: 122 mm | Ca: 2900 kN | C0a: 12900 kN | Mass: 111 kg
29472E d: 360 mm | D: 640 mm | T: 170 mm | Ca: 4900 kN | C0a: 20500 kN | Mass: 234 kg
29276E d: 380 mm | D: 520 mm | T: 85 mm | Ca: 1780 kN | C0a: 8800 kN | Mass: 52.8 kg
29376E d: 380 mm | D: 600 mm | T: 132 mm | Ca: 3400 kN | C0a: 15300 kN | Mass: 140 kg
29476E d: 380 mm | D: 670 mm | T: 175 mm | Ca: 5200 kN | C0a: 22000 kN | Mass: 263 kg
29280E d: 400 mm | D: 540 mm | T: 85 mm | Ca: 1840 kN | C0a: 9250 kN | Mass: 55.1 kg
29380E d: 400 mm | D: 620 mm | T: 132 mm | Ca: 3550 kN | C0a: 16300 kN | Mass: 146 kg
29480E d: 400 mm | D: 710 mm | T: 185 mm | Ca: 5850 kN | C0a: 25000 kN | Mass: 314 kg
29284E d: 420 mm | D: 580 mm | T: 95 mm | Ca: 2260 kN | C0a: 11300 kN | Mass: 74.9 kg
29384E d: 420 mm | D: 650 mm | T: 140 mm | Ca: 3900 kN | C0a: 17900 kN | Mass: 170 kg
29484E d: 420 mm | D: 730 mm | T: 185 mm | Ca: 6050 kN | C0a: 26000 kN | Mass: 325 kg
29288E d: 440 mm | D: 600 mm | T: 95 mm | Ca: 2290 kN | C0a: 11800 kN | Mass: 79.0 kg
29388E d: 440 mm | D: 680 mm | T: 145 mm | Ca: 4050 kN | C0a: 19000 kN | Mass: 192 kg
29488E d: 440 mm | D: 780 mm | T: 206 mm | Ca: 6950 kN | C0a: 30000 kN | Mass: 421 kg
29292E d: 460 mm | D: 620 mm | T: 95 mm | Ca: 2290 kN | C0a: 11900 kN | Mass: 80.9 kg
29392E d: 460 mm | D: 710 mm | T: 150 mm | Ca: 4600 kN | C0a: 21700 kN | Mass: 216 kg
29492E d: 460 mm | D: 800 mm | T: 206 mm | Ca: 7150 kN | C0a: 31500 kN | Mass: 435 kg
29296E d: 480 mm | D: 650 mm | T: 103 mm | Ca: 2530 kN | C0a: 13200 kN | Mass: 97.5 kg
29396E d: 480 mm | D: 730 mm | T: 150 mm | Ca: 4630 kN | C0a: 21900 kN | Mass: 224 kg
29496E d: 480 mm | D: 850 mm | T: 224 mm | Ca: 8250 kN | C0a: 36000 kN | Mass: 543 kg
292/500E d: 500 mm | D: 670 mm | T: 103 mm | Ca: 2590 kN | C0a: 13800 kN | Mass: 101 kg
293/500E d: 500 mm | D: 750 mm | T: 150 mm | Ca: 4700 kN | C0a: 22600 kN | Mass: 231 kg
294/500E d: 500 mm | D: 870 mm | T: 224 mm | Ca: 8250 kN | C0a: 35000 kN | Mass: 559 kg
292/530E d: 530 mm | D: 710 mm | T: 109 mm | Ca: 2820 kN | C0a: 15100 kN | Mass: 106 kg
Thrust BearingsNACHI
105 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI 292/293/294 Spherical Roller Thrust Bearings (Type E, EX)

Brand NACHI·Thrust Bearings

Available part numbers (105)

29412E, 29412EX, 29413E, 29413EX, 29414E, 29414EX, 29415E, 29415EX, 29416E, 29416EX + 95 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
