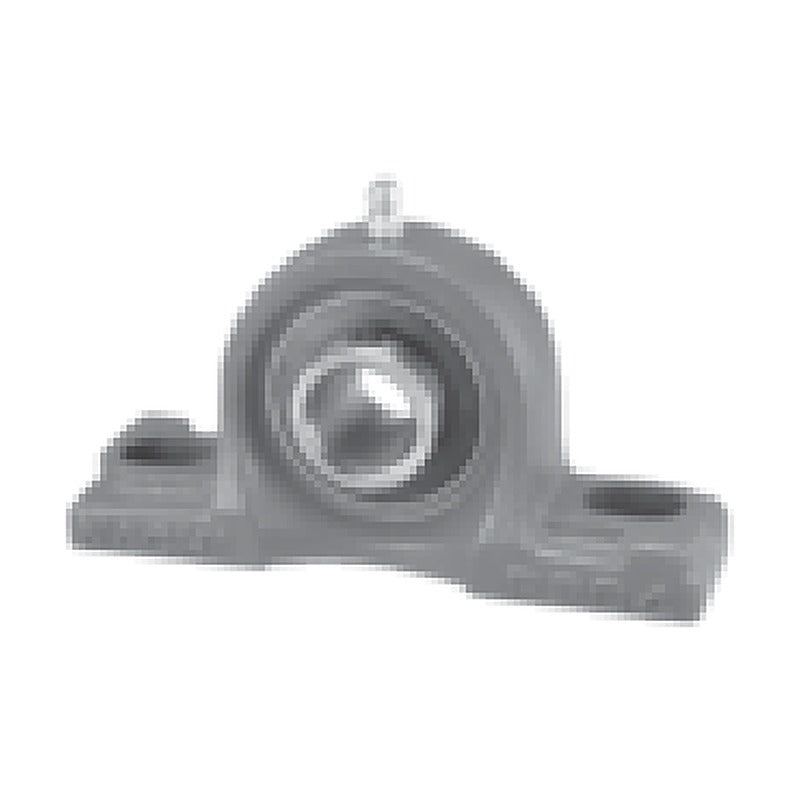

NACHI BLLP Pillow Block Units (Without Grease Nipple)

NACHI BLLP compact pillow block units without grease nipple, with B type sealed bearing, shaft diameters 12-35 mm, 1/2 in to 1-7/16 in.

Key features

Pre-assembled unit of insert ball bearing and pillow block (llp housing) without grease nipple housing
Spherical outer ring seat lets the bearing self-align in the housing
Shaft locking by set screw
Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand	NACHI
Series	BLLP
Unit type	Pillow block (LLP housing) without grease nipple
Shaft locking	Set screw
Shaft range	12-35 mm, 1/2 in to 1-7/16 in
Source	NACHI Ball Bearing Units catalogue, p. 15

BLLP1J		Shaft: 12 mm \| Bearing: B1 \| Housing: LLP3J
BLLP2J		Shaft: 15 mm \| Bearing: B2 \| Housing: LLP3J
BLLP3J		Shaft: 17 mm \| Bearing: B3 \| Housing: LLP3J
BLLP4J		Shaft: 20 mm \| Bearing: B4 \| Housing: LLP4J
BLLP5J		Shaft: 25 mm \| Bearing: B5 \| Housing: LLP5J
BLLP6J		Shaft: 30 mm \| Bearing: B6 \| Housing: LLP6J
BLLP7J		Shaft: 35 mm \| Bearing: B7 \| Housing: LLP7J
BLLP1-8J		Shaft: 1/2 in \| Bearing: B1-8 \| Housing: LLP3J
BLLP2-9J		Shaft: 9/16 in \| Bearing: B2-9 \| Housing: LLP3J
BLLP2-10J		Shaft: 5/8 in \| Bearing: B2-10 \| Housing: LLP3J
BLLP3-11J		Shaft: 11/16 in \| Bearing: B3-11 \| Housing: LLP3J
BLLP4-12J		Shaft: 3/4 in \| Bearing: B4-12 \| Housing: LLP4J
BLLP5-14J		Shaft: 7/8 in \| Bearing: B5-14 \| Housing: LLP5J
BLLP5-15J		Shaft: 15/16 in \| Bearing: B5-15 \| Housing: LLP5J
BLLP5-16J		Shaft: 1 in \| Bearing: B5-16 \| Housing: LLP5J
BLLP6-18J		Shaft: 1-1/8 in \| Bearing: B6-18 \| Housing: LLP6J
BLLP6-19J		Shaft: 1-3/16 in \| Bearing: B6-19 \| Housing: LLP6J
BLLP7-20J		Shaft: 1-1/4 in \| Bearing: B7-20 \| Housing: LLP7J
BLLP7-21J		Shaft: 1-5/16 in \| Bearing: B7-21 \| Housing: LLP7J
BLLP7-22J		Shaft: 1-3/8 in \| Bearing: B7-22 \| Housing: LLP7J
BLLP7-23J		Shaft: 1-7/16 in \| Bearing: B7-23 \| Housing: LLP7J

Mounted Bearing UnitsNACHI

21 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI BLLP Pillow Block Units (Without Grease Nipple)

Brand NACHI·Mounted Bearing Units

Available part numbers (21)

BLLP1J, BLLP2J, BLLP3J, BLLP4J, BLLP5J, BLLP6J, BLLP7J, BLLP1-8J, BLLP2-9J, BLLP2-10J + 11 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
