• NACHI Excel 68 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)
1 1

NACHI Excel 68 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

NACHI Excel 68 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

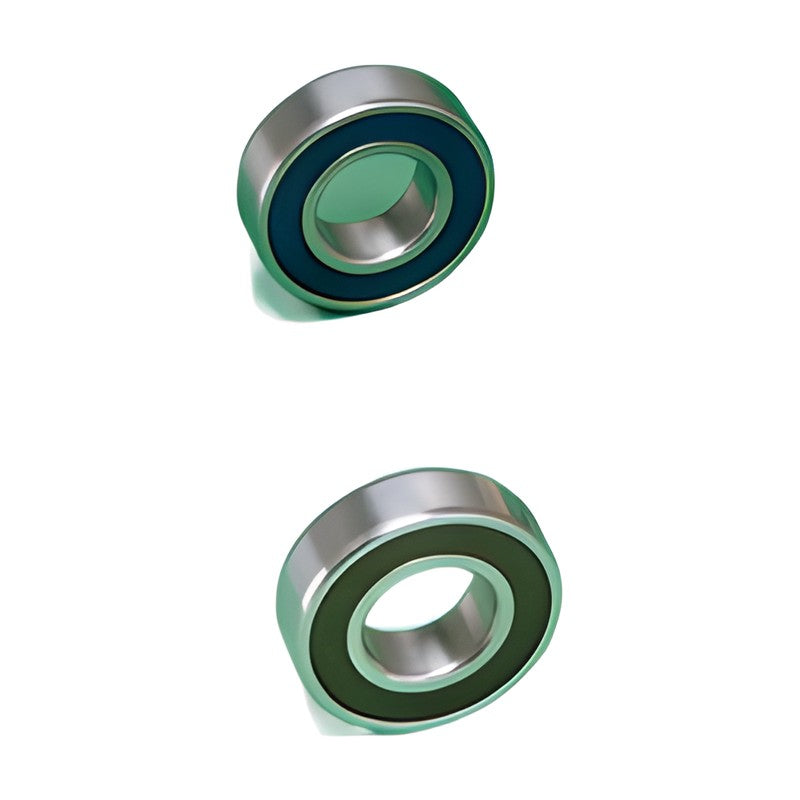

NACHI Excel series 68 type thin-section radial ball bearings, bore 10 to 50 mm, with contact seals (2NSE), labyrinth seals (2NKE) or shields (ZZE).

Key features

  • Excel series design with special triple-lip seals: contact type (2NSE) and labyrinth/non-contact type (2NKE), plus shielded type (ZZE)
  • Low starting and running torque from a revised internal design with diminished axial play
  • Improved accuracy of rolling elements for reduced running noise and enhanced sound quality
  • Pre-lubricated with long-life grease; high-performance seals keep out dust
  • Replaces the previous 2NSL, 2NK and ZZ closures (e.g. 6203-2NSE replaces 6203-2NSL)

Specifications

Brand NACHI
Series Excel 68 type
Bearing type Single-row deep groove (radial) ball bearing
Bore range 10 - 50 mm
Closures 2NSE contact seals, 2NKE labyrinth seals, ZZE shields
Dimensions mm
Source NACHI Excel Series Radial Ball Bearings (B4031E-2), p. 1-2
6800-2NSE d: 10 mm | D: 19 mm | B: 5 mm | r min: 0.3 mm
6800-2NKE d: 10 mm | D: 19 mm | B: 5 mm | r min: 0.3 mm
6800ZZE d: 10 mm | D: 19 mm | B: 5 mm | r min: 0.3 mm
6801-2NSE d: 12 mm | D: 21 mm | B: 5 mm | r min: 0.3 mm
6801-2NKE d: 12 mm | D: 21 mm | B: 5 mm | r min: 0.3 mm
6801ZZE d: 12 mm | D: 21 mm | B: 5 mm | r min: 0.3 mm
6802-2NSE d: 15 mm | D: 24 mm | B: 5 mm | r min: 0.3 mm
6802-2NKE d: 15 mm | D: 24 mm | B: 5 mm | r min: 0.3 mm
6802ZZE d: 15 mm | D: 24 mm | B: 5 mm | r min: 0.3 mm
6803-2NSE d: 17 mm | D: 26 mm | B: 5 mm | r min: 0.3 mm
6803-2NKE d: 17 mm | D: 26 mm | B: 5 mm | r min: 0.3 mm
6803ZZE d: 17 mm | D: 26 mm | B: 5 mm | r min: 0.3 mm
6804-2NSE d: 20 mm | D: 32 mm | B: 7 mm | r min: 0.3 mm
6804-2NKE d: 20 mm | D: 32 mm | B: 7 mm | r min: 0.3 mm
6804ZZE d: 20 mm | D: 32 mm | B: 7 mm | r min: 0.3 mm
6805-2NSE d: 25 mm | D: 37 mm | B: 7 mm | r min: 0.3 mm
6805-2NKE d: 25 mm | D: 37 mm | B: 7 mm | r min: 0.3 mm
6805ZZE d: 25 mm | D: 37 mm | B: 7 mm | r min: 0.3 mm
6806-2NSE d: 30 mm | D: 42 mm | B: 7 mm | r min: 0.3 mm
6806-2NKE d: 30 mm | D: 42 mm | B: 7 mm | r min: 0.3 mm
6806ZZE d: 30 mm | D: 42 mm | B: 7 mm | r min: 0.3 mm
6807-2NSE d: 35 mm | D: 47 mm | B: 7 mm | r min: 0.3 mm
6807-2NKE d: 35 mm | D: 47 mm | B: 7 mm | r min: 0.3 mm
6807ZZE d: 35 mm | D: 47 mm | B: 7 mm | r min: 0.3 mm
6808-2NSE d: 40 mm | D: 52 mm | B: 7 mm | r min: 0.3 mm
6808-2NKE d: 40 mm | D: 52 mm | B: 7 mm | r min: 0.3 mm
6808ZZE d: 40 mm | D: 52 mm | B: 7 mm | r min: 0.3 mm
6809-2NSE d: 45 mm | D: 58 mm | B: 7 mm | r min: 0.3 mm
6809-2NKE d: 45 mm | D: 58 mm | B: 7 mm | r min: 0.3 mm
6809ZZE d: 45 mm | D: 58 mm | B: 7 mm | r min: 0.3 mm
6810-2NSE d: 50 mm | D: 65 mm | B: 7 mm | r min: 0.3 mm
6810-2NKE d: 50 mm | D: 65 mm | B: 7 mm | r min: 0.3 mm
6810ZZE d: 50 mm | D: 65 mm | B: 7 mm | r min: 0.3 mm
Deep Groove Ball BearingsNACHI
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI Excel 68 Series Deep Groove Ball Bearings (2NSE, 2NKE, ZZE)

Brand NACHI·Deep Groove Ball Bearings

Available part numbers (33)

6800-2NSE, 6800-2NKE, 6800ZZE, 6801-2NSE, 6801-2NKE, 6801ZZE, 6802-2NSE, 6802-2NKE, 6802ZZE, 6803-2NSE + 23 more — see full table ↓
