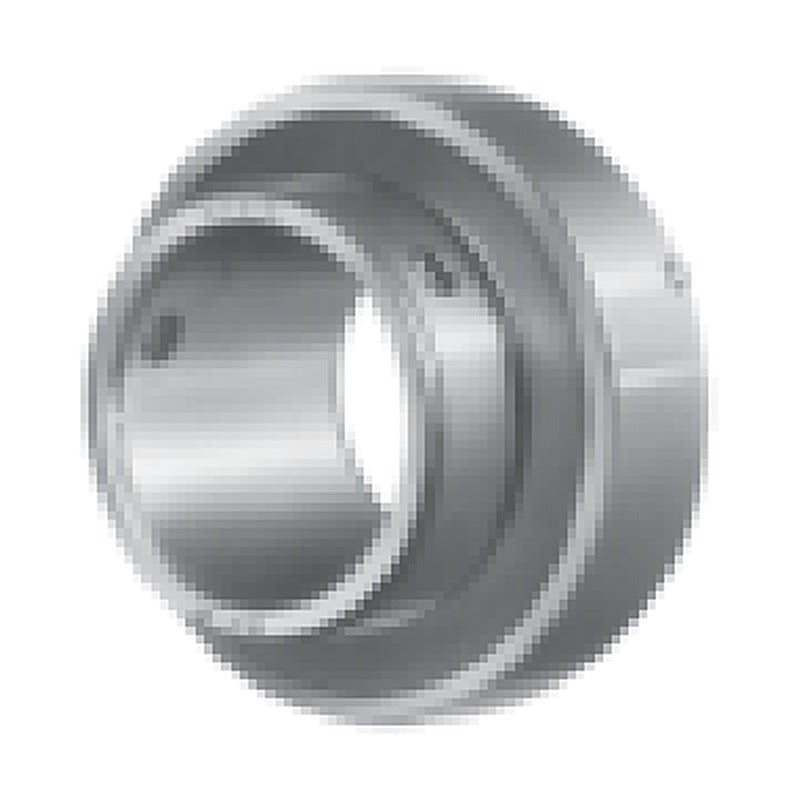

NACHI KH 200 AE Insert Ball Bearings (Light Duty, Eccentric Collar)

NACHI KH 200 AE Insert Ball Bearings (Light Duty, Eccentric Collar)

NACHI KH 200 AE light duty insert ball bearings with eccentric locking collar, shaft diameters 12-55 mm, 1/2 in to 2-3/16 in.

Key features

  • Replacement bearing for NACHI mounted units
  • Spherical outside diameter for self-alignment in the unit housing
  • Shaft locking by eccentric locking collar
  • Metric sizes with load ratings in kgf; inch sizes with dimensions in inches and load ratings in lbf

Specifications

Brand NACHI
Series KH 200 AE
Bearing type Ball bearing for units (insert bearing)
Shaft locking Eccentric locking collar
Shaft range 12-55 mm, 1/2 in to 2-3/16 in
Bi Inner ring width
Source NACHI Ball Bearing Units catalogue, p. 52
KH201AE Shaft: 12 mm | D: 40 mm | Bi: 19.1 mm | C: 975 kgf | C0: 460 kgf
KH202AE Shaft: 15 mm | D: 40 mm | Bi: 19.1 mm | C: 975 kgf | C0: 460 kgf
KH203AE Shaft: 17 mm | D: 40 mm | Bi: 19.1 mm | C: 975 kgf | C0: 460 kgf
KH204AE Shaft: 20 mm | D: 47 mm | Bi: 21.5 mm | C: 1310 kgf | C0: 635 kgf
KH205AE Shaft: 25 mm | D: 52 mm | Bi: 21.5 mm | C: 1430 kgf | C0: 730 kgf
KH206AE Shaft: 30 mm | D: 62 mm | Bi: 23.8 mm | C: 2000 kgf | C0: 1050 kgf
KH207AE Shaft: 35 mm | D: 72 mm | Bi: 25.4 mm | C: 2640 kgf | C0: 1430 kgf
KH208AE Shaft: 40 mm | D: 80 mm | Bi: 30.2 mm | C: 2990 kgf | C0: 1650 kgf
KH209AE Shaft: 45 mm | D: 85 mm | Bi: 30.2 mm | C: 3350 kgf | C0: 1890 kgf
KH210AE Shaft: 50 mm | D: 90 mm | Bi: 30.2 mm | C: 3600 kgf | C0: 2110 kgf
KH211AE Shaft: 55 mm | D: 100 mm | Bi: 32.5 mm | C: 4400 kgf | C0: 2670 kgf
KH201-8AE Shaft: 1/2 in | D: 1.5748 in | Bi: 0.752 in | C: 2150 lbf | C0: 1010 lbf
KH202-9AE Shaft: 9/16 in | D: 1.5748 in | Bi: 0.752 in | C: 2150 lbf | C0: 1010 lbf
KH202-10AE Shaft: 5/8 in | D: 1.5748 in | Bi: 0.752 in | C: 2150 lbf | C0: 1010 lbf
KH203-11AE Shaft: 11/16 in | D: 1.5748 in | Bi: 0.752 in | C: 2150 lbf | C0: 1010 lbf
KH204-12AE Shaft: 3/4 in | D: 1.8504 in | Bi: 0.846 in | C: 2890 lbf | C0: 1400 lbf
KH205-14AE Shaft: 7/8 in | D: 2.0472 in | Bi: 0.846 in | C: 3150 lbf | C0: 1610 lbf
KH205-15AE Shaft: 15/16 in | D: 2.0472 in | Bi: 0.846 in | C: 3150 lbf | C0: 1610 lbf
KH205-16AE Shaft: 1 in | D: 2.0472 in | Bi: 0.846 in | C: 3150 lbf | C0: 1610 lbf
KH206-18AE Shaft: 1-1/8 in | D: 2.4409 in | Bi: 0.938 in | C: 4410 lbf | C0: 2310 lbf
KH206-19AE Shaft: 1-3/16 in | D: 2.4409 in | Bi: 0.938 in | C: 4410 lbf | C0: 2310 lbf
KH206-20AE Shaft: 1-1/4 in | D: 2.4409 in | Bi: 0.938 in | C: 4410 lbf | C0: 2310 lbf
KH207-20AE Shaft: 1-1/4 in | D: 2.8346 in | Bi: 1.000 in | C: 5820 lbf | C0: 3150 lbf
KH207-21AE Shaft: 1-5/16 in | D: 2.8346 in | Bi: 1.000 in | C: 5820 lbf | C0: 3150 lbf
KH207-22AE Shaft: 1-3/8 in | D: 2.8346 in | Bi: 1.000 in | C: 5820 lbf | C0: 3150 lbf
KH207-23AE Shaft: 1-7/16 in | D: 2.8346 in | Bi: 1.000 in | C: 5820 lbf | C0: 3150 lbf
KH208-24AE Shaft: 1-1/2 in | D: 3.1496 in | Bi: 1.188 in | C: 6590 lbf | C0: 3640 lbf
KH208-25AE Shaft: 1-9/16 in | D: 3.1496 in | Bi: 1.188 in | C: 6590 lbf | C0: 3640 lbf
KH209-26AE Shaft: 1-5/8 in | D: 3.3465 in | Bi: 1.188 in | C: 7390 lbf | C0: 4170 lbf
KH209-27AE Shaft: 1-11/16 in | D: 3.3465 in | Bi: 1.188 in | C: 7390 lbf | C0: 4170 lbf
KH209-28AE Shaft: 1-3/4 in | D: 3.3465 in | Bi: 1.188 in | C: 7390 lbf | C0: 4170 lbf
KH210-30AE Shaft: 1-7/8 in | D: 3.5433 in | Bi: 1.188 in | C: 7940 lbf | C0: 4650 lbf
KH210-31AE Shaft: 1-15/16 in | D: 3.5433 in | Bi: 1.188 in | C: 7940 lbf | C0: 4650 lbf
KH211-32AE Shaft: 2 in | D: 3.9370 in | Bi: 1.281 in | C: 9700 lbf | C0: 5880 lbf
KH211-34AE Shaft: 2-1/8 in | D: 3.9370 in | Bi: 1.281 in | C: 9700 lbf | C0: 5880 lbf
KH211-35AE Shaft: 2-3/16 in | D: 3.9370 in | Bi: 1.281 in | C: 9700 lbf | C0: 5880 lbf
Insert BearingsNACHI
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI KH 200 AE Insert Ball Bearings (Light Duty, Eccentric Collar)

Brand NACHI·Insert Bearings

Available part numbers (36)

KH201AE, KH202AE, KH203AE, KH204AE, KH205AE, KH206AE, KH207AE, KH208AE, KH209AE, KH210AE + 26 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KH201AEShaft: 12 mm | D: 40 mm | Bi: 19.1 mm | C: 975 kgf | C0: 460 kgf
KH202AEShaft: 15 mm | D: 40 mm | Bi: 19.1 mm | C: 975 kgf | C0: 460 kgf
KH203AEShaft: 17 mm | D: 40 mm | Bi: 19.1 mm | C: 975 kgf | C0: 460 kgf
KH204AEShaft: 20 mm | D: 47 mm | Bi: 21.5 mm | C: 1310 kgf | C0: 635 kgf
KH205AEShaft: 25 mm | D: 52 mm | Bi: 21.5 mm | C: 1430 kgf | C0: 730 kgf
KH206AEShaft: 30 mm | D: 62 mm | Bi: 23.8 mm | C: 2000 kgf | C0: 1050 kgf
KH207AEShaft: 35 mm | D: 72 mm | Bi: 25.4 mm | C: 2640 kgf | C0: 1430 kgf
KH208AEShaft: 40 mm | D: 80 mm | Bi: 30.2 mm | C: 2990 kgf | C0: 1650 kgf
KH209AEShaft: 45 mm | D: 85 mm | Bi: 30.2 mm | C: 3350 kgf | C0: 1890 kgf
KH210AEShaft: 50 mm | D: 90 mm | Bi: 30.2 mm | C: 3600 kgf | C0: 2110 kgf
KH211AEShaft: 55 mm | D: 100 mm | Bi: 32.5 mm | C: 4400 kgf | C0: 2670 kgf
KH201-8AEShaft: 1/2 in | D: 1.5748 in | Bi: 0.752 in | C: 2150 lbf | C0: 1010 lbf
KH202-9AEShaft: 9/16 in | D: 1.5748 in | Bi: 0.752 in | C: 2150 lbf | C0: 1010 lbf
KH202-10AEShaft: 5/8 in | D: 1.5748 in | Bi: 0.752 in | C: 2150 lbf | C0: 1010 lbf
KH203-11AEShaft: 11/16 in | D: 1.5748 in | Bi: 0.752 in | C: 2150 lbf | C0: 1010 lbf
KH204-12AEShaft: 3/4 in | D: 1.8504 in | Bi: 0.846 in | C: 2890 lbf | C0: 1400 lbf
KH205-14AEShaft: 7/8 in | D: 2.0472 in | Bi: 0.846 in | C: 3150 lbf | C0: 1610 lbf
KH205-15AEShaft: 15/16 in | D: 2.0472 in | Bi: 0.846 in | C: 3150 lbf | C0: 1610 lbf
KH205-16AEShaft: 1 in | D: 2.0472 in | Bi: 0.846 in | C: 3150 lbf | C0: 1610 lbf
KH206-18AEShaft: 1-1/8 in | D: 2.4409 in | Bi: 0.938 in | C: 4410 lbf | C0: 2310 lbf
KH206-19AEShaft: 1-3/16 in | D: 2.4409 in | Bi: 0.938 in | C: 4410 lbf | C0: 2310 lbf
KH206-20AEShaft: 1-1/4 in | D: 2.4409 in | Bi: 0.938 in | C: 4410 lbf | C0: 2310 lbf
KH207-20AEShaft: 1-1/4 in | D: 2.8346 in | Bi: 1.000 in | C: 5820 lbf | C0: 3150 lbf
KH207-21AEShaft: 1-5/16 in | D: 2.8346 in | Bi: 1.000 in | C: 5820 lbf | C0: 3150 lbf
KH207-22AEShaft: 1-3/8 in | D: 2.8346 in | Bi: 1.000 in | C: 5820 lbf | C0: 3150 lbf
KH207-23AEShaft: 1-7/16 in | D: 2.8346 in | Bi: 1.000 in | C: 5820 lbf | C0: 3150 lbf
KH208-24AEShaft: 1-1/2 in | D: 3.1496 in | Bi: 1.188 in | C: 6590 lbf | C0: 3640 lbf
KH208-25AEShaft: 1-9/16 in | D: 3.1496 in | Bi: 1.188 in | C: 6590 lbf | C0: 3640 lbf
KH209-26AEShaft: 1-5/8 in | D: 3.3465 in | Bi: 1.188 in | C: 7390 lbf | C0: 4170 lbf
KH209-27AEShaft: 1-11/16 in | D: 3.3465 in | Bi: 1.188 in | C: 7390 lbf | C0: 4170 lbf
KH209-28AEShaft: 1-3/4 in | D: 3.3465 in | Bi: 1.188 in | C: 7390 lbf | C0: 4170 lbf
KH210-30AEShaft: 1-7/8 in | D: 3.5433 in | Bi: 1.188 in | C: 7940 lbf | C0: 4650 lbf
KH210-31AEShaft: 1-15/16 in | D: 3.5433 in | Bi: 1.188 in | C: 7940 lbf | C0: 4650 lbf
KH211-32AEShaft: 2 in | D: 3.9370 in | Bi: 1.281 in | C: 9700 lbf | C0: 5880 lbf
KH211-34AEShaft: 2-1/8 in | D: 3.9370 in | Bi: 1.281 in | C: 9700 lbf | C0: 5880 lbf
KH211-35AEShaft: 2-3/16 in | D: 3.9370 in | Bi: 1.281 in | C: 9700 lbf | C0: 5880 lbf
