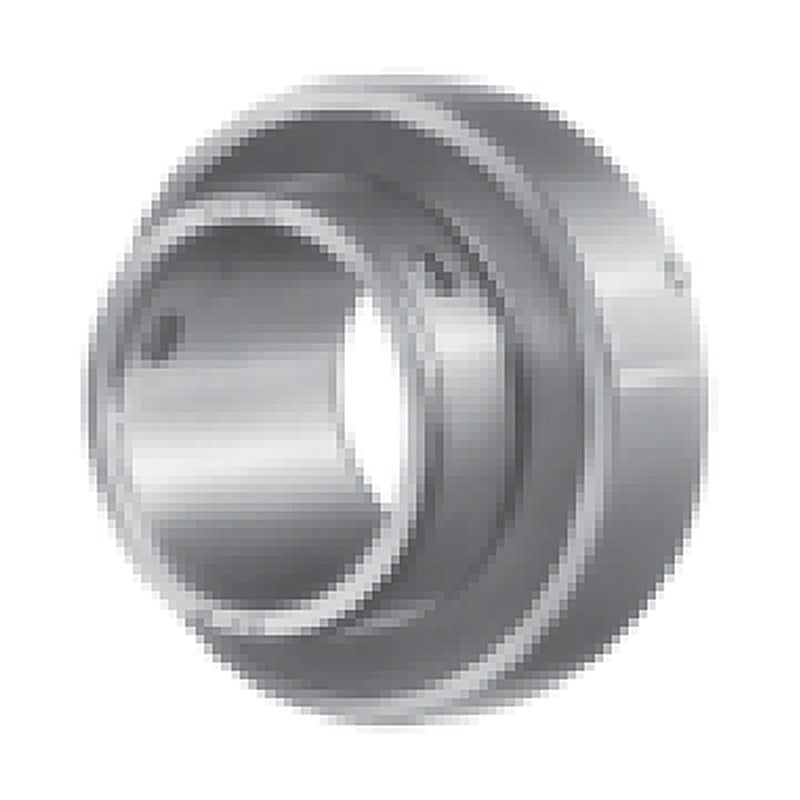

NACHI U00+ER / U000+ER Ball Bearings for Units (Eccentric Collar)

NACHI U00+ER / U000+ER Ball Bearings for Units (Eccentric Collar)

NACHI U 000+ER extra light duty ball bearings for Silver Series units with eccentric locking collar, shaft diameters 8-30 mm.

Key features

  • Replacement bearing for NACHI mounted units
  • Spherical outside diameter for self-alignment in the unit housing
  • Shaft locking by eccentric locking collar
  • Metric sizes with load ratings in kgf; inch sizes with dimensions in inches and load ratings in lbf

Specifications

Brand NACHI
Series U 000+ER
Bearing type Ball bearing for units (insert bearing)
Shaft locking Eccentric locking collar
Shaft range 8-30 mm
Bi Inner ring width
Source NACHI Ball Bearing Units catalogue, p. 43
U08+ER Shaft: 8 mm | D: 22 mm | Bi: 10 mm | C: 340 kgf | C0: 136 kgf
U000+ER Shaft: 10 mm | D: 26 mm | Bi: 11 mm | C: 470 kgf | C0: 198 kgf
U001+ER Shaft: 12 mm | D: 28 mm | Bi: 11 mm | C: 520 kgf | C0: 227 kgf
U002+ER Shaft: 15 mm | D: 32 mm | Bi: 12 mm | C: 570 kgf | C0: 255 kgf
U003+ER Shaft: 17 mm | D: 35 mm | Bi: 13.5 mm | C: 610 kgf | C0: 284 kgf
U004+ER Shaft: 20 mm | D: 42 mm | Bi: 16.5 mm | C: 955 kgf | C0: 455 kgf
U005+ER Shaft: 25 mm | D: 47 mm | Bi: 17.5 mm | C: 1030 kgf | C0: 505 kgf
U006+ER Shaft: 30 mm | D: 55 mm | Bi: 18.5 mm | C: 1350 kgf | C0: 700 kgf
Insert BearingsNACHI
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI U00+ER / U000+ER Ball Bearings for Units (Eccentric Collar)

Brand NACHI·Insert Bearings

Available part numbers (8)

U08+ER, U000+ER, U001+ER, U002+ER, U003+ER, U004+ER, U005+ER, U006+ER

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
U08+ERShaft: 8 mm | D: 22 mm | Bi: 10 mm | C: 340 kgf | C0: 136 kgf
U000+ERShaft: 10 mm | D: 26 mm | Bi: 11 mm | C: 470 kgf | C0: 198 kgf
U001+ERShaft: 12 mm | D: 28 mm | Bi: 11 mm | C: 520 kgf | C0: 227 kgf
U002+ERShaft: 15 mm | D: 32 mm | Bi: 12 mm | C: 570 kgf | C0: 255 kgf
U003+ERShaft: 17 mm | D: 35 mm | Bi: 13.5 mm | C: 610 kgf | C0: 284 kgf
U004+ERShaft: 20 mm | D: 42 mm | Bi: 16.5 mm | C: 955 kgf | C0: 455 kgf
U005+ERShaft: 25 mm | D: 47 mm | Bi: 17.5 mm | C: 1030 kgf | C0: 505 kgf
U006+ERShaft: 30 mm | D: 55 mm | Bi: 18.5 mm | C: 1350 kgf | C0: 700 kgf
