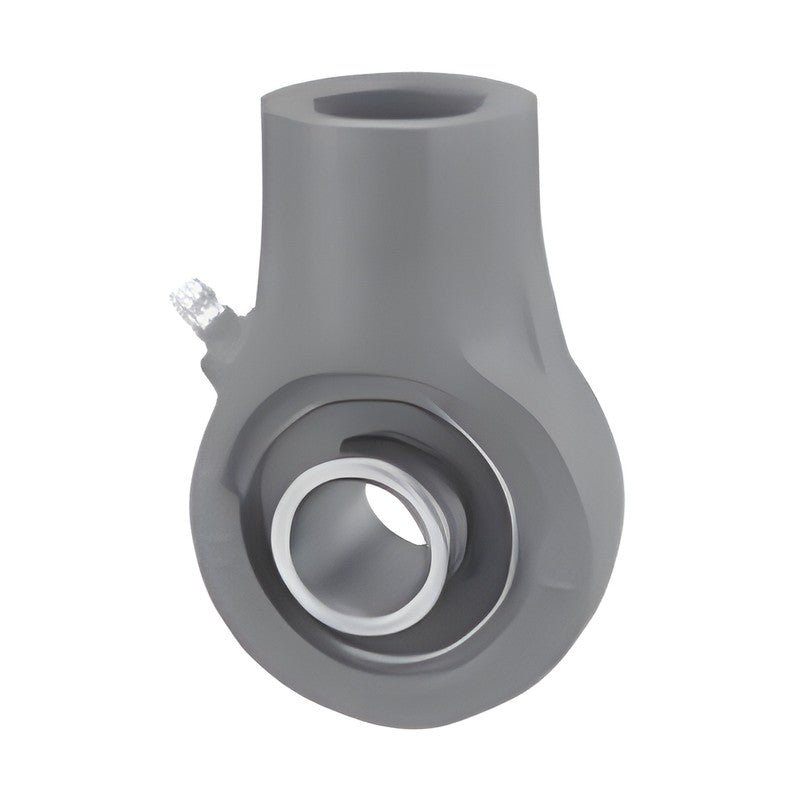

• NACHI UCECH 200 Hanger Bearing Units (Metric & Inch)
1 1

NACHI UCECH 200 Hanger Bearing Units (Metric & Inch)

NACHI UCECH 200 Hanger Bearing Units (Metric & Inch)

NACHI UCECH 200 hanger bearing units with threaded pipe hole for screw conveyors, shaft diameters 12-60 mm, 1/2 in to 2-7/16 in.

Key features

  • Pre-assembled unit of insert ball bearing and hanger housing housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by set screw
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UCECH 200
Unit type Hanger housing, cast iron
Shaft locking Set screw
Shaft range 12-60 mm, 1/2 in to 2-7/16 in
Source NACHI Ball Bearing Units catalogue, p. 38
UCECH201 Shaft: 12 mm | Bearing: UC201 | Housing: ECH204
UCECH202 Shaft: 15 mm | Bearing: UC202 | Housing: ECH204
UCECH203 Shaft: 17 mm | Bearing: UC203 | Housing: ECH204
UCECH204 Shaft: 20 mm | Bearing: UC204 | Housing: ECH204
UCECH205 Shaft: 25 mm | Bearing: UC205 | Housing: ECH205
UCECH206 Shaft: 30 mm | Bearing: UC206 | Housing: ECH206
UCECH207 Shaft: 35 mm | Bearing: UC207 | Housing: ECH207
UCECH208 Shaft: 40 mm | Bearing: UC208 | Housing: ECH208
UCECH209 Shaft: 45 mm | Bearing: UC209 | Housing: ECH209
UCECH210 Shaft: 50 mm | Bearing: UC210 | Housing: ECH210
UCECH211 Shaft: 55 mm | Bearing: UC211 | Housing: ECH211
UCECH212 Shaft: 60 mm | Bearing: UC212 | Housing: ECH212
UCECH201-8 Shaft: 1/2 in | Bearing: UC201-8 | Housing: ECH204
UCECH202-9 Shaft: 9/16 in | Bearing: UC202-9 | Housing: ECH204
UCECH202-10 Shaft: 5/8 in | Bearing: UC202-10 | Housing: ECH204
UCECH203-11 Shaft: 11/16 in | Bearing: UC203-11 | Housing: ECH204
UCECH204-12 Shaft: 3/4 in | Bearing: UC204-12 | Housing: ECH204
UCECH205-14 Shaft: 7/8 in | Bearing: UC205-14 | Housing: ECH205
UCECH205-15 Shaft: 15/16 in | Bearing: UC205-15 | Housing: ECH205
UCECH205-16 Shaft: 1 in | Bearing: UC205-16 | Housing: ECH205
UCECH206-17 Shaft: 1-1/16 in | Bearing: UC206-17 | Housing: ECH206
UCECH206-18 Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: ECH206
UCECH206-19 Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: ECH206
UCECH207-20 Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: ECH207
UCECH207-21 Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: ECH207
UCECH207-22 Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: ECH207
UCECH207-23 Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: ECH207
UCECH208-24 Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: ECH208
UCECH208-25 Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: ECH208
UCECH209-26 Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: ECH209
UCECH209-27 Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: ECH209
UCECH209-28 Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: ECH209
UCECH210-30 Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: ECH210
UCECH210-31 Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: ECH210
UCECH211-32 Shaft: 2 in | Bearing: UC211-32 | Housing: ECH211
UCECH211-34 Shaft: 2-1/8 in | Bearing: UC211-34 | Housing: ECH211
UCECH211-35 Shaft: 2-3/16 in | Bearing: UC211-35 | Housing: ECH211
UCECH212-36 Shaft: 2-1/4 in | Bearing: UC212-36 | Housing: ECH212
UCECH212-38 Shaft: 2-3/8 in | Bearing: UC212-38 | Housing: ECH212
UCECH212-39 Shaft: 2-7/16 in | Bearing: UC212-39 | Housing: ECH212
Mounted Bearing UnitsNACHI
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI UCECH 200 Hanger Bearing Units (Metric & Inch)

Brand NACHI·Mounted Bearing Units

Available part numbers (40)

UCECH201, UCECH202, UCECH203, UCECH204, UCECH205, UCECH206, UCECH207, UCECH208, UCECH209, UCECH210 + 30 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UCECH201Shaft: 12 mm | Bearing: UC201 | Housing: ECH204
UCECH202Shaft: 15 mm | Bearing: UC202 | Housing: ECH204
UCECH203Shaft: 17 mm | Bearing: UC203 | Housing: ECH204
UCECH204Shaft: 20 mm | Bearing: UC204 | Housing: ECH204
UCECH205Shaft: 25 mm | Bearing: UC205 | Housing: ECH205
UCECH206Shaft: 30 mm | Bearing: UC206 | Housing: ECH206
UCECH207Shaft: 35 mm | Bearing: UC207 | Housing: ECH207
UCECH208Shaft: 40 mm | Bearing: UC208 | Housing: ECH208
UCECH209Shaft: 45 mm | Bearing: UC209 | Housing: ECH209
UCECH210Shaft: 50 mm | Bearing: UC210 | Housing: ECH210
UCECH211Shaft: 55 mm | Bearing: UC211 | Housing: ECH211
UCECH212Shaft: 60 mm | Bearing: UC212 | Housing: ECH212
UCECH201-8Shaft: 1/2 in | Bearing: UC201-8 | Housing: ECH204
UCECH202-9Shaft: 9/16 in | Bearing: UC202-9 | Housing: ECH204
UCECH202-10Shaft: 5/8 in | Bearing: UC202-10 | Housing: ECH204
UCECH203-11Shaft: 11/16 in | Bearing: UC203-11 | Housing: ECH204
UCECH204-12Shaft: 3/4 in | Bearing: UC204-12 | Housing: ECH204
UCECH205-14Shaft: 7/8 in | Bearing: UC205-14 | Housing: ECH205
UCECH205-15Shaft: 15/16 in | Bearing: UC205-15 | Housing: ECH205
UCECH205-16Shaft: 1 in | Bearing: UC205-16 | Housing: ECH205
UCECH206-17Shaft: 1-1/16 in | Bearing: UC206-17 | Housing: ECH206
UCECH206-18Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: ECH206
UCECH206-19Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: ECH206
UCECH207-20Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: ECH207
UCECH207-21Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: ECH207
UCECH207-22Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: ECH207
UCECH207-23Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: ECH207
UCECH208-24Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: ECH208
UCECH208-25Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: ECH208
UCECH209-26Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: ECH209
UCECH209-27Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: ECH209
UCECH209-28Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: ECH209
UCECH210-30Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: ECH210
UCECH210-31Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: ECH210
UCECH211-32Shaft: 2 in | Bearing: UC211-32 | Housing: ECH211
UCECH211-34Shaft: 2-1/8 in | Bearing: UC211-34 | Housing: ECH211
UCECH211-35Shaft: 2-3/16 in | Bearing: UC211-35 | Housing: ECH211
UCECH212-36Shaft: 2-1/4 in | Bearing: UC212-36 | Housing: ECH212
UCECH212-38Shaft: 2-3/8 in | Bearing: UC212-38 | Housing: ECH212
UCECH212-39Shaft: 2-7/16 in | Bearing: UC212-39 | Housing: ECH212
