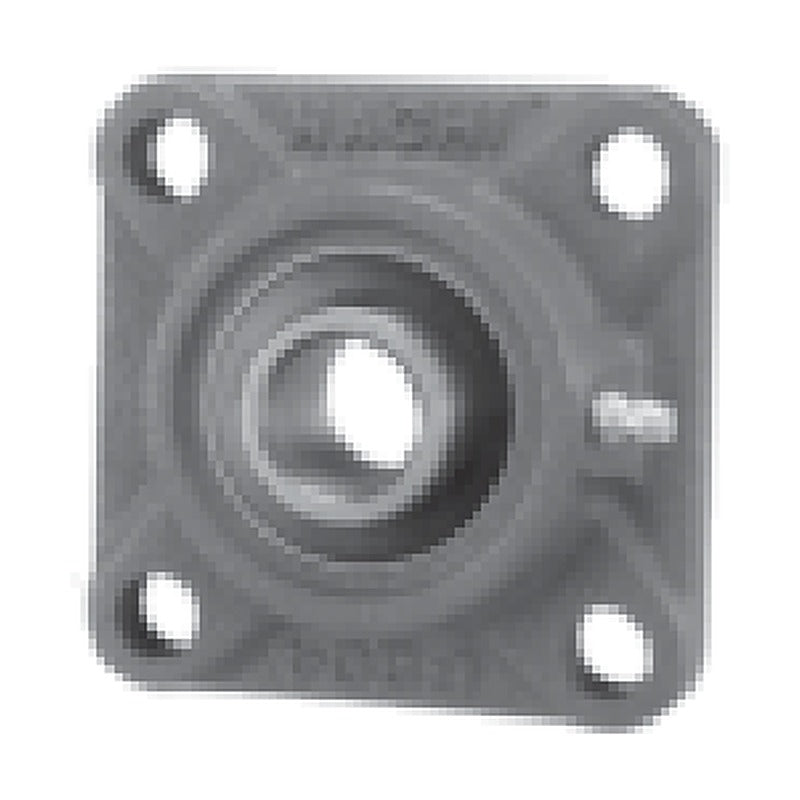

NACHI UCF 200 Square Flange Units (Metric & Inch)

NACHI UCF 200 Square Flange Units (Metric & Inch)

NACHI UCF 200 four-bolt square flange units, normal duty (diameter series 2), shaft diameters 12-90 mm, 1/2 in to 3-1/2 in.

Key features

  • Pre-assembled unit of insert ball bearing and square flange housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by set screw
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UCF 200
Unit type Square flange, cast iron
Shaft locking Set screw
Shaft range 12-90 mm, 1/2 in to 3-1/2 in
Source NACHI Ball Bearing Units catalogue, p. 19
UCF201 Shaft: 12 mm | Bearing: UC201 | Housing: F204
UCF202 Shaft: 15 mm | Bearing: UC202 | Housing: F204
UCF203 Shaft: 17 mm | Bearing: UC203 | Housing: F204
UCF204 Shaft: 20 mm | Bearing: UC204 | Housing: F204
UCF205 Shaft: 25 mm | Bearing: UC205 | Housing: F205
UCF206 Shaft: 30 mm | Bearing: UC206 | Housing: F206
UCF207 Shaft: 35 mm | Bearing: UC207 | Housing: F207
UCF208 Shaft: 40 mm | Bearing: UC208 | Housing: F208
UCF209 Shaft: 45 mm | Bearing: UC209 | Housing: F209
UCF210 Shaft: 50 mm | Bearing: UC210 | Housing: F210
UCF211 Shaft: 55 mm | Bearing: UC211 | Housing: F211
UCF212 Shaft: 60 mm | Bearing: UC212 | Housing: F212
UCF213 Shaft: 65 mm | Bearing: UC213 | Housing: F213
UCF214 Shaft: 70 mm | Bearing: UC214 | Housing: F214
UCF215 Shaft: 75 mm | Bearing: UC215 | Housing: F215
UCF216 Shaft: 80 mm | Bearing: UC216 | Housing: F216
UCF217 Shaft: 85 mm | Bearing: UC217 | Housing: F217
UCF218 Shaft: 90 mm | Bearing: UC218 | Housing: F218
UCF201-8 Shaft: 1/2 in | Bearing: UC201-8 | Housing: F204
UCF202-9 Shaft: 9/16 in | Bearing: UC202-9 | Housing: F204
UCF202-10 Shaft: 5/8 in | Bearing: UC202-10 | Housing: F204
UCF203-11 Shaft: 11/16 in | Bearing: UC203-11 | Housing: F204
UCF204-12 Shaft: 3/4 in | Bearing: UC204-12 | Housing: F204
UCF205-14 Shaft: 7/8 in | Bearing: UC205-14 | Housing: F205
UCF205-15 Shaft: 15/16 in | Bearing: UC205-15 | Housing: F205
UCF205-16 Shaft: 1 in | Bearing: UC205-16 | Housing: F205
UCF206-17 Shaft: 1-1/16 in | Bearing: UC206-17 | Housing: F206
UCF206-18 Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: F206
UCF206-19 Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: F206
UCF207-20 Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: F207
UCF207-21 Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: F207
UCF207-22 Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: F207
UCF207-23 Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: F207
UCF208-24 Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: F208
UCF208-25 Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: F208
UCF209-26 Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: F209
UCF209-27 Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: F209
UCF209-28 Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: F209
UCF210-30 Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: F210
UCF210-31 Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: F210
UCF211-32 Shaft: 2 in | Bearing: UC211-32 | Housing: F211
UCF211-34 Shaft: 2-1/8 in | Bearing: UC211-34 | Housing: F211
UCF211-35 Shaft: 2-3/16 in | Bearing: UC211-35 | Housing: F211
UCF212-36 Shaft: 2-1/4 in | Bearing: UC212-36 | Housing: F212
UCF212-38 Shaft: 2-3/8 in | Bearing: UC212-38 | Housing: F212
UCF212-39 Shaft: 2-7/16 in | Bearing: UC212-39 | Housing: F212
UCF213-40 Shaft: 2-1/2 in | Bearing: UC213-40 | Housing: F213
UCF214-44 Shaft: 2-3/4 in | Bearing: UC214-44 | Housing: F214
UCF215-48 Shaft: 3 in | Bearing: UC215-48 | Housing: F215
UCF216-50 Shaft: 3-1/8 in | Bearing: UC216-50 | Housing: F216
UCF217-52 Shaft: 3-1/4 in | Bearing: UC217-52 | Housing: F217
UCF218-56 Shaft: 3-1/2 in | Bearing: UC218-56 | Housing: F218
