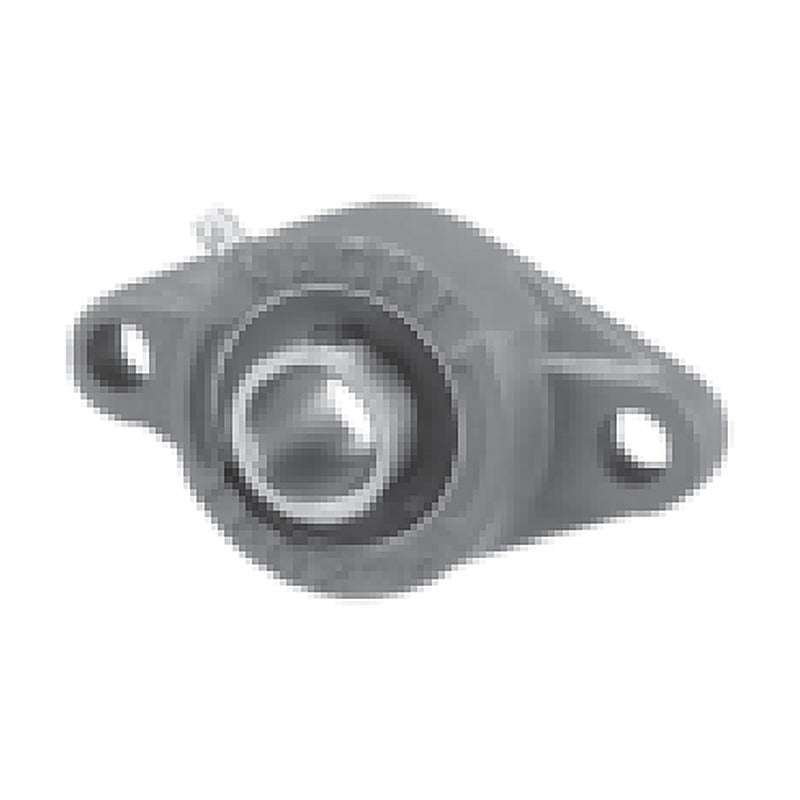

NACHI UCFL 200 Two-Bolt Flange Units (Metric & Inch)

NACHI UCFL 200 Two-Bolt Flange Units (Metric & Inch)

NACHI UCFL 200 two-bolt flange units, normal duty (diameter series 2), shaft diameters 12-90 mm, 1/2 in to 3-1/2 in.

Key features

  • Pre-assembled unit of insert ball bearing and two-bolt flange housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by set screw
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UCFL 200
Unit type Two-bolt flange, cast iron
Shaft locking Set screw
Shaft range 12-90 mm, 1/2 in to 3-1/2 in
Source NACHI Ball Bearing Units catalogue, p. 30
UCFL201 Shaft: 12 mm | Bearing: UC201 | Housing: FL204
UCFL202 Shaft: 15 mm | Bearing: UC202 | Housing: FL204
UCFL203 Shaft: 17 mm | Bearing: UC203 | Housing: FL204
UCFL204 Shaft: 20 mm | Bearing: UC204 | Housing: FL204
UCFL205 Shaft: 25 mm | Bearing: UC205 | Housing: FL205
UCFL206 Shaft: 30 mm | Bearing: UC206 | Housing: FL206
UCFL207 Shaft: 35 mm | Bearing: UC207 | Housing: FL207
UCFL208 Shaft: 40 mm | Bearing: UC208 | Housing: FL208
UCFL209 Shaft: 45 mm | Bearing: UC209 | Housing: FL209
UCFL210 Shaft: 50 mm | Bearing: UC210 | Housing: FL210
UCFL211 Shaft: 55 mm | Bearing: UC211 | Housing: FL211
UCFL212 Shaft: 60 mm | Bearing: UC212 | Housing: FL212
UCFL213 Shaft: 65 mm | Bearing: UC213 | Housing: FL213
UCFL214 Shaft: 70 mm | Bearing: UC214 | Housing: FL214
UCFL215 Shaft: 75 mm | Bearing: UC215 | Housing: FL215
UCFL216 Shaft: 80 mm | Bearing: UC216 | Housing: FL216
UCFL217 Shaft: 85 mm | Bearing: UC217 | Housing: FL217
UCFL218 Shaft: 90 mm | Bearing: UC218 | Housing: FL218
UCFL201-8 Shaft: 1/2 in | Bearing: UC201-8 | Housing: FL204
UCFL202-9 Shaft: 9/16 in | Bearing: UC202-9 | Housing: FL204
UCFL202-10 Shaft: 5/8 in | Bearing: UC202-10 | Housing: FL204
UCFL203-11 Shaft: 11/16 in | Bearing: UC203-11 | Housing: FL204
UCFL204-12 Shaft: 3/4 in | Bearing: UC204-12 | Housing: FL204
UCFL205-14 Shaft: 7/8 in | Bearing: UC205-14 | Housing: FL205
UCFL205-15 Shaft: 15/16 in | Bearing: UC205-15 | Housing: FL205
UCFL205-16 Shaft: 1 in | Bearing: UC205-16 | Housing: FL205
UCFL206-17 Shaft: 1-1/16 in | Bearing: UC206-17 | Housing: FL206
UCFL206-18 Shaft: 1-1/8 in | Bearing: UC206-18 | Housing: FL206
UCFL206-19 Shaft: 1-3/16 in | Bearing: UC206-19 | Housing: FL206
UCFL207-20 Shaft: 1-1/4 in | Bearing: UC207-20 | Housing: FL207
UCFL207-21 Shaft: 1-5/16 in | Bearing: UC207-21 | Housing: FL207
UCFL207-22 Shaft: 1-3/8 in | Bearing: UC207-22 | Housing: FL207
UCFL207-23 Shaft: 1-7/16 in | Bearing: UC207-23 | Housing: FL207
UCFL208-24 Shaft: 1-1/2 in | Bearing: UC208-24 | Housing: FL208
UCFL208-25 Shaft: 1-9/16 in | Bearing: UC208-25 | Housing: FL208
UCFL209-26 Shaft: 1-5/8 in | Bearing: UC209-26 | Housing: FL209
UCFL209-27 Shaft: 1-11/16 in | Bearing: UC209-27 | Housing: FL209
UCFL209-28 Shaft: 1-3/4 in | Bearing: UC209-28 | Housing: FL209
UCFL210-30 Shaft: 1-7/8 in | Bearing: UC210-30 | Housing: FL210
UCFL210-31 Shaft: 1-15/16 in | Bearing: UC210-31 | Housing: FL210
UCFL211-32 Shaft: 2 in | Bearing: UC211-32 | Housing: FL211
UCFL211-34 Shaft: 2-1/8 in | Bearing: UC211-34 | Housing: FL211
UCFL211-35 Shaft: 2-3/16 in | Bearing: UC211-35 | Housing: FL211
UCFL212-36 Shaft: 2-1/4 in | Bearing: UC212-36 | Housing: FL212
UCFL212-38 Shaft: 2-3/8 in | Bearing: UC212-38 | Housing: FL212
UCFL212-39 Shaft: 2-7/16 in | Bearing: UC212-39 | Housing: FL212
UCFL213-40 Shaft: 2-1/2 in | Bearing: UC213-40 | Housing: FL213
UCFL214-44 Shaft: 2-3/4 in | Bearing: UC214-44 | Housing: FL214
UCFL215-48 Shaft: 3 in | Bearing: UC215-48 | Housing: FL215
UCFL216-50 Shaft: 3-1/8 in | Bearing: UC216-50 | Housing: FL216
UCFL217-52 Shaft: 3-1/4 in | Bearing: UC217-52 | Housing: FL217
UCFL218-56 Shaft: 3-1/2 in | Bearing: UC218-56 | Housing: FL218
