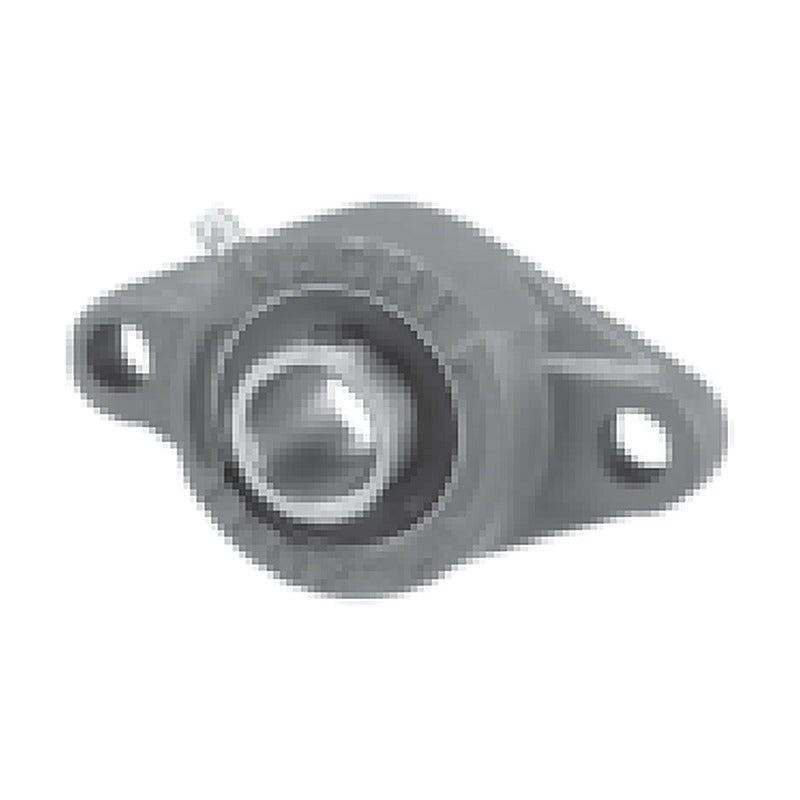

NACHI UCFL X00 Two-Bolt Flange Units (Medium Duty, Metric & Inch)

NACHI UCFL X00 two-bolt flange units, medium duty (diameter series X), shaft diameters 25-50 mm, 7/8 in to 2 in.

Key features

Pre-assembled unit of insert ball bearing and two-bolt flange housing
Spherical outer ring seat lets the bearing self-align in the housing
Shaft locking by set screw
Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand	NACHI
Series	UCFL X00
Unit type	Two-bolt flange, cast iron
Shaft locking	Set screw
Shaft range	25-50 mm, 7/8 in to 2 in
Source	NACHI Ball Bearing Units catalogue, p. 31

UCFLX05		Shaft: 25 mm \| Bearing: UCX05 \| Housing: FLX05
UCFLX06		Shaft: 30 mm \| Bearing: UCX06 \| Housing: FLX06
UCFLX07		Shaft: 35 mm \| Bearing: UCX07 \| Housing: FLX07
UCFLX08		Shaft: 40 mm \| Bearing: UCX08 \| Housing: FLX08
UCFLX09		Shaft: 45 mm \| Bearing: UCX09 \| Housing: FLX09
UCFLX10		Shaft: 50 mm \| Bearing: UCX10 \| Housing: FLX10
UCFLX05-14		Shaft: 7/8 in \| Bearing: UCX05-14 \| Housing: FLX05
UCFLX05-15		Shaft: 15/16 in \| Bearing: UCX05-15 \| Housing: FLX05
UCFLX05-16		Shaft: 1 in \| Bearing: UCX05-16 \| Housing: FLX05
UCFLX06-18		Shaft: 1-1/8 in \| Bearing: UCX06-18 \| Housing: FLX06
UCFLX06-19		Shaft: 1-3/16 in \| Bearing: UCX06-19 \| Housing: FLX06
UCFLX06-20		Shaft: 1-1/4 in \| Bearing: UCX06-20 \| Housing: FLX06
UCFLX07-22		Shaft: 1-3/8 in \| Bearing: UCX07-22 \| Housing: FLX07
UCFLX07-23		Shaft: 1-7/16 in \| Bearing: UCX07-23 \| Housing: FLX07
UCFLX08-24		Shaft: 1-1/2 in \| Bearing: UCX08-24 \| Housing: FLX08
UCFLX09-26		Shaft: 1-5/8 in \| Bearing: UCX09-26 \| Housing: FLX09
UCFLX09-27		Shaft: 1-11/16 in \| Bearing: UCX09-27 \| Housing: FLX09
UCFLX09-28		Shaft: 1-3/4 in \| Bearing: UCX09-28 \| Housing: FLX09
UCFLX10-30		Shaft: 1-7/8 in \| Bearing: UCX10-30 \| Housing: FLX10
UCFLX10-31		Shaft: 1-15/16 in \| Bearing: UCX10-31 \| Housing: FLX10
UCFLX10-32		Shaft: 2 in \| Bearing: UCX10-32 \| Housing: FLX10

Mounted Bearing UnitsNACHI

21 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI UCFL X00 Two-Bolt Flange Units (Medium Duty, Metric & Inch)

Brand NACHI·Mounted Bearing Units

Available part numbers (21)

UCFLX05, UCFLX06, UCFLX07, UCFLX08, UCFLX09, UCFLX10, UCFLX05-14, UCFLX05-15, UCFLX05-16, UCFLX06-18 + 11 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
