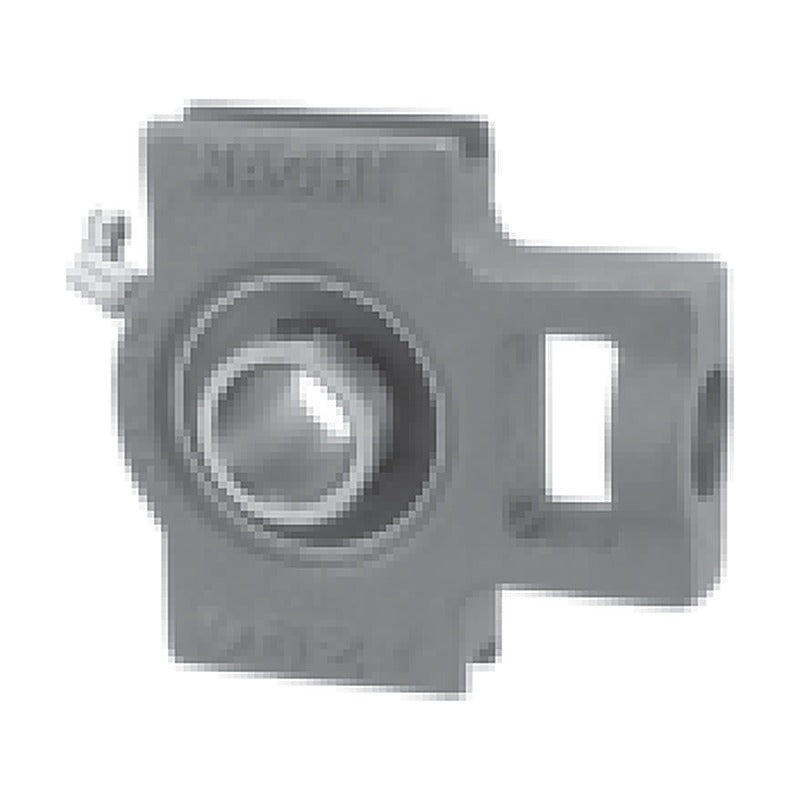

NACHI UCT 200 Take-Up Units (Metric & Inch)

NACHI UCT 200 take-up units, normal duty (diameter series 2), shaft diameters 12-85 mm, 1/2 in to 3-1/4 in.

Key features

Pre-assembled unit of insert ball bearing and take-up housing
Spherical outer ring seat lets the bearing self-align in the housing
Shaft locking by set screw
Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand	NACHI
Series	UCT 200
Unit type	Take-up, cast iron
Shaft locking	Set screw
Shaft range	12-85 mm, 1/2 in to 3-1/4 in
Source	NACHI Ball Bearing Units catalogue, p. 34

UCT201		Shaft: 12 mm \| Bearing: UC201 \| Housing: T204
UCT202		Shaft: 15 mm \| Bearing: UC202 \| Housing: T204
UCT203		Shaft: 17 mm \| Bearing: UC203 \| Housing: T204
UCT204		Shaft: 20 mm \| Bearing: UC204 \| Housing: T204
UCT205		Shaft: 25 mm \| Bearing: UC205 \| Housing: T205
UCT206		Shaft: 30 mm \| Bearing: UC206 \| Housing: T206
UCT207		Shaft: 35 mm \| Bearing: UC207 \| Housing: T207
UCT208		Shaft: 40 mm \| Bearing: UC208 \| Housing: T208
UCT209		Shaft: 45 mm \| Bearing: UC209 \| Housing: T209
UCT210		Shaft: 50 mm \| Bearing: UC210 \| Housing: T210
UCT211		Shaft: 55 mm \| Bearing: UC211 \| Housing: T211
UCT212		Shaft: 60 mm \| Bearing: UC212 \| Housing: T212
UCT213		Shaft: 65 mm \| Bearing: UC213 \| Housing: T213
UCT214		Shaft: 70 mm \| Bearing: UC214 \| Housing: T214
UCT215		Shaft: 75 mm \| Bearing: UC215 \| Housing: T215
UCT216		Shaft: 80 mm \| Bearing: UC216 \| Housing: T216
UCT217		Shaft: 85 mm \| Bearing: UC217 \| Housing: T217
UCT201-8		Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: T204
UCT202-9		Shaft: 9/16 in \| Bearing: UC202-9 \| Housing: T204
UCT202-10		Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: T204
UCT203-11		Shaft: 11/16 in \| Bearing: UC203-11 \| Housing: T204
UCT204-12		Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: T204
UCT205-14		Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: T205
UCT205-15		Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: T205
UCT205-16		Shaft: 1 in \| Bearing: UC205-16 \| Housing: T205
UCT206-17		Shaft: 1-1/16 in \| Bearing: UC206-17 \| Housing: T206
UCT206-18		Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: T206
UCT206-19		Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: T206
UCT207-20		Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: T207
UCT207-21		Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: T207
UCT207-22		Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: T207
UCT207-23		Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: T207
UCT208-24		Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: T208
UCT208-25		Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: T208
UCT209-26		Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: T209
UCT209-27		Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: T209
UCT209-28		Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: T209
UCT210-30		Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: T210
UCT210-31		Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: T210
UCT211-32		Shaft: 2 in \| Bearing: UC211-32 \| Housing: T211
UCT211-34		Shaft: 2-1/8 in \| Bearing: UC211-34 \| Housing: T211
UCT211-35		Shaft: 2-3/16 in \| Bearing: UC211-35 \| Housing: T211
UCT212-36		Shaft: 2-1/4 in \| Bearing: UC212-36 \| Housing: T212
UCT212-38		Shaft: 2-3/8 in \| Bearing: UC212-38 \| Housing: T212
UCT212-39		Shaft: 2-7/16 in \| Bearing: UC212-39 \| Housing: T212
UCT213-40		Shaft: 2-1/2 in \| Bearing: UC213-40 \| Housing: T213
UCT214-44		Shaft: 2-3/4 in \| Bearing: UC214-44 \| Housing: T214
UCT215-48		Shaft: 3 in \| Bearing: UC215-48 \| Housing: T215
UCT216-50		Shaft: 3-1/8 in \| Bearing: UC216-50 \| Housing: T216
UCT217-52		Shaft: 3-1/4 in \| Bearing: UC217-52 \| Housing: T217

Mounted Bearing UnitsNACHI

50 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI UCT 200 Take-Up Units (Metric & Inch)

Brand NACHI·Mounted Bearing Units

Available part numbers (50)

UCT201, UCT202, UCT203, UCT204, UCT205, UCT206, UCT207, UCT208, UCT209, UCT210 + 40 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	UCT201	Shaft: 12 mm \| Bearing: UC201 \| Housing: T204
	UCT202	Shaft: 15 mm \| Bearing: UC202 \| Housing: T204
	UCT203	Shaft: 17 mm \| Bearing: UC203 \| Housing: T204
	UCT204	Shaft: 20 mm \| Bearing: UC204 \| Housing: T204
	UCT205	Shaft: 25 mm \| Bearing: UC205 \| Housing: T205
	UCT206	Shaft: 30 mm \| Bearing: UC206 \| Housing: T206
	UCT207	Shaft: 35 mm \| Bearing: UC207 \| Housing: T207
	UCT208	Shaft: 40 mm \| Bearing: UC208 \| Housing: T208
	UCT209	Shaft: 45 mm \| Bearing: UC209 \| Housing: T209
	UCT210	Shaft: 50 mm \| Bearing: UC210 \| Housing: T210
	UCT211	Shaft: 55 mm \| Bearing: UC211 \| Housing: T211
	UCT212	Shaft: 60 mm \| Bearing: UC212 \| Housing: T212
	UCT213	Shaft: 65 mm \| Bearing: UC213 \| Housing: T213
	UCT214	Shaft: 70 mm \| Bearing: UC214 \| Housing: T214
	UCT215	Shaft: 75 mm \| Bearing: UC215 \| Housing: T215
	UCT216	Shaft: 80 mm \| Bearing: UC216 \| Housing: T216
	UCT217	Shaft: 85 mm \| Bearing: UC217 \| Housing: T217
	UCT201-8	Shaft: 1/2 in \| Bearing: UC201-8 \| Housing: T204
	UCT202-9	Shaft: 9/16 in \| Bearing: UC202-9 \| Housing: T204
	UCT202-10	Shaft: 5/8 in \| Bearing: UC202-10 \| Housing: T204
	UCT203-11	Shaft: 11/16 in \| Bearing: UC203-11 \| Housing: T204
	UCT204-12	Shaft: 3/4 in \| Bearing: UC204-12 \| Housing: T204
	UCT205-14	Shaft: 7/8 in \| Bearing: UC205-14 \| Housing: T205
	UCT205-15	Shaft: 15/16 in \| Bearing: UC205-15 \| Housing: T205
	UCT205-16	Shaft: 1 in \| Bearing: UC205-16 \| Housing: T205
	UCT206-17	Shaft: 1-1/16 in \| Bearing: UC206-17 \| Housing: T206
	UCT206-18	Shaft: 1-1/8 in \| Bearing: UC206-18 \| Housing: T206
	UCT206-19	Shaft: 1-3/16 in \| Bearing: UC206-19 \| Housing: T206
	UCT207-20	Shaft: 1-1/4 in \| Bearing: UC207-20 \| Housing: T207
	UCT207-21	Shaft: 1-5/16 in \| Bearing: UC207-21 \| Housing: T207
	UCT207-22	Shaft: 1-3/8 in \| Bearing: UC207-22 \| Housing: T207
	UCT207-23	Shaft: 1-7/16 in \| Bearing: UC207-23 \| Housing: T207
	UCT208-24	Shaft: 1-1/2 in \| Bearing: UC208-24 \| Housing: T208
	UCT208-25	Shaft: 1-9/16 in \| Bearing: UC208-25 \| Housing: T208
	UCT209-26	Shaft: 1-5/8 in \| Bearing: UC209-26 \| Housing: T209
	UCT209-27	Shaft: 1-11/16 in \| Bearing: UC209-27 \| Housing: T209
	UCT209-28	Shaft: 1-3/4 in \| Bearing: UC209-28 \| Housing: T209
	UCT210-30	Shaft: 1-7/8 in \| Bearing: UC210-30 \| Housing: T210
	UCT210-31	Shaft: 1-15/16 in \| Bearing: UC210-31 \| Housing: T210
	UCT211-32	Shaft: 2 in \| Bearing: UC211-32 \| Housing: T211
	UCT211-34	Shaft: 2-1/8 in \| Bearing: UC211-34 \| Housing: T211
	UCT211-35	Shaft: 2-3/16 in \| Bearing: UC211-35 \| Housing: T211
	UCT212-36	Shaft: 2-1/4 in \| Bearing: UC212-36 \| Housing: T212
	UCT212-38	Shaft: 2-3/8 in \| Bearing: UC212-38 \| Housing: T212
	UCT212-39	Shaft: 2-7/16 in \| Bearing: UC212-39 \| Housing: T212
	UCT213-40	Shaft: 2-1/2 in \| Bearing: UC213-40 \| Housing: T213
	UCT214-44	Shaft: 2-3/4 in \| Bearing: UC214-44 \| Housing: T214
	UCT215-48	Shaft: 3 in \| Bearing: UC215-48 \| Housing: T215
	UCT216-50	Shaft: 3-1/8 in \| Bearing: UC216-50 \| Housing: T216
	UCT217-52	Shaft: 3-1/4 in \| Bearing: UC217-52 \| Housing: T217
