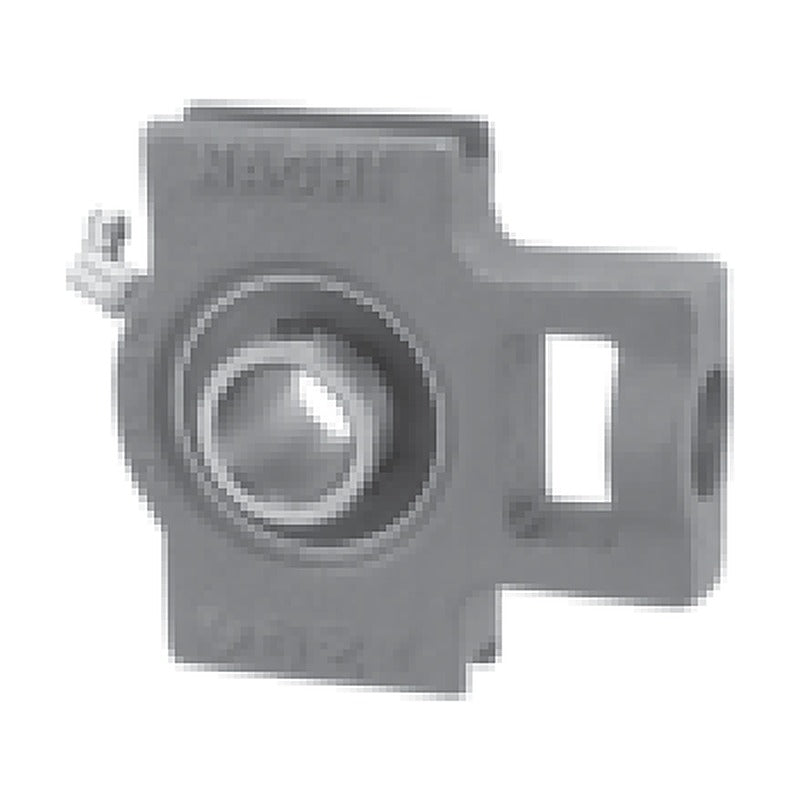

NACHI UCT X00 Take-Up Units (Medium Duty, Metric & Inch)

NACHI UCT X00 Take-Up Units (Medium Duty, Metric & Inch)

NACHI UCT X00 take-up units, medium duty (diameter series X), shaft diameters 25-85 mm, 7/8 in to 3-7/16 in.

Key features

  • Pre-assembled unit of insert ball bearing and take-up housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by set screw
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UCT X00
Unit type Take-up, cast iron
Shaft locking Set screw
Shaft range 25-85 mm, 7/8 in to 3-7/16 in
Source NACHI Ball Bearing Units catalogue, p. 35
UCTX05 Shaft: 25 mm | Bearing: UCX05 | Housing: TX05
UCTX06 Shaft: 30 mm | Bearing: UCX06 | Housing: TX06
UCTX07 Shaft: 35 mm | Bearing: UCX07 | Housing: TX07
UCTX08 Shaft: 40 mm | Bearing: UCX08 | Housing: TX08
UCTX09 Shaft: 45 mm | Bearing: UCX09 | Housing: TX09
UCTX10 Shaft: 50 mm | Bearing: UCX10 | Housing: TX10
UCTX11 Shaft: 55 mm | Bearing: UCX11 | Housing: TX11
UCTX12 Shaft: 60 mm | Bearing: UCX12 | Housing: TX12
UCTX13 Shaft: 65 mm | Bearing: UCX13 | Housing: TX13
UCTX14 Shaft: 70 mm | Bearing: UCX14 | Housing: TX14
UCTX15 Shaft: 75 mm | Bearing: UCX15 | Housing: TX15
UCTX16 Shaft: 80 mm | Bearing: UCX16 | Housing: TX16
UCTX17 Shaft: 85 mm | Bearing: UCX17 | Housing: TX17
UCTX05-14 Shaft: 7/8 in | Bearing: UCX05-14 | Housing: TX05
UCTX05-15 Shaft: 15/16 in | Bearing: UCX05-15 | Housing: TX05
UCTX05-16 Shaft: 1 in | Bearing: UCX05-16 | Housing: TX05
UCTX06-18 Shaft: 1-1/8 in | Bearing: UCX06-18 | Housing: TX06
UCTX06-19 Shaft: 1-3/16 in | Bearing: UCX06-19 | Housing: TX06
UCTX06-20 Shaft: 1-1/4 in | Bearing: UCX06-20 | Housing: TX06
UCTX07-22 Shaft: 1-3/8 in | Bearing: UCX07-22 | Housing: TX07
UCTX07-23 Shaft: 1-7/16 in | Bearing: UCX07-23 | Housing: TX07
UCTX08-24 Shaft: 1-1/2 in | Bearing: UCX08-24 | Housing: TX08
UCTX09-26 Shaft: 1-5/8 in | Bearing: UCX09-26 | Housing: TX09
UCTX09-27 Shaft: 1-11/16 in | Bearing: UCX09-27 | Housing: TX09
UCTX09-28 Shaft: 1-3/4 in | Bearing: UCX09-28 | Housing: TX09
UCTX10-30 Shaft: 1-7/8 in | Bearing: UCX10-30 | Housing: TX10
UCTX10-31 Shaft: 1-15/16 in | Bearing: UCX10-31 | Housing: TX10
UCTX10-32 Shaft: 2 in | Bearing: UCX10-32 | Housing: TX10
UCTX11-34 Shaft: 2-1/8 in | Bearing: UCX11-34 | Housing: TX11
UCTX11-35 Shaft: 2-3/16 in | Bearing: UCX11-35 | Housing: TX11
UCTX11-36 Shaft: 2-1/4 in | Bearing: UCX11-36 | Housing: TX11
UCTX12-38 Shaft: 2-3/8 in | Bearing: UCX12-38 | Housing: TX12
UCTX12-39 Shaft: 2-7/16 in | Bearing: UCX12-39 | Housing: TX12
UCTX13-40 Shaft: 2-1/2 in | Bearing: UCX13-40 | Housing: TX13
UCTX14-43 Shaft: 2-11/16 in | Bearing: UCX14-43 | Housing: TX14
UCTX14-44 Shaft: 2-3/4 in | Bearing: UCX14-44 | Housing: TX14
UCTX15-47 Shaft: 2-15/16 in | Bearing: UCX15-47 | Housing: TX15
UCTX15-48 Shaft: 3 in | Bearing: UCX15-48 | Housing: TX15
UCTX16-51 Shaft: 3-3/16 in | Bearing: UCX16-51 | Housing: TX16
UCTX17-52 Shaft: 3-1/4 in | Bearing: UCX17-52 | Housing: TX17
UCTX17-55 Shaft: 3-7/16 in | Bearing: UCX17-55 | Housing: TX17
