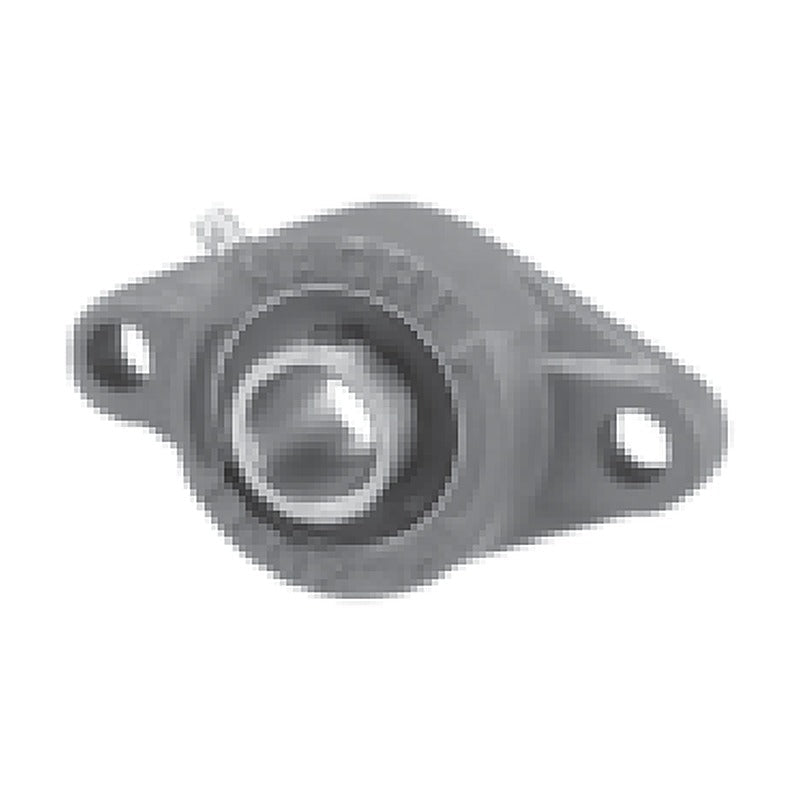

NACHI UGFL 200 Two-Bolt Flange Units (Eccentric Collar)

NACHI UGFL 200 Two-Bolt Flange Units (Eccentric Collar)

NACHI UGFL 200 two-bolt flange units with UG..+ER eccentric-collar bearing, shaft diameters 20-50 mm, 3/4 in to 1-7/8 in.

Key features

  • Pre-assembled unit of insert ball bearing and two-bolt flange housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by eccentric locking collar
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UGFL 200
Unit type Two-bolt flange, cast iron
Shaft locking Eccentric locking collar
Shaft range 20-50 mm, 3/4 in to 1-7/8 in
Source NACHI Ball Bearing Units catalogue, p. 33
UGFL204 Shaft: 20 mm | Bearing: UG204+ER | Housing: FL204
UGFL205 Shaft: 25 mm | Bearing: UG205+ER | Housing: FL205
UGFL206 Shaft: 30 mm | Bearing: UG206+ER | Housing: FL206
UGFL207 Shaft: 35 mm | Bearing: UG207+ER | Housing: FL207
UGFL208 Shaft: 40 mm | Bearing: UG208+ER | Housing: FL208
UGFL209 Shaft: 45 mm | Bearing: UG209+ER | Housing: FL209
UGFL210 Shaft: 50 mm | Bearing: UG210+ER | Housing: FL210
UGFL204-12 Shaft: 3/4 in | Bearing: UG204-12+ER | Housing: FL204
UGFL205-14 Shaft: 7/8 in | Bearing: UG205-14+ER | Housing: FL205
UGFL205-16 Shaft: 1 in | Bearing: UG205-16+ER | Housing: FL205
UGFL206-18 Shaft: 1-1/8 in | Bearing: UG206-18+ER | Housing: FL206
UGFL207-20 Shaft: 1-1/4 in | Bearing: UG207-20+ER | Housing: FL207
UGFL207-22 Shaft: 1-3/8 in | Bearing: UG207-22+ER | Housing: FL207
UGFL208-24 Shaft: 1-1/2 in | Bearing: UG208-24+ER | Housing: FL208
UGFL209-26 Shaft: 1-5/8 in | Bearing: UG209-26+ER | Housing: FL209
UGFL209-28 Shaft: 1-3/4 in | Bearing: UG209-28+ER | Housing: FL209
UGFL210-30 Shaft: 1-7/8 in | Bearing: UG210-30+ER | Housing: FL210
Mounted Bearing UnitsNACHI
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI UGFL 200 Two-Bolt Flange Units (Eccentric Collar)

Brand NACHI·Mounted Bearing Units

Available part numbers (17)

UGFL204, UGFL205, UGFL206, UGFL207, UGFL208, UGFL209, UGFL210, UGFL204-12, UGFL205-14, UGFL205-16 + 7 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
