• NACHI UGT 200+EE Take-Up Units (Eccentric Collar, Double Seal)
1 1

NACHI UGT 200+EE Take-Up Units (Eccentric Collar, Double Seal)

NACHI UGT 200+EE Take-Up Units (Eccentric Collar, Double Seal)

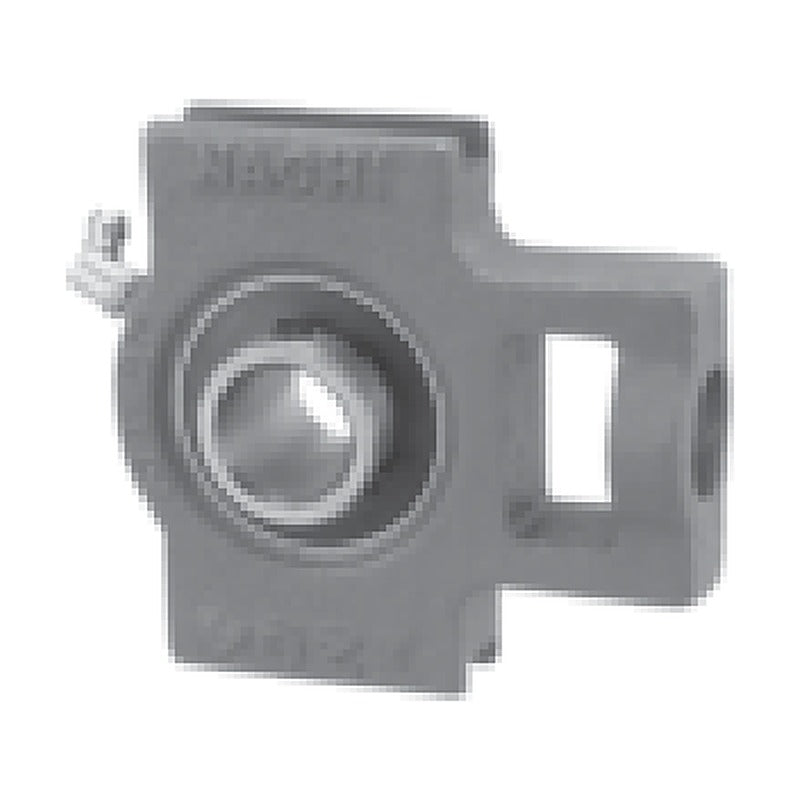

NACHI UGT 200+EE take-up units with UG..+EE eccentric-collar bearing, shaft diameters 20-50 mm.

Key features

  • Pre-assembled unit of insert ball bearing and take-up housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by eccentric locking collar
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UGT 200+EE
Unit type Take-up, cast iron
Shaft locking Eccentric locking collar
Shaft range 20-50 mm
Source NACHI Ball Bearing Units catalogue, p. 37
UGT204+EE Shaft: 20 mm | Bearing: UG204+EE | Housing: T204
UGT205+EE Shaft: 25 mm | Bearing: UG205+EE | Housing: T205
UGT206+EE Shaft: 30 mm | Bearing: UG206+EE | Housing: T206
UGT207+EE Shaft: 35 mm | Bearing: UG207+EE | Housing: T207
UGT208+EE Shaft: 40 mm | Bearing: UG208+EE | Housing: T208
UGT209+EE Shaft: 45 mm | Bearing: UG209+EE | Housing: T209
UGT210+EE Shaft: 50 mm | Bearing: UG210+EE | Housing: T210
Mounted Bearing UnitsNACHI
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI UGT 200+EE Take-Up Units (Eccentric Collar, Double Seal)

Brand NACHI·Mounted Bearing Units

Available part numbers (7)

UGT204+EE, UGT205+EE, UGT206+EE, UGT207+EE, UGT208+EE, UGT209+EE, UGT210+EE

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UGT204+EEShaft: 20 mm | Bearing: UG204+EE | Housing: T204
UGT205+EEShaft: 25 mm | Bearing: UG205+EE | Housing: T205
UGT206+EEShaft: 30 mm | Bearing: UG206+EE | Housing: T206
UGT207+EEShaft: 35 mm | Bearing: UG207+EE | Housing: T207
UGT208+EEShaft: 40 mm | Bearing: UG208+EE | Housing: T208
UGT209+EEShaft: 45 mm | Bearing: UG209+EE | Housing: T209
UGT210+EEShaft: 50 mm | Bearing: UG210+EE | Housing: T210
