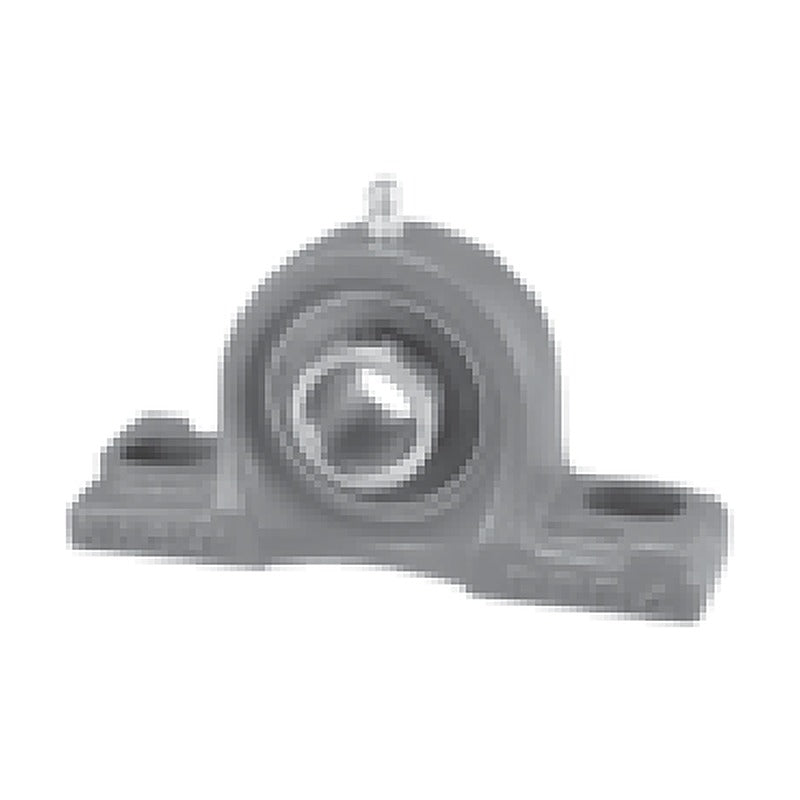

NACHI UKP 200+H Pillow Block Units (Adapter Sleeve)

NACHI UKP 200+H Pillow Block Units (Adapter Sleeve)

NACHI UKP 200+H pillow block units with tapered-bore bearing and adapter sleeve (diameter series 2), shaft diameters 20-80 mm, 3/4 in to 3-1/8 in.

Key features

  • Pre-assembled unit of tapered-bore insert bearing with adapter sleeve and pillow block housing
  • Spherical outer ring seat lets the bearing self-align in the housing
  • Shaft locking by adapter sleeve
  • Metric and inch shaft sizes where listed; bearing and housing numbers given for replacement parts
  • Most NACHI bearing units are dimensionally interchangeable with units of other makers

Specifications

Brand NACHI
Series UKP 200+H
Unit type Pillow block, cast iron
Shaft locking Adapter sleeve
Shaft range 20-80 mm, 3/4 in to 3-1/8 in
Source NACHI Ball Bearing Units catalogue, p. 12
UKP205+H2305 Shaft: 20 mm | Bearing: UK205+H2305 | Housing: P205
UKP206+H2306 Shaft: 25 mm | Bearing: UK206+H2306 | Housing: P206
UKP207+H2307 Shaft: 30 mm | Bearing: UK207+H2307 | Housing: P207
UKP208+H2308 Shaft: 35 mm | Bearing: UK208+H2308 | Housing: P208
UKP209+H2309 Shaft: 40 mm | Bearing: UK209+H2309 | Housing: P209
UKP210+H2310 Shaft: 45 mm | Bearing: UK210+H2310 | Housing: P210
UKP211+H2311 Shaft: 50 mm | Bearing: UK211+H2311 | Housing: P211
UKP212+H2312 Shaft: 55 mm | Bearing: UK212+H2312 | Housing: P212
UKP213+H2313 Shaft: 60 mm | Bearing: UK213+H2313 | Housing: P213
UKP215+H2315 Shaft: 65 mm | Bearing: UK215+H2315 | Housing: P215
UKP216+H2316 Shaft: 70 mm | Bearing: UK216+H2316 | Housing: P216
UKP217+H2317 Shaft: 75 mm | Bearing: UK217+H2317 | Housing: P217
UKP218+H2318 Shaft: 80 mm | Bearing: UK218+H2318 | Housing: P218
UKP205+HE2305 Shaft: 3/4 in | Bearing: UK205+HE2305 | Housing: P205
UKP205+HA2305 Shaft: 13/16 in | Bearing: UK205+HA2305 | Housing: P205
UKP206+HS2306 Shaft: 7/8 in | Bearing: UK206+HS2306 | Housing: P206
UKP206+HA2306 Shaft: 15/16 in | Bearing: UK206+HA2306 | Housing: P206
UKP206+HE2306 Shaft: 1 in | Bearing: UK206+HE2306 | Housing: P206
UKP207+HS2307 Shaft: 1-1/8 in | Bearing: UK207+HS2307 | Housing: P207
UKP207+HA2307 Shaft: 1-3/16 in | Bearing: UK207+HA2307 | Housing: P207
UKP208+HE2308 Shaft: 1-1/4 in | Bearing: UK208+HE2308 | Housing: P208
UKP208+HA2308 Shaft: 1-5/16 in | Bearing: UK208+HA2308 | Housing: P208
UKP208+HS2308 Shaft: 1-3/8 in | Bearing: UK208+HS2308 | Housing: P208
UKP209+HA2309 Shaft: 1-7/16 in | Bearing: UK209+HA2309 | Housing: P209
UKP209+HE2309 Shaft: 1-1/2 in | Bearing: UK209+HE2309 | Housing: P209
UKP209+HS2309 Shaft: 1-5/8 in | Bearing: UK209+HS2309 | Housing: P209
UKP210+HA2310 Shaft: 1-11/16 in | Bearing: UK210+HA2310 | Housing: P210
UKP210+HE2310 Shaft: 1-3/4 in | Bearing: UK210+HE2310 | Housing: P210
UKP211+HS2311 Shaft: 1-7/8 in | Bearing: UK211+HS2311 | Housing: P211
UKP211+HA2311 Shaft: 1-15/16 in | Bearing: UK211+HA2311 | Housing: P211
UKP211+HE2311 Shaft: 2 in | Bearing: UK211+HE2311 | Housing: P211
UKP212+HA2312 Shaft: 2-1/16 in | Bearing: UK212+HA2312 | Housing: P212
UKP212+HS2312 Shaft: 2-1/8 in | Bearing: UK212+HS2312 | Housing: P212
UKP213+HA2313 Shaft: 2-3/16 in | Bearing: UK213+HA2313 | Housing: P213
UKP213+HE2313 Shaft: 2-1/4 in | Bearing: UK213+HE2313 | Housing: P213
UKP213+HS2313 Shaft: 2-3/8 in | Bearing: UK213+HS2313 | Housing: P213
UKP215+HE2315 Shaft: 2-1/2 in | Bearing: UK215+HE2315 | Housing: P215
UKP216+HE2316 Shaft: 2-3/4 in | Bearing: UK216+HE2316 | Housing: P216
UKP217+HE2317 Shaft: 3 in | Bearing: UK217+HE2317 | Housing: P217
UKP218+HE2318 Shaft: 3-1/8 in | Bearing: UK218+HE2318 | Housing: P218
Mounted Bearing UnitsNACHI
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NACHI UKP 200+H Pillow Block Units (Adapter Sleeve)

Brand NACHI·Mounted Bearing Units

Available part numbers (40)

UKP205+H2305, UKP206+H2306, UKP207+H2307, UKP208+H2308, UKP209+H2309, UKP210+H2310, UKP211+H2311, UKP212+H2312, UKP213+H2313, UKP215+H2315 + 30 more — see full table ↓

How to order

Send the NACHI part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
