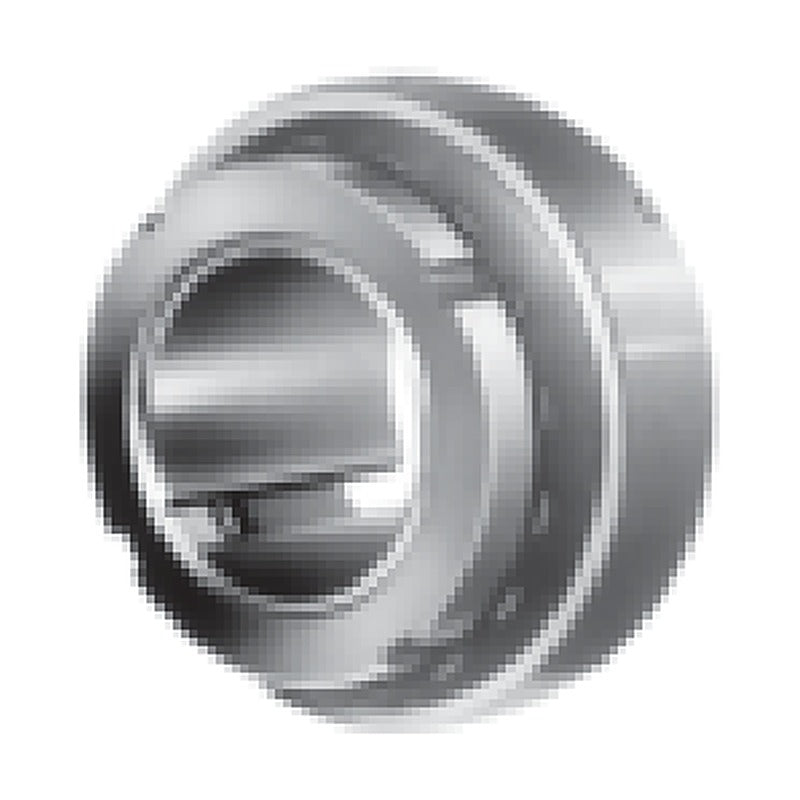

NACHI UK X00+H Insert Ball Bearings with Adapter Sleeve

NACHI UK X00+H Insert Ball Bearings with Adapter Sleeve

NACHI UK X00+H tapered-bore insert ball bearings with adapter sleeve (diameter series X), shaft diameters 20-90 mm, 3/4 in to 3-1/2 in.

Key features

  • Replacement bearing for NACHI mounted units
  • Spherical outside diameter for self-alignment in the unit housing
  • Shaft locking by adapter sleeve
  • Metric sizes with load ratings in kgf; inch sizes with dimensions in inches and load ratings in lbf

Specifications

Brand NACHI
Series UK X00+H
Bearing type Ball bearing for units (insert bearing)
Shaft locking Adapter sleeve
Shaft range 20-90 mm, 3/4 in to 3-1/2 in
Bi Inner ring width
Source NACHI Ball Bearing Units catalogue, p. 49
UKX05+H2305 Shaft: 20 mm | D: 62 mm | Bi: 26 mm | C: 2000 kgf | C0: 1020 kgf
UKX06+H2306 Shaft: 25 mm | D: 72 mm | Bi: 27 mm | C: 2640 kgf | C0: 1400 kgf
UKX07+H2307 Shaft: 30 mm | D: 80 mm | Bi: 29 mm | C: 2990 kgf | C0: 1600 kgf
UKX08+H2308 Shaft: 35 mm | D: 85 mm | Bi: 30 mm | C: 3350 kgf | C0: 1810 kgf
UKX09+H2309 Shaft: 40 mm | D: 90 mm | Bi: 31 mm | C: 3600 kgf | C0: 2010 kgf
UKX10+H2310 Shaft: 45 mm | D: 100 mm | Bi: 33 mm | C: 4400 kgf | C0: 2550 kgf
UKX11+H2311 Shaft: 50 mm | D: 110 mm | Bi: 36 mm | C: 5350 kgf | C0: 3150 kgf
UKX12+H2312 Shaft: 55 mm | D: 120 mm | Bi: 38 mm | C: 5850 kgf | C0: 3500 kgf
UKX13+H2313 Shaft: 60 mm | D: 125 mm | Bi: 40 mm | C: 6350 kgf | C0: 3800 kgf
UKX15+H2315 Shaft: 65 mm | D: 140 mm | Bi: 44 mm | C: 7400 kgf | C0: 4550 kgf
UKX16+H2316 Shaft: 70 mm | D: 150 mm | Bi: 46 mm | C: 8500 kgf | C0: 5500 kgf
UKX17+H2317 Shaft: 75 mm | D: 160 mm | Bi: 49 mm | C: 9750 kgf | C0: 6300 kgf
UKX18+H2318 Shaft: 80 mm | D: 170 mm | Bi: 52 mm | C: 11100 kgf | C0: 7100 kgf
UKX20+H2320 Shaft: 90 mm | D: 190 mm | Bi: 58 mm | C: 13700 kgf | C0: 9100 kgf
UKX05+HE2305 Shaft: 3/4 in | D: 2.4409 in | Bi: 1.024 in | C: 4410 lbf | C0: 2250 lbf
UKX05+HA2305 Shaft: 13/16 in | D: 2.4409 in | Bi: 1.024 in | C: 4410 lbf | C0: 2250 lbf
UKX06+HS2306 Shaft: 7/8 in | D: 2.8346 in | Bi: 1.063 in | C: 5820 lbf | C0: 3090 lbf
UKX06+HA2306 Shaft: 15/16 in | D: 2.8346 in | Bi: 1.063 in | C: 5820 lbf | C0: 3090 lbf
UKX06+HE2306 Shaft: 1 in | D: 2.8346 in | Bi: 1.063 in | C: 5820 lbf | C0: 3090 lbf
UKX07+HS2307 Shaft: 1-1/8 in | D: 3.1496 in | Bi: 1.142 in | C: 6590 lbf | C0: 3530 lbf
UKX07+HA2307 Shaft: 1-3/16 in | D: 3.1496 in | Bi: 1.142 in | C: 6590 lbf | C0: 3530 lbf
UKX08+HE2308 Shaft: 1-1/4 in | D: 3.3465 in | Bi: 1.181 in | C: 7390 lbf | C0: 3990 lbf
UKX08+HA2308 Shaft: 1-5/16 in | D: 3.3465 in | Bi: 1.181 in | C: 7390 lbf | C0: 3990 lbf
UKX08+HS2308 Shaft: 1-3/8 in | D: 3.3465 in | Bi: 1.181 in | C: 7390 lbf | C0: 3990 lbf
UKX09+HA2309 Shaft: 1-7/16 in | D: 3.5433 in | Bi: 1.220 in | C: 7940 lbf | C0: 4430 lbf
UKX09+HE2309 Shaft: 1-1/2 in | D: 3.5433 in | Bi: 1.220 in | C: 7940 lbf | C0: 4430 lbf
UKX09+HS2309 Shaft: 1-5/8 in | D: 3.5433 in | Bi: 1.220 in | C: 7940 lbf | C0: 4430 lbf
UKX10+HA2310 Shaft: 1-11/16 in | D: 3.9370 in | Bi: 1.299 in | C: 9700 lbf | C0: 5620 lbf
UKX10+HE2310 Shaft: 1-3/4 in | D: 3.9370 in | Bi: 1.299 in | C: 9700 lbf | C0: 5620 lbf
UKX11+HS2311 Shaft: 1-7/8 in | D: 4.3307 in | Bi: 1.417 in | C: 11800 lbf | C0: 6940 lbf
UKX11+HA2311 Shaft: 1-15/16 in | D: 4.3307 in | Bi: 1.417 in | C: 11800 lbf | C0: 6940 lbf
UKX11+HE2311 Shaft: 2 in | D: 4.3307 in | Bi: 1.417 in | C: 11800 lbf | C0: 6940 lbf
UKX12+HA2312 Shaft: 2-1/16 in | D: 4.7244 in | Bi: 1.496 in | C: 12900 lbf | C0: 7720 lbf
UKX12+HS2312 Shaft: 2-1/8 in | D: 4.7244 in | Bi: 1.496 in | C: 12900 lbf | C0: 7720 lbf
UKX13+HA2313 Shaft: 2-3/16 in | D: 4.9213 in | Bi: 1.575 in | C: 14000 lbf | C0: 8380 lbf
UKX13+HE2313 Shaft: 2-1/4 in | D: 4.9213 in | Bi: 1.575 in | C: 14000 lbf | C0: 8380 lbf
UKX13+HS2313 Shaft: 2-3/8 in | D: 4.9213 in | Bi: 1.575 in | C: 14000 lbf | C0: 8380 lbf
UKX15+HE2315 Shaft: 2-1/2 in | D: 5.5118 in | Bi: 1.732 in | C: 16300 lbf | C0: 10000 lbf
UKX16+HE2316 Shaft: 2-3/4 in | D: 5.9055 in | Bi: 1.811 in | C: 18700 lbf | C0: 12100 lbf
UKX17+HE2317 Shaft: 3 in | D: 6.2992 in | Bi: 1.929 in | C: 21500 lbf | C0: 13900 lbf
UKX18+HS2318 Shaft: 3-1/8 in | D: 6.6929 in | Bi: 2.047 in | C: 24500 lbf | C0: 15700 lbf
UKX20+HE2320 Shaft: 3-1/2 in | D: 7.4803 in | Bi: 2.283 in | C: 30200 lbf | C0: 20100 lbf
