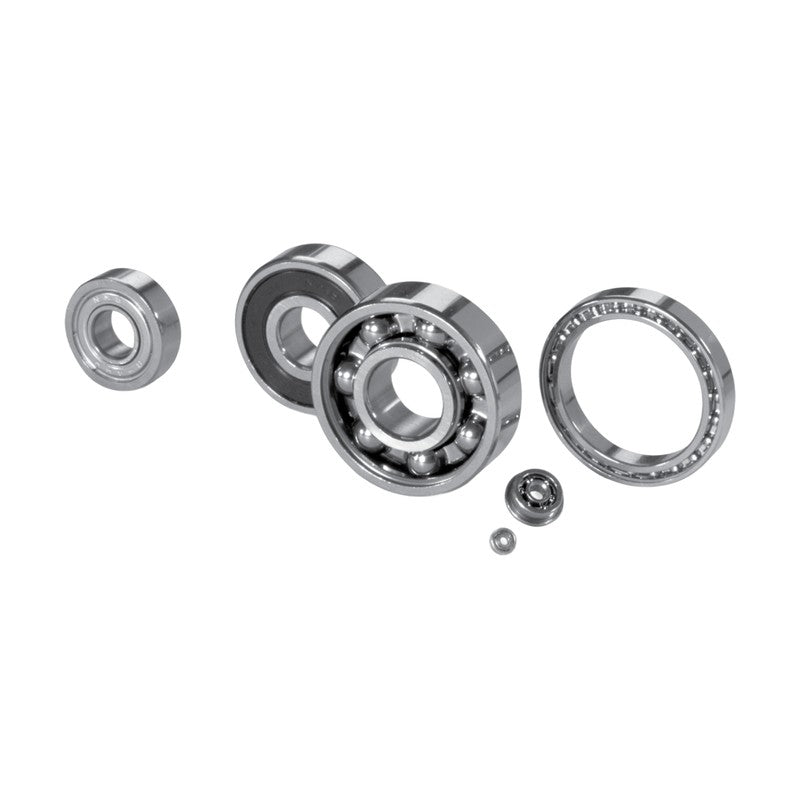

NMB DDL/DDLF Metric Series Miniature Bearings (Open, ZZ, Flanged)

NMB DDL/DDLF Metric Series Miniature Bearings (Open, ZZ, Flanged)

NMB DDL metric series radial ball bearings and DDLF flanged versions in martensitic stainless steel, bore 1 to 12 mm.

Key features

  • Bore 1.0 to 12.0 mm
  • Radial (DDL) and flanged (DDLF) versions
  • Open and double-shielded (ZZ) versions
  • 400 series martensitic stainless steel
  • ABEC 1, 3, 5 and 7 tolerances apply

Specifications

Brand NMB
Ring material 400 series martensitic stainless steel (DD prefix)
Tolerance classes ABEC 1, 3, 5, 7
Series Metric DDL / DDLF
Units d, D, B in mm; Cr, Cor in N
Source NMB Miniature & Small Precision Ball Bearings catalog, p. 3.2-3.3
DDL-310 d: 1.0 mm | D: 3.0 mm | B: 1.0 mm | Cr: 80 N | Cor: 23 N
DDLF-310 d: 1.0 mm | D: 3.0 mm | B: 1.0 mm | Cr: 80 N | Cor: 23 N
DDL-415 d: 1.5 mm | D: 4.0 mm | B: 1.2 mm | Cr: 125 N | Cor: 38 N
DDLF-415 d: 1.5 mm | D: 4.0 mm | B: 1.2 mm | Cr: 125 N | Cor: 38 N
DDL-520 d: 2.0 mm | D: 5.0 mm | B: 1.5 mm | Cr: 187 N | Cor: 59 N
DDLF-520 d: 2.0 mm | D: 5.0 mm | B: 1.5 mm | Cr: 187 N | Cor: 59 N
DDL-625 d: 2.5 mm | D: 6.0 mm | B: 1.8 mm | Cr: 206 N | Cor: 73 N
DDLF-625 d: 2.5 mm | D: 6.0 mm | B: 1.8 mm | Cr: 206 N | Cor: 73 N
DDL-630 d: 3.0 mm | D: 6.0 mm | B: 2.0 mm | Cr: 206 N | Cor: 73 N
DDLF-630 d: 3.0 mm | D: 6.0 mm | B: 2.0 mm | Cr: 206 N | Cor: 73 N
DDL-730 d: 3.0 mm | D: 7.0 mm | B: 2.0 mm | Cr: 384 N | Cor: 129 N
DDLF-730 d: 3.0 mm | D: 7.0 mm | B: 2.0 mm | Cr: 384 N | Cor: 129 N
DDL-740 d: 4.0 mm | D: 7.0 mm | B: 2.0 mm | Cr: 252 N | Cor: 106 N
DDLF-740 d: 4.0 mm | D: 7.0 mm | B: 2.0 mm | Cr: 252 N | Cor: 106 N
DDL-840 d: 4.0 mm | D: 8.0 mm | B: 2.0 mm | Cr: 391 N | Cor: 140 N
DDLF-840 d: 4.0 mm | D: 8.0 mm | B: 2.0 mm | Cr: 391 N | Cor: 140 N
DDL-940 d: 4.0 mm | D: 9.0 mm | B: 2.5 mm | Cr: 641 N | Cor: 226 N
DDLF-940 d: 4.0 mm | D: 9.0 mm | B: 2.5 mm | Cr: 641 N | Cor: 226 N
DDL-1040 d: 4.0 mm | D: 10.0 mm | B: 3.0 mm | Cr: 708 N | Cor: 266 N
DDLF-1040 d: 4.0 mm | D: 10.0 mm | B: 3.0 mm | Cr: 708 N | Cor: 266 N
DDL-850 d: 5.0 mm | D: 8.0 mm | B: 2.0 mm | Cr: 274 N | Cor: 130 N
DDLF-850 d: 5.0 mm | D: 8.0 mm | B: 2.0 mm | Cr: 274 N | Cor: 130 N
DDL-950 d: 5.0 mm | D: 9.0 mm | B: 2.5 mm | Cr: 495 N | Cor: 207 N
DDLF-950 d: 5.0 mm | D: 9.0 mm | B: 2.5 mm | Cr: 495 N | Cor: 207 N
DDL-1050 d: 5.0 mm | D: 10.0 mm | B: 3.0 mm | Cr: 714 N | Cor: 276 N
DDLF-1050 d: 5.0 mm | D: 10.0 mm | B: 3.0 mm | Cr: 714 N | Cor: 276 N
DDL-1150 d: 5.0 mm | D: 11.0 mm | B: 3.0 mm | Cr: 714 N | Cor: 276 N
DDLF-1150 d: 5.0 mm | D: 11.0 mm | B: 3.0 mm | Cr: 714 N | Cor: 276 N
DDL-1060 d: 6.0 mm | D: 10.0 mm | B: 2.5 mm | Cr: 457 N | Cor: 194 N
DDLF-1060 d: 6.0 mm | D: 10.0 mm | B: 2.5 mm | Cr: 457 N | Cor: 194 N
DDL-1260 d: 6.0 mm | D: 12.0 mm | B: 3.0 mm | Cr: 831 N | Cor: 363 N
DDLF-1260 d: 6.0 mm | D: 12.0 mm | B: 3.0 mm | Cr: 831 N | Cor: 363 N
DDL-1360 d: 6.0 mm | D: 13.0 mm | B: 3.5 mm | Cr: 1083 N | Cor: 438 N
DDLF-1360 d: 6.0 mm | D: 13.0 mm | B: 3.5 mm | Cr: 1083 N | Cor: 438 N
DDL-1170 d: 7.0 mm | D: 11.0 mm | B: 2.5 mm | Cr: 449 N | Cor: 199 N
DDLF-1170 d: 7.0 mm | D: 11.0 mm | B: 2.5 mm | Cr: 449 N | Cor: 199 N
DDL-1370 d: 7.0 mm | D: 13.0 mm | B: 3.0 mm | Cr: 880 N | Cor: 414 N
DDLF-1370 d: 7.0 mm | D: 13.0 mm | B: 3.0 mm | Cr: 880 N | Cor: 414 N
DDL-1470 d: 7.0 mm | D: 14.0 mm | B: 3.5 mm | Cr: 1175 N | Cor: 511 N
DDLF-1470 d: 7.0 mm | D: 14.0 mm | B: 3.5 mm | Cr: 1175 N | Cor: 511 N
DDL-1280 d: 8.0 mm | D: 12.0 mm | B: 2.5 mm | Cr: 506 N | Cor: 249 N
DDLF-1280 d: 8.0 mm | D: 12.0 mm | B: 2.5 mm | Cr: 506 N | Cor: 249 N
DDL-1480 d: 8.0 mm | D: 14.0 mm | B: 3.5 mm | Cr: 819 N | Cor: 386 N
DDLF-1480 d: 8.0 mm | D: 14.0 mm | B: 3.5 mm | Cr: 819 N | Cor: 386 N
DDL-1680 d: 8.0 mm | D: 16.0 mm | B: 4.0 mm | Cr: 1606 N | Cor: 712 N
DDLF-1680 d: 8.0 mm | D: 16.0 mm | B: 4.0 mm | Cr: 1606 N | Cor: 712 N
DDL-1790 d: 9.0 mm | D: 17.0 mm | B: 4.0 mm | Cr: 1724 N | Cor: 813 N
DDLF-1790 d: 9.0 mm | D: 17.0 mm | B: 4.0 mm | Cr: 1724 N | Cor: 813 N
DDL-2090 d: 9.0 mm | D: 20.0 mm | B: 6.0 mm | Cr: 2123 N | Cor: 985 N
DDL-1910 d: 10.0 mm | D: 19.0 mm | B: 5.0 mm | Cr: 2123 N | Cor: 985 N
DDL-2212 d: 12.0 mm | D: 21.0 mm | B: 5.0 mm | Cr: 1917 N | Cor: 1042 N
DDL-415ZZ d: 1.5 mm | D: 4.0 mm | B: 2.0 mm | Cr: 113 N | Cor: 34 N
DDLF-415ZZ d: 1.5 mm | D: 4.0 mm | B: 2.0 mm | Cr: 125 N | Cor: 38 N
DDL-520ZZ d: 2.0 mm | D: 5.0 mm | B: 2.3 mm | Cr: 187 N | Cor: 59 N
DDLF-520ZZ d: 2.0 mm | D: 5.0 mm | B: 2.3 mm | Cr: 187 N | Cor: 59 N
DDL-625ZZ d: 2.5 mm | D: 6.0 mm | B: 2.6 mm | Cr: 206 N | Cor: 73 N
DDLF-625ZZ d: 2.5 mm | D: 6.0 mm | B: 2.6 mm | Cr: 206 N | Cor: 73 N
DDL-630ZZ d: 3.0 mm | D: 6.0 mm | B: 2.5 mm | Cr: 206 N | Cor: 73 N
DDLF-630ZZ d: 3.0 mm | D: 6.0 mm | B: 2.5 mm | Cr: 206 N | Cor: 73 N
DDL-730ZZ d: 3.0 mm | D: 7.0 mm | B: 3.0 mm | Cr: 384 N | Cor: 129 N
DDLF-730ZZ d: 3.0 mm | D: 7.0 mm | B: 3.0 mm | Cr: 384 N | Cor: 129 N
DDL-740ZZ d: 4.0 mm | D: 7.0 mm | B: 2.5 mm | Cr: 252 N | Cor: 106 N
DDLF-740ZZ d: 4.0 mm | D: 7.0 mm | B: 2.5 mm | Cr: 252 N | Cor: 106 N
DDL-840ZZ d: 4.0 mm | D: 8.0 mm | B: 3.0 mm | Cr: 391 N | Cor: 140 N
DDLF-840ZZ d: 4.0 mm | D: 8.0 mm | B: 3.0 mm | Cr: 391 N | Cor: 140 N
DDL-940ZZ d: 4.0 mm | D: 9.0 mm | B: 4.0 mm | Cr: 641 N | Cor: 226 N
DDLF-940ZZ d: 4.0 mm | D: 9.0 mm | B: 4.0 mm | Cr: 641 N | Cor: 226 N
DDL-1040ZZ d: 4.0 mm | D: 10.0 mm | B: 4.0 mm | Cr: 708 N | Cor: 266 N
DDLF-1040ZZ d: 4.0 mm | D: 10.0 mm | B: 4.0 mm | Cr: 708 N | Cor: 266 N
DDL-850ZZ d: 5.0 mm | D: 8.0 mm | B: 2.5 mm | Cr: 274 N | Cor: 130 N
DDLF-850ZZ d: 5.0 mm | D: 8.0 mm | B: 2.5 mm | Cr: 274 N | Cor: 130 N
DDL-950ZZ d: 5.0 mm | D: 9.0 mm | B: 3.0 mm | Cr: 495 N | Cor: 207 N
DDLF-950ZZ d: 5.0 mm | D: 9.0 mm | B: 3.0 mm | Cr: 495 N | Cor: 207 N
DDL-1050ZZ d: 5.0 mm | D: 10.0 mm | B: 4.0 mm | Cr: 714 N | Cor: 276 N
DDLF-1050ZZ d: 5.0 mm | D: 10.0 mm | B: 4.0 mm | Cr: 714 N | Cor: 276 N
DDL-1150ZZ d: 5.0 mm | D: 11.0 mm | B: 5.0 mm | Cr: 714 N | Cor: 276 N
DDLF-1150ZZ d: 5.0 mm | D: 11.0 mm | B: 5.0 mm | Cr: 714 N | Cor: 276 N
DDL-1060ZZ d: 6.0 mm | D: 10.0 mm | B: 3.0 mm | Cr: 457 N | Cor: 194 N
DDLF-1060ZZ d: 6.0 mm | D: 10.0 mm | B: 3.0 mm | Cr: 457 N | Cor: 194 N
DDL-1260ZZ d: 6.0 mm | D: 12.0 mm | B: 4.0 mm | Cr: 831 N | Cor: 363 N
DDLF-1260ZZ d: 6.0 mm | D: 12.0 mm | B: 4.0 mm | Cr: 831 N | Cor: 363 N
DDL-1360ZZ d: 6.0 mm | D: 13.0 mm | B: 5.0 mm | Cr: 1083 N | Cor: 438 N
DDLF-1360ZZ d: 6.0 mm | D: 13.0 mm | B: 5.0 mm | Cr: 1083 N | Cor: 438 N
DDL-1170ZZ d: 7.0 mm | D: 11.0 mm | B: 3.0 mm | Cr: 449 N | Cor: 199 N
DDLF-1170ZZ d: 7.0 mm | D: 11.0 mm | B: 3.0 mm | Cr: 449 N | Cor: 199 N
DDL-1370ZZ d: 7.0 mm | D: 13.0 mm | B: 4.0 mm | Cr: 880 N | Cor: 414 N
DDLF-1370ZZ d: 7.0 mm | D: 13.0 mm | B: 4.0 mm | Cr: 880 N | Cor: 414 N
DDL-1470ZZ d: 7.0 mm | D: 14.0 mm | B: 5.0 mm | Cr: 1175 N | Cor: 511 N
DDLF-1470ZZ d: 7.0 mm | D: 14.0 mm | B: 5.0 mm | Cr: 1175 N | Cor: 511 N
DDL-1280ZZ d: 8.0 mm | D: 12.0 mm | B: 3.5 mm | Cr: 506 N | Cor: 249 N
DDLF-1280ZZ d: 8.0 mm | D: 12.0 mm | B: 3.5 mm | Cr: 506 N | Cor: 249 N
DDL-1480ZZ d: 8.0 mm | D: 14.0 mm | B: 4.0 mm | Cr: 819 N | Cor: 386 N
DDLF-1480ZZ d: 8.0 mm | D: 14.0 mm | B: 4.0 mm | Cr: 819 N | Cor: 386 N
DDL-1680ZZ d: 8.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1606 N | Cor: 712 N
DDLF-1680ZZ d: 8.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1606 N | Cor: 712 N
DDL-1790ZZ d: 9.0 mm | D: 17.0 mm | B: 5.0 mm | Cr: 1724 N | Cor: 813 N
DDLF-1790ZZ d: 9.0 mm | D: 17.0 mm | B: 5.0 mm | Cr: 1724 N | Cor: 813 N
DDL-2090ZZ d: 9.0 mm | D: 20.0 mm | B: 6.0 mm | Cr: 2123 N | Cor: 985 N
DDL-1910ZZ d: 10.0 mm | D: 19.0 mm | B: 7.0 mm | Cr: 2123 N | Cor: 985 N
DDL-2112ZZ d: 12.0 mm | D: 21.0 mm | B: 5.0 mm | Cr: 1917 N | Cor: 1042 N
