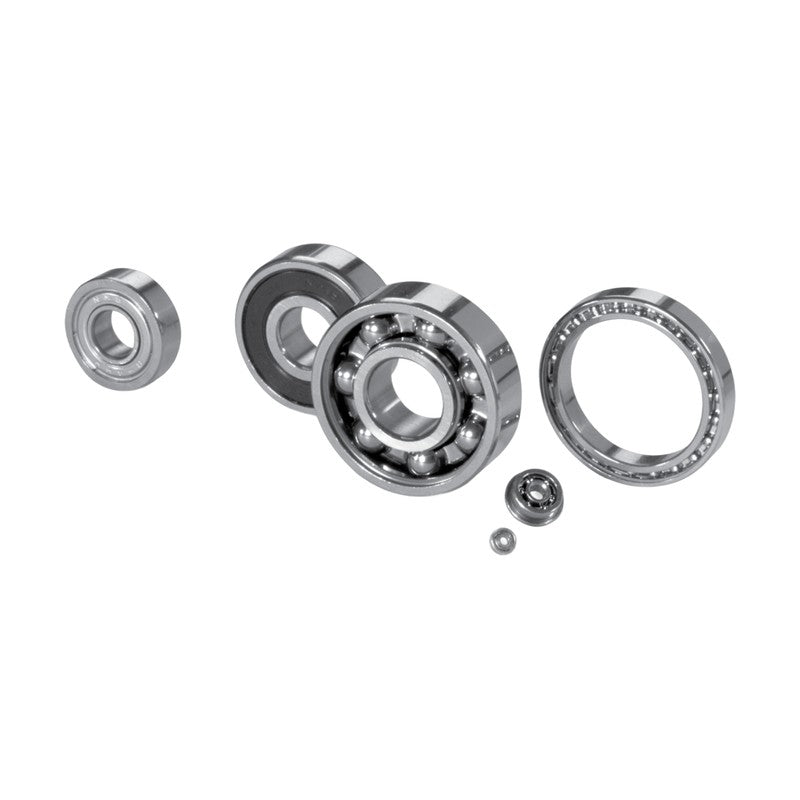

NMB DDR/DDRF Metric Series Miniature Bearings (Open, ZZ, Flanged)

NMB DDR/DDRF Metric Series Miniature Bearings (Open, ZZ, Flanged)

NMB DDR metric series radial ball bearings and DDRF flanged versions in martensitic stainless steel, bore 1 to 12 mm.

Key features

  • Bore 1.0 to 12.0 mm
  • Radial (DDR) and flanged (DDRF) versions
  • Open and double-shielded (ZZ) versions
  • 400 series martensitic stainless steel
  • ABEC 1, 3, 5 and 7 tolerances apply

Specifications

Brand NMB
Ring material 400 series martensitic stainless steel (DD prefix)
Tolerance classes ABEC 1, 3, 5, 7
Series Metric DDR / DDRF
Units d, D, B in mm; Cr, Cor in N
Source NMB Miniature & Small Precision Ball Bearings catalog, p. 3.4-3.5
DDR-410 d: 1.0 mm | D: 4.0 mm | B: 1.6 mm | Cr: 158 N | Cor: 44 N
DDR-412 d: 1.2 mm | D: 4.0 mm | B: 1.8 mm | Cr: 158 N | Cor: 44 N
DDR-515 d: 1.5 mm | D: 5.0 mm | B: 2.0 mm | Cr: 184 N | Cor: 57 N
DDRF-515 d: 1.5 mm | D: 5.0 mm | B: 2.0 mm | Cr: 184 N | Cor: 57 N
DDR-615 d: 1.5 mm | D: 6.0 mm | B: 2.5 mm | Cr: 324 N | Cor: 97 N
DDRF-615 d: 1.5 mm | D: 6.0 mm | B: 2.5 mm | Cr: 324 N | Cor: 97 N
DDR-620 d: 2.0 mm | D: 6.0 mm | B: 2.3 mm | Cr: 279 N | Cor: 89 N
DDRF-620 d: 2.0 mm | D: 6.0 mm | B: 2.3 mm | Cr: 330 N | Cor: 99 N
DDR-720 d: 2.0 mm | D: 7.0 mm | B: 2.8 mm | Cr: 330 N | Cor: 99 N
DDRF-720 d: 2.0 mm | D: 7.0 mm | B: 2.8 mm | Cr: 330 N | Cor: 99 N
DDR-725 d: 2.5 mm | D: 7.0 mm | B: 2.5 mm | Cr: 380 N | Cor: 126 N
DDRF-725 d: 2.5 mm | D: 7.0 mm | B: 2.5 mm | Cr: 380 N | Cor: 126 N
DDR-825 d: 2.5 mm | D: 8.0 mm | B: 2.8 mm | Cr: 553 N | Cor: 176 N
DDRF-825 d: 2.5 mm | D: 8.0 mm | B: 2.8 mm | Cr: 553 N | Cor: 176 N
DDR-830 d: 3.0 mm | D: 8.0 mm | B: 3.0 mm | Cr: 553 N | Cor: 176 N
DDRF-830 d: 3.0 mm | D: 8.0 mm | B: 3.0 mm | Cr: 553 N | Cor: 176 N
DDR-930 d: 3.0 mm | D: 9.0 mm | B: 3.0 mm | Cr: 634 N | Cor: 219 N
DDRF-930 d: 3.0 mm | D: 9.0 mm | B: 3.0 mm | Cr: 634 N | Cor: 219 N
DDR-1030 d: 3.0 mm | D: 10.0 mm | B: 4.0 mm | Cr: 641 N | Cor: 226 N
DDRF-1030 d: 3.0 mm | D: 10.0 mm | B: 4.0 mm | Cr: 641 N | Cor: 226 N
DDR-1140 d: 4.0 mm | D: 11.0 mm | B: 4.0 mm | Cr: 714 N | Cor: 276 N
DDRF-1140 d: 4.0 mm | D: 11.0 mm | B: 4.0 mm | Cr: 714 N | Cor: 276 N
DDR-1240 d: 4.0 mm | D: 12.0 mm | B: 4.0 mm | Cr: 959 N | Cor: 347 N
DDRF-1240 d: 4.0 mm | D: 12.0 mm | B: 4.0 mm | Cr: 959 N | Cor: 347 N
DDR-1340 d: 4.0 mm | D: 13.0 mm | B: 5.0 mm | Cr: 1306 N | Cor: 487 N
DDRF-1340 d: 4.0 mm | D: 13.0 mm | B: 5.0 mm | Cr: 1306 N | Cor: 487 N
DDR-1640 d: 4.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDRF-1640 d: 4.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDR-1350 d: 5.0 mm | D: 13.0 mm | B: 4.0 mm | Cr: 1074 N | Cor: 422 N
DDRF-1350 d: 5.0 mm | D: 13.0 mm | B: 4.0 mm | Cr: 1074 N | Cor: 422 N
DDR-1450 d: 5.0 mm | D: 14.0 mm | B: 5.0 mm | Cr: 1329 N | Cor: 508 N
DDRF-1450 d: 5.0 mm | D: 14.0 mm | B: 5.0 mm | Cr: 1329 N | Cor: 508 N
DDR-1650 d: 5.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDRF-1650 d: 5.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDR-1950 d: 5.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2805 N | Cor: 1060 N
DDRF-1950 d: 5.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2805 N | Cor: 1060 N
DDR-1560 d: 6.0 mm | D: 15.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDRF-1560 d: 6.0 mm | D: 15.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDR-1660 d: 6.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDR-1760 d: 6.0 mm | D: 17.0 mm | B: 6.0 mm | Cr: 2265 N | Cor: 839 N
DDRF-1760 d: 6.0 mm | D: 17.0 mm | B: 6.0 mm | Cr: 2265 N | Cor: 839 N
DDR-1960 d: 6.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2805 N | Cor: 1060 N
DDRF-1960 d: 6.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2805 N | Cor: 1060 N
DDR-1970 d: 7.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2240 N | Cor: 912 N
DDR-2270 d: 7.0 mm | D: 22.0 mm | B: 7.0 mm | Cr: 3297 N | Cor: 1368 N
DDRF-2270 d: 7.0 mm | D: 22.0 mm | B: 7.0 mm | Cr: 3297 N | Cor: 1368 N
DDR-1980 d: 8.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2463 N | Cor: 1059 N
DDRF-1980 d: 8.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2240 N | Cor: 912 N
DDR-2280 d: 8.0 mm | D: 22.0 mm | B: 7.0 mm | Cr: 3297 N | Cor: 1368 N
DDRF-2280 d: 8.0 mm | D: 22.0 mm | B: 7.0 mm | Cr: 3297 N | Cor: 1368 N
DDR-2210 d: 10.0 mm | D: 22.0 mm | B: 6.0 mm | Cr: 2697 N | Cor: 1273 N
DDR-2412 d: 12.0 mm | D: 24.0 mm | B: 6.0 mm | Cr: 3082 N | Cor: 1433 N
DDR-515ZZ d: 1.5 mm | D: 5.0 mm | B: 2.0 mm | Cr: 184 N | Cor: 57 N
DDRF-515ZZ d: 1.5 mm | D: 5.0 mm | B: 2.0 mm | Cr: 184 N | Cor: 57 N
DDR-615ZZ d: 1.5 mm | D: 6.0 mm | B: 2.5 mm | Cr: 324 N | Cor: 97 N
DDRF-615ZZ d: 1.5 mm | D: 6.0 mm | B: 2.5 mm | Cr: 324 N | Cor: 97 N
DDR-620ZZ d: 2.0 mm | D: 6.0 mm | B: 2.3 mm | Cr: 279 N | Cor: 89 N
DDRF-620ZZ d: 2.0 mm | D: 6.0 mm | B: 2.3 mm | Cr: 279 N | Cor: 89 N
DDR-720ZZ d: 2.0 mm | D: 7.0 mm | B: 2.8 mm | Cr: 380 N | Cor: 126 N
DDRF-720ZZ d: 2.0 mm | D: 7.0 mm | B: 2.8 mm | Cr: 380 N | Cor: 126 N
DDR-725ZZ d: 2.5 mm | D: 7.0 mm | B: 2.5 mm | Cr: 380 N | Cor: 126 N
DDRF-725ZZ d: 2.5 mm | D: 7.0 mm | B: 2.5 mm | Cr: 380 N | Cor: 126 N
DDR-825ZZ d: 2.5 mm | D: 8.0 mm | B: 2.8 mm | Cr: 553 N | Cor: 176 N
DDRF-825ZZ d: 2.5 mm | D: 8.0 mm | B: 2.8 mm | Cr: 553 N | Cor: 176 N
DDR-830ZZ d: 3.0 mm | D: 8.0 mm | B: 3.0 mm | Cr: 553 N | Cor: 176 N
DDRF-830ZZ d: 3.0 mm | D: 8.0 mm | B: 3.0 mm | Cr: 553 N | Cor: 176 N
DDR-930ZZ d: 3.0 mm | D: 9.0 mm | B: 3.0 mm | Cr: 634 N | Cor: 219 N
DDRF-930ZZ d: 3.0 mm | D: 9.0 mm | B: 3.0 mm | Cr: 634 N | Cor: 219 N
DDR-1030ZZ d: 3.0 mm | D: 10.0 mm | B: 4.0 mm | Cr: 641 N | Cor: 226 N
DDRF-1030ZZ d: 3.0 mm | D: 10.0 mm | B: 4.0 mm | Cr: 641 N | Cor: 226 N
DDR-1140ZZ d: 4.0 mm | D: 11.0 mm | B: 4.0 mm | Cr: 714 N | Cor: 276 N
DDRF-1140ZZ d: 4.0 mm | D: 11.0 mm | B: 4.0 mm | Cr: 714 N | Cor: 276 N
DDR-1240ZZ d: 4.0 mm | D: 12.0 mm | B: 4.0 mm | Cr: 959 N | Cor: 347 N
DDRF-1240ZZ d: 4.0 mm | D: 12.0 mm | B: 4.0 mm | Cr: 959 N | Cor: 347 N
DDR-1340ZZ d: 4.0 mm | D: 13.0 mm | B: 5.0 mm | Cr: 1306 N | Cor: 487 N
DDRF-1340ZZ d: 4.0 mm | D: 13.0 mm | B: 5.0 mm | Cr: 1306 N | Cor: 487 N
DDR-1640ZZ d: 4.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDRF-1640ZZ d: 4.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDR-1350ZZ d: 5.0 mm | D: 13.0 mm | B: 4.0 mm | Cr: 1074 N | Cor: 422 N
DDRF-1350ZZ d: 5.0 mm | D: 13.0 mm | B: 4.0 mm | Cr: 1074 N | Cor: 422 N
DDR-1450ZZ d: 5.0 mm | D: 14.0 mm | B: 5.0 mm | Cr: 1329 N | Cor: 508 N
DDRF-1450ZZ d: 5.0 mm | D: 14.0 mm | B: 5.0 mm | Cr: 1329 N | Cor: 508 N
DDR-1650ZZ d: 5.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDRF-1650ZZ d: 5.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDR-1950ZZ d: 5.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2085 N | Cor: 1060 N
DDRF-1950ZZ d: 5.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2085 N | Cor: 1060 N
DDR-1560ZZ d: 6.0 mm | D: 15.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDRF-1560ZZ d: 6.0 mm | D: 15.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDR-1660ZZ d: 6.0 mm | D: 16.0 mm | B: 5.0 mm | Cr: 1735 N | Cor: 671 N
DDR-1760ZZ d: 6.0 mm | D: 17.0 mm | B: 6.0 mm | Cr: 2265 N | Cor: 839 N
DDRF-1760ZZ d: 6.0 mm | D: 17.0 mm | B: 6.0 mm | Cr: 2265 N | Cor: 839 N
DDR-1960ZZ d: 6.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2805 N | Cor: 1060 N
DDRF-1960ZZ d: 6.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2805 N | Cor: 1060 N
DDR-1970ZZ d: 7.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2240 N | Cor: 912 N
DDR-2270ZZ d: 7.0 mm | D: 22.0 mm | B: 7.0 mm | Cr: 3297 N | Cor: 1368 N
DDRF-2270ZZ d: 7.0 mm | D: 22.0 mm | B: 7.0 mm | Cr: 3297 N | Cor: 1368 N
DDR-1980ZZ d: 8.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2463 N | Cor: 1059 N
DDRF-1980ZZ d: 8.0 mm | D: 19.0 mm | B: 6.0 mm | Cr: 2240 N | Cor: 912 N
DDR-2280ZZ d: 8.0 mm | D: 22.0 mm | B: 7.0 mm | Cr: 3297 N | Cor: 1368 N
DDRF-2280ZZ d: 8.0 mm | D: 22.0 mm | B: 7.0 mm | Cr: 3297 N | Cor: 1368 N
DDR-2210ZZ d: 10.0 mm | D: 22.0 mm | B: 6.0 mm | Cr: 2697 N | Cor: 1273 N
DDRF-2210ZZ d: 10.0 mm | D: 22.0 mm | B: 6.0 mm | Cr: 2697 N | Cor: 1273 N
DDR-2412ZZ d: 12.0 mm | D: 24.0 mm | B: 6.0 mm | Cr: 3082 N | Cor: 1433 N
