NS Precision CF Cam Followers (Caged, Metric, Stud 3-30 mm)

NS Precision CF Cam Followers (Caged, Metric, Stud 3-30 mm)

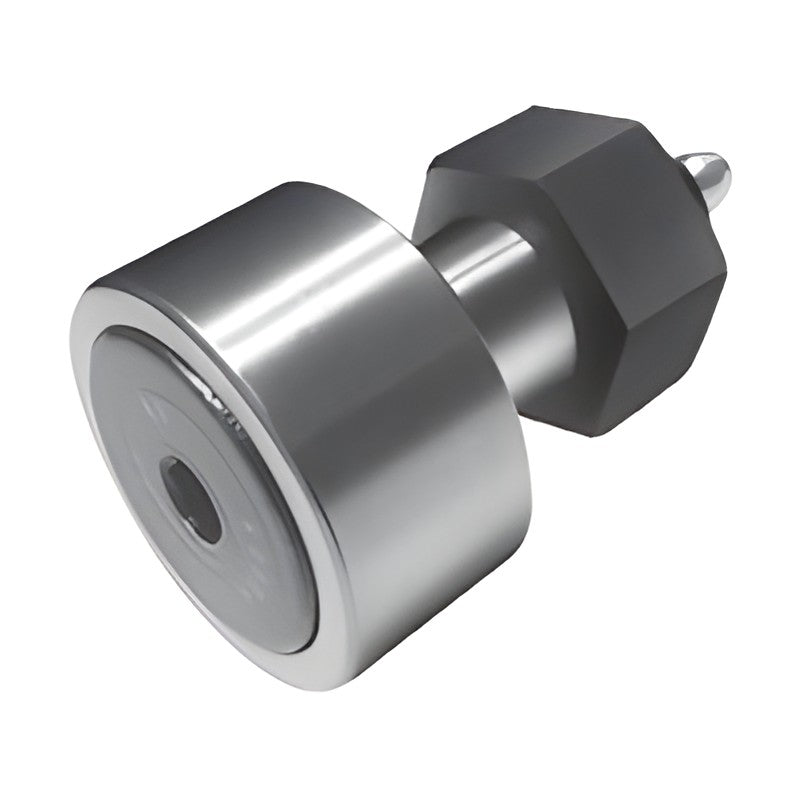

NS CF stud-type track rollers (cam followers) with caged needle rollers for higher speeds, stud diameters 3-30 mm.

Key features

  • Caged needle roller set
  • Thick-walled outer ring runs directly on cam or track surfaces
  • Threaded stud with hexagon socket for easy mounting
  • Cylindrical (no R) or crowned (R) outer ring
  • Sealed (UU) versions retain grease and exclude contamination

Specifications

Product Stud-type track roller (cam follower)
Series CF
Suffixes R = crowned outer ring; UU = sealed
Load rating unit kgf
Brand NS
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 38-39
CF3 Outer D: 10 mm | Stud: 3 mm | C: 150 kgf | C0: 100 kgf | Mass: 4.5 g
CF3R Outer D: 10 mm | Stud: 3 mm | C: 150 kgf | C0: 100 kgf | Mass: 4.5 g
CF3UU Outer D: 10 mm | Stud: 3 mm | C: 150 kgf | C0: 100 kgf | Mass: 4.5 g
CF3UUR Outer D: 10 mm | Stud: 3 mm | C: 150 kgf | C0: 100 kgf | Mass: 4.5 g
CF4 Outer D: 12 mm | Stud: 4 mm | C: 210 kgf | C0: 120 kgf | Mass: 7.5 g
CF4R Outer D: 12 mm | Stud: 4 mm | C: 210 kgf | C0: 120 kgf | Mass: 7.5 g
CF4UU Outer D: 12 mm | Stud: 4 mm | C: 210 kgf | C0: 120 kgf | Mass: 7.5 g
CF4UUR Outer D: 12 mm | Stud: 4 mm | C: 210 kgf | C0: 120 kgf | Mass: 7.5 g
CF5 Outer D: 13 mm | Stud: 5 mm | C: 280 kgf | C0: 180 kgf | Mass: 10.5 g
CF5R Outer D: 13 mm | Stud: 5 mm | C: 280 kgf | C0: 180 kgf | Mass: 10.5 g
CF5UU Outer D: 13 mm | Stud: 5 mm | C: 280 kgf | C0: 180 kgf | Mass: 10.5 g
CF5UUR Outer D: 13 mm | Stud: 5 mm | C: 280 kgf | C0: 180 kgf | Mass: 10.5 g
CF6 Outer D: 16 mm | Stud: 6 mm | C: 270 kgf | C0: 170 kgf | Mass: 18.5 g
CF6R Outer D: 16 mm | Stud: 6 mm | C: 270 kgf | C0: 170 kgf | Mass: 18.5 g
CF6UU Outer D: 16 mm | Stud: 6 mm | C: 270 kgf | C0: 170 kgf | Mass: 18.5 g
CF6UUR Outer D: 16 mm | Stud: 6 mm | C: 270 kgf | C0: 170 kgf | Mass: 18.5 g
CF8 Outer D: 19 mm | Stud: 8 mm | C: 300 kgf | C0: 210 kgf | Mass: 28.5 g
CF8R Outer D: 19 mm | Stud: 8 mm | C: 300 kgf | C0: 210 kgf | Mass: 28.5 g
CF8UU Outer D: 19 mm | Stud: 8 mm | C: 300 kgf | C0: 210 kgf | Mass: 28.5 g
CF8UUR Outer D: 19 mm | Stud: 8 mm | C: 300 kgf | C0: 210 kgf | Mass: 28.5 g
CF10 Outer D: 22 mm | Stud: 10 mm | C: 410 kgf | C0: 320 kgf | Mass: 45 g
CF10R Outer D: 22 mm | Stud: 10 mm | C: 410 kgf | C0: 320 kgf | Mass: 45 g
CF10UU Outer D: 22 mm | Stud: 10 mm | C: 410 kgf | C0: 320 kgf | Mass: 45 g
CF10UUR Outer D: 22 mm | Stud: 10 mm | C: 410 kgf | C0: 320 kgf | Mass: 45 g
CF10-1 Outer D: 26 mm | Stud: 10 mm | C: 410 kgf | C0: 320 kgf | Mass: 60 g
CF10-1R Outer D: 26 mm | Stud: 10 mm | C: 410 kgf | C0: 320 kgf | Mass: 60 g
CF10-1UU Outer D: 26 mm | Stud: 10 mm | C: 410 kgf | C0: 320 kgf | Mass: 60 g
CF10-1UUR Outer D: 26 mm | Stud: 10 mm | C: 410 kgf | C0: 320 kgf | Mass: 60 g
CF12 Outer D: 30 mm | Stud: 12 mm | C: 590 kgf | C0: 450 kgf | Mass: 95 g
CF12R Outer D: 30 mm | Stud: 12 mm | C: 590 kgf | C0: 450 kgf | Mass: 95 g
CF12UU Outer D: 30 mm | Stud: 12 mm | C: 590 kgf | C0: 450 kgf | Mass: 95 g
CF12UUR Outer D: 30 mm | Stud: 12 mm | C: 590 kgf | C0: 450 kgf | Mass: 95 g
CF12-1 Outer D: 32 mm | Stud: 12 mm | C: 590 kgf | C0: 450 kgf | Mass: 105 g
CF12-1R Outer D: 32 mm | Stud: 12 mm | C: 590 kgf | C0: 450 kgf | Mass: 105 g
CF12-1UU Outer D: 32 mm | Stud: 12 mm | C: 590 kgf | C0: 450 kgf | Mass: 105 g
CF12-1UUR Outer D: 32 mm | Stud: 12 mm | C: 590 kgf | C0: 450 kgf | Mass: 105 g
CF16 Outer D: 35 mm | Stud: 16 mm | C: 850 kgf | C0: 760 kgf | Mass: 170 g
CF16R Outer D: 35 mm | Stud: 16 mm | C: 850 kgf | C0: 760 kgf | Mass: 170 g
CF16UU Outer D: 35 mm | Stud: 16 mm | C: 850 kgf | C0: 760 kgf | Mass: 170 g
CF16UUR Outer D: 35 mm | Stud: 16 mm | C: 850 kgf | C0: 760 kgf | Mass: 170 g
CF18 Outer D: 40 mm | Stud: 18 mm | C: 1180 kgf | C0: 1220 kgf | Mass: 250 g
CF18R Outer D: 40 mm | Stud: 18 mm | C: 1180 kgf | C0: 1220 kgf | Mass: 250 g
CF18UU Outer D: 40 mm | Stud: 18 mm | C: 1180 kgf | C0: 1220 kgf | Mass: 250 g
CF18UUR Outer D: 40 mm | Stud: 18 mm | C: 1180 kgf | C0: 1220 kgf | Mass: 250 g
CF20 Outer D: 52 mm | Stud: 20 mm | C: 1630 kgf | C0: 1690 kgf | Mass: 460 g
CF20R Outer D: 52 mm | Stud: 20 mm | C: 1630 kgf | C0: 1690 kgf | Mass: 460 g
CF20UU Outer D: 52 mm | Stud: 20 mm | C: 1630 kgf | C0: 1690 kgf | Mass: 460 g
CF20UUR Outer D: 52 mm | Stud: 20 mm | C: 1630 kgf | C0: 1690 kgf | Mass: 460 g
CF20-1 Outer D: 47 mm | Stud: 20 mm | C: 1630 kgf | C0: 1690 kgf | Mass: 385 g
CF20-1R Outer D: 47 mm | Stud: 20 mm | C: 1630 kgf | C0: 1690 kgf | Mass: 385 g
CF20-1UU Outer D: 47 mm | Stud: 20 mm | C: 1630 kgf | C0: 1690 kgf | Mass: 385 g
CF20-1UUR Outer D: 47 mm | Stud: 20 mm | C: 1630 kgf | C0: 1690 kgf | Mass: 385 g
CF24 Outer D: 62 mm | Stud: 24 mm | C: 2160 kgf | C0: 2210 kgf | Mass: 815 g
CF24R Outer D: 62 mm | Stud: 24 mm | C: 2160 kgf | C0: 2210 kgf | Mass: 815 g
CF24UU Outer D: 62 mm | Stud: 24 mm | C: 2160 kgf | C0: 2210 kgf | Mass: 815 g
CF24UUR Outer D: 62 mm | Stud: 24 mm | C: 2160 kgf | C0: 2210 kgf | Mass: 815 g
CF24-1 Outer D: 72 mm | Stud: 24 mm | C: 2160 kgf | C0: 2210 kgf | Mass: 1140 g
CF24-1R Outer D: 72 mm | Stud: 24 mm | C: 2160 kgf | C0: 2210 kgf | Mass: 1140 g
CF24-1UU Outer D: 72 mm | Stud: 24 mm | C: 2160 kgf | C0: 2210 kgf | Mass: 1140 g
CF24-1UUR Outer D: 72 mm | Stud: 24 mm | C: 2160 kgf | C0: 2210 kgf | Mass: 1140 g
CF30 Outer D: 80 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 1870 g
CF30R Outer D: 80 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 1870 g
CF30UU Outer D: 80 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 1870 g
CF30UUR Outer D: 80 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 1870 g
CF30-1 Outer D: 95 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 2030 g
CF30-1R Outer D: 95 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 2030 g
CF30-1UU Outer D: 95 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 2030 g
CF30-1UUR Outer D: 95 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 2030 g
CF30-2 Outer D: 90 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 2220 g
CF30-2R Outer D: 90 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 2220 g
CF30-2UU Outer D: 90 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 2220 g
CF30-2UUR Outer D: 90 mm | Stud: 30 mm | C: 2830 kgf | C0: 3700 kgf | Mass: 2220 g
Track RollersNS Precision
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision CF Cam Followers (Caged, Metric, Stud 3-30 mm)

Brand NS Precision·Track Rollers

Available part numbers (72)

CF3, CF3R, CF3UU, CF3UUR, CF4, CF4R, CF4UU, CF4UUR, CF5, CF5R + 62 more — see full table ↓
