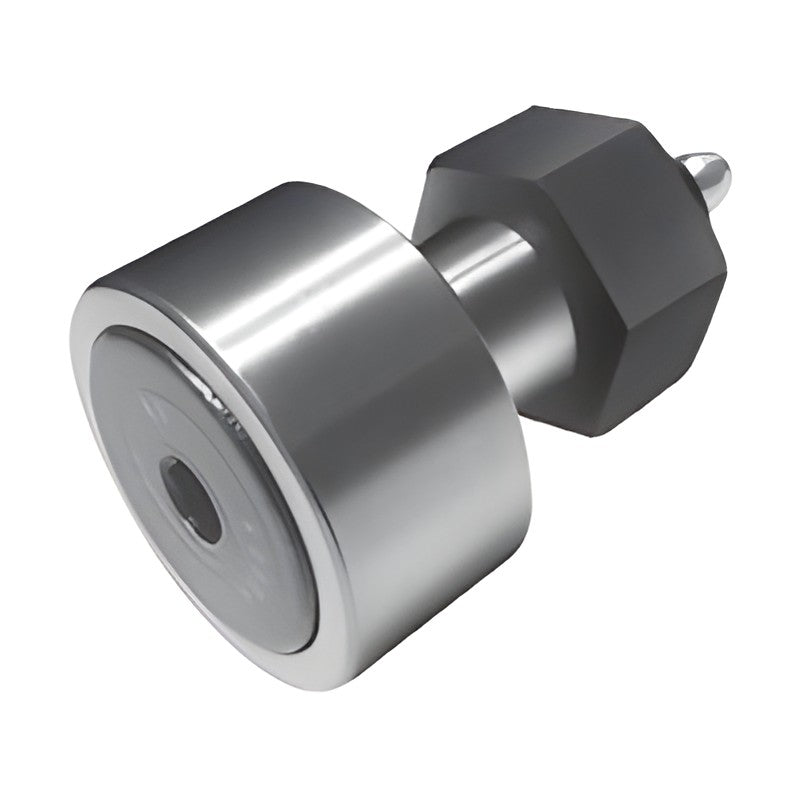

NS Precision CF-V Cam Followers (Full Complement, Metric, Stud 3-30 mm

NS Precision CF-V Cam Followers (Full Complement, Metric, Stud 3-30 mm

NS CF..V stud-type track rollers (cam followers) with full-complement needle rollers for high load capacity, stud diameters 3-30 mm.

Key features

  • Full complement of needle rollers
  • Thick-walled outer ring runs directly on cam or track surfaces
  • Threaded stud with hexagon socket for easy mounting
  • Cylindrical (no R) or crowned (R) outer ring
  • Sealed (UU) versions retain grease and exclude contamination

Specifications

Product Stud-type track roller (cam follower)
Series CF-V
Suffixes R = crowned outer ring; UU = sealed
Load rating unit kgf
Brand NS
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 36-37
CF3V Outer D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
CF3VR Outer D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
CF3VUU Outer D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
CF3VUUR Outer D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
CF4V Outer D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
CF4VR Outer D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
CF4VUU Outer D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
CF4VUUR Outer D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
CF5V Outer D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
CF5VR Outer D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
CF5VUU Outer D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
CF5VUUR Outer D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
CF6V Outer D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
CF6VR Outer D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
CF6VUU Outer D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
CF6VUUR Outer D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
CF8V Outer D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
CF8VR Outer D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
CF8VUU Outer D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
CF8VUUR Outer D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
CF10V Outer D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
CF10VR Outer D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
CF10VUU Outer D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
CF10VUUR Outer D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
CF10-1V Outer D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
CF10-1VR Outer D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
CF10-1VUU Outer D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
CF10-1VUUR Outer D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
CF12V Outer D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
CF12VR Outer D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
CF12VUU Outer D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
CF12VUUR Outer D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
CF12-1V Outer D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
CF12-1VR Outer D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
CF12-1VUU Outer D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
CF12-1VUUR Outer D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
CF16V Outer D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
CF16VR Outer D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
CF16VUU Outer D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
CF16VUUR Outer D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
CF18V Outer D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
CF18VR Outer D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
CF18VUU Outer D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
CF18VUUR Outer D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
CF20V Outer D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
CF20VR Outer D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
CF20VUU Outer D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
CF20VUUR Outer D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
CF20-1V Outer D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
CF20-1VR Outer D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
CF20-1VUU Outer D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
CF20-1VUUR Outer D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
CF24V Outer D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
CF24VR Outer D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
CF24VUU Outer D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
CF24VUUR Outer D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
CF24-1V Outer D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
CF24-1VR Outer D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
CF24-1VUU Outer D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
CF24-1VUUR Outer D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
CF30V Outer D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
CF30VR Outer D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
CF30VUU Outer D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
CF30VUUR Outer D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
CF30-1V Outer D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
CF30-1VR Outer D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
CF30-1VUU Outer D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
CF30-1VUUR Outer D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
CF30-2V Outer D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
CF30-2VR Outer D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
CF30-2VUU Outer D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
CF30-2VUUR Outer D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
