NS Precision GE..E / GE..ES Spherical Plain Bearings (Normal Type, 10-

NS Precision GE..E / GE..ES Spherical Plain Bearings (Normal Type, 10-

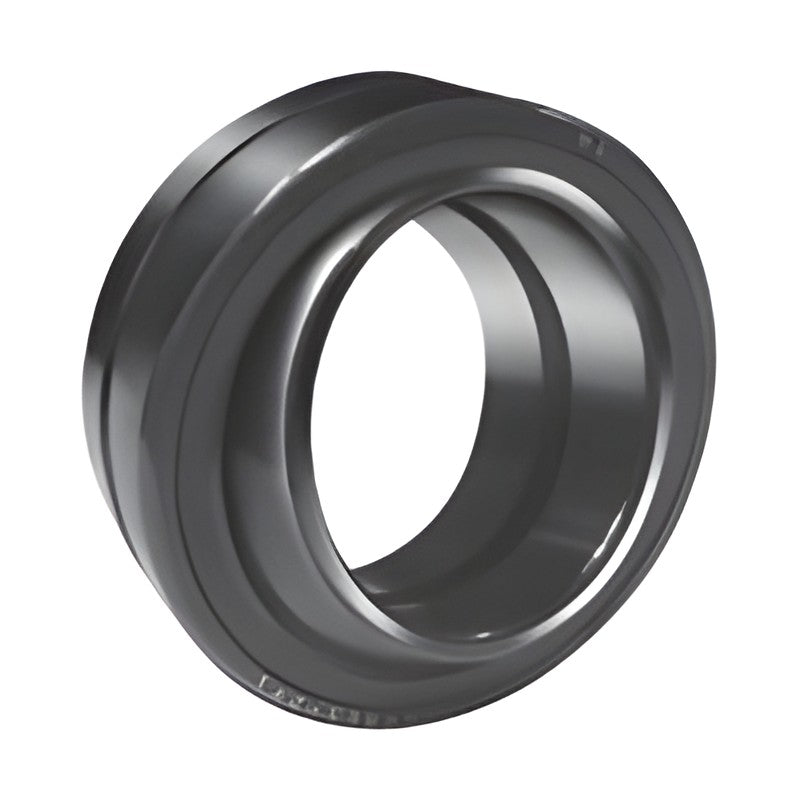

NS GE..E / GE..ES radial spherical plain bearings (steel-on-steel, re-lubricatable), open or with -2RS seals, bores 10-240 mm.

Key features

  • Steel inner and outer rings with spherical sliding contact
  • Accommodates misalignment and oscillating motion
  • Suitable for high radial loads at low sliding speeds
  • ES: outer ring split with lubrication groove and holes
  • -2RS: lip seals on both sides

Specifications

Product Radial spherical plain bearing
Series GE..E / GE..ES / GE..ES-2RS
Load rating unit kgf
Brand NS
Product type Rod Ends & Plain Bearings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 24
GE10E d: 10 mm | D: 19 mm | B1: 9 mm | C: 960 kgf | C0: 5760 kgf | Mass: 12 g
GE12E d: 12 mm | D: 22 mm | B1: 10 mm | C: 1260 kgf | C0: 7560 kgf | Mass: 17 g
GE15ES d: 15 mm | D: 26 mm | B1: 12 mm | C: 1980 kgf | C0: 11900 kgf | Mass: 32 g
GE15ES-2RS d: 15 mm | D: 26 mm | B1: 12 mm | C: 1980 kgf | C0: 11900 kgf | Mass: 32 g
GE17ES d: 17 mm | D: 30 mm | B1: 14 mm | C: 2500 kgf | C0: 15000 kgf | Mass: 49 g
GE17ES-2RS d: 17 mm | D: 30 mm | B1: 14 mm | C: 2500 kgf | C0: 15000 kgf | Mass: 49 g
GE20ES d: 20 mm | D: 35 mm | B1: 16 mm | C: 3480 kgf | C0: 20900 kgf | Mass: 65 g
GE20ES-2RS d: 20 mm | D: 35 mm | B1: 16 mm | C: 3480 kgf | C0: 20900 kgf | Mass: 65 g
GE25ES d: 25 mm | D: 42 mm | B1: 20 mm | C: 5680 kgf | C0: 34100 kgf | Mass: 115 g
GE25ES-2RS d: 25 mm | D: 42 mm | B1: 20 mm | C: 5680 kgf | C0: 34100 kgf | Mass: 115 g
GE30ES d: 30 mm | D: 47 mm | B1: 22 mm | C: 7330 kgf | C0: 44400 kgf | Mass: 160 g
GE30ES-2RS d: 30 mm | D: 47 mm | B1: 22 mm | C: 7330 kgf | C0: 44400 kgf | Mass: 160 g
GE35ES d: 35 mm | D: 55 mm | B1: 25 mm | C: 9400 kgf | C0: 56400 kgf | Mass: 258 g
GE35ES-2RS d: 35 mm | D: 55 mm | B1: 25 mm | C: 9400 kgf | C0: 56400 kgf | Mass: 258 g
GE40ES d: 40 mm | D: 62 mm | B1: 28 mm | C: 11700 kgf | C0: 70000 kgf | Mass: 315 g
GE40ES-2RS d: 40 mm | D: 62 mm | B1: 28 mm | C: 11700 kgf | C0: 70000 kgf | Mass: 315 g
GE45ES d: 45 mm | D: 68 mm | B1: 32 mm | C: 15000 kgf | C0: 90000 kgf | Mass: 413 g
GE45ES-2RS d: 45 mm | D: 68 mm | B1: 32 mm | C: 15000 kgf | C0: 90000 kgf | Mass: 413 g
GE50ES d: 50 mm | D: 75 mm | B1: 35 mm | C: 18500 kgf | C0: 111000 kgf | Mass: 560 g
GE50ES-2RS d: 50 mm | D: 75 mm | B1: 35 mm | C: 18500 kgf | C0: 111000 kgf | Mass: 560 g
GE60ES d: 60 mm | D: 90 mm | B1: 44 mm | C: 28800 kgf | C0: 173000 kgf | Mass: 1100 g
GE60ES-2RS d: 60 mm | D: 90 mm | B1: 44 mm | C: 28800 kgf | C0: 173000 kgf | Mass: 1100 g
GE70ES d: 70 mm | D: 105 mm | B1: 49 mm | C: 36800 kgf | C0: 221000 kgf | Mass: 1540 g
GE70ES-2RS d: 70 mm | D: 105 mm | B1: 49 mm | C: 36800 kgf | C0: 221000 kgf | Mass: 1540 g
GE80ES d: 80 mm | D: 120 mm | B1: 55 mm | C: 47300 kgf | C0: 284000 kgf | Mass: 2290 g
GE80ES-2RS d: 80 mm | D: 120 mm | B1: 55 mm | C: 47300 kgf | C0: 284000 kgf | Mass: 2290 g
GE90ES d: 90 mm | D: 130 mm | B1: 60 mm | C: 57500 kgf | C0: 345000 kgf | Mass: 2820 g
GE90ES-2RS d: 90 mm | D: 130 mm | B1: 60 mm | C: 57500 kgf | C0: 345000 kgf | Mass: 2820 g
GE100ES d: 100 mm | D: 150 mm | B1: 70 mm | C: 71500 kgf | C0: 429000 kgf | Mass: 4430 g
GE100ES-2RS d: 100 mm | D: 150 mm | B1: 70 mm | C: 71500 kgf | C0: 429000 kgf | Mass: 4430 g
GE110ES d: 110 mm | D: 160 mm | B1: 70 mm | C: 77000 kgf | C0: 462000 kgf | Mass: 4940 g
GE110ES-2RS d: 110 mm | D: 160 mm | B1: 70 mm | C: 77000 kgf | C0: 462000 kgf | Mass: 4940 g
GE120ES d: 120 mm | D: 180 mm | B1: 85 mm | C: 112000 kgf | C0: 672000 kgf | Mass: 8120 g
GE120ES-2RS d: 120 mm | D: 180 mm | B1: 85 mm | C: 112000 kgf | C0: 672000 kgf | Mass: 8120 g
GE140ES d: 140 mm | D: 210 mm | B1: 90 mm | C: 126000 kgf | C0: 756000 kgf | Mass: 11400 g
GE140ES-2RS d: 140 mm | D: 210 mm | B1: 90 mm | C: 126000 kgf | C0: 756000 kgf | Mass: 11400 g
GE160ES d: 160 mm | D: 230 mm | B1: 105 mm | C: 160000 kgf | C0: 960000 kgf | Mass: 14400 g
GE160ES-2RS d: 160 mm | D: 230 mm | B1: 105 mm | C: 160000 kgf | C0: 960000 kgf | Mass: 14400 g
GE180ES d: 180 mm | D: 260 mm | B1: 105 mm | C: 180000 kgf | C0: 1080000 kgf | Mass: 18900 g
GE180ES-2RS d: 180 mm | D: 260 mm | B1: 105 mm | C: 180000 kgf | C0: 1080000 kgf | Mass: 18900 g
GE200ES d: 200 mm | D: 290 mm | B1: 130 mm | C: 250000 kgf | C0: 1500000 kgf | Mass: 28100 g
GE200ES-2RS d: 200 mm | D: 290 mm | B1: 130 mm | C: 250000 kgf | C0: 1500000 kgf | Mass: 28100 g
GE220ES d: 220 mm | D: 320 mm | B1: 135 mm | C: 275000 kgf | C0: 1650000 kgf | Mass: 36100 g
GE220ES-2RS d: 220 mm | D: 320 mm | B1: 135 mm | C: 275000 kgf | C0: 1650000 kgf | Mass: 36100 g
GE240ES d: 240 mm | D: 340 mm | B1: 140 mm | C: 300000 kgf | C0: 1800000 kgf | Mass: 40400 g
GE240ES-2RS d: 240 mm | D: 340 mm | B1: 140 mm | C: 300000 kgf | C0: 1800000 kgf | Mass: 40400 g
