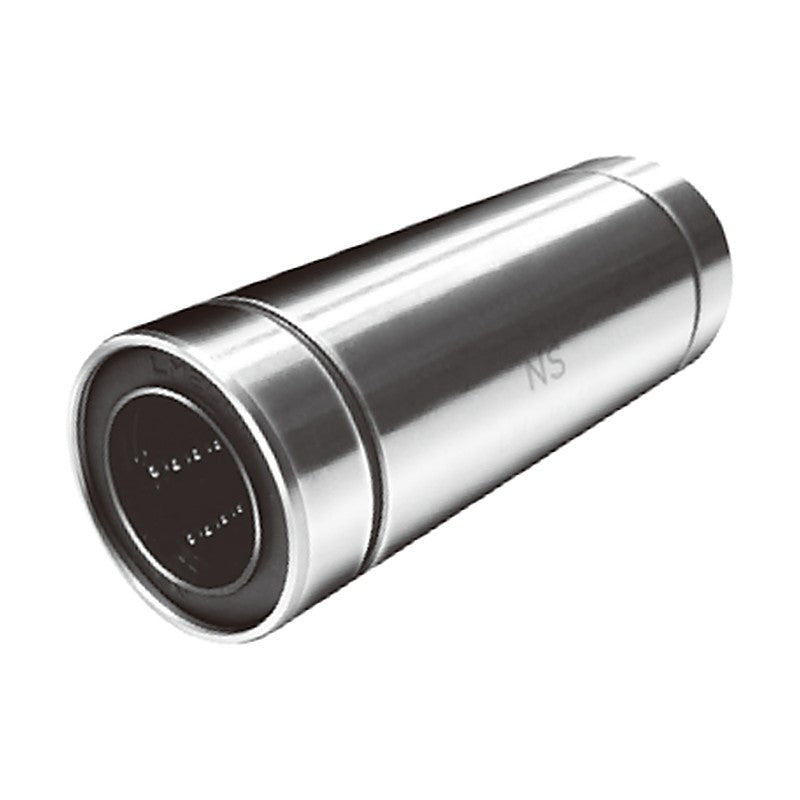

NS Precision LM..LUU Long Linear Ball Bushings (6-60 mm)

NS Precision LM..LUU Long Linear Ball Bushings (6-60 mm)

NS LM..LUU double-length linear ball bushings for higher load capacity and moment rigidity, 6-60 mm shafts.

Key features

  • Recirculating ball linear bushing for round shafts
  • Resin retainer (standard)
  • Double-sealed (UU) as standard
  • Load ratings and dimensions per size

Specifications

Product Linear ball bushing, long type
Series LM..LUU
Load rating unit kgf
Brand NS
Product type Linear Bushings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 73
LM6LUU Shaft: 6 mm | D: 12 mm | L: 35 mm | C: 33 kgf | C0: 53 kgf | Mass: 16 g
LM8LUU Shaft: 8 mm | D: 15 mm | L: 45 mm | C: 44 kgf | C0: 80 kgf | Mass: 31 g
LM10LUU Shaft: 10 mm | D: 19 mm | L: 55 mm | C: 59 kgf | C0: 112 kgf | Mass: 62 g
LM12LUU Shaft: 12 mm | D: 21 mm | L: 57 mm | C: 66 kgf | C0: 122 kgf | Mass: 80 g
LM13LUU Shaft: 13 mm | D: 23 mm | L: 67 mm | C: 81 kgf | C0: 160 kgf | Mass: 90 g
LM16LUU Shaft: 16 mm | D: 28 mm | L: 70 mm | C: 126 kgf | C0: 240 kgf | Mass: 145 g
LM20LUU Shaft: 20 mm | D: 32 mm | L: 80 mm | C: 143 kgf | C0: 281 kgf | Mass: 180 g
LM25LUU Shaft: 25 mm | D: 40 mm | L: 112 mm | C: 159 kgf | C0: 320 kgf | Mass: 440 g
LM30LUU Shaft: 30 mm | D: 45 mm | L: 123 mm | C: 254 kgf | C0: 560 kgf | Mass: 580 g
LM35LUU Shaft: 35 mm | D: 52 mm | L: 135 mm | C: 270 kgf | C0: 660 kgf | Mass: 795 g
LM40LUU Shaft: 40 mm | D: 60 mm | L: 151 mm | C: 350 kgf | C0: 820 kgf | Mass: 1170 g
LM50LUU Shaft: 50 mm | D: 80 mm | L: 192 mm | C: 620 kgf | C0: 1662 kgf | Mass: 3100 g
LM60LUU Shaft: 60 mm | D: 90 mm | L: 209 mm | C: 781 kgf | C0: 2041 kgf | Mass: 3500 g
Linear BushingsNS Precision
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision LM..LUU Long Linear Ball Bushings (6-60 mm)

Brand NS Precision·Linear Bushings

Available part numbers (13)

LM6LUU, LM8LUU, LM10LUU, LM12LUU, LM13LUU, LM16LUU, LM20LUU, LM25LUU, LM30LUU, LM35LUU + 3 more — see full table ↓

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LM6LUUShaft: 6 mm | D: 12 mm | L: 35 mm | C: 33 kgf | C0: 53 kgf | Mass: 16 g
LM8LUUShaft: 8 mm | D: 15 mm | L: 45 mm | C: 44 kgf | C0: 80 kgf | Mass: 31 g
LM10LUUShaft: 10 mm | D: 19 mm | L: 55 mm | C: 59 kgf | C0: 112 kgf | Mass: 62 g
LM12LUUShaft: 12 mm | D: 21 mm | L: 57 mm | C: 66 kgf | C0: 122 kgf | Mass: 80 g
LM13LUUShaft: 13 mm | D: 23 mm | L: 67 mm | C: 81 kgf | C0: 160 kgf | Mass: 90 g
LM16LUUShaft: 16 mm | D: 28 mm | L: 70 mm | C: 126 kgf | C0: 240 kgf | Mass: 145 g
LM20LUUShaft: 20 mm | D: 32 mm | L: 80 mm | C: 143 kgf | C0: 281 kgf | Mass: 180 g
LM25LUUShaft: 25 mm | D: 40 mm | L: 112 mm | C: 159 kgf | C0: 320 kgf | Mass: 440 g
LM30LUUShaft: 30 mm | D: 45 mm | L: 123 mm | C: 254 kgf | C0: 560 kgf | Mass: 580 g
LM35LUUShaft: 35 mm | D: 52 mm | L: 135 mm | C: 270 kgf | C0: 660 kgf | Mass: 795 g
LM40LUUShaft: 40 mm | D: 60 mm | L: 151 mm | C: 350 kgf | C0: 820 kgf | Mass: 1170 g
LM50LUUShaft: 50 mm | D: 80 mm | L: 192 mm | C: 620 kgf | C0: 1662 kgf | Mass: 3100 g
LM60LUUShaft: 60 mm | D: 90 mm | L: 209 mm | C: 781 kgf | C0: 2041 kgf | Mass: 3500 g
