NS Precision LMF / LMK / LMH Flanged Linear Bushings (6-60 mm)

NS Precision LMF / LMK / LMH Flanged Linear Bushings (6-60 mm)

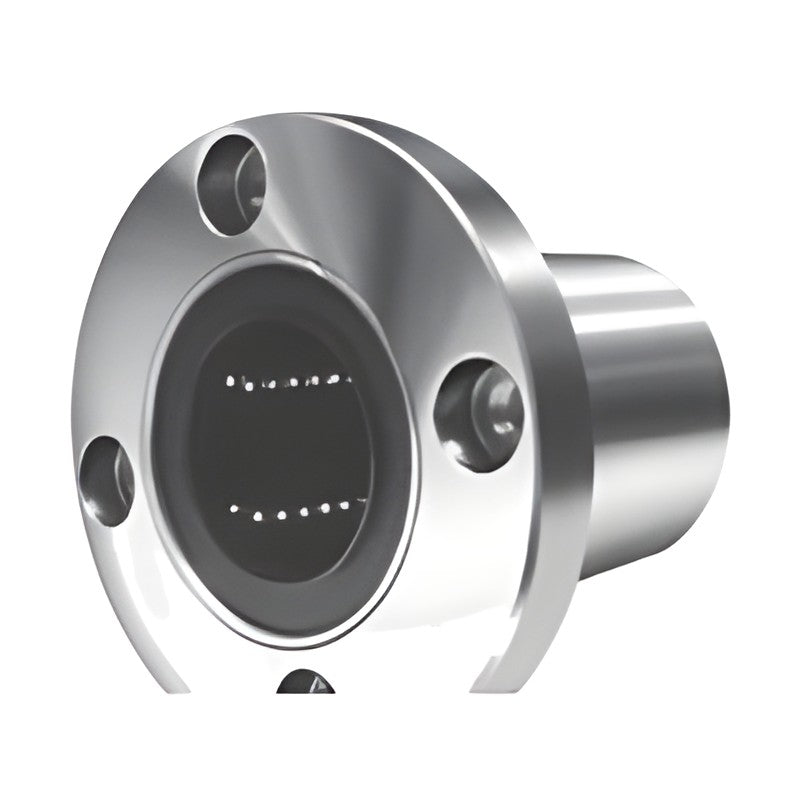

NS flanged linear ball bushings with round (LMF), square (LMK) or oval/cut (LMH) flange, 6-60 mm shafts.

Key features

  • Recirculating ball linear bushing for round shafts
  • Resin retainer (standard)
  • Double-sealed (UU) as standard
  • LMF: round flange; LMK: square flange; LMH: oval (two-side cut) flange

Specifications

Product Flanged linear ball bushing
Series LMF / LMK / LMH
Load rating unit kgf
Brand NS
Product type Linear Bushings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 76-77
LMF6UU Shaft: 6 mm | D: 12 mm | L: 19 mm | C: 18 kgf | C0: 22 kgf | Mass: 26.5 g
LMK6UU Shaft: 6 mm | D: 12 mm | L: 19 mm | C: 18 kgf | C0: 22 kgf | Mass: 18.5 g
LMH6UU Shaft: 6 mm | D: 12 mm | L: 19 mm | C: 18 kgf | C0: 22 kgf | Mass: 18 g
LMF8SUU Shaft: 8 mm | D: 15 mm | L: 17 mm | C: 17 kgf | C0: 21 kgf | Mass: 34 g
LMK8SUU Shaft: 8 mm | D: 15 mm | L: 17 mm | C: 17 kgf | C0: 21 kgf | Mass: 23 g
LMF8UU Shaft: 8 mm | D: 15 mm | L: 24 mm | C: 21 kgf | C0: 27 kgf | Mass: 40 g
LMK8UU Shaft: 8 mm | D: 15 mm | L: 24 mm | C: 21 kgf | C0: 27 kgf | Mass: 29 g
LMH8UU Shaft: 8 mm | D: 15 mm | L: 24 mm | C: 21 kgf | C0: 27 kgf | Mass: 28 g
LMF10UU Shaft: 10 mm | D: 19 mm | L: 29 mm | C: 28 kgf | C0: 40 kgf | Mass: 76 g
LMK10UU Shaft: 10 mm | D: 19 mm | L: 29 mm | C: 28 kgf | C0: 40 kgf | Mass: 56 g
LMH10UU Shaft: 10 mm | D: 19 mm | L: 29 mm | C: 28 kgf | C0: 40 kgf | Mass: 50 g
LMF12UU Shaft: 12 mm | D: 21 mm | L: 30 mm | C: 38 kgf | C0: 56 kgf | Mass: 78 g
LMK12UU Shaft: 12 mm | D: 21 mm | L: 30 mm | C: 38 kgf | C0: 56 kgf | Mass: 61 g
LMH12UU Shaft: 12 mm | D: 21 mm | L: 30 mm | C: 38 kgf | C0: 56 kgf | Mass: 55 g
LMF13UU Shaft: 13 mm | D: 23 mm | L: 32 mm | C: 52 kgf | C0: 80 kgf | Mass: 94 g
LMK13UU Shaft: 13 mm | D: 23 mm | L: 32 mm | C: 52 kgf | C0: 80 kgf | Mass: 75 g
LMH13UU Shaft: 13 mm | D: 23 mm | L: 32 mm | C: 52 kgf | C0: 80 kgf | Mass: 70 g
LMF16UU Shaft: 16 mm | D: 28 mm | L: 37 mm | C: 52 kgf | C0: 80 kgf | Mass: 134 g
LMK16UU Shaft: 16 mm | D: 28 mm | L: 37 mm | C: 52 kgf | C0: 80 kgf | Mass: 104 g
LMH16UU Shaft: 16 mm | D: 28 mm | L: 37 mm | C: 52 kgf | C0: 80 kgf | Mass: 95 g
LMF20UU Shaft: 20 mm | D: 32 mm | L: 42 mm | C: 79 kgf | C0: 120 kgf | Mass: 180 g
LMK20UU Shaft: 20 mm | D: 32 mm | L: 42 mm | C: 79 kgf | C0: 120 kgf | Mass: 145 g
LMH20UU Shaft: 20 mm | D: 32 mm | L: 42 mm | C: 79 kgf | C0: 120 kgf | Mass: 150 g
LMF25UU Shaft: 25 mm | D: 40 mm | L: 59 mm | C: 90 kgf | C0: 140 kgf | Mass: 340 g
LMK25UU Shaft: 25 mm | D: 40 mm | L: 59 mm | C: 90 kgf | C0: 140 kgf | Mass: 300 g
LMH25UU Shaft: 25 mm | D: 40 mm | L: 59 mm | C: 90 kgf | C0: 140 kgf | Mass: 275 g
LMF30UU Shaft: 30 mm | D: 45 mm | L: 64 mm | C: 100 kgf | C0: 160 kgf | Mass: 460 g
LMK30UU Shaft: 30 mm | D: 45 mm | L: 64 mm | C: 100 kgf | C0: 160 kgf | Mass: 375 g
LMH30UU Shaft: 30 mm | D: 45 mm | L: 64 mm | C: 100 kgf | C0: 160 kgf | Mass: 350 g
LMF35UU Shaft: 35 mm | D: 52 mm | L: 70 mm | C: 160 kgf | C0: 280 kgf | Mass: 795 g
LMK35UU Shaft: 35 mm | D: 52 mm | L: 70 mm | C: 160 kgf | C0: 280 kgf | Mass: 692 g
LMF40UU Shaft: 40 mm | D: 60 mm | L: 80 mm | C: 170 kgf | C0: 320 kgf | Mass: 1054 g
LMK40UU Shaft: 40 mm | D: 60 mm | L: 80 mm | C: 170 kgf | C0: 320 kgf | Mass: 864 g
LMF50UU Shaft: 50 mm | D: 80 mm | L: 100 mm | C: 220 kgf | C0: 410 kgf | Mass: 2200 g
LMK50UU Shaft: 50 mm | D: 80 mm | L: 100 mm | C: 220 kgf | C0: 410 kgf | Mass: 2020 g
LMF60UU Shaft: 60 mm | D: 90 mm | L: 110 mm | C: 390 kgf | C0: 810 kgf | Mass: 2960 g
LMK60UU Shaft: 60 mm | D: 90 mm | L: 110 mm | C: 390 kgf | C0: 810 kgf | Mass: 2520 g
Linear BushingsNS Precision
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision LMF / LMK / LMH Flanged Linear Bushings (6-60 mm)

Brand NS Precision·Linear Bushings

Available part numbers (37)

LMF6UU, LMK6UU, LMH6UU, LMF8SUU, LMK8SUU, LMF8UU, LMK8UU, LMH8UU, LMF10UU, LMK10UU + 27 more — see full table ↓

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LMF6UUShaft: 6 mm | D: 12 mm | L: 19 mm | C: 18 kgf | C0: 22 kgf | Mass: 26.5 g
LMK6UUShaft: 6 mm | D: 12 mm | L: 19 mm | C: 18 kgf | C0: 22 kgf | Mass: 18.5 g
LMH6UUShaft: 6 mm | D: 12 mm | L: 19 mm | C: 18 kgf | C0: 22 kgf | Mass: 18 g
LMF8SUUShaft: 8 mm | D: 15 mm | L: 17 mm | C: 17 kgf | C0: 21 kgf | Mass: 34 g
LMK8SUUShaft: 8 mm | D: 15 mm | L: 17 mm | C: 17 kgf | C0: 21 kgf | Mass: 23 g
LMF8UUShaft: 8 mm | D: 15 mm | L: 24 mm | C: 21 kgf | C0: 27 kgf | Mass: 40 g
LMK8UUShaft: 8 mm | D: 15 mm | L: 24 mm | C: 21 kgf | C0: 27 kgf | Mass: 29 g
LMH8UUShaft: 8 mm | D: 15 mm | L: 24 mm | C: 21 kgf | C0: 27 kgf | Mass: 28 g
LMF10UUShaft: 10 mm | D: 19 mm | L: 29 mm | C: 28 kgf | C0: 40 kgf | Mass: 76 g
LMK10UUShaft: 10 mm | D: 19 mm | L: 29 mm | C: 28 kgf | C0: 40 kgf | Mass: 56 g
LMH10UUShaft: 10 mm | D: 19 mm | L: 29 mm | C: 28 kgf | C0: 40 kgf | Mass: 50 g
LMF12UUShaft: 12 mm | D: 21 mm | L: 30 mm | C: 38 kgf | C0: 56 kgf | Mass: 78 g
LMK12UUShaft: 12 mm | D: 21 mm | L: 30 mm | C: 38 kgf | C0: 56 kgf | Mass: 61 g
LMH12UUShaft: 12 mm | D: 21 mm | L: 30 mm | C: 38 kgf | C0: 56 kgf | Mass: 55 g
LMF13UUShaft: 13 mm | D: 23 mm | L: 32 mm | C: 52 kgf | C0: 80 kgf | Mass: 94 g
LMK13UUShaft: 13 mm | D: 23 mm | L: 32 mm | C: 52 kgf | C0: 80 kgf | Mass: 75 g
LMH13UUShaft: 13 mm | D: 23 mm | L: 32 mm | C: 52 kgf | C0: 80 kgf | Mass: 70 g
LMF16UUShaft: 16 mm | D: 28 mm | L: 37 mm | C: 52 kgf | C0: 80 kgf | Mass: 134 g
LMK16UUShaft: 16 mm | D: 28 mm | L: 37 mm | C: 52 kgf | C0: 80 kgf | Mass: 104 g
LMH16UUShaft: 16 mm | D: 28 mm | L: 37 mm | C: 52 kgf | C0: 80 kgf | Mass: 95 g
LMF20UUShaft: 20 mm | D: 32 mm | L: 42 mm | C: 79 kgf | C0: 120 kgf | Mass: 180 g
LMK20UUShaft: 20 mm | D: 32 mm | L: 42 mm | C: 79 kgf | C0: 120 kgf | Mass: 145 g
LMH20UUShaft: 20 mm | D: 32 mm | L: 42 mm | C: 79 kgf | C0: 120 kgf | Mass: 150 g
LMF25UUShaft: 25 mm | D: 40 mm | L: 59 mm | C: 90 kgf | C0: 140 kgf | Mass: 340 g
LMK25UUShaft: 25 mm | D: 40 mm | L: 59 mm | C: 90 kgf | C0: 140 kgf | Mass: 300 g
LMH25UUShaft: 25 mm | D: 40 mm | L: 59 mm | C: 90 kgf | C0: 140 kgf | Mass: 275 g
LMF30UUShaft: 30 mm | D: 45 mm | L: 64 mm | C: 100 kgf | C0: 160 kgf | Mass: 460 g
LMK30UUShaft: 30 mm | D: 45 mm | L: 64 mm | C: 100 kgf | C0: 160 kgf | Mass: 375 g
LMH30UUShaft: 30 mm | D: 45 mm | L: 64 mm | C: 100 kgf | C0: 160 kgf | Mass: 350 g
LMF35UUShaft: 35 mm | D: 52 mm | L: 70 mm | C: 160 kgf | C0: 280 kgf | Mass: 795 g
LMK35UUShaft: 35 mm | D: 52 mm | L: 70 mm | C: 160 kgf | C0: 280 kgf | Mass: 692 g
LMF40UUShaft: 40 mm | D: 60 mm | L: 80 mm | C: 170 kgf | C0: 320 kgf | Mass: 1054 g
LMK40UUShaft: 40 mm | D: 60 mm | L: 80 mm | C: 170 kgf | C0: 320 kgf | Mass: 864 g
LMF50UUShaft: 50 mm | D: 80 mm | L: 100 mm | C: 220 kgf | C0: 410 kgf | Mass: 2200 g
LMK50UUShaft: 50 mm | D: 80 mm | L: 100 mm | C: 220 kgf | C0: 410 kgf | Mass: 2020 g
LMF60UUShaft: 60 mm | D: 90 mm | L: 110 mm | C: 390 kgf | C0: 810 kgf | Mass: 2960 g
LMK60UUShaft: 60 mm | D: 90 mm | L: 110 mm | C: 390 kgf | C0: 810 kgf | Mass: 2520 g
