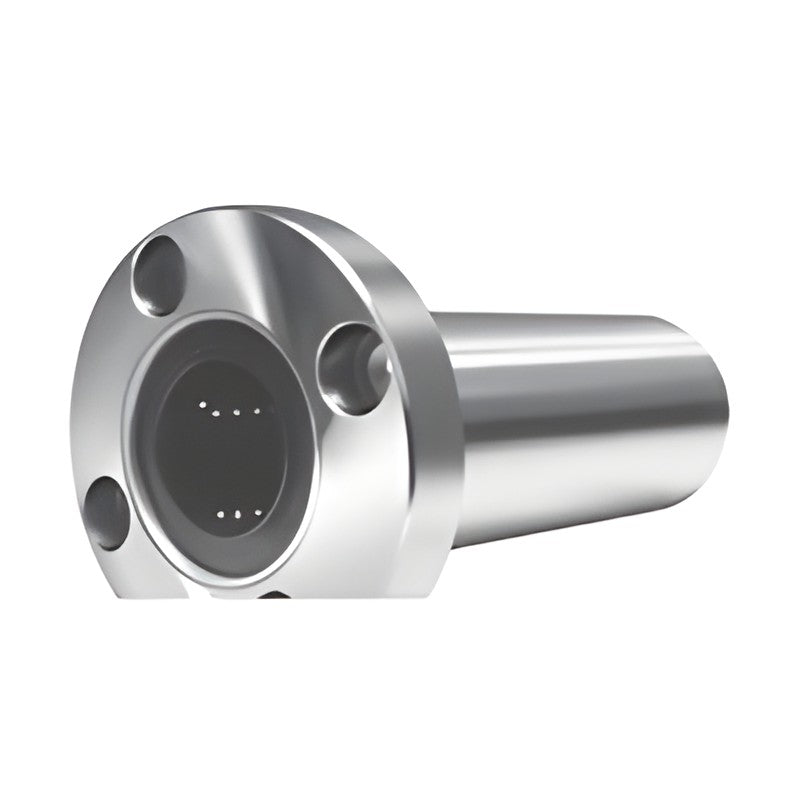

NS Precision LMF / LMK / LMH..LUU Long Flanged Linear Bushings

NS Precision LMF / LMK / LMH..LUU Long Flanged Linear Bushings

NS long-type flanged linear ball bushings (LUU) with round (LMF), square (LMK) or oval (LMH) flange, 6-60 mm shafts.

Key features

  • Recirculating ball linear bushing for round shafts
  • Resin retainer (standard)
  • Double-sealed (UU) as standard
  • Double-length body for higher load capacity

Specifications

Product Flanged linear ball bushing, long type
Series LMF / LMK / LMH ..LUU
Load rating unit kgf
Brand NS
Product type Linear Bushings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 78-79
LMF6LUU Shaft: 6 mm | D: 12 mm | L: 35 mm | C: 33 kgf | C0: 53 kgf | Mass: 32 g
LMK6LUU Shaft: 6 mm | D: 12 mm | L: 35 mm | C: 33 kgf | C0: 53 kgf | Mass: 26 g
LMH6LUU Shaft: 6 mm | D: 12 mm | L: 35 mm | C: 33 kgf | C0: 53 kgf | Mass: 28 g
LMF8LUU Shaft: 8 mm | D: 15 mm | L: 45 mm | C: 44 kgf | C0: 80 kgf | Mass: 52 g
LMK8LUU Shaft: 8 mm | D: 15 mm | L: 45 mm | C: 44 kgf | C0: 80 kgf | Mass: 46 g
LMH8LUU Shaft: 8 mm | D: 15 mm | L: 45 mm | C: 44 kgf | C0: 80 kgf | Mass: 40 g
LMF10LUU Shaft: 10 mm | D: 19 mm | L: 55 mm | C: 59 kgf | C0: 112 kgf | Mass: 100 g
LMK10LUU Shaft: 10 mm | D: 19 mm | L: 55 mm | C: 59 kgf | C0: 112 kgf | Mass: 82 g
LMH10LUU Shaft: 10 mm | D: 19 mm | L: 55 mm | C: 59 kgf | C0: 112 kgf | Mass: 75 g
LMF12LUU Shaft: 12 mm | D: 21 mm | L: 57 mm | C: 66 kgf | C0: 122 kgf | Mass: 105 g
LMK12LUU Shaft: 12 mm | D: 21 mm | L: 57 mm | C: 66 kgf | C0: 122 kgf | Mass: 88 g
LMH12LUU Shaft: 12 mm | D: 21 mm | L: 57 mm | C: 66 kgf | C0: 122 kgf | Mass: 82 g
LMF13LUU Shaft: 13 mm | D: 23 mm | L: 61 mm | C: 82 kgf | C0: 160 kgf | Mass: 130 g
LMK13LUU Shaft: 13 mm | D: 23 mm | L: 61 mm | C: 82 kgf | C0: 160 kgf | Mass: 108 g
LMH13LUU Shaft: 13 mm | D: 23 mm | L: 61 mm | C: 82 kgf | C0: 160 kgf | Mass: 107 g
LMF16LUU Shaft: 16 mm | D: 28 mm | L: 70 mm | C: 126 kgf | C0: 240 kgf | Mass: 187 g
LMK16LUU Shaft: 16 mm | D: 28 mm | L: 70 mm | C: 126 kgf | C0: 240 kgf | Mass: 160 g
LMH16LUU Shaft: 16 mm | D: 28 mm | L: 70 mm | C: 126 kgf | C0: 240 kgf | Mass: 143 g
LMF20LUU Shaft: 20 mm | D: 32 mm | L: 80 mm | C: 143 kgf | C0: 281 kgf | Mass: 260 g
LMK20LUU Shaft: 20 mm | D: 32 mm | L: 80 mm | C: 143 kgf | C0: 281 kgf | Mass: 230 g
LMH20LUU Shaft: 20 mm | D: 32 mm | L: 80 mm | C: 143 kgf | C0: 281 kgf | Mass: 225 g
LMF25LUU Shaft: 25 mm | D: 40 mm | L: 112 mm | C: 159 kgf | C0: 320 kgf | Mass: 515 g
LMK25LUU Shaft: 25 mm | D: 40 mm | L: 112 mm | C: 159 kgf | C0: 320 kgf | Mass: 475 g
LMH25LUU Shaft: 25 mm | D: 40 mm | L: 112 mm | C: 159 kgf | C0: 320 kgf | Mass: 450 g
LMF30LUU Shaft: 30 mm | D: 45 mm | L: 123 mm | C: 254 kgf | C0: 560 kgf | Mass: 655 g
LMK30LUU Shaft: 30 mm | D: 45 mm | L: 123 mm | C: 254 kgf | C0: 560 kgf | Mass: 575 g
LMH30LUU Shaft: 30 mm | D: 45 mm | L: 123 mm | C: 254 kgf | C0: 560 kgf | Mass: 575 g
LMF35LUU Shaft: 35 mm | D: 52 mm | L: 135 mm | C: 270 kgf | C0: 660 kgf | Mass: 970 g
LMK35LUU Shaft: 35 mm | D: 52 mm | L: 135 mm | C: 270 kgf | C0: 660 kgf | Mass: 870 g
LMF40LUU Shaft: 40 mm | D: 60 mm | L: 151 mm | C: 350 kgf | C0: 820 kgf | Mass: 1560 g
LMK40LUU Shaft: 40 mm | D: 60 mm | L: 151 mm | C: 350 kgf | C0: 820 kgf | Mass: 1380 g
LMF50LUU Shaft: 50 mm | D: 80 mm | L: 192 mm | C: 620 kgf | C0: 1622 kgf | Mass: 3500 g
LMK50LUU Shaft: 50 mm | D: 80 mm | L: 192 mm | C: 620 kgf | C0: 1622 kgf | Mass: 3300 g
LMF60LUU Shaft: 60 mm | D: 90 mm | L: 209 mm | C: 781 kgf | C0: 2041 kgf | Mass: 4500 g
LMK60LUU Shaft: 60 mm | D: 90 mm | L: 209 mm | C: 781 kgf | C0: 2041 kgf | Mass: 4060 g
Linear BushingsNS Precision
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision LMF / LMK / LMH..LUU Long Flanged Linear Bushings

Brand NS Precision·Linear Bushings

Available part numbers (35)

LMF6LUU, LMK6LUU, LMH6LUU, LMF8LUU, LMK8LUU, LMH8LUU, LMF10LUU, LMK10LUU, LMH10LUU, LMF12LUU + 25 more — see full table ↓
