NS Precision NET / NETS Maintenance-Free Spherical Plain Bearings (PTF

NS Precision NET / NETS Maintenance-Free Spherical Plain Bearings (PTF

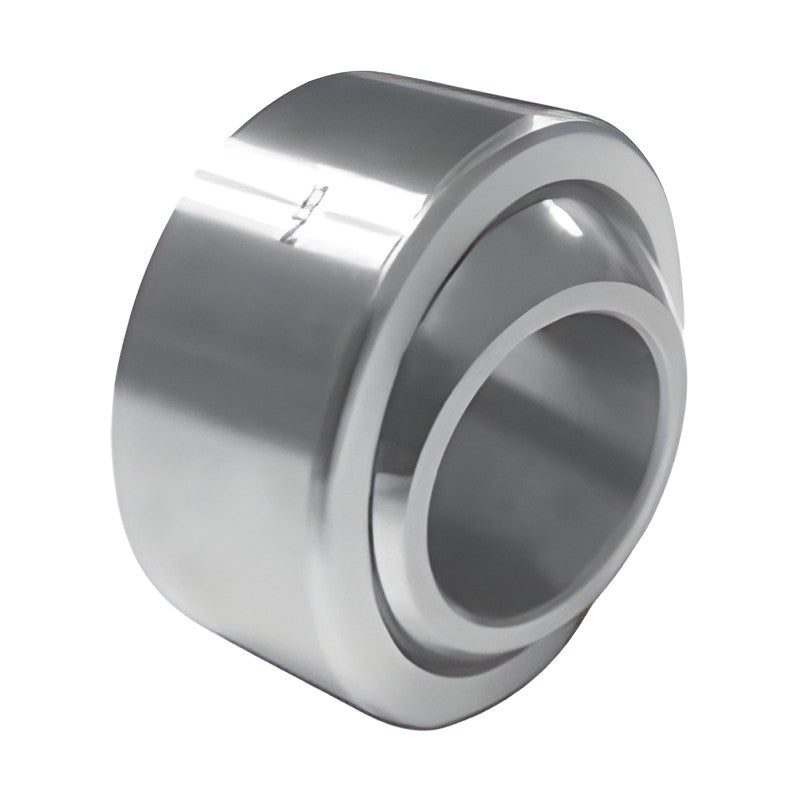

NS NET (steel) and NETS (stainless steel) maintenance-free spherical plain bearings with PTFE liner, bores 5-25 mm.

Key features

  • PTFE liner sliding layer, no lubrication required
  • NETS: stainless steel execution
  • Accommodates misalignment and oscillating motion
  • Suitable for high radial loads at low sliding speeds

Specifications

Product Maintenance-free spherical plain bearing
Series NET / NETS
Load rating unit kgf
Brand NS
Product type Rod Ends & Plain Bearings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 28
NET5 d: 5 mm | D: 13 mm | B1: 8 mm | C0: 400 kgf | Mass: 7 g
NETS5 d: 5 mm | D: 13 mm | B1: 8 mm | C0: 400 kgf | Mass: 7 g
NET6 d: 6 mm | D: 16 mm | B1: 9 mm | C0: 510 kgf | Mass: 10 g
NETS6 d: 6 mm | D: 16 mm | B1: 9 mm | C0: 510 kgf | Mass: 10 g
NET8 d: 8 mm | D: 19 mm | B1: 12 mm | C0: 860 kgf | Mass: 16 g
NETS8 d: 8 mm | D: 19 mm | B1: 12 mm | C0: 860 kgf | Mass: 16 g
NET10 d: 10 mm | D: 22 mm | B1: 14 mm | C0: 1200 kgf | Mass: 31 g
NETS10 d: 10 mm | D: 22 mm | B1: 14 mm | C0: 1200 kgf | Mass: 31 g
NET12 d: 12 mm | D: 26 mm | B1: 16 mm | C0: 1600 kgf | Mass: 65 g
NETS12 d: 12 mm | D: 26 mm | B1: 16 mm | C0: 1600 kgf | Mass: 65 g
NET14 d: 14 mm | D: 29 mm | B1: 19 mm | C0: 2060 kgf | Mass: 90 g
NETS14 d: 14 mm | D: 29 mm | B1: 19 mm | C0: 2060 kgf | Mass: 90 g
NET16 d: 16 mm | D: 32 mm | B1: 21 mm | C0: 2570 kgf | Mass: 100 g
NETS16 d: 16 mm | D: 32 mm | B1: 21 mm | C0: 2570 kgf | Mass: 100 g
NET18 d: 18 mm | D: 35 mm | B1: 23 mm | C0: 3140 kgf | Mass: 125 g
NETS18 d: 18 mm | D: 35 mm | B1: 23 mm | C0: 3140 kgf | Mass: 125 g
NET20 d: 20 mm | D: 40 mm | B1: 25 mm | C0: 3770 kgf | Mass: 180 g
NETS20 d: 20 mm | D: 40 mm | B1: 25 mm | C0: 3770 kgf | Mass: 180 g
NET25 d: 25 mm | D: 47 mm | B1: 31 mm | C0: 4250 kgf | Mass: 295 g
NETS25 d: 25 mm | D: 47 mm | B1: 31 mm | C0: 4250 kgf | Mass: 295 g
Rod Ends & Plain BearingsNS Precision
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision NET / NETS Maintenance-Free Spherical Plain Bearings (PTF

Brand NS Precision·Rod Ends & Plain Bearings

Available part numbers (20)

NET5, NETS5, NET6, NETS6, NET8, NETS8, NET10, NETS10, NET12, NETS12 + 10 more — see full table ↓

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NET5d: 5 mm | D: 13 mm | B1: 8 mm | C0: 400 kgf | Mass: 7 g
NETS5d: 5 mm | D: 13 mm | B1: 8 mm | C0: 400 kgf | Mass: 7 g
NET6d: 6 mm | D: 16 mm | B1: 9 mm | C0: 510 kgf | Mass: 10 g
NETS6d: 6 mm | D: 16 mm | B1: 9 mm | C0: 510 kgf | Mass: 10 g
NET8d: 8 mm | D: 19 mm | B1: 12 mm | C0: 860 kgf | Mass: 16 g
NETS8d: 8 mm | D: 19 mm | B1: 12 mm | C0: 860 kgf | Mass: 16 g
NET10d: 10 mm | D: 22 mm | B1: 14 mm | C0: 1200 kgf | Mass: 31 g
NETS10d: 10 mm | D: 22 mm | B1: 14 mm | C0: 1200 kgf | Mass: 31 g
NET12d: 12 mm | D: 26 mm | B1: 16 mm | C0: 1600 kgf | Mass: 65 g
NETS12d: 12 mm | D: 26 mm | B1: 16 mm | C0: 1600 kgf | Mass: 65 g
NET14d: 14 mm | D: 29 mm | B1: 19 mm | C0: 2060 kgf | Mass: 90 g
NETS14d: 14 mm | D: 29 mm | B1: 19 mm | C0: 2060 kgf | Mass: 90 g
NET16d: 16 mm | D: 32 mm | B1: 21 mm | C0: 2570 kgf | Mass: 100 g
NETS16d: 16 mm | D: 32 mm | B1: 21 mm | C0: 2570 kgf | Mass: 100 g
NET18d: 18 mm | D: 35 mm | B1: 23 mm | C0: 3140 kgf | Mass: 125 g
NETS18d: 18 mm | D: 35 mm | B1: 23 mm | C0: 3140 kgf | Mass: 125 g
NET20d: 20 mm | D: 40 mm | B1: 25 mm | C0: 3770 kgf | Mass: 180 g
NETS20d: 20 mm | D: 40 mm | B1: 25 mm | C0: 3770 kgf | Mass: 180 g
NET25d: 25 mm | D: 47 mm | B1: 31 mm | C0: 4250 kgf | Mass: 295 g
NETS25d: 25 mm | D: 47 mm | B1: 31 mm | C0: 4250 kgf | Mass: 295 g
