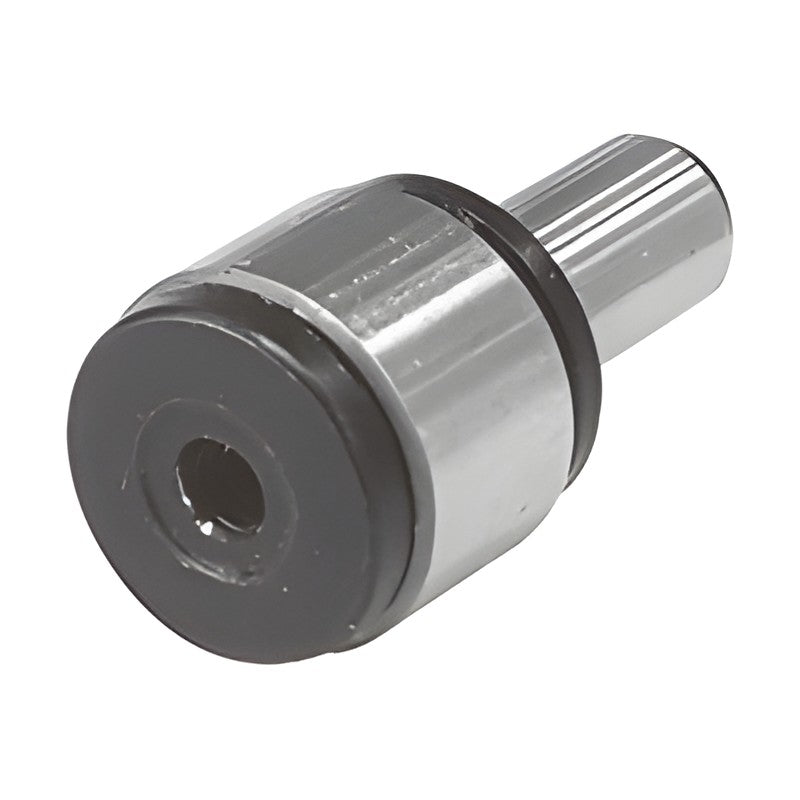

NS Precision NR..VIDX Special Cam Followers (D 8-70 mm)

NS Precision NR..VIDX Special Cam Followers (D 8-70 mm)

NS NR..VIDX special-order stud-type track rollers with tapped stud ends, outer diameters 8-70 mm.

Key features

  • Special-order design with tapped stud end
  • Radial runout max 0.004-0.005 mm
  • Radial internal clearance 0.007-0.017 mm
  • Load ratings listed up to 40 mm OD

Specifications

Product Stud-type track roller, special
Series NR..VIDX
Load rating unit kgf
Brand NS
Product type Track Rollers
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 47
NR8VIDX Outer D: 8 mm | d: 4 mm | C: 220 kgf | C0: 290 kgf | B: 5 mm
NR10VIDX Outer D: 10 mm | d: 5 mm | C: 300 kgf | C0: 450 kgf | B: 6 mm
NR12VIDX Outer D: 12 mm | d: 6 mm | C: 390 kgf | C0: 590 kgf | B: 7.8 mm
NR14VIDX Outer D: 14 mm | d: 7 mm | C: 420 kgf | C0: 650 kgf | B: 8 mm
NR16VIDX Outer D: 16 mm | d: 8 mm | C: 710 kgf | C0: 1070 kgf | B: 10 mm
NR19VIDX Outer D: 19 mm | d: 10 mm | C: 760 kgf | C0: 1250 kgf | B: 10 mm
NR20VIDX Outer D: 20 mm | d: 10 mm | C: 800 kgf | C0: 1310 kgf | B: 10 mm
SNR22VIDX Outer D: 22 mm | d: 10 mm | C: 820 kgf | C0: 1370 kgf | B: 10 mm
NR22VIDX Outer D: 22 mm | d: 10 mm | C: 820 kgf | C0: 1370 kgf | B: 10 mm
NR26VIDX Outer D: 26 mm | d: 14.5 mm | C: 1200 kgf | C0: 2410 kgf | B: 12 mm
NR30VIDX Outer D: 30 mm | d: 15.4 mm | C: 1550 kgf | C0: 2830 kgf | B: 14 mm
NR32VIDX Outer D: 32 mm | d: 16 mm | C: 1570 kgf | C0: 2950 kgf | B: 14 mm
NR35VIDX Outer D: 35 mm | d: 18.4 mm | C: 1890 kgf | C0: 3920 kgf | B: 16 mm
NR40VIDX Outer D: 40 mm | d: 22 mm | C: 2100 kgf | C0: 4690 kgf | B: 16 mm
NR45VIDX Outer D: 45 mm | d: 22 mm | B: 22 mm
NR47VIDX Outer D: 47 mm | d: 23 mm | B: 19.9 mm
NR52VIDX Outer D: 52 mm | d: 26 mm | B: 22 mm
NR60VIDX Outer D: 60 mm | d: 30 mm | B: 26 mm
NR70VIDX Outer D: 70 mm | d: 35 mm | B: 28.9 mm
Track RollersNS Precision
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision NR..VIDX Special Cam Followers (D 8-70 mm)

Brand NS Precision·Track Rollers

Available part numbers (19)

NR8VIDX, NR10VIDX, NR12VIDX, NR14VIDX, NR16VIDX, NR19VIDX, NR20VIDX, SNR22VIDX, NR22VIDX, NR26VIDX + 9 more — see full table ↓

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NR8VIDXOuter D: 8 mm | d: 4 mm | C: 220 kgf | C0: 290 kgf | B: 5 mm
NR10VIDXOuter D: 10 mm | d: 5 mm | C: 300 kgf | C0: 450 kgf | B: 6 mm
NR12VIDXOuter D: 12 mm | d: 6 mm | C: 390 kgf | C0: 590 kgf | B: 7.8 mm
NR14VIDXOuter D: 14 mm | d: 7 mm | C: 420 kgf | C0: 650 kgf | B: 8 mm
NR16VIDXOuter D: 16 mm | d: 8 mm | C: 710 kgf | C0: 1070 kgf | B: 10 mm
NR19VIDXOuter D: 19 mm | d: 10 mm | C: 760 kgf | C0: 1250 kgf | B: 10 mm
NR20VIDXOuter D: 20 mm | d: 10 mm | C: 800 kgf | C0: 1310 kgf | B: 10 mm
SNR22VIDXOuter D: 22 mm | d: 10 mm | C: 820 kgf | C0: 1370 kgf | B: 10 mm
NR22VIDXOuter D: 22 mm | d: 10 mm | C: 820 kgf | C0: 1370 kgf | B: 10 mm
NR26VIDXOuter D: 26 mm | d: 14.5 mm | C: 1200 kgf | C0: 2410 kgf | B: 12 mm
NR30VIDXOuter D: 30 mm | d: 15.4 mm | C: 1550 kgf | C0: 2830 kgf | B: 14 mm
NR32VIDXOuter D: 32 mm | d: 16 mm | C: 1570 kgf | C0: 2950 kgf | B: 14 mm
NR35VIDXOuter D: 35 mm | d: 18.4 mm | C: 1890 kgf | C0: 3920 kgf | B: 16 mm
NR40VIDXOuter D: 40 mm | d: 22 mm | C: 2100 kgf | C0: 4690 kgf | B: 16 mm
NR45VIDXOuter D: 45 mm | d: 22 mm | B: 22 mm
NR47VIDXOuter D: 47 mm | d: 23 mm | B: 19.9 mm
NR52VIDXOuter D: 52 mm | d: 26 mm | B: 22 mm
NR60VIDXOuter D: 60 mm | d: 30 mm | B: 26 mm
NR70VIDXOuter D: 70 mm | d: 35 mm | B: 28.9 mm
