NS Precision NS-Series Spherical Plain Bearings (Lubricated, 5-30 mm)

NS Precision NS-Series Spherical Plain Bearings (Lubricated, 5-30 mm)

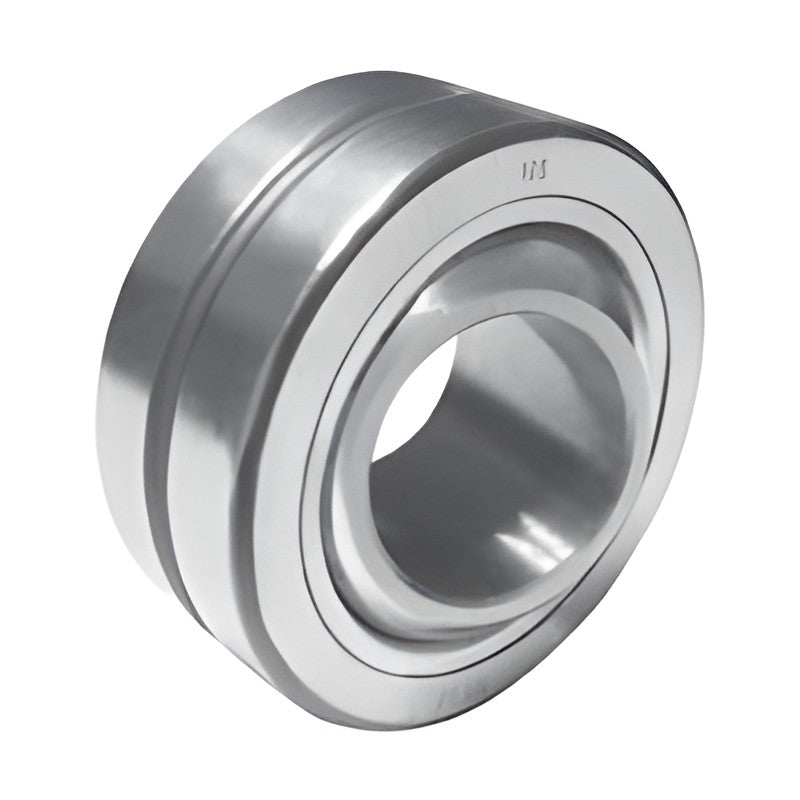

NS NS-series lubricated spherical plain bearings with grease groove, bores 5-30 mm.

Key features

  • Steel inner and outer rings with spherical sliding contact
  • Accommodates misalignment and oscillating motion
  • Suitable for high radial loads at low sliding speeds
  • Outer ring with lubrication groove

Specifications

Product Spherical plain bearing
Series NS
Load rating unit kgf
Brand NS
Product type Rod Ends & Plain Bearings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 27
NS5 d: 5 mm | D: 16 mm | B1: 8 mm | C0: 400 kgf | Mass: 8.5 g
NS6 d: 6 mm | D: 18 mm | B1: 9 mm | C0: 510 kgf | Mass: 13 g
NS8 d: 8 mm | D: 22 mm | B1: 12 mm | C0: 860 kgf | Mass: 24 g
NS10 d: 10 mm | D: 26 mm | B1: 14 mm | C0: 1200 kgf | Mass: 39 g
NS12 d: 12 mm | D: 30 mm | B1: 16 mm | C0: 1600 kgf | Mass: 58 g
NS14 d: 14 mm | D: 24 mm | B1: 19 mm | C0: 2060 kgf | Mass: 84 g
NS16 d: 16 mm | D: 28 mm | B1: 21 mm | C0: 2570 kgf | Mass: 111 g
NS18 d: 18 mm | D: 42 mm | B1: 23 mm | C0: 3140 kgf | Mass: 160 g
NS20 d: 20 mm | D: 46 mm | B1: 25 mm | C0: 3770 kgf | Mass: 210 g
NS22 d: 22 mm | D: 50 mm | B1: 28 mm | C0: 4570 kgf | Mass: 265 g
NS25 d: 25 mm | D: 56 mm | B1: 31 mm | Mass: 390 g
NS30 d: 30 mm | D: 66 mm | B1: 35 mm | Mass: 610 g
Rod Ends & Plain BearingsNS Precision
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision NS-Series Spherical Plain Bearings (Lubricated, 5-30 mm)

Brand NS Precision·Rod Ends & Plain Bearings

Available part numbers (12)

NS5, NS6, NS8, NS10, NS12, NS14, NS16, NS18, NS20, NS22 + 2 more — see full table ↓

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NS5d: 5 mm | D: 16 mm | B1: 8 mm | C0: 400 kgf | Mass: 8.5 g
NS6d: 6 mm | D: 18 mm | B1: 9 mm | C0: 510 kgf | Mass: 13 g
NS8d: 8 mm | D: 22 mm | B1: 12 mm | C0: 860 kgf | Mass: 24 g
NS10d: 10 mm | D: 26 mm | B1: 14 mm | C0: 1200 kgf | Mass: 39 g
NS12d: 12 mm | D: 30 mm | B1: 16 mm | C0: 1600 kgf | Mass: 58 g
NS14d: 14 mm | D: 24 mm | B1: 19 mm | C0: 2060 kgf | Mass: 84 g
NS16d: 16 mm | D: 28 mm | B1: 21 mm | C0: 2570 kgf | Mass: 111 g
NS18d: 18 mm | D: 42 mm | B1: 23 mm | C0: 3140 kgf | Mass: 160 g
NS20d: 20 mm | D: 46 mm | B1: 25 mm | C0: 3770 kgf | Mass: 210 g
NS22d: 22 mm | D: 50 mm | B1: 28 mm | C0: 4570 kgf | Mass: 265 g
NS25d: 25 mm | D: 56 mm | B1: 31 mm | Mass: 390 g
NS30d: 30 mm | D: 66 mm | B1: 35 mm | Mass: 610 g
