• NS Precision NUKR Double-Row Cam Followers (Stud 16-30 mm)
1 1

NS Precision NUKR Double-Row Cam Followers (Stud 16-30 mm)

NS Precision NUKR Double-Row Cam Followers (Stud 16-30 mm)

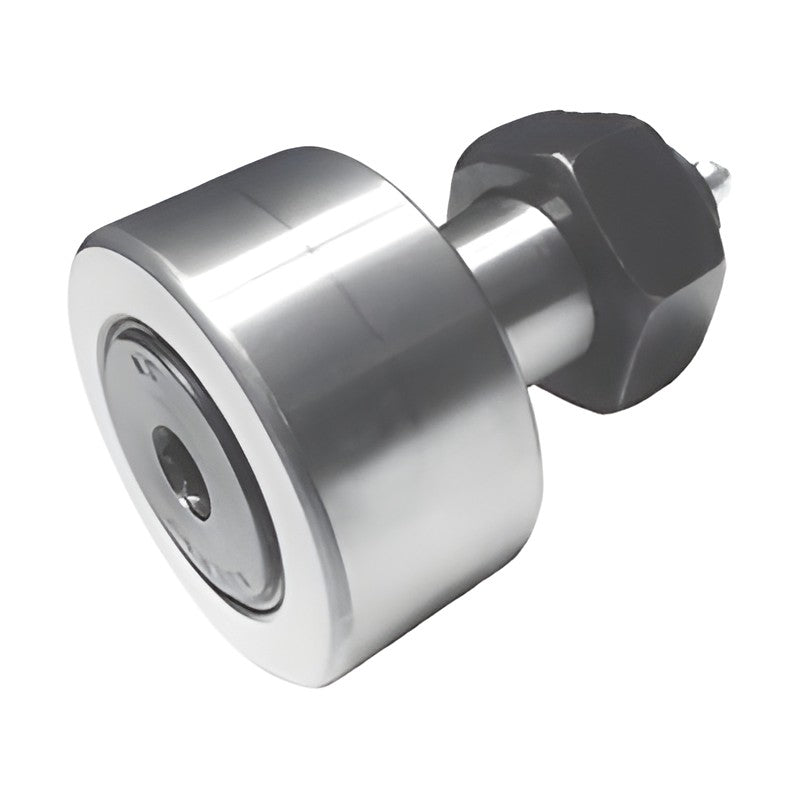

NS NUKR..R double-row cylindrical-roller stud-type track rollers with crowned outer ring for heavy loads.

Key features

  • Double-row full-complement cylindrical rollers
  • Crowned outer ring (R)
  • Lubrication via stud and hexagon socket
  • High radial load capacity

Specifications

Product Stud-type track roller, double row
Series NUKR
Load rating unit kgf
Brand NS
Product type Track Rollers
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 46
NUKR35R Outer D: 35 mm | Stud: 16 mm | C: 2350 kgf | C0: 2760 kgf | Mass: 177 g
NUKR40R Outer D: 40 mm | Stud: 18 mm | C: 2530 kgf | C0: 3160 kgf | Mass: 258 g
NUKR47R Outer D: 47 mm | Stud: 20 mm | C: 3980 kgf | C0: 5100 kgf | Mass: 400 g
NUKR52R Outer D: 52 mm | Stud: 20 mm | C: 4440 kgf | C0: 6120 kgf | Mass: 470 g
NUKR62R Outer D: 62 mm | Stud: 24 mm | C: 6020 kgf | C0: 8060 kgf | Mass: 824 g
NUKR72R Outer D: 72 mm | Stud: 24 mm | C: 6630 kgf | C0: 9490 kgf | Mass: 1050 g
NUKR80R Outer D: 80 mm | Stud: 30 mm | C: 9690 kgf | C0: 13570 kgf | Mass: 1670 g
NUKR90R Outer D: 90 mm | Stud: 30 mm | C: 9690 kgf | C0: 13570 kgf | Mass: 2020 g
Track RollersNS Precision
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision NUKR Double-Row Cam Followers (Stud 16-30 mm)

Brand NS Precision·Track Rollers

Available part numbers (8)

NUKR35R, NUKR40R, NUKR47R, NUKR52R, NUKR62R, NUKR72R, NUKR80R, NUKR90R

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NUKR35ROuter D: 35 mm | Stud: 16 mm | C: 2350 kgf | C0: 2760 kgf | Mass: 177 g
NUKR40ROuter D: 40 mm | Stud: 18 mm | C: 2530 kgf | C0: 3160 kgf | Mass: 258 g
NUKR47ROuter D: 47 mm | Stud: 20 mm | C: 3980 kgf | C0: 5100 kgf | Mass: 400 g
NUKR52ROuter D: 52 mm | Stud: 20 mm | C: 4440 kgf | C0: 6120 kgf | Mass: 470 g
NUKR62ROuter D: 62 mm | Stud: 24 mm | C: 6020 kgf | C0: 8060 kgf | Mass: 824 g
NUKR72ROuter D: 72 mm | Stud: 24 mm | C: 6630 kgf | C0: 9490 kgf | Mass: 1050 g
NUKR80ROuter D: 80 mm | Stud: 30 mm | C: 9690 kgf | C0: 13570 kgf | Mass: 1670 g
NUKR90ROuter D: 90 mm | Stud: 30 mm | C: 9690 kgf | C0: 13570 kgf | Mass: 2020 g
