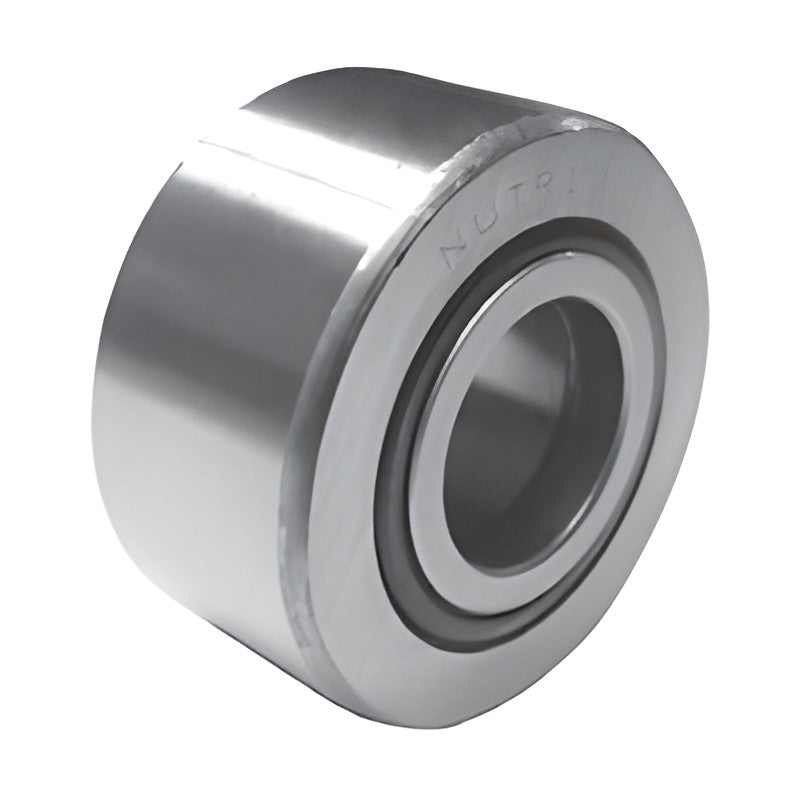

NS Precision NUTR Double-Row Yoke-Type Track Rollers (15-50 mm)

NS Precision NUTR Double-Row Yoke-Type Track Rollers (15-50 mm)

NS NUTR double-row full-complement cylindrical-roller yoke-type track rollers, crowned (R) or cylindrical (SL) outer ring, bores 15-50 mm.

Key features

  • Double-row full-complement cylindrical rollers
  • R: crowned outer ring; SL: cylindrical outer ring
  • Two outer diameters per bore size
  • High radial and track load capacity

Specifications

Product Yoke-type track roller, double row
Series NUTR
Load rating unit kgf
Brand NS
Product type Track Rollers
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 56-57
NUTR1535R d: 15 mm | D: 35 mm | B1: 19 mm | C: 2350 kgf | C0: 2760 kgf | Mass: 99 g
NUTR1535SL d: 15 mm | D: 35 mm | B1: 19 mm | C: 2350 kgf | C0: 2760 kgf | Mass: 99 g
NUTR1542R d: 15 mm | D: 42 mm | B1: 19 mm | C: 2350 kgf | C0: 2760 kgf | Mass: 158 g
NUTR1542SL d: 15 mm | D: 42 mm | B1: 19 mm | C: 2350 kgf | C0: 2760 kgf | Mass: 158 g
NUTR1740R d: 17 mm | D: 40 mm | B1: 21 mm | C: 2530 kgf | C0: 3160 kgf | Mass: 147 g
NUTR1740SL d: 17 mm | D: 40 mm | B1: 21 mm | C: 2530 kgf | C0: 3160 kgf | Mass: 147 g
NUTR1747R d: 17 mm | D: 47 mm | B1: 21 mm | C: 2530 kgf | C0: 3160 kgf | Mass: 220 g
NUTR1747SL d: 17 mm | D: 47 mm | B1: 21 mm | C: 2530 kgf | C0: 3160 kgf | Mass: 220 g
NUTR2047R d: 20 mm | D: 47 mm | B1: 25 mm | C: 3980 kgf | C0: 5100 kgf | Mass: 245 g
NUTR2047SL d: 20 mm | D: 47 mm | B1: 25 mm | C: 3980 kgf | C0: 5100 kgf | Mass: 245 g
NUTR2052R d: 20 mm | D: 52 mm | B1: 25 mm | C: 3980 kgf | C0: 5100 kgf | Mass: 321 g
NUTR2052SL d: 20 mm | D: 52 mm | B1: 25 mm | C: 3980 kgf | C0: 5100 kgf | Mass: 321 g
NUTR2552R d: 25 mm | D: 52 mm | B1: 25 mm | C: 4440 kgf | C0: 6120 kgf | Mass: 281 g
NUTR2552SL d: 25 mm | D: 52 mm | B1: 25 mm | C: 4440 kgf | C0: 6120 kgf | Mass: 281 g
NUTR2562R d: 25 mm | D: 62 mm | B1: 25 mm | C: 4440 kgf | C0: 6120 kgf | Mass: 450 g
NUTR2562SL d: 25 mm | D: 62 mm | B1: 25 mm | C: 4440 kgf | C0: 6120 kgf | Mass: 450 g
NUTR3062R d: 30 mm | D: 62 mm | B1: 29 mm | C: 6020 kgf | C0: 8060 kgf | Mass: 465 g
NUTR3062SL d: 30 mm | D: 62 mm | B1: 29 mm | C: 6020 kgf | C0: 8060 kgf | Mass: 465 g
NUTR3072R d: 30 mm | D: 72 mm | B1: 29 mm | C: 6020 kgf | C0: 8060 kgf | Mass: 697 g
NUTR3072SL d: 30 mm | D: 72 mm | B1: 29 mm | C: 6020 kgf | C0: 8060 kgf | Mass: 697 g
NUTR3572R d: 35 mm | D: 72 mm | B1: 29 mm | C: 6630 kgf | C0: 9490 kgf | Mass: 630 g
NUTR3572SL d: 35 mm | D: 72 mm | B1: 29 mm | C: 6630 kgf | C0: 9490 kgf | Mass: 630 g
NUTR3580R d: 35 mm | D: 80 mm | B1: 29 mm | C: 6630 kgf | C0: 9490 kgf | Mass: 836 g
NUTR3580SL d: 35 mm | D: 80 mm | B1: 29 mm | C: 6630 kgf | C0: 9490 kgf | Mass: 836 g
NUTR4080R d: 40 mm | D: 80 mm | B1: 32 mm | C: 9180 kgf | C0: 13670 kgf | Mass: 816 g
NUTR4080SL d: 40 mm | D: 80 mm | B1: 32 mm | C: 9180 kgf | C0: 13670 kgf | Mass: 816 g
NUTR4090R d: 40 mm | D: 90 mm | B1: 32 mm | C: 9180 kgf | C0: 13670 kgf | Mass: 1129 g
NUTR4090SL d: 40 mm | D: 90 mm | B1: 32 mm | C: 9180 kgf | C0: 13670 kgf | Mass: 1129 g
NUTR4585R d: 45 mm | D: 85 mm | B1: 32 mm | C: 9690 kgf | C0: 15000 kgf | Mass: 883 g
NUTR4585SL d: 45 mm | D: 85 mm | B1: 32 mm | C: 9690 kgf | C0: 15000 kgf | Mass: 883 g
NUTR45100R d: 45 mm | D: 100 mm | B1: 32 mm | C: 9690 kgf | C0: 15000 kgf | Mass: 1396 g
NUTR45100SL d: 45 mm | D: 100 mm | B1: 32 mm | C: 9690 kgf | C0: 15000 kgf | Mass: 1396 g
NUTR5090R d: 50 mm | D: 90 mm | B1: 32 mm | C: 10200 kgf | C0: 16430 kgf | Mass: 950 g
NUTR5090SL d: 50 mm | D: 90 mm | B1: 32 mm | C: 10200 kgf | C0: 16430 kgf | Mass: 950 g
NUTR50110R d: 50 mm | D: 110 mm | B1: 32 mm | C: 10200 kgf | C0: 16430 kgf | Mass: 1690 g
NUTR50110SL d: 50 mm | D: 110 mm | B1: 32 mm | C: 10200 kgf | C0: 16430 kgf | Mass: 1690 g
Track RollersNS Precision
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision NUTR Double-Row Yoke-Type Track Rollers (15-50 mm)

Brand NS Precision·Track Rollers

Available part numbers (36)

NUTR1535R, NUTR1535SL, NUTR1542R, NUTR1542SL, NUTR1740R, NUTR1740SL, NUTR1747R, NUTR1747SL, NUTR2047R, NUTR2047SL + 26 more — see full table ↓
