NS Precision PHS Rod Ends (Female Thread, Lubricated, Metric & Inch)

NS Precision PHS Rod Ends (Female Thread, Lubricated, Metric & Inch)

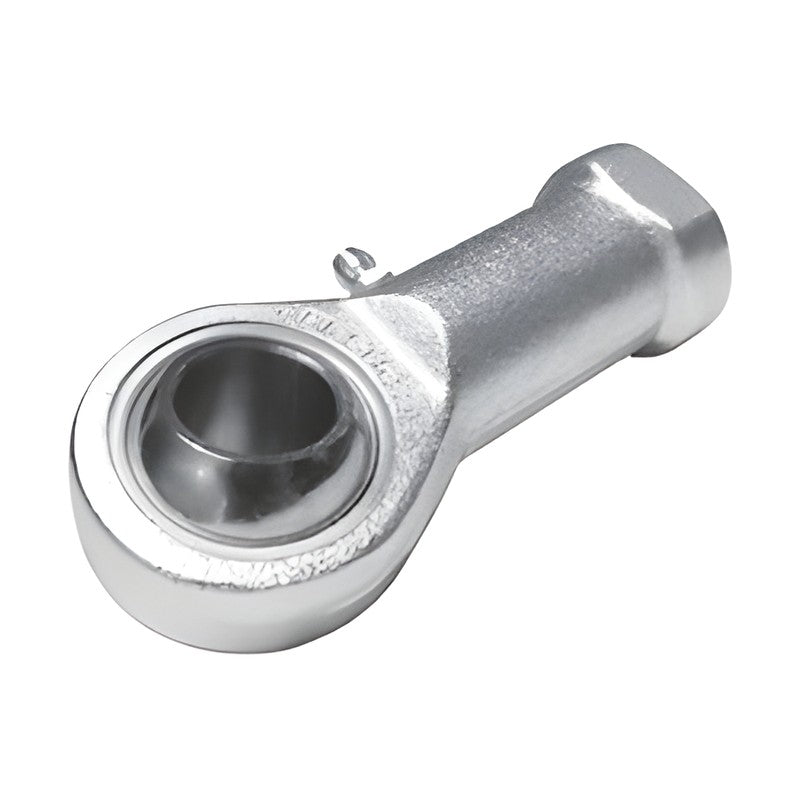

NS PHS rod ends with internal (female) thread and grease nipple for re-lubrication, in metric (PHS3-PHS35) and inch (PHS3/16-PHS1) sizes.

Key features

  • Female (internal) shank thread
  • Steel housing with spherical plain bearing insert
  • Right-hand (R) and left-hand (L) threads available
  • Tilting angle 11-15 degrees depending on size
  • Basic static load rating and mass listed per size

Specifications

Product Rod end (spherical plain bearing)
Thread hand R (right, white zinc) / L (left, yellow zinc) suffix
Type Lubrication type, female thread
Brand NS
Product type Rod Ends & Plain Bearings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 8-10
PHS3 Bore d: 3 mm | Thread: M3x0.5 | C0: 360 kgf | Mass: 5.7 g
PHS4 Bore d: 4 mm | Thread: M4x0.7 | C0: 460 kgf | Mass: 11.9 g
PHS5 Bore d: 5 mm | Thread: M5x0.8 | C0: 570 kgf | Mass: 16.5 g
PHS6 Bore d: 6 mm | Thread: M6x1 | C0: 700 kgf | Mass: 25 g
PHS8 Bore d: 8 mm | Thread: M8x1.25 | C0: 1000 kgf | Mass: 43 g
PHS10 Bore d: 10 mm | Thread: M10x1.25 or M10x1.5 | C0: 1350 kgf | Mass: 72 g
PHS12 Bore d: 12 mm | Thread: M12x1.75 | C0: 1700 kgf | Mass: 107 g
PHS14 Bore d: 14 mm | Thread: M14x1.5 or M14x2 | C0: 2100 kgf | Mass: 160 g
PHS16 Bore d: 16 mm | Thread: M16x1.5 or M16x2 | C0: 2550 kgf | Mass: 210 g
PHS18 Bore d: 18 mm | Thread: M18x1.5 | C0: 3000 kgf | Mass: 295 g
PHS20 Bore d: 20 mm | Thread: M20x1.5 | C0: 3500 kgf | Mass: 380 g
PHS22 Bore d: 22 mm | Thread: M22x1.5 | C0: 4200 kgf | Mass: 490 g
PHS24 Bore d: 25 mm | Thread: M24x1.5 or M24x2 | C0: 7400 kgf | Mass: 750 g
PHS25 Bore d: 25 mm | Thread: M25x1.5 or M26x1.5 | C0: 7400 kgf | Mass: 750 g
PHS30 Bore d: 30 mm | Thread: M30x1.5 or M30x2 | C0: 9100 kgf | Mass: 900 g
PHS35 Bore d: 35 mm | Thread: M36x1.5 or M36x2 | C0: 11400 kgf | Mass: 1400 g
PHS3/16 Bore d: 3/16 in | Thread: No.10-32 | C0: 570 kgf | Mass: 16.5 g
PHS1/4 Bore d: 1/4 in | Thread: 1/4x28 | C0: 700 kgf | Mass: 25 g
PHS5/16 Bore d: 5/16 in | Thread: 5/16x24 | C0: 1000 kgf | Mass: 43 g
PHS3/8 Bore d: 3/8 in | Thread: 3/8x24 | C0: 1350 kgf | Mass: 72 g
PHS7/16 Bore d: 7/16 in | Thread: 7/16x20 | C0: 1700 kgf | Mass: 107 g
PHS1/2 Bore d: 1/2 in | Thread: 1/2x20 | C0: 1700 kgf | Mass: 107 g
PHS5/8 Bore d: 5/8 in | Thread: 5/8x18 | C0: 2550 kgf | Mass: 210 g
PHS3/4 Bore d: 3/4 in | Thread: 3/4x16 | C0: 3500 kgf | Mass: 380 g
PHS7/8 Bore d: 7/8 in | Thread: 7/8x14 | C0: 4200 kgf | Mass: 490 g
PHS1 Bore d: 1 in | Thread: 1x12 | C0: 5500 kgf | Mass: 750 g
