NS Precision PHSG Heavy-Duty Rod Ends (Female Thread, Lubricated, 20-3

NS Precision PHSG Heavy-Duty Rod Ends (Female Thread, Lubricated, 20-3

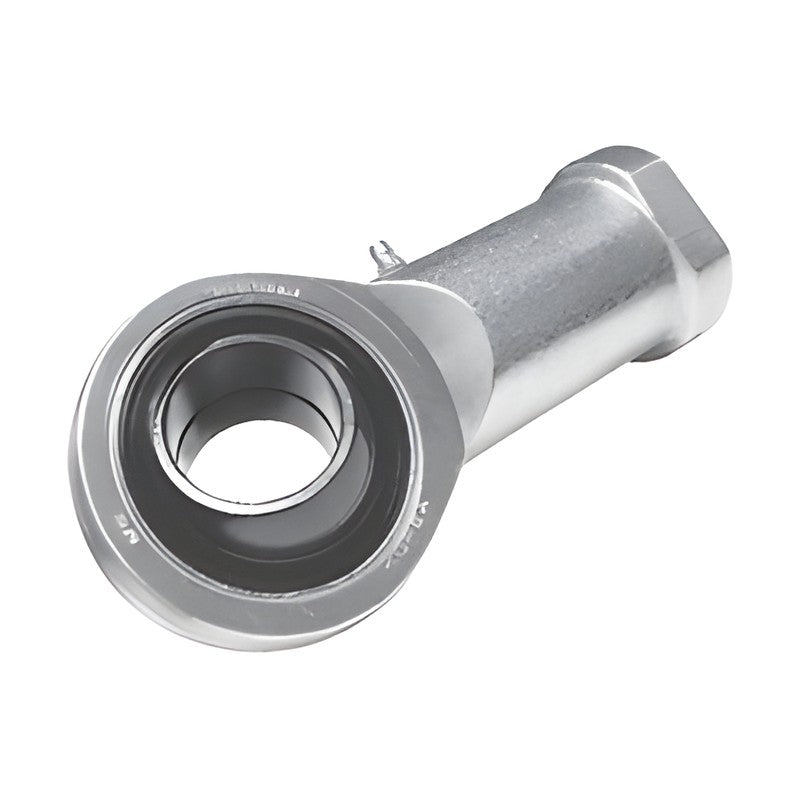

NS PHSG heavy-load rod ends with female thread and grease nipple for 20-35 mm bores.

Key features

  • Heavy-duty female-thread housing
  • Steel housing with spherical plain bearing insert
  • Right-hand (R) and left-hand (L) threads available
  • Tilting angle 11-15 degrees depending on size
  • Basic static load rating and mass listed per size

Specifications

Product Rod end (spherical plain bearing)
Thread hand R (right, white zinc) / L (left, yellow zinc) suffix
Type Lubrication type, heavy load, female thread
Brand NS
Product type Rod Ends & Plain Bearings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 14
PHSG20 Bore d: 20 mm | Thread: M20x1.5 | C0: 3850 kgf | Mass: 380 g
PHSG22 Bore d: 22 mm | Thread: M22x1.5 | C0: 4620 kgf | Mass: 490 g
PHSG24 Bore d: 25 mm | Thread: M24x1.5 or M24x2.0 | C0: 8140 kgf | Mass: 750 g
PHSG25 Bore d: 25 mm | Thread: M25x1.5 or M26x1.5 | C0: 8140 kgf | Mass: 750 g
PHSG30 Bore d: 30 mm | Thread: M30x1.5 or M30x2.0 | C0: 9100 kgf | Mass: 900 g
PHSG35 Bore d: 35 mm | Thread: M36x1.5 or M36x2.0 | C0: 11400 kgf | Mass: 1400 g
Rod Ends & Plain BearingsNS Precision
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision PHSG Heavy-Duty Rod Ends (Female Thread, Lubricated, 20-3

Brand NS Precision·Rod Ends & Plain Bearings

Available part numbers (6)

PHSG20, PHSG22, PHSG24, PHSG25, PHSG30, PHSG35

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PHSG20Bore d: 20 mm | Thread: M20x1.5 | C0: 3850 kgf | Mass: 380 g
PHSG22Bore d: 22 mm | Thread: M22x1.5 | C0: 4620 kgf | Mass: 490 g
PHSG24Bore d: 25 mm | Thread: M24x1.5 or M24x2.0 | C0: 8140 kgf | Mass: 750 g
PHSG25Bore d: 25 mm | Thread: M25x1.5 or M26x1.5 | C0: 8140 kgf | Mass: 750 g
PHSG30Bore d: 30 mm | Thread: M30x1.5 or M30x2.0 | C0: 9100 kgf | Mass: 900 g
PHSG35Bore d: 35 mm | Thread: M36x1.5 or M36x2.0 | C0: 11400 kgf | Mass: 1400 g
