NS Precision POS Rod Ends (Male Thread, Lubricated, Metric & Inch)

NS Precision POS Rod Ends (Male Thread, Lubricated, Metric & Inch)

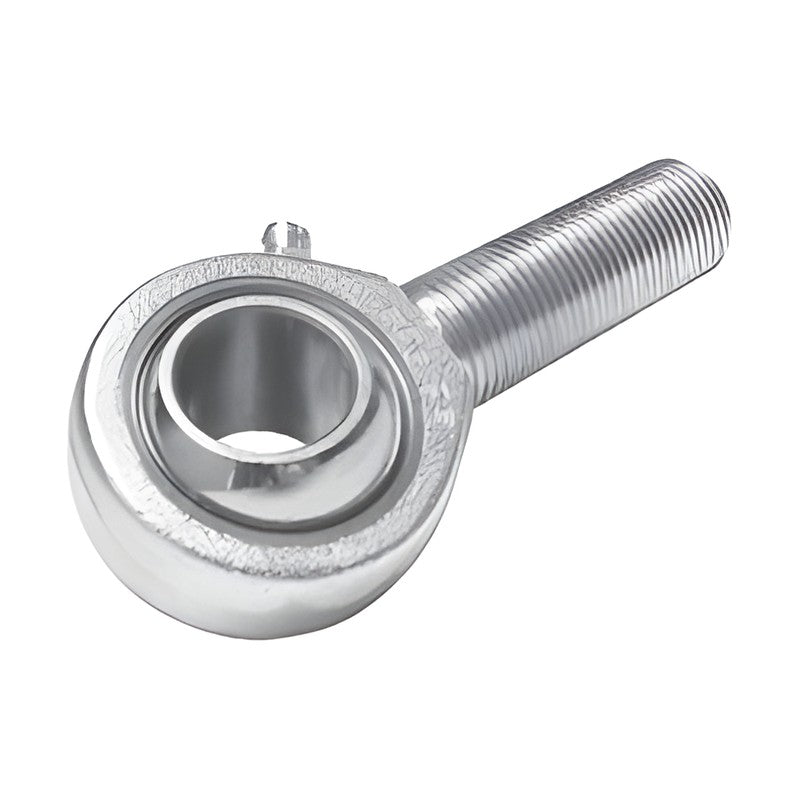

NS POS rod ends with external (male) thread and grease nipple, in metric (POS3-POS35) and inch (POS3/16-POS1) sizes.

Key features

  • Male (external) shank thread
  • Steel housing with spherical plain bearing insert
  • Right-hand (R) and left-hand (L) threads available
  • Tilting angle 11-15 degrees depending on size
  • Basic static load rating and mass listed per size

Specifications

Product Rod end (spherical plain bearing)
Thread hand R (right, white zinc) / L (left, yellow zinc) suffix
Type Lubrication type, male thread
Brand NS
Product type Rod Ends & Plain Bearings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 9-11
POS3 Bore d: 3 mm | Thread: M3x0.5 | C0: 270 kgf | Mass: 5 g
POS4 Bore d: 4 mm | Thread: M4x0.7 | C0: 310 kgf | Mass: 8.1 g
POS5 Bore d: 5 mm | Thread: M5x0.8 | C0: 350 kgf | Mass: 12.5 g
POS6 Bore d: 6 mm | Thread: M6x1 | C0: 500 kgf | Mass: 19 g
POS8 Bore d: 8 mm | Thread: M8x1.25 | C0: 700 kgf | Mass: 32 g
POS10 Bore d: 10 mm | Thread: M10x1.5 | C0: 1100 kgf | Mass: 54 g
POS12 Bore d: 12 mm | Thread: M12x1.75 | C0: 1700 kgf | Mass: 85 g
POS14 Bore d: 14 mm | Thread: M14x2 | C0: 2100 kgf | Mass: 126 g
POS16 Bore d: 16 mm | Thread: M16x2 | C0: 2550 kgf | Mass: 185 g
POS18 Bore d: 18 mm | Thread: M18x1.5 | C0: 3000 kgf | Mass: 260 g
POS20 Bore d: 20 mm | Thread: M20x1.5 | C0: 3500 kgf | Mass: 340 g
POS22 Bore d: 22 mm | Thread: M22x1.5 | C0: 4200 kgf | Mass: 435 g
POS24 Bore d: 25 mm | Thread: M24x2 | C0: 7400 kgf | Mass: 650 g
POS25 Bore d: 25 mm | Thread: M25x1.5 | C0: 7400 kgf | Mass: 650 g
POS30 Bore d: 30 mm | Thread: M30x2 | C0: 9100 kgf | Mass: 910 g
POS35 Bore d: 35 mm | Thread: M36x2 | C0: 11400 kgf | Mass: 1440 g
POS3/16 Bore d: 3/16 in | Thread: No.10-32 | C0: 350 kgf | Mass: 12.5 g
POS1/4 Bore d: 1/4 in | Thread: 1/4x28 | C0: 500 kgf | Mass: 19 g
POS5/16 Bore d: 5/16 in | Thread: 5/16x24 | C0: 700 kgf | Mass: 32 g
POS3/8 Bore d: 3/8 in | Thread: 3/8x24 | C0: 1100 kgf | Mass: 54 g
POS7/16 Bore d: 7/16 in | Thread: 7/16x20 | C0: 1700 kgf | Mass: 85 g
POS1/2 Bore d: 1/2 in | Thread: 1/2x20 | C0: 1700 kgf | Mass: 85 g
POS5/8 Bore d: 5/8 in | Thread: 5/8x18 | C0: 2550 kgf | Mass: 185 g
POS3/4 Bore d: 3/4 in | Thread: 3/4x16 | C0: 3500 kgf | Mass: 340 g
POS7/8 Bore d: 7/8 in | Thread: 7/8x14 | C0: 4200 kgf | Mass: 435 g
POS1 Bore d: 1 in | Thread: 1x12 | C0: 5500 kgf | Mass: 600 g
Rod Ends & Plain BearingsNS Precision
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision POS Rod Ends (Male Thread, Lubricated, Metric & Inch)

Brand NS Precision·Rod Ends & Plain Bearings

Available part numbers (26)

POS3, POS4, POS5, POS6, POS8, POS10, POS12, POS14, POS16, POS18 + 16 more — see full table ↓

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
POS3Bore d: 3 mm | Thread: M3x0.5 | C0: 270 kgf | Mass: 5 g
POS4Bore d: 4 mm | Thread: M4x0.7 | C0: 310 kgf | Mass: 8.1 g
POS5Bore d: 5 mm | Thread: M5x0.8 | C0: 350 kgf | Mass: 12.5 g
POS6Bore d: 6 mm | Thread: M6x1 | C0: 500 kgf | Mass: 19 g
POS8Bore d: 8 mm | Thread: M8x1.25 | C0: 700 kgf | Mass: 32 g
POS10Bore d: 10 mm | Thread: M10x1.5 | C0: 1100 kgf | Mass: 54 g
POS12Bore d: 12 mm | Thread: M12x1.75 | C0: 1700 kgf | Mass: 85 g
POS14Bore d: 14 mm | Thread: M14x2 | C0: 2100 kgf | Mass: 126 g
POS16Bore d: 16 mm | Thread: M16x2 | C0: 2550 kgf | Mass: 185 g
POS18Bore d: 18 mm | Thread: M18x1.5 | C0: 3000 kgf | Mass: 260 g
POS20Bore d: 20 mm | Thread: M20x1.5 | C0: 3500 kgf | Mass: 340 g
POS22Bore d: 22 mm | Thread: M22x1.5 | C0: 4200 kgf | Mass: 435 g
POS24Bore d: 25 mm | Thread: M24x2 | C0: 7400 kgf | Mass: 650 g
POS25Bore d: 25 mm | Thread: M25x1.5 | C0: 7400 kgf | Mass: 650 g
POS30Bore d: 30 mm | Thread: M30x2 | C0: 9100 kgf | Mass: 910 g
POS35Bore d: 35 mm | Thread: M36x2 | C0: 11400 kgf | Mass: 1440 g
POS3/16Bore d: 3/16 in | Thread: No.10-32 | C0: 350 kgf | Mass: 12.5 g
POS1/4Bore d: 1/4 in | Thread: 1/4x28 | C0: 500 kgf | Mass: 19 g
POS5/16Bore d: 5/16 in | Thread: 5/16x24 | C0: 700 kgf | Mass: 32 g
POS3/8Bore d: 3/8 in | Thread: 3/8x24 | C0: 1100 kgf | Mass: 54 g
POS7/16Bore d: 7/16 in | Thread: 7/16x20 | C0: 1700 kgf | Mass: 85 g
POS1/2Bore d: 1/2 in | Thread: 1/2x20 | C0: 1700 kgf | Mass: 85 g
POS5/8Bore d: 5/8 in | Thread: 5/8x18 | C0: 2550 kgf | Mass: 185 g
POS3/4Bore d: 3/4 in | Thread: 3/4x16 | C0: 3500 kgf | Mass: 340 g
POS7/8Bore d: 7/8 in | Thread: 7/8x14 | C0: 4200 kgf | Mass: 435 g
POS1Bore d: 1 in | Thread: 1x12 | C0: 5500 kgf | Mass: 600 g
