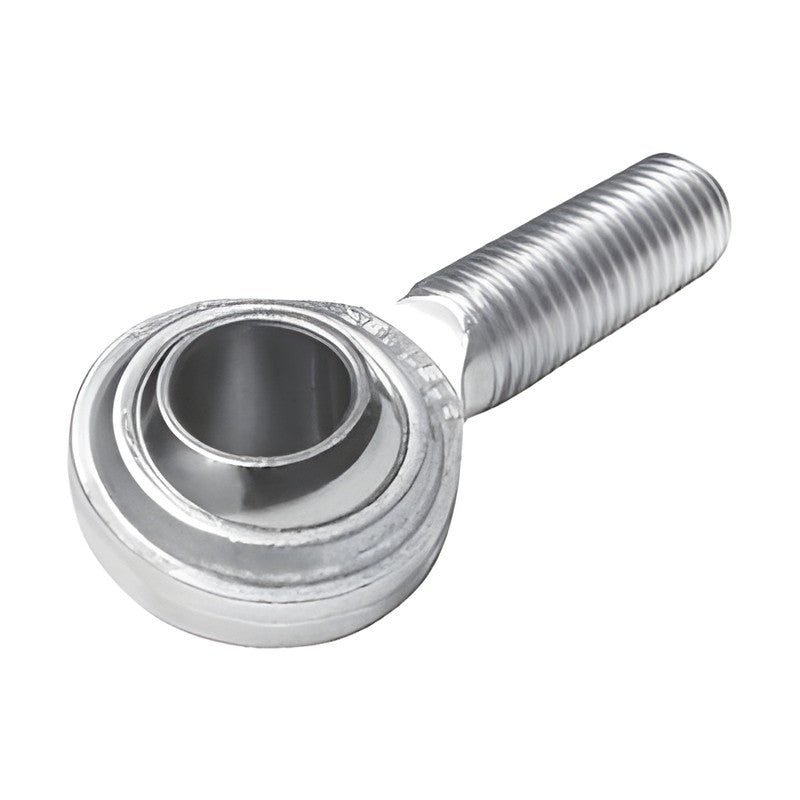

NS Precision POST Rod Ends (Male Thread, Maintenance-Free, Metric)

NS POST maintenance-free (non-lubrication) rod ends with male thread, 3-20 mm bore.

Key features

Male shank thread
Self-lubricating liner, no re-greasing required
Right-hand (R) and left-hand (L) threads available
Tilting angle 11-15 degrees depending on size
Basic static load rating and mass listed per size

Specifications

Product	Rod end (spherical plain bearing)
Thread hand	R (right, white zinc) / L (left, yellow zinc) suffix
Type	Non-lubrication, male thread
Brand	NS
Product type	Rod Ends & Plain Bearings
Source	NS NS Precision catalogue (CAT No. NS-2019-01), p. 13

POST3		Bore d: 3 mm \| Thread: M3x0.5 \| C0: 270 kgf \| Mass: 4.5 g
POST4		Bore d: 4 mm \| Thread: M4x0.7 \| C0: 310 kgf \| Mass: 7 g
POST5		Bore d: 5 mm \| Thread: M5x0.8 \| C0: 350 kgf \| Mass: 12.5 g
POST6		Bore d: 6 mm \| Thread: M6x1 \| C0: 510 kgf \| Mass: 19 g
POST8		Bore d: 8 mm \| Thread: M8x1.25 \| C0: 700 kgf \| Mass: 32 g
POST10		Bore d: 10 mm \| Thread: M10x1.5 \| C0: 960 kgf \| Mass: 54 g
POST12		Bore d: 12 mm \| Thread: M12x1.75 \| C0: 1120 kgf \| Mass: 85 g
POST14		Bore d: 14 mm \| Thread: M14x2 \| C0: 1550 kgf \| Mass: 126 g
POST16		Bore d: 16 mm \| Thread: M16x2 \| C0: 2060 kgf \| Mass: 185 g
POST18		Bore d: 18 mm \| Thread: M18x1.5 \| C0: 2570 kgf \| Mass: 260 g
POST20		Bore d: 20 mm \| Thread: M20x1.5 \| C0: 2840 kgf \| Mass: 340 g

Rod Ends & Plain BearingsNS Precision

11 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision POST Rod Ends (Male Thread, Maintenance-Free, Metric)

Brand NS Precision·Rod Ends & Plain Bearings

Available part numbers (11)

POST3, POST4, POST5, POST6, POST8, POST10, POST12, POST14, POST16, POST18 + 1 more — see full table ↓
