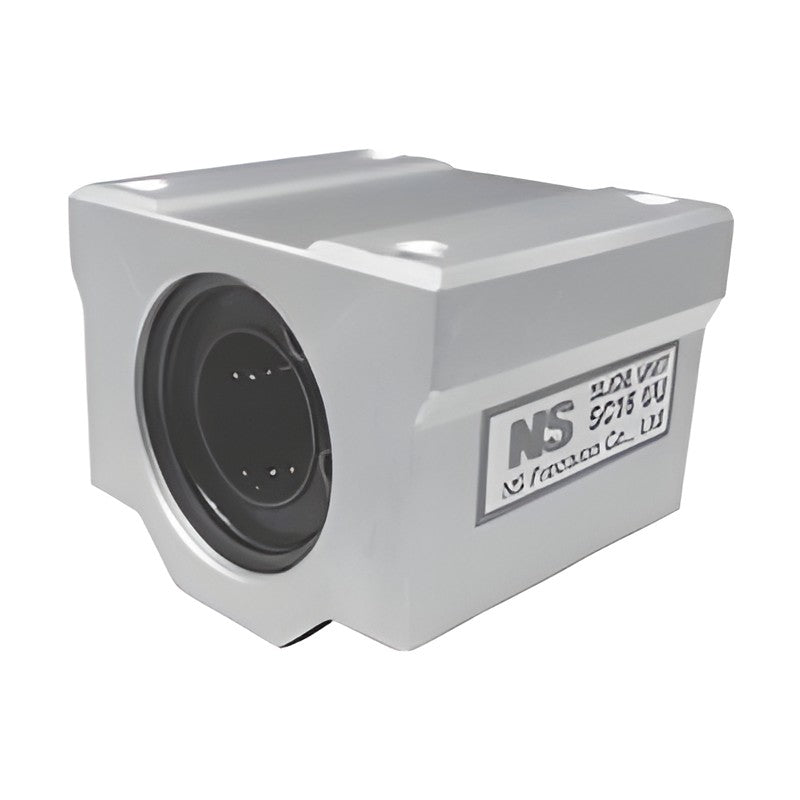

NS Precision SC..UU-OP Open Linear Slide Units (16-50 mm)

NS Precision SC..UU-OP Open Linear Slide Units (16-50 mm)

NS SC..UU-OP open-type aluminium slide units with LM..UU-OP open bushing for supported shafts, 16-50 mm.

Key features

  • Open LM..UU-OP bushing for supported rails
  • Aluminium housing with tapped mounting holes
  • Double-sealed (UU) as standard
  • Load ratings refer to the inserted bushing(s)

Specifications

Product Linear slide unit
Series SC-OP
Load rating unit kgf
Brand NS
Product type Linear Bushings
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 84
SC16UU-OP Shaft: 16 mm | W: 45 mm | C: 79 kgf | C0: 120 kgf | Mass: 150 g
SC20UU-OP Shaft: 20 mm | W: 48 mm | C: 90 kgf | C0: 140 kgf | Mass: 200 g
SC25UU-OP Shaft: 25 mm | W: 90 mm | C: 100 kgf | C0: 160 kgf | Mass: 450 g
SC30UU-OP Shaft: 30 mm | W: 70 mm | C: 160 kgf | C0: 280 kgf | Mass: 630 g
SC35UU-OP Shaft: 35 mm | W: 80 mm | C: 170 kgf | C0: 320 kgf | Mass: 925 g
SC40UU-OP Shaft: 40 mm | W: 90 mm | C: 220 kgf | C0: 410 kgf | Mass: 1330 g
SC50UU-OP Shaft: 50 mm | W: 120 mm | C: 390 kgf | C0: 810 kgf | Mass: 3000 g
Linear BushingsNS Precision
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision SC..UU-OP Open Linear Slide Units (16-50 mm)

Brand NS Precision·Linear Bushings

Available part numbers (7)

SC16UU-OP, SC20UU-OP, SC25UU-OP, SC30UU-OP, SC35UU-OP, SC40UU-OP, SC50UU-OP

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC16UU-OPShaft: 16 mm | W: 45 mm | C: 79 kgf | C0: 120 kgf | Mass: 150 g
SC20UU-OPShaft: 20 mm | W: 48 mm | C: 90 kgf | C0: 140 kgf | Mass: 200 g
SC25UU-OPShaft: 25 mm | W: 90 mm | C: 100 kgf | C0: 160 kgf | Mass: 450 g
SC30UU-OPShaft: 30 mm | W: 70 mm | C: 160 kgf | C0: 280 kgf | Mass: 630 g
SC35UU-OPShaft: 35 mm | W: 80 mm | C: 170 kgf | C0: 320 kgf | Mass: 925 g
SC40UU-OPShaft: 40 mm | W: 90 mm | C: 220 kgf | C0: 410 kgf | Mass: 1330 g
SC50UU-OPShaft: 50 mm | W: 120 mm | C: 390 kgf | C0: 810 kgf | Mass: 3000 g
