• NS Precision SCF Stainless Cam Followers (Full Complement, Stud 3-30 m
1 1

NS Precision SCF Stainless Cam Followers (Full Complement, Stud 3-30 m

NS Precision SCF Stainless Cam Followers (Full Complement, Stud 3-30 m

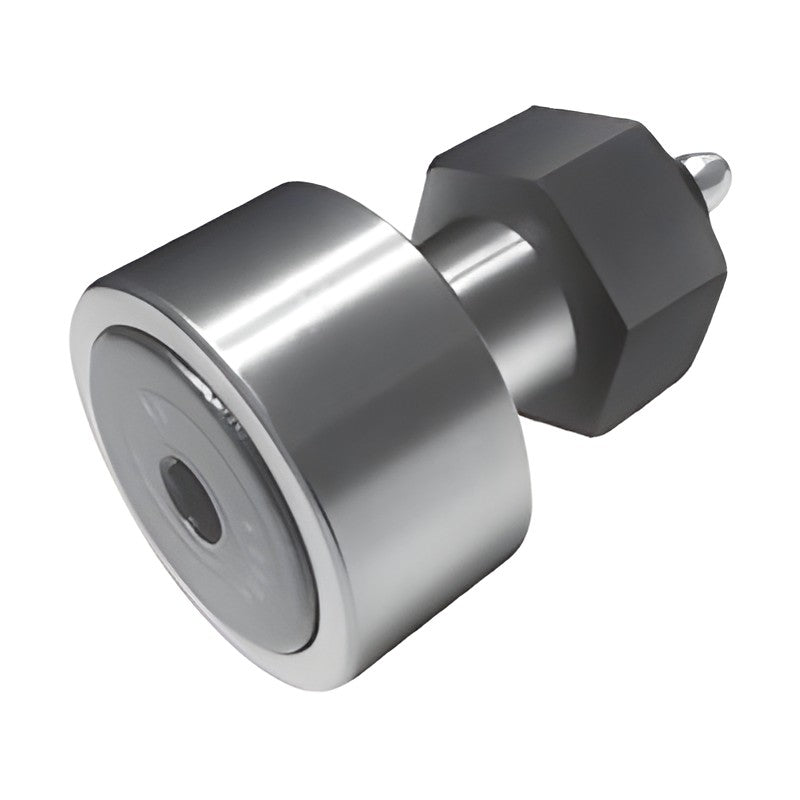

NS SCF stainless steel stud-type track rollers, full complement design, stud diameters 3-30 mm.

Key features

  • Stainless steel construction
  • Thick-walled outer ring runs directly on cam or track surfaces
  • Threaded stud with hexagon socket for easy mounting
  • Cylindrical (no R) or crowned (R) outer ring
  • Sealed (UU) versions retain grease and exclude contamination

Specifications

Product Stud-type track roller (cam follower)
Series SCF
Suffixes R = crowned outer ring; UU = sealed
Load rating unit kgf
Brand NS
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 40-41
SCF3V Outer D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
SCF3VUU Outer D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
SCF3VUUR Outer D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
SCF4V Outer D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
SCF4VUU Outer D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
SCF4VUUR Outer D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
SCF5V Outer D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
SCF5VUU Outer D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
SCF5VUUR Outer D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
SCF6V Outer D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
SCF6VUU Outer D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
SCF6VUUR Outer D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
SCF8V Outer D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
SCF8VUU Outer D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
SCF8VUUR Outer D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
SCF10V Outer D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
SCF10VUU Outer D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
SCF10VUUR Outer D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
SCF10-1V Outer D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
SCF10-1VUU Outer D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
SCF10-1VUUR Outer D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
SCF12V Outer D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
SCF12VUU Outer D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
SCF12VUUR Outer D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
SCF12-1V Outer D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
SCF12-1VUU Outer D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
SCF12-1VUUR Outer D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
SCF16V Outer D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
SCF16VUU Outer D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
SCF16VUUR Outer D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
SCF18V Outer D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
SCF18VUU Outer D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
SCF18VUUR Outer D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
SCF20V Outer D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
SCF20VUU Outer D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
SCF20VUUR Outer D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
SCF20-1V Outer D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
SCF20-1VUU Outer D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
SCF20-1VUUR Outer D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
SCF24V Outer D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
SCF24VUU Outer D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
SCF24VUUR Outer D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
SCF24-1V Outer D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
SCF24-1VUU Outer D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
SCF24-1VUUR Outer D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
SCF30V Outer D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
SCF30VUU Outer D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
SCF30VUUR Outer D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
SCF30-1V Outer D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
SCF30-1VUU Outer D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
SCF30-1VUUR Outer D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
SCF30-2V Outer D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
SCF30-2VUU Outer D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
SCF30-2VUUR Outer D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
Track RollersNS Precision
54 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision SCF Stainless Cam Followers (Full Complement, Stud 3-30 m

Brand NS Precision·Track Rollers

Available part numbers (54)

SCF3V, SCF3VUU, SCF3VUUR, SCF4V, SCF4VUU, SCF4VUUR, SCF5V, SCF5VUU, SCF5VUUR, SCF6V + 44 more — see full table ↓

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCF3VOuter D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
SCF3VUUOuter D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
SCF3VUUROuter D: 10 mm | Stud: 3 mm | C: 200 kgf | C0: 240 kgf | Mass: 5 g
SCF4VOuter D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
SCF4VUUOuter D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
SCF4VUUROuter D: 12 mm | Stud: 4 mm | C: 310 kgf | C0: 260 kgf | Mass: 8 g
SCF5VOuter D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
SCF5VUUOuter D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
SCF5VUUROuter D: 13 mm | Stud: 5 mm | C: 400 kgf | C0: 280 kgf | Mass: 11 g
SCF6VOuter D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
SCF6VUUOuter D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
SCF6VUUROuter D: 16 mm | Stud: 6 mm | C: 710 kgf | C0: 870 kgf | Mass: 19 g
SCF8VOuter D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
SCF8VUUOuter D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
SCF8VUUROuter D: 19 mm | Stud: 8 mm | C: 830 kgf | C0: 1140 kgf | Mass: 29 g
SCF10VOuter D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
SCF10VUUOuter D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
SCF10VUUROuter D: 22 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 46 g
SCF10-1VOuter D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
SCF10-1VUUOuter D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
SCF10-1VUUROuter D: 26 mm | Stud: 10 mm | C: 970 kgf | C0: 1480 kgf | Mass: 61 g
SCF12VOuter D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
SCF12VUUOuter D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
SCF12VUUROuter D: 30 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 97 g
SCF12-1VOuter D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
SCF12-1VUUOuter D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
SCF12-1VUUROuter D: 32 mm | Stud: 12 mm | C: 1370 kgf | C0: 2010 kgf | Mass: 107 g
SCF16VOuter D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
SCF16VUUOuter D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
SCF16VUUROuter D: 35 mm | Stud: 16 mm | C: 2110 kgf | C0: 3840 kgf | Mass: 173 g
SCF18VOuter D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
SCF18VUUOuter D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
SCF18VUUROuter D: 40 mm | Stud: 18 mm | C: 2580 kgf | C0: 5240 kgf | Mass: 255 g
SCF20VOuter D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
SCF20VUUOuter D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
SCF20VUUROuter D: 52 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 465 g
SCF20-1VOuter D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
SCF20-1VUUOuter D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
SCF20-1VUUROuter D: 47 mm | Stud: 20 mm | C: 3380 kgf | C0: 6580 kgf | Mass: 390 g
SCF24VOuter D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
SCF24VUUOuter D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
SCF24VUUROuter D: 62 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 820 g
SCF24-1VOuter D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
SCF24-1VUUOuter D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
SCF24-1VUUROuter D: 72 mm | Stud: 24 mm | C: 4750 kgf | C0: 9390 kgf | Mass: 1140 g
SCF30VOuter D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
SCF30VUUOuter D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
SCF30VUUROuter D: 80 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 1870 g
SCF30-1VOuter D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
SCF30-1VUUOuter D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
SCF30-1VUUROuter D: 95 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2030 g
SCF30-2VOuter D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
SCF30-2VUUOuter D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
SCF30-2VUUROuter D: 90 mm | Stud: 30 mm | C: 6900 kgf | C0: 14700 kgf | Mass: 2220 g
