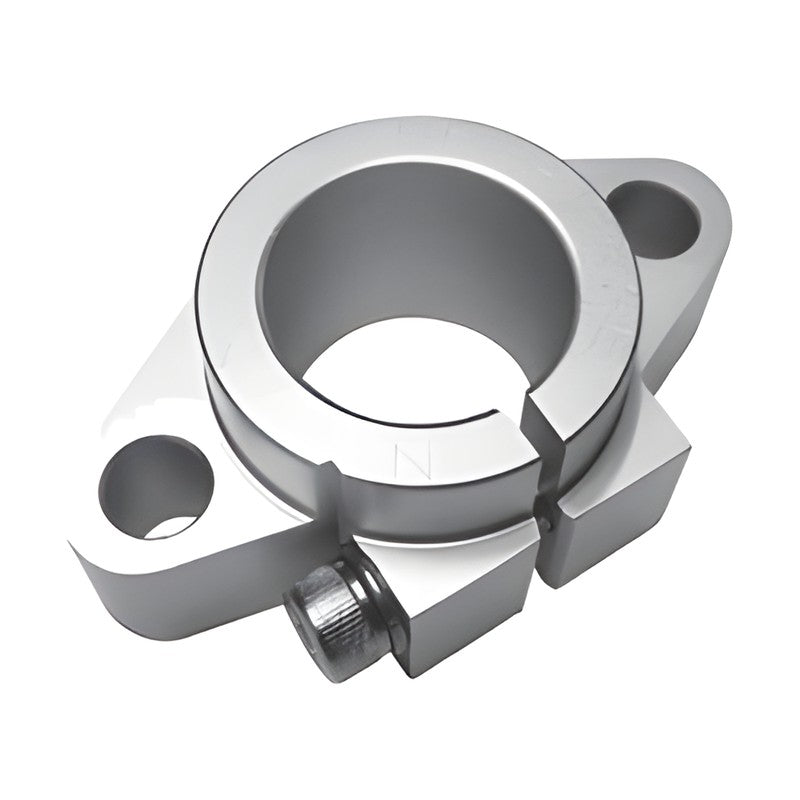

NS Precision SF Flange-Type Linear Shaft Supports (10-60 mm)

NS Precision SF Flange-Type Linear Shaft Supports (10-60 mm)

NS SF flange-type aluminium shaft supports with clamping bolt for linear shafts 10-60 mm.

Key features

  • Two-hole flange mounting
  • Split clamp with clamping bolt
  • Aluminium alloy body
  • For vertical or wall mounting of linear shafts

Specifications

Product Flange-type linear shaft support
Series SF
Brand NS
Product type Linear Bushings
Designations listed 11 codes
Source NS NS Precision catalogue (CAT No. NS-2019-01), p. 86
SF10 Shaft: 10 mm | T: 10 mm | W: 42 mm | H: 23 mm | Mass: 13 g
SF12 Shaft: 12 mm | T: 13 mm | W: 47 mm | H: 27 mm | Mass: 20 g
SF13 Shaft: 13 mm | T: 13 mm | W: 47 mm | H: 27 mm | Mass: 20 g
SF16 Shaft: 16 mm | T: 16 mm | W: 50 mm | H: 31 mm | Mass: 27 g
SF20 Shaft: 20 mm | T: 20 mm | W: 60 mm | H: 37 mm | Mass: 40 g
SF25 Shaft: 25 mm | T: 25 mm | W: 70 mm | H: 42 mm | Mass: 40 g
SF30 Shaft: 30 mm | T: 30 mm | W: 80 mm | H: 50 mm | Mass: 110 g
SF35 Shaft: 35 mm | T: 35 mm | W: 92 mm | H: 58 mm | Mass: 140 g
SF40 Shaft: 40 mm | T: 40 mm | W: 102 mm | H: 67 mm | Mass: 205 g
SF50 Shaft: 50 mm | T: 50 mm | W: 122 mm | H: 83 mm | Mass: 360 g
SF60 Shaft: 60 mm | T: 60 mm | W: 140 mm | H: 95 mm | Mass: 530 g
Linear BushingsNS Precision
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

NS Precision SF Flange-Type Linear Shaft Supports (10-60 mm)

Brand NS Precision·Linear Bushings

Available part numbers (11)

SF10, SF12, SF13, SF16, SF20, SF25, SF30, SF35, SF40, SF50 + 1 more — see full table ↓

How to order

Send the NS Precision part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SF10Shaft: 10 mm | T: 10 mm | W: 42 mm | H: 23 mm | Mass: 13 g
SF12Shaft: 12 mm | T: 13 mm | W: 47 mm | H: 27 mm | Mass: 20 g
SF13Shaft: 13 mm | T: 13 mm | W: 47 mm | H: 27 mm | Mass: 20 g
SF16Shaft: 16 mm | T: 16 mm | W: 50 mm | H: 31 mm | Mass: 27 g
SF20Shaft: 20 mm | T: 20 mm | W: 60 mm | H: 37 mm | Mass: 40 g
SF25Shaft: 25 mm | T: 25 mm | W: 70 mm | H: 42 mm | Mass: 40 g
SF30Shaft: 30 mm | T: 30 mm | W: 80 mm | H: 50 mm | Mass: 110 g
SF35Shaft: 35 mm | T: 35 mm | W: 92 mm | H: 58 mm | Mass: 140 g
SF40Shaft: 40 mm | T: 40 mm | W: 102 mm | H: 67 mm | Mass: 205 g
SF50Shaft: 50 mm | T: 50 mm | W: 122 mm | H: 83 mm | Mass: 360 g
SF60Shaft: 60 mm | T: 60 mm | W: 140 mm | H: 95 mm | Mass: 530 g
